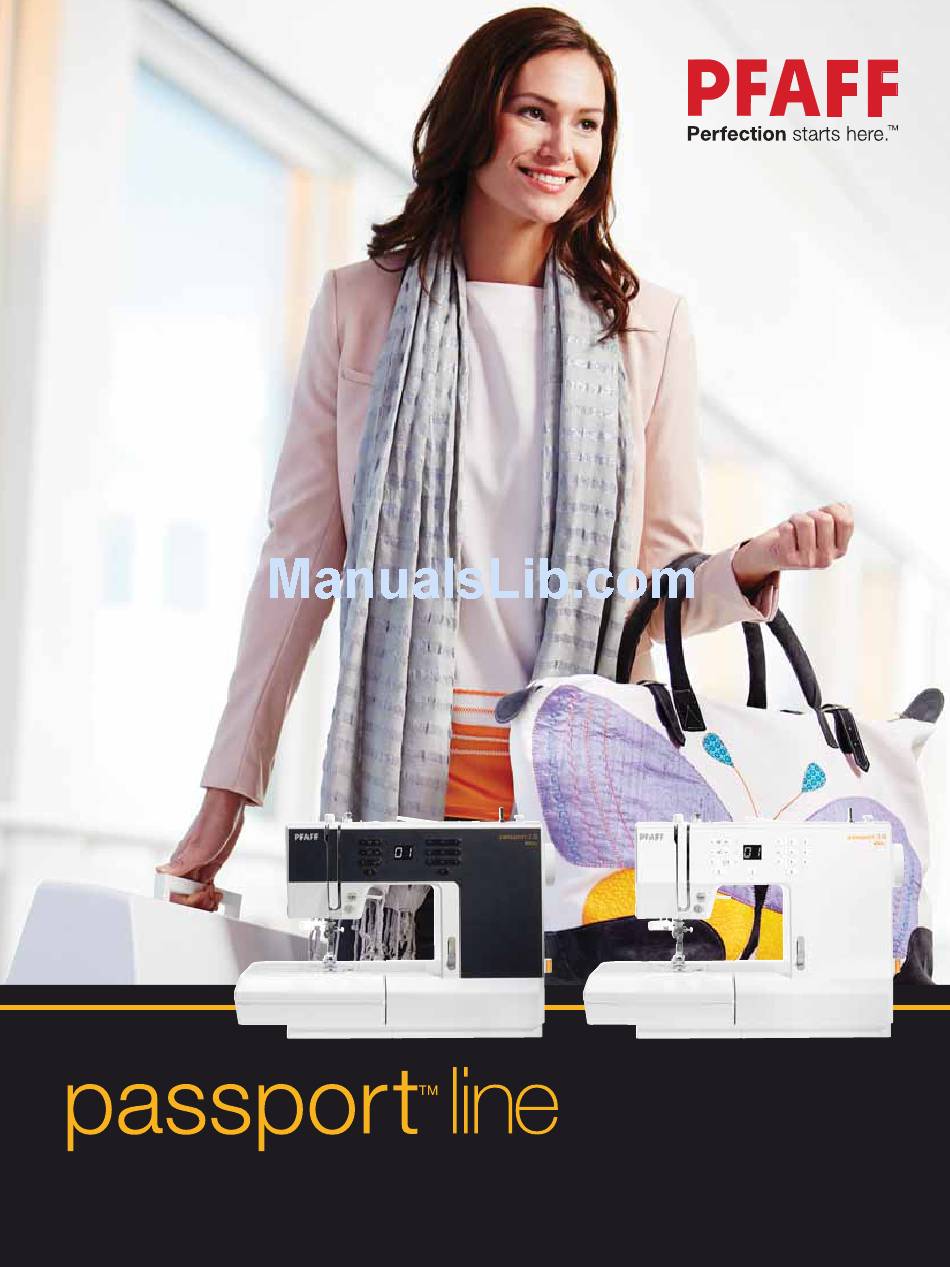

- Page 1 Owner’s manual...
-
Page 2: Important Safety Instructions
This household sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594. IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using this household sewing machine. Keep the instructions at a su- itable place close to the machine. - Page 3 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Table Of Contents
Before you start, please spend some time reading this owner’s manual. You will soon discover how to maximize the use of your machine. Our authorized PFAFF® dealer will of course also be pleased to advise you as well. -
Page 6: Introduction
Introduction Machine overview Front side Threading slots 11. Needle screw Thread cutter 12. Needle thread guide 13. Presser foot bar and presser foot holder LED lights Built-in needle threader 14. Presser foot Buttonhole lever 15. Free arm 16. Accessory tray Needle bar Stitch plate 17. -
Page 7: Accessories
Top parts 21. Presser foot pressure dial 22. Thread guides 23. Spool caps 24. Hole for auxiliary spool pin 25. Bobbin winder lever and bobbin spindle 26. Take-up lever 27. Thread tension discs 28. Bobbin winder tension disc 27 28 29 29. -
Page 8: Presser Feet
Presser feet Standard presser foot 0A with IDT™ system (shown as in the display, attached on the machine upon delivery) This foot is used mainly for straight stitching and zigzag stitching with a stitch length longer than 1.0 mm. Fancy stitch foot 1A with IDT™ system (shown as in the display) This foot is used for decorative stitches. -
Page 9: Stitch Overview
Stitch overview = Engage IDT™ system Stitch Name Description Straight stitch For seaming and topstitching. Select from 29 different needle positions. Stretch triple straight Reinforced seam. Topstitching. stitch Zigzag stitch Z-zigzag stitch Appliqué, couching, eyelets. Stretch triple zigzag stitch Elastic stitch for decorative hems or topstitching. Three-step zigzag stitch Sewing elastic, darning, patching. - Page 10 Quilt stitches = Engage IDT™ system Stitch Stitch a handlook effect. Needle art stitches = Engage IDT™ system Stitch ** Stitches 59, 60 and 61 (48, 49 and 50 on model 2.0) are meant to be sewn with a wing needle for a special effect. Satin stitches Stitch Decorative stitches...
-
Page 11: Preparations
Remove all outer packing material and the plastic bag. Note: Your PFAFF® passport™ sewing machine is adjusted to provide the best stitch result at normal room temperature. Extreme hot and cold temperatures can affect the sewn result. -
Page 12: Free Arm
Free arm To use the free arm, slide off the accessory tray. When attached, a hook keeps the accessory tray securely attached to the machine. Remove the tray by sliding it to the left. Leveling the machine base plate To make sure your machine stands steadily on your sewing surface you can adjust the base plate height. -
Page 13: Threading The Machine
Vertical position Raise the spool pin to the vertical position. Slide on the large spool cap and place a felt pad under the thread spool. This is to prevent the thread from reeling off too fast. Do not place a spool cap on top of the spool pin as that would prevent the spool from rotating. -
Page 14: Needle Threader
Needle threader The needle threader allows you to thread the needle automatically. The needle must be in its highest position to use the built-in needle threader. Press the needle up/down button to make sure the needle is fully raised. We also recommend lowering the presser foot. Use the handle to pull the needle threader all the way down. -
Page 15: Bobbin Winding
Bobbin winding Place the thread spool on the spool pin in horizontal position. Slide a spool cap tightly against the spool. Place the thread into the thread guide (A) from front to back. Pull the thread clockwise around the bobbin winder tension disc (B). Thread through the hole in the bobbin (C) from the inside to the outside. -
Page 16: Inserting The Bobbin
(E). Replace the bobbin cover. IDT™ feed) For sewing any fabric precisely, PFAFF® passport™ sewing machine provides the ideal solution: the integrated dual feed, IDT™ system. As on industrial machines, the IDT™ system feeds the fabric from the top and bottom at the same time. -
Page 17: Presser Foot Pressure
Presser foot pressure The presser foot pressure has been pre-set to the standard value ”N”. In most cases, you do not need to adjust the presser foot pressure. When using specialty techniques, or when sewing on very light or heavy fabric, adjusting the pressure can improve the result. -
Page 18: Needles
Needles The sewing machine needle plays an important role in successful sewing. Use only quality needles. We recommend needles of system 130/705H. The needle package included with your machine contains needles of the most frequently used sizes. Universal needles have a slightly rounded point and come in a variety of sizes. -
Page 19: Changing The Needle
Changing the needle Use the hole in the multi-purpose tool to hold the needle. Loosen the needle screw. Use the screwdriver if necessary. Remove the needle. Insert the new needle, using the multi-purpose tool. Push the new needle upwards with the further. -
Page 20: Buttons
Buttons passport™ 3.0 If you press the reverse button while sewing, the Note: The tie-off function is not available for stitches machine sews in reverse for as long as you keep the 16-21. button pressed. Reverse is also used when sewing the darning Press this button to move the needle up or down. - Page 21 Buttons passport™ 2.0 If you press the reverse button while sewing, the Press this button to move the needle up or down. machine sews in reverse for as long as you keep the The setting of the needle stop position is changed button pressed.
-
Page 22: Warning Messages/Sound
ON/OFF switch to the OFF position and then ON again. Note: If the problem is still not solved, please contact your local authorized PFAFF® dealer. Bobbin winding position When the bobbin lever is pushed to the right, the... -
Page 23: Sewing
Sewing When the machine is turned on, straight stitch 00 (01 on 2.0) is selected by default. Select a stitch Press a combination of the 0 to 9 buttons to select the stitch represented by that number. Your machine will automatically set the length (A) and width/positioning (B) for the selected stitch. -
Page 24: Sewing Techniques
Sewing techniques Three-step zigzag stitch Stich number 05 (06 on 2.0) can be used to overcast raw edges. Make sure the needle pierces the fabric on the left side and overcasts the edge on the right side. Stich number 05 (06 on 2.0) can also be used as an elastic stitch to allow seams to stretch when sewing knit fabrics. -
Page 25: Sew On A Button
When sewing buttonholes in stretch fabrics we recommend cording the buttonhole to increase the stability and to keep the buttonhole from stretching out. Loop a piece of heavy thread or pearl cotton foot 5B. Pull the thread tails under the foot, at the front of the foot. -
Page 26: Darning And Mending
Darning and mending Darning a small hole or a tear before it becomes larger can save a garment. Choose a thread in a color as close to your garment as possible. Place fabric or stabilizer in position under the hole or tear in your garment. Select stitch number 21 (20 on 2.0), the darning stitch. -
Page 27: Quilting
Quilting A quilt usually consists of three layers, two layers of fabric with a layer of batting sandwiched between. To sew three layers together, you have a wide variety of stitches and techniques to choose from. Stitch-in-the-Ditch Use the Fancy stitch foot 1A with IDT™ system. Stitching in the ditch means using the guide on the presser foot to follow the seams in the quilt blocks. -
Page 28: Blindhem
Blindhem The blindhem stitch, number 10 (09 on 2.0), is used to make invisible hems on skirts, trousers and home decorating. Use foot number 3 with IDT™ system. Finish the edge of the hem. Fold and press the hem allowance to the wrong side. -
Page 29: Maintenance
Maintenance Cleaning the machine To keep your sewing machine operating well, clean it often. No lubrication (oiling) is needed. Wipe the exterior surface of your machine with a soft cloth to remove any dust or lint built up. Cleaning the bobbin area Note: Raise the needle, lower the feed dogs and turn off the machine. -
Page 30: Troubleshooting
Troubleshooting For further information please contact your local authorized PFAFF® dealer. Problem/cause General problems Fabric does not move? Make sure that the feed dogs are not lowered. The needle breaks? Insert needle correctly, see page 17. Attach correct needle for the fabric. -
Page 31: Intellectual Property
Re-thread the machine, both top and bobbin threads. We reserve the right to change the machine equipment and the assortment of PFAFF, PERFECTION STARTS HERE, PASSPORT and IDT (image) are trademarks of KSIN Luxembourg II, S.ar.l. Please note that on disposal, this product must be safely recycled in accordance with relevant National legislation relating to electrical/electronic products. - Page 32 www.pfaff.com...
