Summary of Contents for Mountain Buggy Strollers

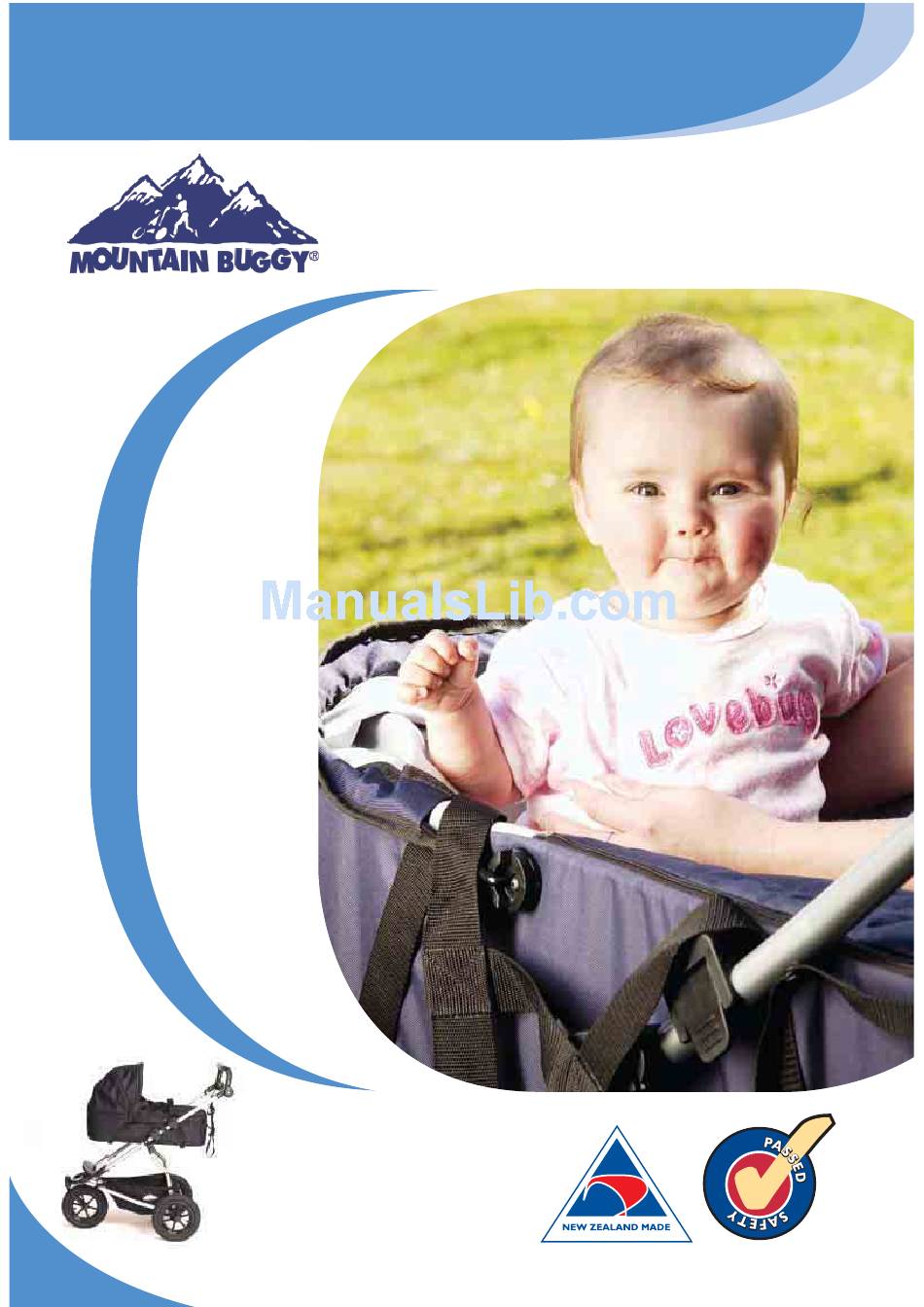

- Page 1 Mountain Buggy Carrycot Instruction Manual...
- Page 2 Manufacturing Ltd., einem nach ISO 9001 zertifi zierten Unternehmen. Modelle nach BS 7409:1996, AS/NZS 2088:2000. Italiano Ideato e fatto in Nuova Zelanda da Mountain Buggy Ltd. Prodotto da Tritec Manufacturing Ltd, una ditta certifi cata con ISO 9001. Modelli sono conformi alla BS 7409:1996, AS/NZS 2088:2000. Español Proyectado y fabricado en Nueva Zelanda por Mountain Buggy Ltd.
- Page 3 At Mountain Buggy you and your baby matter to us. That’s why we have spent years researching and developing a product that is safe, comfortable and in tune with modern parents needs.
- Page 4 • Do not use Carrycot if you are unable to secure it to stroller frame. In this case contact store where stroller was purchased for more help. •...
-
Page 5: Removing The Seat
Preparing your Stroller to fi t the Carrycot Before you can attach the Carrycot to your stroller you will need to remove the fabric sunhood and seat on your stroller. Removing the Sunhood Standing beside your stroller and using a reasonable degree of force, pull the sunhood support wire towards you (by about 50mm/2in). - Page 6 IMPORTANT INFORMATION FOR DOUBLE AND TRIPLE STROLLERS If you have a double or triple stroller you will need to remove the centre metal bars of the frame to release the domed fabric. You may then need to reattach the metal bars without the fabric, depending on whether you are attaching a Double or a Twin Carrycot.
- Page 7 Fitting your Carrycot to your Stroller Mountain Buggy off er a range of carrycot and stroller combinations, so please choose the instructions you need to follow from the list below based on which carrycot model you are wanting to attach to which stroller.
- Page 8 Carrycot to your stroller. Have a look at sides of Carrycot. There are three holes on each side of Carrycot to allow snap locks to be fi tted. Confi guration varies depending on the Mountain Buggy model you have. •...
- Page 9 Confi guration 1 Instructions Fitting the Carrycot to the Frame Ensure snap locks are rotated so screw holes are on top. Open snap locks. Place Carrycot onto Buggy frame. Confi rm positioning as pictured below. TERRAIN sunhood joint Place snap lock X directly above sunhood joint Push snap locks fi rmly down fl at, making sure you hear the lock ‘click’...
- Page 10 Carrycot and the sliding plate onto the left. To position the Carrycot onto the left side of the stroller the snap locks go on the left side of the stroller and the sliding plate on the right.
- Page 11 Sliding plate screws are located at Holes A and C in side of Carrycot. Hole B is not required. • There are 4 screw holes in sliding plate. Use diagram below to locate which two holes are required for your stroller model. Urban • Align Hole 1 of sliding plate with Hole A of Carrycot.
- Page 12 Push snap locks fi rmly down fl at, making sure you hear the lock ‘click’ , indicating they are fully locked. To fi t a second Double Carrycot onto a Double or Triple Stroller repeat above instructions. To remove Carrycot from frame: open snap locks and lift Carrycot off frame.
- Page 14 Mountain Buggy New Zealand & Head Offi ce Freepost 4432 (within New Zealand) PO Box 38-781, Wellington Mail Centre, New Zealand Ph: (04) 568 1590 or 0800 428 449 Fax: (04) 569 6239 Email: info@mountainbuggy.com www.mountainbuggy.com Australia Mountain Buggy Australia...
