CARVIN ENGINEERING DATA
Congratulations on your selection of TRx loudspeakers. Carvin's TRx 2000
Series loudspeakers are a high performance solution for bands, audio
companies and concert venues. They feature the latest innovations for
optimal performance of both live and music playback. The TRx loudspeakers
include point source, monitor and subwoofer solutions – all with the goal of
providing the best sound at high SPL levels.
TRx12N
The TRx12N is a 12-inch 2-way monitor featuring a bi-ampable coaxial
driver. High intelligibility comes from a single concentric source that only
a true coaxial driver can offer. It's small footprint is ideal for limited space
while its high SPL and 1200w peak power capacity is designed for large
concert venues. The 12-inch woofer is ideal for monitoring with great
clarity. A pole mount adds the flexibility of being suspended on subs or pole
stands for mains.
The TRx2115 is a multi-purpose loudspeaker for front of house mains and
stage monitors featuring a 15-inch heavy-duty woofer and a 1.4-inch exit
high frequency driver in a compact trapezoidal enclosure. 2400 watts peak
power handling delivers an impressive SPL with extended bass from a small
enclosure. Bi-amping improves driver efficiency especially when using as a
main. A pole mount and 8 fly points offer a variety of suspension options.

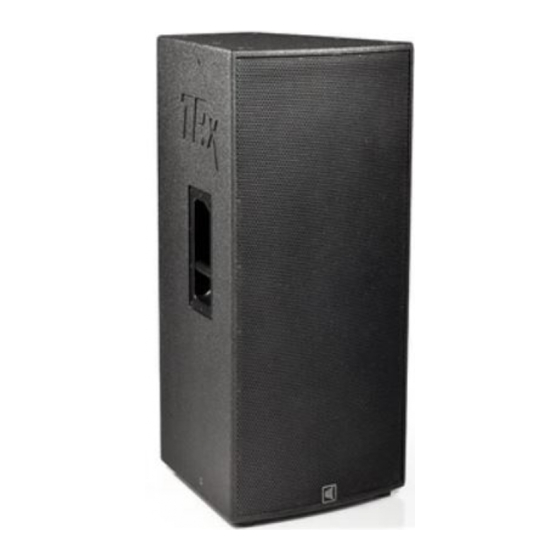

The TRx2215 is a high performance dual heavy-duty 15-inch woofer
loudspeaker featuring a 1.4-inch exit high frequency driver with biamp
capability. The TRx2215 has the capacity of 4800w peak with a high 136 DB
SPL output for today's demanding performances. The trapezoid shaped bass
reflex enclosure allows for multiples to be tightly positioned for clean-coupled
dispersion. 12 fly points provide the ability for suspension.
The TRx2153 is a 3-way high performance solution featuring a 15-inch
heavy-duty woofer, a horn loaded 8-inch mid range driver and an 80 x
50 degree horn loaded 1.4-inch exit high frequency driver. The enclosure
is capable of 2400w peak in full-range mode. Bi-amping allows the best
efficiency with the Hi and Mid drivers powered separately from the Low
frequency woofer to provide the clearest sonic detail in the high, mid, and
low frequencies. The trapezoid shape allows coupling multiple enclosures for
optimal dispersion and 12 fly points are included for suspension.
76-21530A 0113
TRx2153
TRx2218
TRx2118

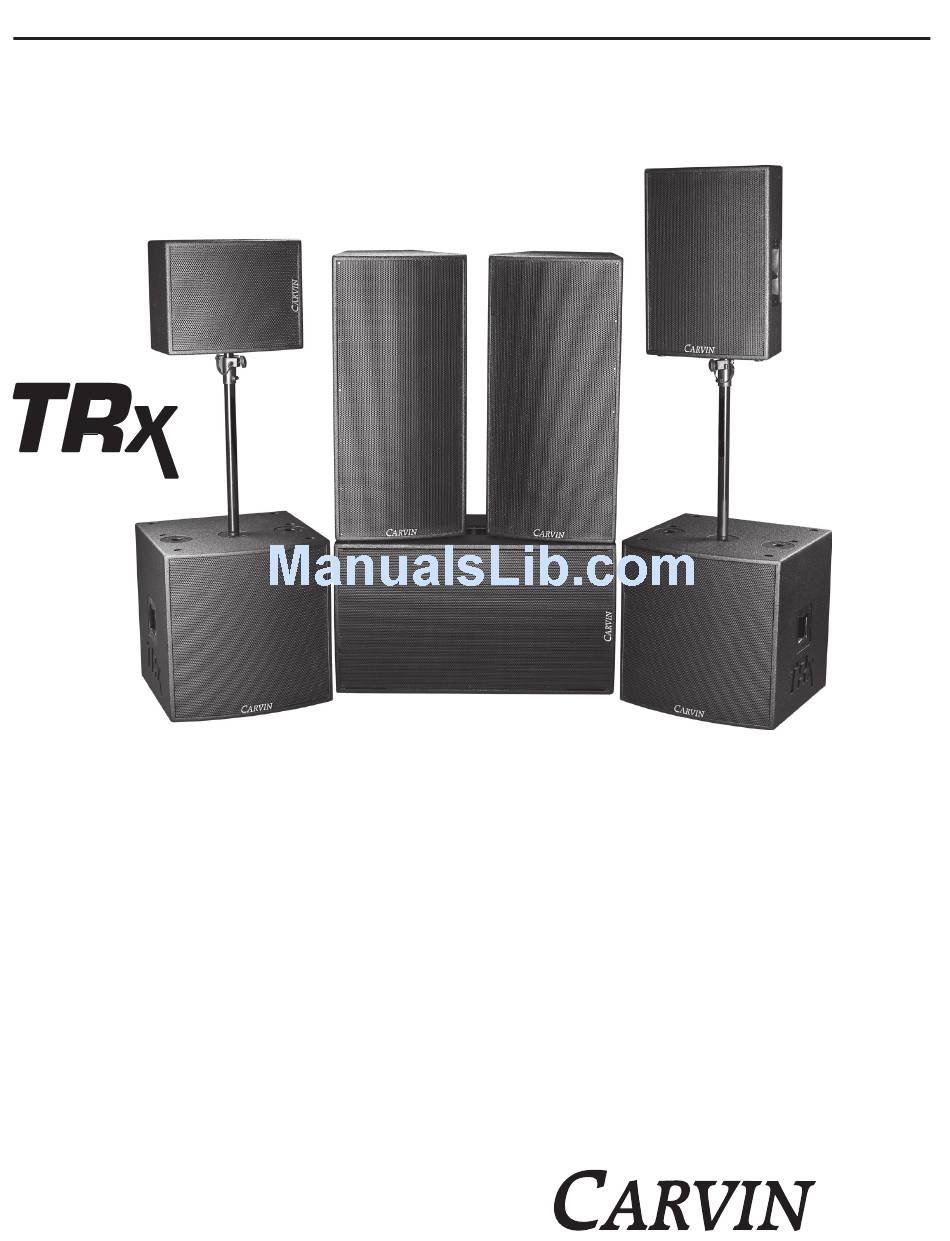

TRx 2000 series LOUDSPEAKER SYSTEM
The TRx Series are made from road worthy multi-ply Baltic Birch covered in
weather and UV resistant Duratec™ coating with steel powder coated grills.
Handles, pole mounts, fly points and Twist-Loc connectors provide reliable
means for transport, suspension, and set-up. These high performance
systems are designed for today's pro audio applications and are protected
by a 5 year warranty.
TRx2215
TRx2121
The TRx2118 is a single 18-inch high powered compact subwoofer
designed for all venues and is ideal for ground stacking main speakers on
top or coupling multiple subs for added efficiency. Three pole mounts are
featured for single pole solutions, dual poles to elevate two TRx3210 line
array elements or matching foot receptors to stack four TRx3210's. With a
response down to 32Hz and a 4-inch voice coil, the TRx2118 is capable of
3200w peak for a 133dB SPL output.
The TRx2121 is a single 21-inch sub in the same compact enclosure as
the TRx2118 with equal mounting capabilities. The TRx2121 is designed to
extend sub frequencies down an octave to 20Hz for bass you can feel. Couple
multiple TRx2121's together for added efficiency or mix them with TRx2118's
for full sub frequency spectrum coverage. The 21-inch driver with a 4-inch
voice coil allows for 4000w peak power delivering bone rattling low end at
high SPL.
The TRx2218 is a dual 18-inch sub that pairs ideally with a single TRx2153
or TRx2215. The TRx2218 in a vertical position places the TRx2153 or
TRx2215 at a perfect height to project over the crowd. A single pole mount is
included for mounting smaller main tops for heavy, low frequency demanding
events. Matching foot receptors are included for stacking TRX3210 line
array elements. The TRx2218's eight corner ports provide strong wall and
baffle support for the highest efficiency possible, and couple vertically or
horizontally with another TRx2218. Optional 4-inch CTS44 casters install
quickly for easy transport. With a 6400w peak rating, this dual 18" sub will
deliver impressive low-end punch for high SPL demands.
TRx2115
