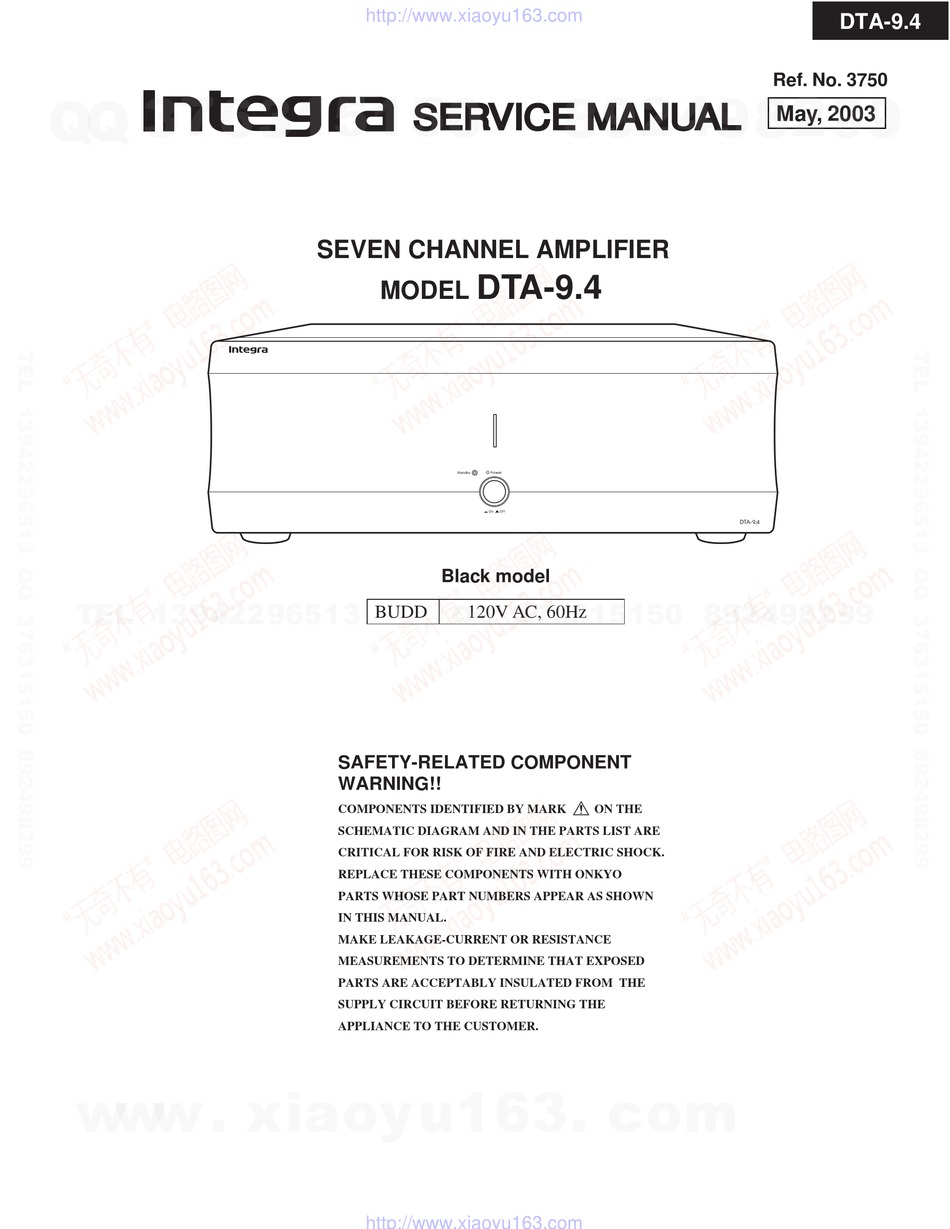

DTA-9.4 3 7 63 1515 0 Ref. No. 3750 SERVICE MANUAL SERVICE MANUAL May, 2003 SEVEN CHANNEL AMPLIFIER DTA-9.4 MODEL Black model L 13942296513 BUDD 120V AC, 60Hz SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
DTA-9.4 3 7 63 1515 0 SPECIFICATIONS Amplifier section General Continuous average power output Power Supply AC 120 V, 60 Hz (FTC Power, Rated Power) (Measured with AES-17 LPF) Power Consumption 5.3 A Front L/R: 120 Watts per channel min. RMS. Into...
Page 3
DTA-9.4 3 7 63 1515 0 OPERATION CHECK-1 CHECK THE DC POWER SUPPLY CURRENT DETECTION Notes No load and No signal input. How to check? 1. Remove the top cover. 2. Connect the power supply card to a wall outlet.
Page 11
DTA-9.4 DTA-9.4 3 7 6 3 1 5 1 5 0 SCHEMATIC DIAGRAMS-1 NOTE POWER AMPLIFIER SECTION THE COMPONENTS IDENTFIED BY MARK ARE CRITICAL FOR SAFETY. REPLACE ONLY WITH PART NUMBER SPECIFIED. P303 (NO USE) . VOLTAGE(MEASURED WITH VOLTMETER) IS DC VOLTAGE.
Page 12
DTA-9.4 3 7 63 1515 0 SCHEMATIC DIAGRAMS-4 POWERSUPPLY CONTROL SECTION From NAPS-7788 From NAPS-7788 From NAPS-7788 (P801A/P801B) D901 RBV-2506 P801C L902 NCH-1600 NAPS-7790 (DT-4020H) C920 QETJ5104KPP2CS SWITCHING CONTROL PC BOARD L903 NCH-1600 (DT-4020H) C891 UDD:168V UJJ:141V B471K-KX PRIGND...
DTA-9.4 3 7 63 1515 0 SCHEMATIC DIAGRAMS-2 CONTROL SECTION NAPS-7793 CONTROL PC BOARD D9819 AM01Z CAUTION D9820 From NAETC-7801 FOR CONTINUED PROTECTION (P9911A, P9911B) AM01Z AGAINST FIRE HAZARD, REPLACE ONLY WITH FUSE OF SAME TYPE D9802 AM01Z AND RATING INDICATED.
Page 19
DTA-9.4 3 7 63 1515 0 NOTE THE COMPONENTS IDENTFIED BY MARK ARE CRITICAL FOR SAFETY. REPLACE ONLY WITH PART NUMBER SPECIFIED. . VOLTAGE(MEASURED WITH VOLTMETER) IS DC VOLTAGE. (NO INPUT SIGNAL) . ELECTROLYTIC CAPACITORS ( ) ARE IN uF/WV.
DTA-9.4 3 7 63 1515 0 PRINTED CIRCUIT BOARD VIEWS-3 POWER SWITCH PC BOARD (NASW-7795) Component side P9904A S9801 S9801 12V TRIGGER TERMINAL PC BOARD (NAPS-7792) Component side E9902 E9903 P9910 L 13942296513 NCPS-7792 P9910 25137792 P9908A DISPLAY LED PC BOARD...
Page 23
DTA-9.4 3 7 63 1515 0 PRINTED CIRCUIT BOARD VIEWS-4 CONTROL PC BOARD (NAPS-7793) Component side Q9812 WER SUPPL N CPS-7793 WARNING WARNING WARNING G 25137793 RISK FIRE -REPLACE FUSE AS MARKED L 13942296513 F9801A F9801B 1A/125V AC-H A C-G...
DTA-9.4 3 7 63 1515 0 SURROUND RIGHT SURROUND BACK RIGHT NTER RIGHT OUTPUT OUTPUT OUTPUT OUTPUT INPUT INPUT INPUT SELECT SELECT SELECT P608B P608B P608B P608B P302 P302 P302 RL701 RL701 RL701 NAAF-7797 NAAF-7797 NAAF-7797 POWER AMPLIFIR PC BOARD...
Page 29
DTA-9.4 3 7 63 1515 0 OPERATION CHECK-1 CURRENT DETECTION OF POWER SUPPLY Notes No load and No signal input. P161 How to check? 1. Connect the power supply card to a wall outlet. 2. Power On the unit.
Page 30
DTA-9.4 3 7 63 1515 0 OPERATION CHECK-2 DC VOLTAGE DETECTION OF POWER AMPLIFIER CIRCUIT Notes No load and No signal input. How to check? 1. Connect the power supply card to a wall outlet. 2. Power On the unit.
Page 31
DTA-9.4 3 7 63 1515 0 OPERATION CHECK-3 THERMAL DETECTION OF POWER AMPLIFIER CIRCUIT Notes No load and No signal input. How to check? 1. Connect the power supply card to a wall outlet. 2. Power On the unit.
Page 32
DTA-9.4 3 7 63 1515 0 OPERATION CHECK-4 OPERATION INDICATOR IN THE UNIT-1 (RED) D705 D705 (DC OUTPUT) NAAF-7797 This LEDTurned on when DC voltage is detected between speaker output OUTPUT terminals. INPUT SELECT Spealer output relay is turned off while having detected DC voltage.
DTA-9.4 3 7 63 1515 0 OPERATION CHECK-5 OPERATION INDICATOR IN THE UNIT-2 D133 (REGULATED) (RED) This LED is turned on when the voltage of a secondary power supply output is normal. D133 The detection circuit which is source of the drive about this LED is supervising only...
Page 34
OPERATION CHECK-6 CAUTION IN THE CASE OF SPEAKER OUTPUT CHECK The power amplifier circuit of DTA-9.4 is BTL system. Therefore, in case you check speaker output, should be careful of the following point. 1. Do not connect the minus side OUTPUT terminal, and ground of the unit (Fig-1).
Page 35
DTA-9.4 3 7 63 1515 0 DISASSEMBLING PROCEDURES-1 ATTENTION ON DISASSEMBLIING 1. Before disassembling After turning off a power supply switch, the high voltage is maintained in the following circuit (fig-1) for a long time. In order to prevent short-circuit, be careful not to drop metallic parts etc. around this circuit.
Page 36
DTA-9.4 3 7 63 1515 0 DISASSEMBLING PROCEDURES-2 REMOVE A POWERB AMP. UNIT AND A POWER SUPPLY UNIT FROM CHASSIS Remove the three screws. Move the power supply unit to front side. Rear panel Power supply unit Front side Remove the four screws.
Page 37
DTA-9.4 3 7 63 1515 0 DISASSEMBLING PROCEDURES-3 REMOVE A POWERB AMP. UNIT AND A POWER SUPPLY UNIT FROM CHASSIS Remove the four screws. Move the power supply unit to up side. Power supply unit NAPS-7788 Soldering side Front side Remove the four screws.
Page 38
http://www.xiaoyu163.com DTA-7 3 7 63 1515 0 DISASSEMBLING PROCEDURES-4 DISASSEMBLING OF POWER SUPPLY UNIT Remove 18 soldering. By doing the following work, You can separate NAPS-7789 and NAPS-7790. 1. Disconnect the terminal PCB assy NAPS-7791. 2. Remove the four screws. NAPS-7791 Front side By doing the following work, You can separate NAPS-7790...
Page 39
3 7 63 1515 0 EXPLODED DTA-9.4 VIEW PARTS LIST REF NO. PART NAME DESCRIPTION PART NO. NOTE A001 F BRACKET 27111311 A002 SCREW 3TTB+8B(BC) 838430088 A003 HOLDER (BUSHING) TB-1116 27190635 A005 NOT SUPPLY A006 CHASSIS 27100429A A007 SCREW...
Page 40
A087 SCREW 4TTB+8C(BC) 838440089 A401 REAR PANEL 27123062B A402 SCREW 3TTB+8B(BC) 838430088 A403 SCREW 4TTB+8C(BC) 838440089 A410 LABEL HOOKUP-INTEGRA 29363195 A420 F PANEL 27212464B A421 SCREW 3TTB+8B(BC) 838430088 A422 END CAP 28125396 A423 END CAP 28125397 L 13942296513 A424 FACET...
TERMINAL PC BOARD NAPS-7791 1A953591-1A POWER AMPLIFIER PC NAAF-7797 1A953597-1A BOARD ASSY TEMPERATURE SENSOR NAAF-7798 1A953598-1A PC BOARD ASSY BOARD PC BOARD DTA-9.4 L 13942296513 PARTS LIST PRIMARY POWER NAPS-7788-1A SUPPLY PC BOARD REF NO. PART NAME DESCRIPTION PART NO. NOTE D903...
Page 43
http://www.xiaoyu163.com 3 7 63 1515 0 C905 IS C QEX2E104KTP2CS 3800033S C906 CERA C DE0910-1E102MKX 3300053S C907 CERA C DE0910-1E102MKX 3300053S C909 ELECT C CE69W200V1500M(KMQ) 3504385 C910 ELECT C CE69W200V1500M(KMQ) 3504385 C911 ELECT C CE69W200V1500M(KMQ) 3504385 C912 ELECT C CE69W200V1500M(KMQ) 3504385 C916 FILM C DADC400V-105J...
A610 PP TAPE W48 OPP TAPE 29110148 1.6::MT:: A630 POLY BAG 350*250 29100097-1A A650 CARTON (UDD) 29053995A A652 UPC LABEL 29363388 A670 WRNTY CARD (INTEGRA) 29365089 A801 CORD AS 3.5 ST PLUG 2010415 u163 A802 INS MANUAL E(DTA-9.4) 29343446A http://www.xiaoyu163.com...
Page 59
DTA-9.4 3 7 63 1515 0 WAVEFORM OF EACH PART-1 POWER SUPPLY SECTION Wave1 No output Wave2 No output L 13942296513 Wave3 No output Wave3 No output u163 http://www.xiaoyu163.com...
Page 60
DTA-9.4 3 7 63 1515 0 WAVEFORM OF EACH PART-2 AMPLIFIER SECTION Wave1 No output Wave5 No output Wave2 Wave6 No output No output L 13942296513 Wave3 Wave7 No output Output 1kHz 10Watts Wave4 No output u163 http://www.xiaoyu163.com...
DTA-9.4 3 7 63 1515 0 ADJUSTMENT PROCEDURES-1 POWER SUPPLY VOLTAGE ADJUSTMENT When adjustment? Replace the NAPS-7789 (secondary power supply PC board) Notes No load and No signal input. How to adjustment? 1. Remove the top cover. 2. Connect a DC volt meter to the P108 Test point on the NADG-7313) 3.
Page 62
DTA-9.4 3 7 63 1515 0 ADJUSTMENT PROCEDURES-2 DC OFFSET ADJUSTMENT When adjustment? Replace the NAAF-7797 (Power amplifier PC board) Notes No load and No signal input. How to adjustment? 1. Remove the top cover. 2. Connect a DC volt meter to the OUTPUT (Speaker terminal) 3.
Page 63
DTA-9.4 3 7 63 1515 0 PACKING VIEW A670 P901 SERIAL NO. A801 A802 A601 Set by four kinds of parts. A630 A608 A602 L Top R Top FRONT SIDE FRONT SIDE L 13942296513 FRONT SIDE A608 A605 L Bottom...
