Cyrus Stereo 200

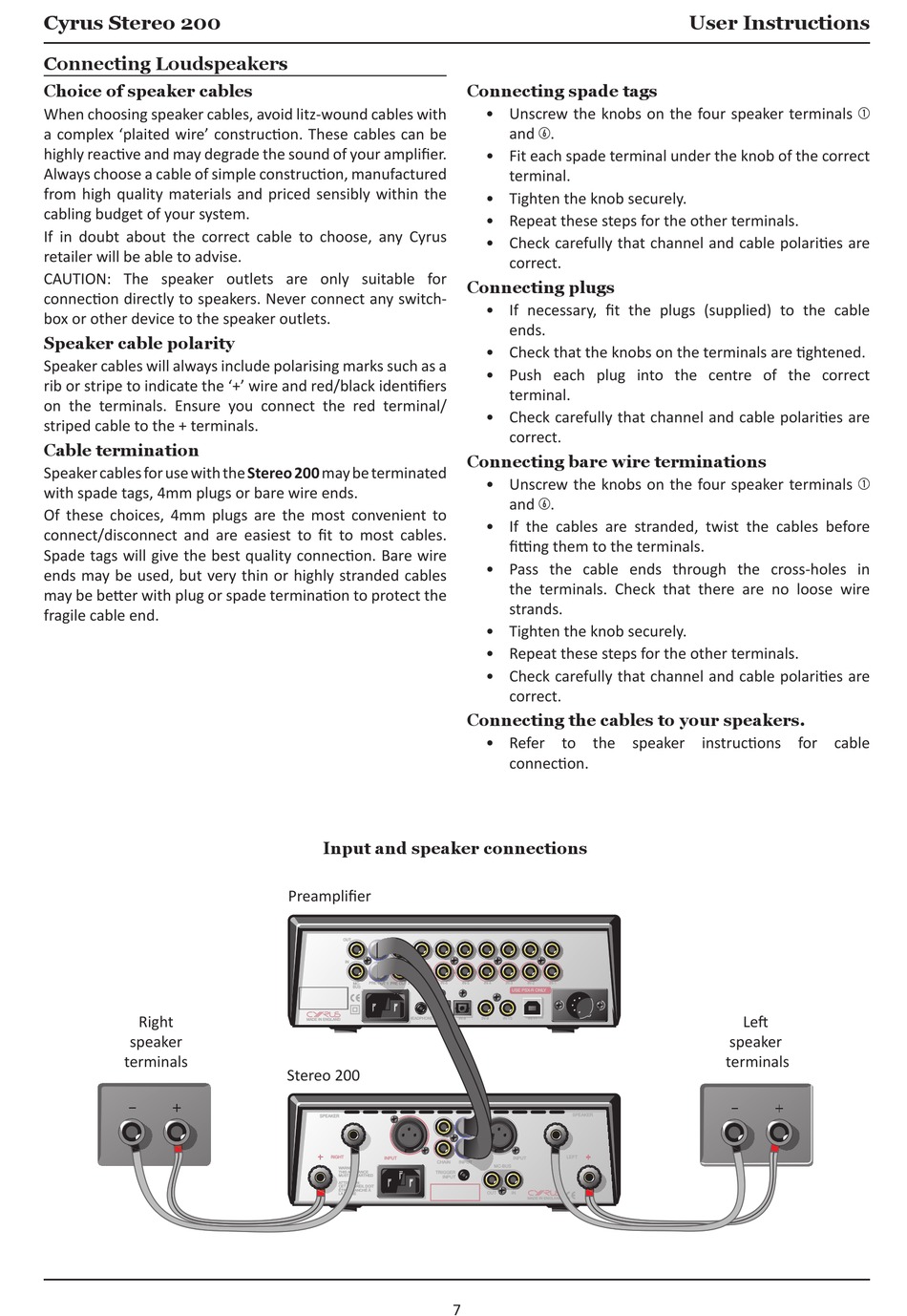

Connecting loudspeakers
Choice of speaker cables
When choosing speaker cables, avoid litz-wound cables with
a complex 'plaited wire' construction. These cables can be
highly reactive and may degrade the sound of your amplifier.
Always choose a cable of simple construction, manufactured
from high quality materials and priced sensibly within the
cabling budget of your system.
If in doubt about the correct cable to choose, any Cyrus
retailer will be able to advise.
CAUTION: The speaker outlets are only suitable for
connection directly to speakers. Never connect any switch-
box or other device to the speaker outlets.
Speaker cable polarity
Speaker cables will always include polarising marks such as a
rib or stripe to indicate the '+' wire and red/black identifiers
on the terminals. ensure you connect the red terminal/
striped cable to the + terminals.
Cable termination
Speaker cables for use with the Stereo 200 may be terminated
with spade tags, 4mm plugs or bare wire ends.
Of these choices, 4mm plugs are the most convenient to
connect/disconnect and are easiest to fit to most cables.
Spade tags will give the best quality connection. Bare wire
ends may be used, but very thin or highly stranded cables
may be better with plug or spade termination to protect the
fragile cable end.
Right
speaker
terminals
Input and speaker connections
Preamplifier
OUT
IN
PRE OUT 1 PRE OUT 2
ZONE 2
IN-6
MC-
BUS
OUT
HEADPHONE
IN-7
IN-8
MADE IN ENGLAND
stereo 200
SPEAKER
RIGHT
INPUT
CHAIN
INPUT
WARNING:
THIS APPLIANCE
TRIGGER
MUST BE EARTHED
INPUT
ATTENTION:
CET APPAREIL DOIT
ÊTRE BRANCHÉ À
LA TERRE
7
Connecting spade tags
•
Unscrew the knobs on the four speaker terminals
and f.
•
Fit each spade terminal under the knob of the correct
terminal.
•
Tighten the knob securely.
•
Repeat these steps for the other terminals.
•
Check carefully that channel and cable polarities are
correct.
Connecting plugs
•
If necessary, fit the plugs (supplied) to the cable
ends.
•
Check that the knobs on the terminals are tightened.
•
Push each plug into the centre of the correct
terminal.
•
Check carefully that channel and cable polarities are
correct.
Connecting bare wire terminations
•
Unscrew the knobs on the four speaker terminals
and f.
•
If the cables are stranded, twist the cables before
fitting them to the terminals.
•
Pass the cable ends through the cross-holes in
the terminals. Check that there are no loose wire
strands.
•
Tighten the knob securely.
•
Repeat these steps for the other terminals.
•
Check carefully that channel and cable polarities are
correct.
Connecting the cables to your speakers.
•
Refer to the speaker instructions for cable
connection.
IN-5
IN-4
IN-3
IN-2
IN-1
USE PSX-R ONLY
IN-9
IN-10
IN-11
SPEAKER
LEFT
INPUT
MC-BUS
OUT
IN
MADE IN ENGLAND
User Instructions
a
a
Left
speaker
terminals
