Cyrus Stereo 200
Chain Output
Bi-Amplification
If your pre-amplifier only has a single set of pre outputs,
the Chain output c can be used to connect additional Cyrus
power amplifiers to each channel for Bi/Tri-amping. Such
a bi-amplified system provides the sonic benefits of totally
separate power amplification for the bass and treble units
of the loudspeakers.
Note: To set up bi-amplification, the loudspeakers must
have bi-wirable terminals to enable separate connection to
the bass and treble units.
In the bi-amplified system illustration below, a preamplifier
is connected to two Stereo 200 amplifiers, one to drive the
speaker bass (LF) units, and one to drive the treble (HF)
units. Phono input connections are shown.
Note: The Chain output is operational whether phono (RCA)
or Balanced XLR input connection is made to the Stereo
200.
Right
speaker
terminals

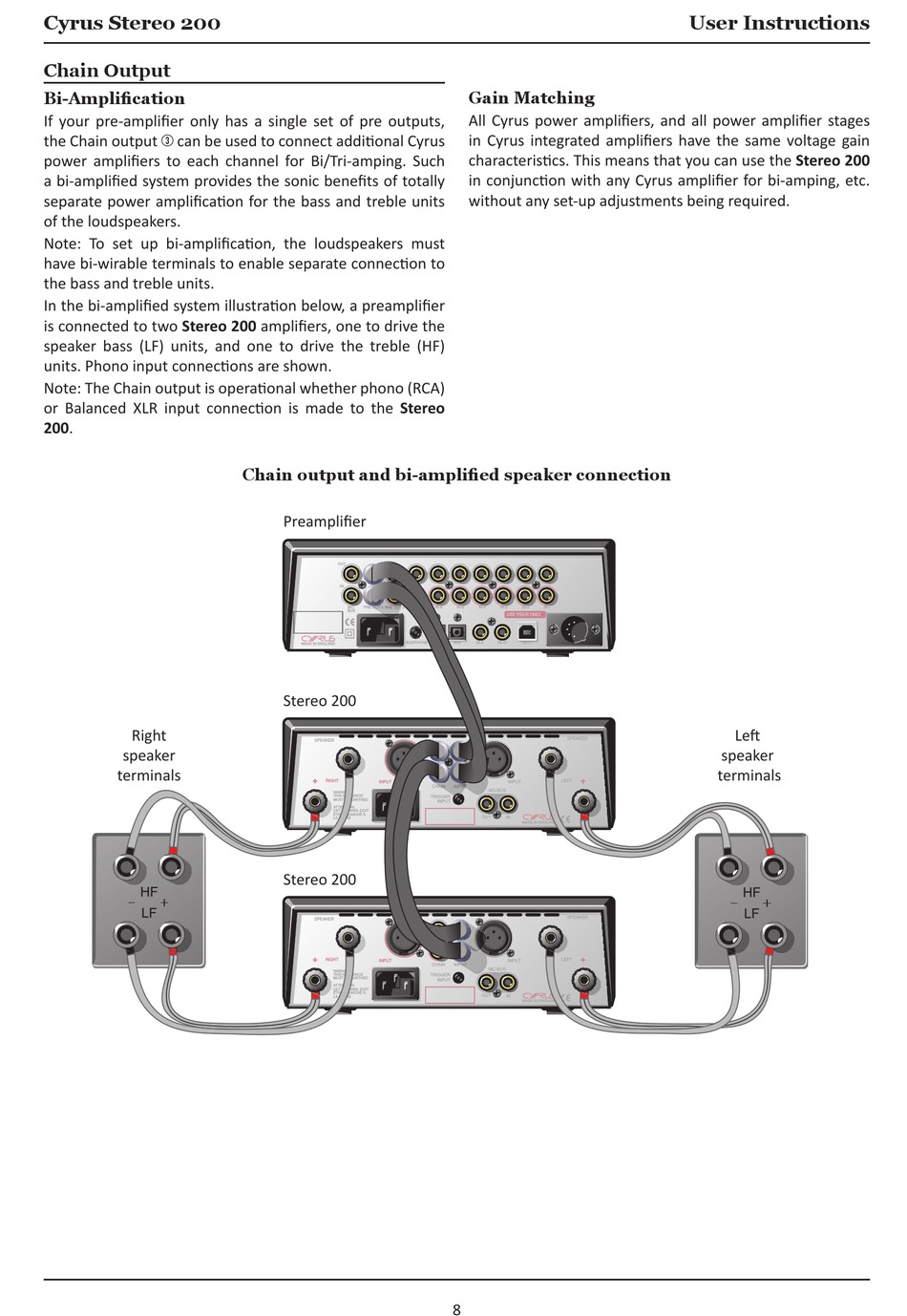

Chain output and bi-amplified speaker connection
Preamplifier
OUT
IN
MC-
PRE OUT 1 PRE OUT 2
ZONE 2
BUS
OUT
HEADPHONE
MADE IN ENGLAND
stereo 200
SPEAKER
RIGHT
INPUT
WARNING:
THIS APPLIANCE
MUST BE EARTHED
ATTENTION:
CET APPAREIL DOIT
ÊTRE BRANCHÉ À
LA TERRE
stereo 200
SPEAKER
RIGHT
INPUT
WARNING:
THIS APPLIANCE
MUST BE EARTHED
ATTENTION:
CET APPAREIL DOIT
ÊTRE BRANCHÉ À
LA TERRE
gain Matching
All Cyrus power amplifiers, and all power amplifier stages
in Cyrus integrated amplifiers have the same voltage gain
characteristics. This means that you can use the Stereo 200
in conjunction with any Cyrus amplifier for bi-amping, etc.
without any set-up adjustments being required.
IN-6
IN-5
IN-4
IN-3
IN-2
IN-1
USE PSX-R ONLY
IN-7
IN-8
IN-9
IN-10
IN-11
SPEAKER
LEFT
INPUT
CHAIN
INPUT
MC-BUS
TRIGGER
INPUT
OUT
IN
MADE IN ENGLAND
SPEAKER
LEFT
INPUT
CHAIN
INPUT
MC-BUS
TRIGGER
INPUT
OUT
IN
MADE IN ENGLAND
8
User Instructions
Left
speaker
terminals
