Cyrus Stereo 200

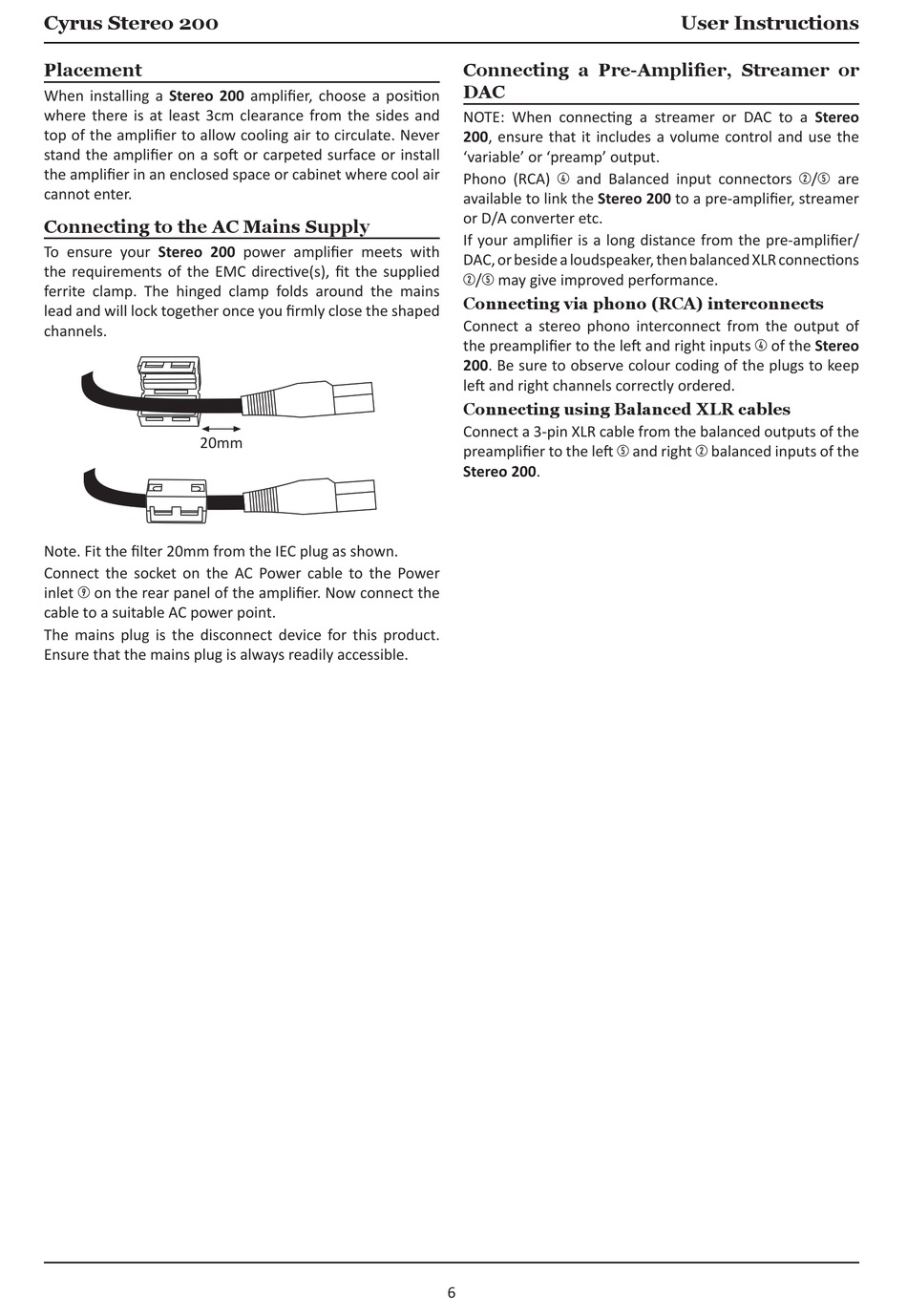

Placement

When installing a Stereo 200 amplifier, choose a position
where there is at least 3cm clearance from the sides and
top of the amplifier to allow cooling air to circulate. Never
stand the amplifier on a soft or carpeted surface or install
the amplifier in an enclosed space or cabinet where cool air
cannot enter.

Connecting to the AC Mains Supply

To ensure your Stereo 200 power amplifier meets with
the requirements of the EMC directive(s), fit the supplied
ferrite clamp. The hinged clamp folds around the mains
lead and will lock together once you firmly close the shaped
channels.
20mm
Note. Fit the filter 20mm from the IEC plug as shown.
Connect the socket on the AC Power cable to the Power
inlet i on the rear panel of the amplifier. Now connect the
cable to a suitable AC power point.
The mains plug is the disconnect device for this product.
Ensure that the mains plug is always readily accessible.
Connecting a Pre-Amplifier, Streamer or
dAC
NOTE: When connecting a streamer or DAC to a Stereo
200, ensure that it includes a volume control and use the
'variable' or 'preamp' output.
Phono (RCA) d and balanced input connectors b/e are
available to link the Stereo 200 to a pre-amplifier, streamer
or d/A converter etc.
If your amplifier is a long distance from the pre-amplifier/
DAC, or beside a loudspeaker, then balanced XLR connections
b/e may give improved performance.

Connecting via phono (RCA) interconnects

Connect a stereo phono interconnect from the output of
the preamplifier to the left and right inputs d of the Stereo
200. Be sure to observe colour coding of the plugs to keep
left and right channels correctly ordered.

Connecting using balanced XlR cables

Connect a 3-pin XLR cable from the balanced outputs of the
preamplifier to the left e and right b balanced inputs of the
Stereo 200.
6
