Paper Feed Unit - Sharp AR-DD1 Service Manual

[5] DISASSEMBLY AND ASSEMBLY

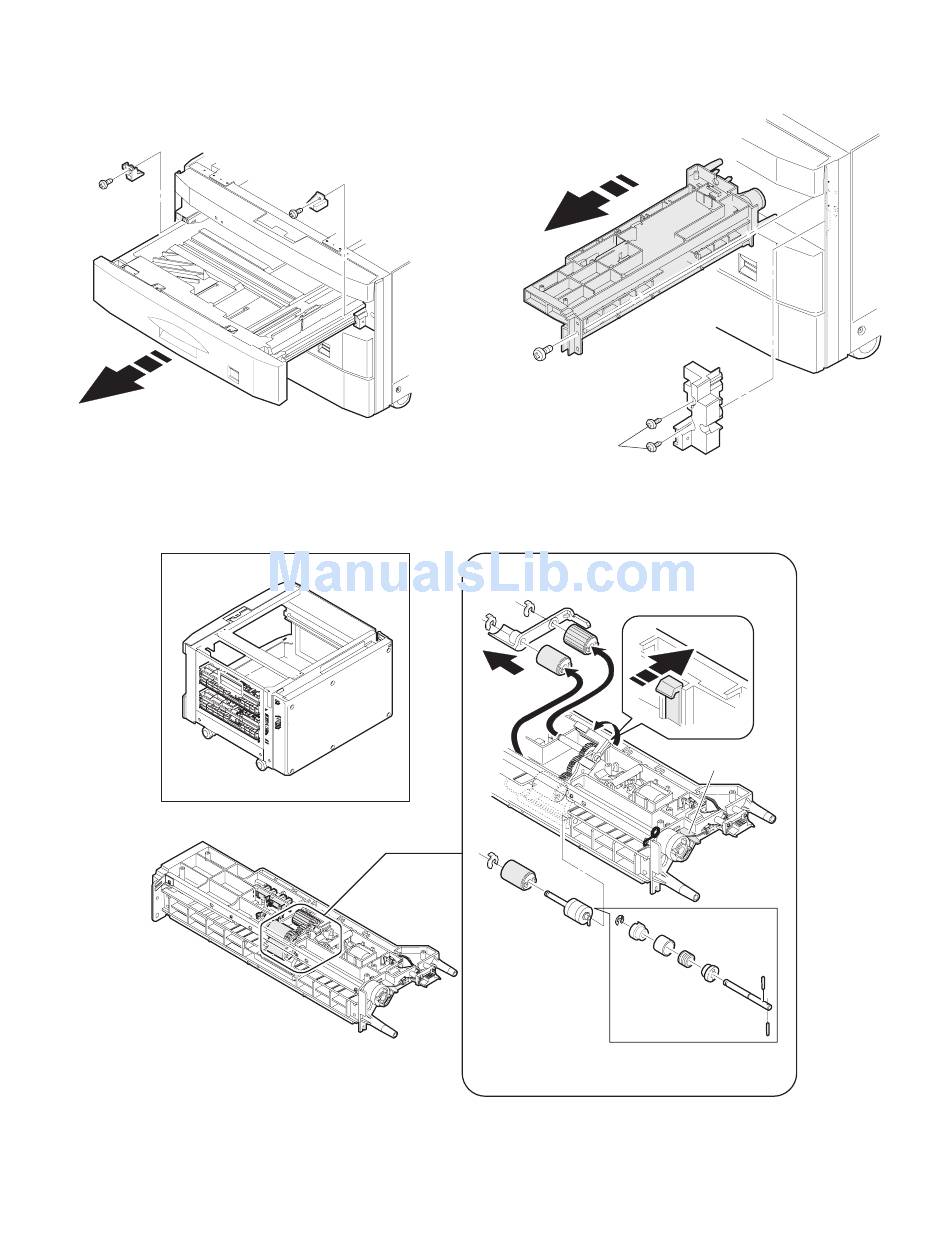

1. Paper feed unit

2)
1) 3)
A. Paper feed, Pic up, Resist roller
* 1. When attaching the clutch, be sure to fit the clutch notch into
the B portion as shown in the figure above.
* 2. When inserting the shaft into the roller, attention shall be paid
so that the pin C on the shaft faces down.
2)
5 – 1
1)
3)
3)
6)
5)
4)
2)
7)
8)
C
1)
B
