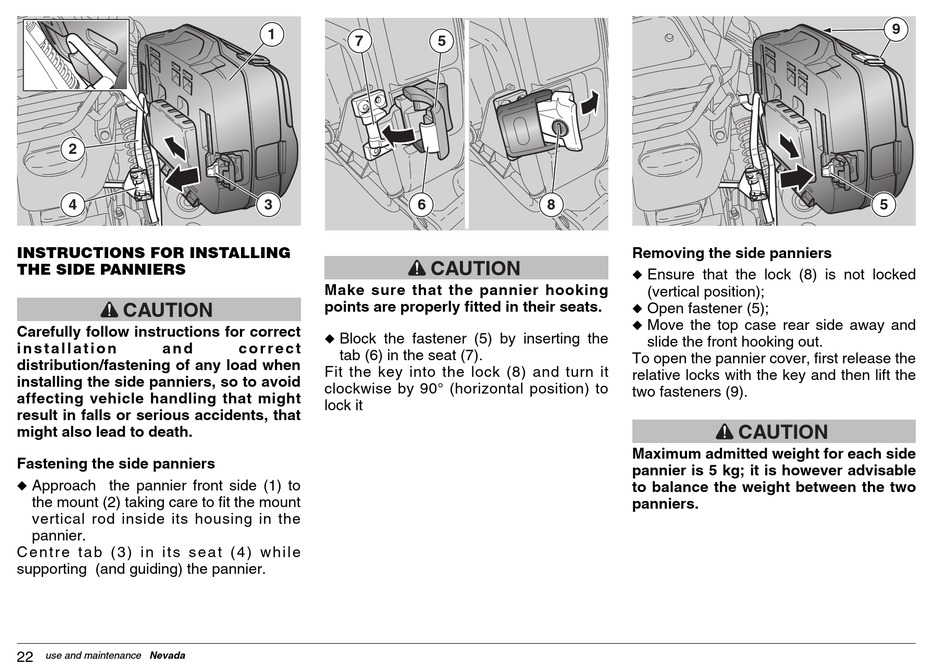

INSTRUCTIONS FOR INSTALLING
THE SIDE PANNIERS
CAUTION
Carefully follow instructions for correct
i n s t a l l a t i o n a n d
distribution/fastening of any load when
installing the side panniers, so to avoid
affecting vehicle handling that might
result in falls or serious accidents, that
might also lead to death.
Fastening the side panniers
Approach the pannier front side (1) to
u
the mount (2) taking care to fit the mount
vertical rod inside its housing in the
pannier.
C e n t r e t a b ( 3 ) i n i t s s e a t ( 4 ) w h i l e
supporting (and guiding) the pannier.
22 use and maintenance Nevada
1
7
3 6
Make sure that the pannier hooking
points are properly fitted in their seats.
u Block the fastener (5) by inserting the
c o r r e c t
tab (6) in the seat (7).
Fit the key into the lock (8) and turn it
clockwise by 90° (horizontal position) to
lock it
5
8
CAUTION
Removing the side panniers
u Ensure that the lock (8) is not locked
(vertical position);
u Open fastener (5);
u Move the top case rear side away and
slide the front hooking out.
To open the pannier cover, first release the
relative locks with the key and then lift the
two fasteners (9).
CAUTION
Maximum admitted weight for each side
pannier is 5 kg; it is however advisable
to balance the weight between the two
panniers.
9
5
