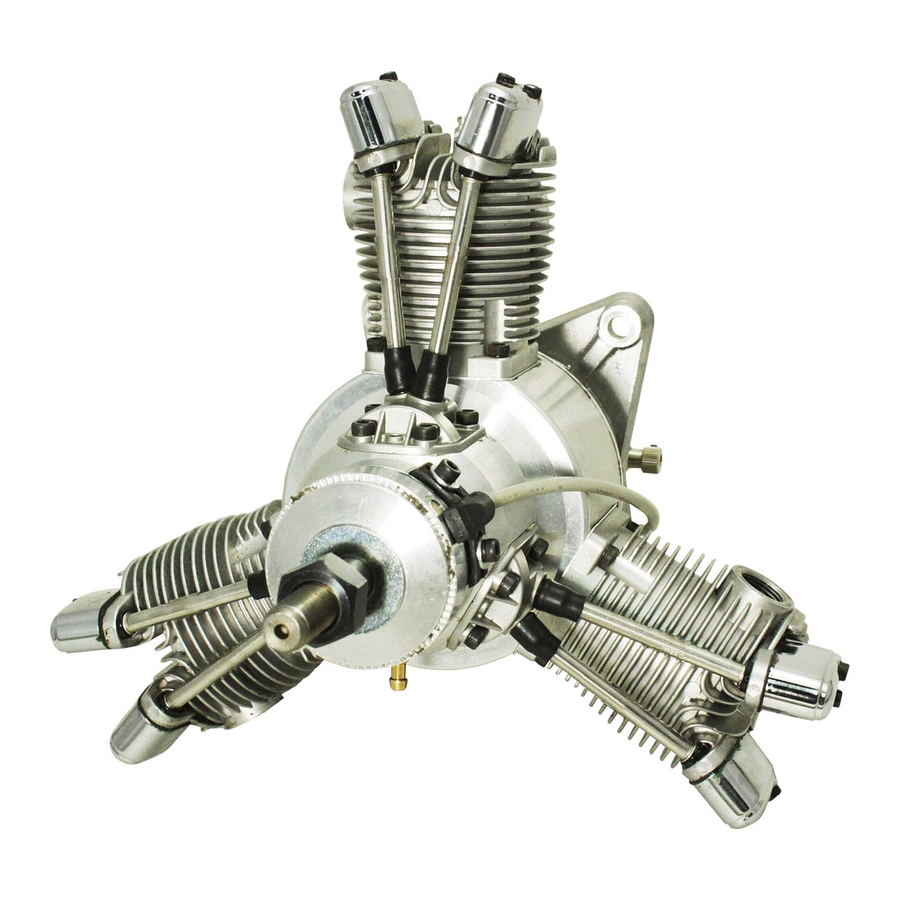

Thanks for buying SAITO FG-60R3 4-stroke gas-engine
exclusively for model planes.
In order to avoid misuse, please be sure to read well this instruc-
tion manual carefully. If there should be any deficiency, inconve-
nience, etc. Concerning the manufacture, our company will
repair them with responsibility.
Any failure or trouble caused by unnecessary disassembly,
modification, or other uses than those provided in the instruc-
tion manual is not subject to the warranty, however.
Moreover, all responsibilities for the use of the engine, and other
obligations and responsibilities based on laws, regulations, etc.
are borne by the purchaser and the user, and
SAITO SEISAKUSHO CO., LTD. is exempt from any responsibilities.

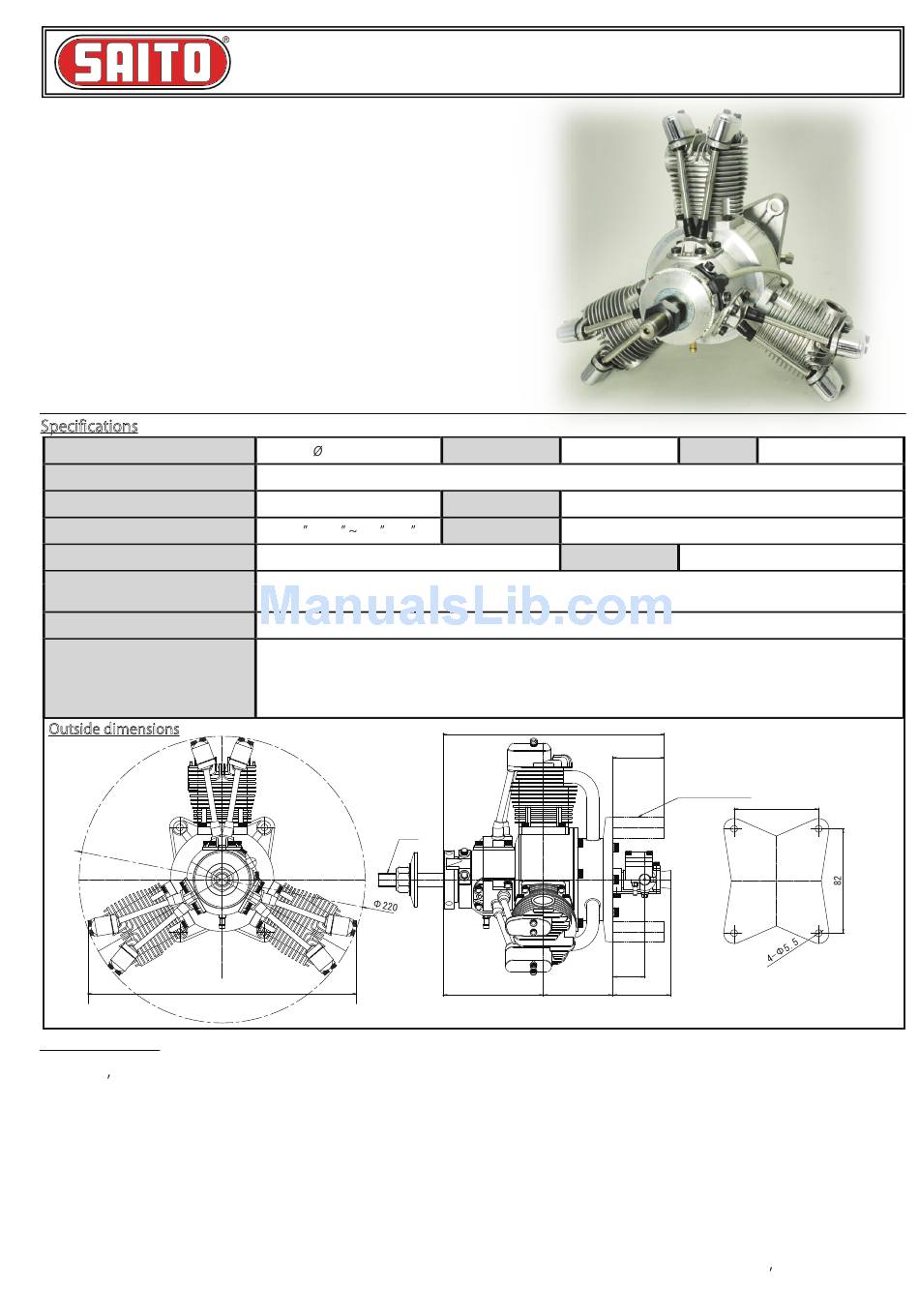

Specifications
Bore
Weight (Approx.)
Practical speed
Propeller
Fuel
Fuel consumption
Battery for ignition system
Standard accessories
Outside dimensions
Fig.1
NOTE&CAUTION
●Please note that we take no responsibility for any accidents, health damages, etc. using engine / fuel.
●If there s anyone stand in front of the engine, be sure to have them move behind the plane before starting the engine.
●Be sure not to breathe the evaporative emission of fuel and exhaust smoke as possible since they have harmful effects
on human body.
●Once the engine starts, move behind the plane and keep your arm holding the plane away from the prop.
●Make needle adjustment or other control from rear of the engine.
●If the plane cannot be fixed, ask your assistant to hold it for safety.
●During early stage of using engine, take the height in the air high enough to land safely in case the engine stop in the
air suddenly. It will reduce the risk of crash or landing accident.
●Take an extreme care for not bothering or injure others when operating the engine or flying.
●An engine for a model plane is not a toy. Handle it with an extreme care.
●Please note that our guarantee will not cover any breakage or trouble on the engine caused by user s disassembling,
modification, incorrect handling, and so on.
SAITO FG-60R3
4-Stroke Gasoline radial Engine Operating instructions
32.0mm x 3
Body: 1,800g / Mufflers: 90g / Ignition system: 195g
Approx. 1,500-7,000rpm
D21 x P10
D23 x P8
Regular gasoline ： Oil＝20:1 (Volume ratio)
Approx. 30cc/min (At full throttle 6,500rpm)
*Fuel flow varies depends upon prop load. More fuel flow with larger load and less fuel flow with smaller load.
Voltage: 6-9V higher than 1,000mA is recommended
Limit gauge (0.1t) for tappet adjustment
Plug wrench 
Spark plug [SP-2] （Attached to the engine）
Muffler set (3 Flexible mufflers & Bracket)
207
Stroke
Max on GND
Approx. 6,000-7,000rpm
Static thrust
Approx. 7kgf (Depend on prop）
Applications
1pc
1pc
3pcs
1set
167.5
M10×1
77
51
- 1 -
Disp.
25.0mm x 3
2st Gas-engine 50cc class
Spanner for tappet adjusting lock nut 1pc 
Hexagonal wrench 1.5mm
Ignition system （w/ sensor）
Stand off mount 39.5mm
39.5
Stand-off mount
24.6
44.6
60.32cc
1pc
1set
4pcs
66
