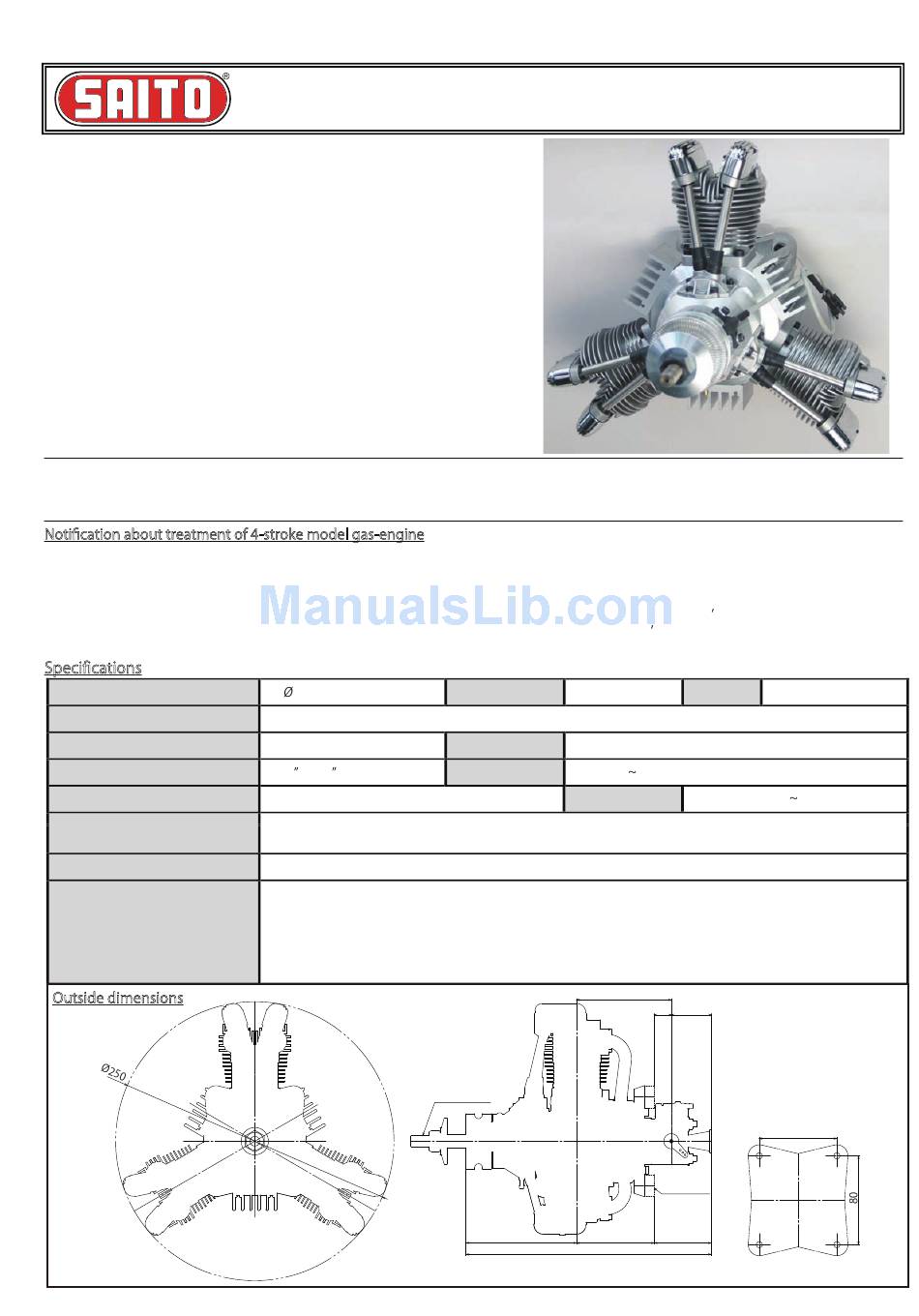

Saito FG-84R3 Operating Instructions Manual

4-stroke gasoline radial engine.
Hide thumbs


Advertisement

Thanks for buying SAITO FG-84R3 4-stroke gas-engine
exclusively for model airplanes.
In order to avoid misuse, please be sure to read well this
instruction manual carefully. If there should be any
deficiency, inconvenience, etc. concerning the manufac-
ture, our company will repair them with responsibility.
Any failure or trouble caused by unnecessary disassem-
bly, modification, or other uses than those provided in
the instruction manual is not subject to the warranty,
however.
Moreover, all responsibilities for the use of the engine,
and other obligations and responsibilities based on
laws, regulations, etc. are borne by the purchaser and
the user, and
SAITO SEISAKUSHO CO., LTD. is exempt from any
responsibilities.
SAITO FG-84R3 is the gas-version of existing glow FA-450R3 with bore up. This new designed gas-engine is a figure of integra-
tion of many experiences on our radial engines and gas-engines. Additional designs concentrate on durability and high power
brought it powerful and beautiful radial sound.
Notification about treatment of 4-stroke model gas-engine
◎Since valve timing is designed to get high power and high speed, the overlap range is relatively wide. So sometimes fuel get flown
back from the carburetor. (It may spatter in the engine room.)
◎Since the oil for lubrication is mixed in the fuel, waste oil from the breather nipple is dirty. Depending on treatment of waste oil, it
can be spattered on the plane.
◎Since lubrication is through breather, sometimes the oil oozes from each joint or commissure however it s no problem on performance.
◎Depending on the quality of the oil, sometimes there can be rust inside the crankcase. But it s no problem on performance as long
as there are no abnormal noise or backlash.
Specifications
Bore
Weight
Practical speed
Propeller
Fuel
Fuel consumption
Battery for ignition system
Standard accessories
Outside dimensions
Fig.1
SAITO FG-84R3
4-Stroke Gasoline radial Engine Operating instructions
36.0mm x 3
Body: 3,057g / Mufflers: 157g / Ignition system: 250g / Mount spacer: 64g (16gx4)
Approx. 1,300-7,000rpm
D24 x P10 standard
Regular gasoline : Oil=20:1 (Volume ratio)
Approx. 40cc/min (At full throttle 6,200rpm)
*Fuel flow varies depends upon prop load. More fuel flow with larger load and less fuel flow with smaller load.
Voltage: 6-9V higher than 1,000mA is recommended
Engine mount set (Mount spacer)
Ignition system (w/ sensor)
Spark plug [NGK CM-6] (Attached to engine)
Muffler set (3 Flexible mufflers & Bracket)
Carburetor adjustment bar
Choke bar
Stroke
27.6mm x 3
Max on GND
Approx. 5,500-6,500rpm
Static thrust
Approx. 7 9kgf (Depend on prop)
Applications
4pcs
Aluminum prop washer (w/steel washer)1set
1set
Limit gauge (0.1t) for tappet adjustment 1pc
3pcs
Spanner for tappet adjusting lock nut  1pc 
1set
Hexagonal wrench set
1pc
Plug wrench 
1pc
Anti-loosening nut
M10×1.25
100
221.7
-1-
Disp.
84.28cc
2st Gas-engine 60 70cc class
85.6
15.4
36
Mount
Spacer
70.2
51.5
1set
1pc
1pc
70
