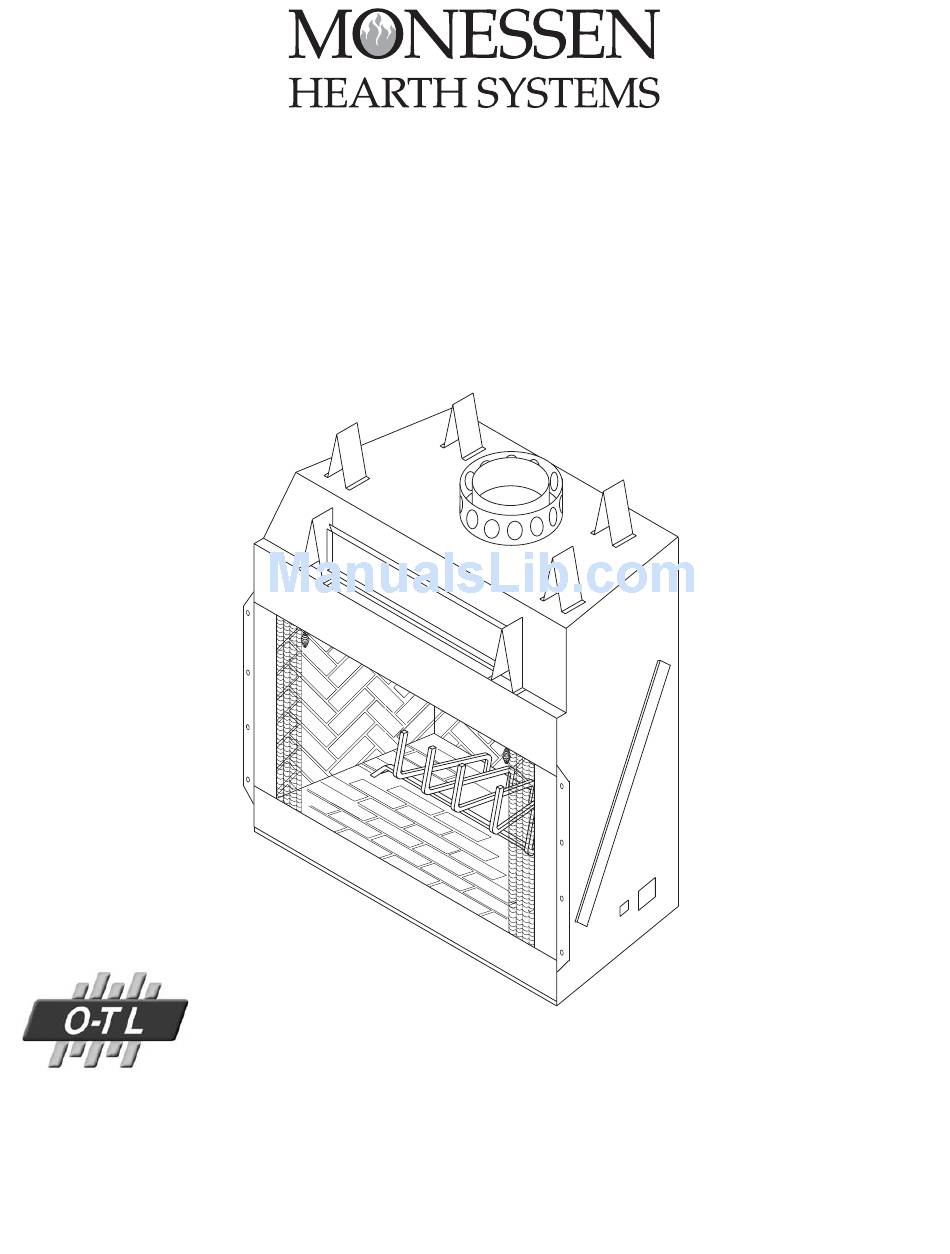

- Page 1 HWB800HB M ODEL ESIDENTIAL IREPLACE NSTALLATION PERATION AND AINTENANCE ANUAL OMNI-T "L" S HIS FIREPLACE IS LISTED BY ABORATORIES FOR USE WITH ERIES CHIMNEY SYSTEM COMPONENTS 53D9037. Rev 1 03/03...
-
Page 2: Table Of Contents
ONGRATULATIONS You have chosen the finest wood burning fireplace available. Your fireplace has been designed for years of heating and viewing enjoyment. Please take time to read this entire manual before installing or operating your fireplace. ABLE OF ONTENTS Listing and Code Approvals......................1 Important Information........................2 Operation Guidelines........................3 Clearances ......... -
Page 3: Important Information
The fireplace is designed to sit directly on a combustible floor. The fireplace must be installed with clearances to combustible building materials specified in this manual. Only parts manufactured by Monessen Hearth Systems and labeled for use with the fireplace should be used in the installation of this fireplace except for special roof flashings that may be fabricated locally. -
Page 4: Operation Guidelines
Because cold air infiltration may be unavoidable in some structures, Monessen Hearth Systems is not responsible for heat loss or air infiltration through or around the fireplace. -
Page 5: Clearances
LEARANCES IGURE RESIDENTIAL INSTALLATION 18 FT=MIN. HEIGHT (NO OFFSETS) 18 FT=MIN. HEIGHT (NO OFFSETS) 24FT=MIN. HEIGHT (2 30 24FT=MIN. HEIGHT (2 30˚ ELBOWS) ELBOWS) 30 FT=MIN. HEIGHT (4 30 30 FT=MIN. HEIGHT (4 30˚ ELBOWS) ELBOWS) 86FT=MAX. HEIGHT (CHIMNEY SUPPORT 86FT=MAX. - Page 6 LEARANCES IGURE 38 1/2 38 1/2 11" I.D. FLUE 11" I.D. FLUE 13" O.D. 13" O.D. OUTER PIPE OUTER PIPE 28 1/2 28 1/2 17 1/2 17 1/2 4 1/2 4 1/2 4 1/2 4 1/2 GAS LINE GAS LINE 66 1/2 66 1/2 OPENING...
-
Page 7: Fireplace Location
IREPLACE OCATION CAUTION: Do not install fireplace over carpeting. This fireplace does not weigh more than large pieces of furniture and can normally be located near a load bearing wall without requiring additional foundations or supports. If however, the fireplace is to be trimmed with a heavy stone or brick facing and hearth extension, be sure the supporting structure is adequate. -
Page 8: Installation Preparation
NSTALLATION REPARATION Survey the planned location for the fireplace for overhead plumbing or electrical wires, etc., that might complicate the installation or endanger persons installing or cleaning the chimney. Avoid a location where the chimney cap will be near abrupt changes in the roof shape, nearby wall or embankments, under or near trees or above the roof of a single story wing of a two story building as shown by Figure 8. - Page 9 NSTALLATION REPARATION IGURE SINGLE STORY INSTALLATION WITH SINGLE STORY INSTALLATION WITH ATTIC SPACE ATTIC SPACE LC CHIMNEY CAP LC CHIMNEY CAP FLUE OUTLET HEIGHT FLUE OUTLET HEIGHT STORM COLLAR STORM COLLAR 3 FT. MIN. OR 2' ABOVE 3 FT. MIN. OR 2' ABOVE ANY POINT WITHIN 10' ANY POINT WITHIN 10' FLASHING...
-
Page 10: Floor Protection
LOOR ROTECTION If this fireplace is installed on a combustible floor, the floor area 20 inches in front of, and 12 inches either side of the fireplace opening must be protected by an insulating noncombustible hearth extension. This hearth extension may be either minimum 6-inch thick stone or brick as shown by Figure 10, a H2074 hearth exten- sion kit or a locally constructed hearth equivalent to the H2074. - Page 11 LOOR ROTECTION The ability of insulating material to retard the transfer of heat may be expressed as either Thermal Conduc- tance (C), Thermal Conductivity (K), or Thermal Resistance (R). The mathematical relationship of these values and the formulas for converting one value to another is as follows: C=K divided by the material thickness2 IGURE (Example C = .43 divided by 1/2 (.50)
- Page 12 IREPLACE OMPONENTS IGURE AK4 COMBUSTION AK4 COMBUSTION AIR ASSEMBLY AIR ASSEMBLY LCL TELESCOPING LCL TELESCOPING CHIMNEY CAP CHIMNEY CAP WSB60 WSB60 CHIMNEY CAP CHIMNEY CAP GLASS DOORS GLASS DOORS SB6000 SB6000 H2074 H2074 HEARTH EXTENSION HEARTH EXTENSION CHIMNEY SUPPORT CHIMNEY SUPPORT LE30 LE30 30˚...
-
Page 13: Fireplace Components
Before beginning the installation, be sure you have the proper parts in sufficient quantity. Refer to Figure 27 for proper identification of parts. Do not substitute parts. Use only parts listed for use with the Model HWB800HB fireplace. IREPLACE NSTALLATION 1. -
Page 14: Chimney Installation
HIMNEY NSTALLATION IGURE 24" MIN. 24" MIN. 36" 24" MIN. 24" MIN. 36" NOTE: NOTE: FLUE OUTLET SHOULD BE TWO FEET ABOVE ALL PORTIONS OF THE BUILDING FLUE OUTLET SHOULD BE TWO FEET ABOVE ALL PORTIONS OF THE BUILDING WITHIN TEN FEET AS SHOWN IN THE ILLUSTRATION. THE CHIMNEY MUST NOT WITHIN TEN FEET AS SHOWN IN THE ILLUSTRATION. - Page 15 HIMNEY NSTALLATION TABLE 1 MINIMUM REQUIRED ROOF OPENING IGURE MINIMUM FRAMED OPENING ACTUAL ACTUAL "L" SERIES CENTER POINT CENTER POINT ROOF PITCH DOUBLEWALL CHIMNEY DOUBLEWALL CHIMNEY CENTERLINE CENTERLINE OF CHIMNEY OF CHIMNEY 17" x 17" 0/12 1 12 17" x 17" 1/8" 2/12 17"...
-
Page 16: Chimney Offset Installation
HIMNEY FFSET NSTALLATION LBOW NSTALLATION The following are important points that should be observed when installing elbows on the fireplace: 1. The support straps of all elbows not installed directly on top of the fireplace should be nailed securely to the surrounding structure. - Page 17 HIMNEY FFSET AND NSTALLATION CONTINUE CHIMNEY TO PROPER HEIGHT AND CONTINUE CHIMNEY TO PROPER HEIGHT AND IGURE INSTALL ROUND CHIMNEY CAP OR INSTALL ROUND CHIMNEY CAP OR CHIMNEY HOUSING CHIMNEY HOUSING STORM COLLAR STORM COLLAR FLASHING FLASHING ROOF ROOF LF-FS-30 LF-FS-30 22 1/16 22 1/16...
-
Page 18: Chimney Cap Installation
HIMNEY NSTALLATION LC C ODEL HIMNEY : The proper height as previously explained is important to assure proper draft and safety. The PECIAL chimney cap extends the flue outlet four inches above the top of the last section of chimney. This should be kept in mind when determining the proper height for the chimney. - Page 19 HIMNEY EIGHT AND FFSET HARTS CHIMNEY SECTIONS WITH ELBOW OFFSETS INTERMEDIATE SECTIONS HEIGHT CHIMNEY SECTIONS TOTAL IN. ELBOW (INCHES) 1-1/2' OFFSET 1" 1-1/2' 4 1/2 26 1/2 31 3/4 15 1/2 41 1/4 18 1/2 47 1/4 50 3/4 57 3/4 30 1/2 67 3/4 33 1/2...
-
Page 20: Chimney Cap Chase Installation
HIMNEY HASE NSTALLATION The preinstalled chimney sections should be no more than 13 inches below the top of the chase. The installation should be planned so that either a two-foot or three-foot chimney section will be used for the top section. This is necessary to ensure complete engagement of the inlet air telescope and chimney cap into the top section. -
Page 21: Outside Combustion Air Precautions And Recommendations
& R UTSIDE OMBUSTION RECAUTIONS ECOMMENDATIONS : The use of outside air for combustion is optional unless required by building codes. It is only necessary to supply outside combustion air to one side of the fireplace. Use the model AK4 combustion air kit. IGURE SECURING OUTSIDE AIR STARTING COLLAR TO FIREPLACE SECURING OUTSIDE AIR STARTING COLLAR TO FIREPLACE... - Page 22 & R UTSIDE OMBUSTION RECAUTIONS ECOMMENDATIONS UTSIDE OMBUSTION ECOMMENDATIONS CONTINUED 1. Extremely long runs and numerous turns in the duct leading from the fireplace to the combustion air assembly should be avoided. These conditions will increase the resistance to the free flow of air through the duct.
-
Page 23: Combustion Air Assembly
OMBUSTION SSEMBLY AK-4 C ODEL OMBUSTION SSEMBLY 1. Remove the cover plate from the 4-inch outlet opening location on the left or right outside of the fireplace. DO NOT remove the cover if the outside air will not be connected. 2. -
Page 24: Gas Appliance Installation
PPLIANCE NSTALLATION Improper installation or operation of a gas appliance in this fireplace can allow unburned gas to leak ARNING out which will cause a fire or explosion hazard, or the release of poisonous carbon monoxide into the dwelling which can cause serious injury or death to its inhabitants. To reduce these risks to a minimum, the following important notices and instructions should be read and followed carefully. - Page 25 PPLIANCE NSTALLATION 7. Pack the insulation removed in step 4 around the pipe to prevent air flowing through the tube either into or out of the firebox. 8. Be sure the gas is turned off at the appliance, then turn the gas on at the cut off valve and test the gas line connections for leaks with soapy water solution or a liquid leak detector.
-
Page 26: Trim And Door Installation
RIM AND NSTALLATION INSTALLATION OF NON-COMBUSTIBLE FACING MATERIALS TO THE FRONT FACE OF THE FIREPL INSTALLATION OF NON-COMBUSTIBLE FACING MATERIALS TO THE FRONT FACE OF THE FIREPLACE COMBUSTIBLE FRAMING COMBUSTIBLE FRAMING NON-COMBUSTIBLE NON-COMBUSTIBLE MEMBERS FACING MATERIAL MEMBERS FACING MATERIAL FACING MATERIAL FACING MATERIAL USE ONLY NON-COMBUSTIBLE USE ONLY NON-COMBUSTIBLE... -
Page 27: Fireplace Operation
IREPLACE PERATION : If a decorative gas appliance is used in the fireplace the fireplace damper must be fixed in an open ARNING position. (See additional operation information in section titled “Operation Guidelines”.) DVANTAGES OF A URNING IREPLACE These are the practical, ecological advantages of wood as a fuel. Also to be considered is the aesthetic appeal. - Page 28 IREPLACE PERATION You’ll need a minimum of three logs, preferably four, to make a good fire. Add kindling and new logs as needed to rekindle a dying fire. New logs should be added at the rear grate after raking the coals toward the front. D .
-
Page 29: Maintenance And Safety
Make sure the chimney is clear from any accumulation of soot, creosote or any other debris, and that all joints are intact. Monessen Hearth Systems does not recommend chemical cleaners because some may contain elements that corrode the metal parts of the chimney or fireplace. - Page 30 AINTENANCE AND AFETY IREPLACE AINTENANCE At the end of each heating season or when the fireplace will not be in use for an extended time, the ashes should be removed and the hearth area should be swept as clean as is practical. The slow absorption of moisture into the ashes over a long period of time could cause a condition which would be corrosive to the metal fireplace parts.
- Page 31 25. Don’t use the fireplace or chimney for venting wood or coal burning heaters or inserts unless approved in writing by Monessen Hearth Systems. 26. Don’t poke or stir the logs while they are burning. Use only firelogs that have been evaluated for the applica- tion in fireplace and refer to firelog warnings and caution markings on packaging prior to use.
-
Page 32: Repair Parts Diagram And List
ARTS IAGRAM AND All repair part orders should be placed through your local dealer. To ensure prompt and accurate service, please provide the following information when placing a repair part order: Model number of your Appliance, Part Name, Part Number, and Quantity of parts needed. Technical Service Department 2813 W. - Page 33 OTES 53D9037. Rev 1 03/03...
-
Page 34: Warranty
IMITATIONS AND XCLUSIONS 1. No one has authority to add to or vary this limited warranty, or to create for Monessen Hearth Systems any other obligation of liability in connection with this fireplace and accessory. 2. Monessen Hearth Systems... - Page 35 IREPLACE OR OMPONENT 1. Contact the nearest dealer. If you cannot locate your dealer, call or write Monessen Hearth Systems as indicated below. 2. If you do not receive satisfactory service from the dealer within a reasonable time, write Monessen Hearth Systems and include the date you purchased your fireplace or component, its serial number, and details of the problem you are having.
- Page 36 TTENTION PPLIANCE NSTALLER LEASE RETURN THESE PERATING NSTALLATION NSTRUCTIONS TO THE ONSUMER 53D9037. R 1 03/03...
