Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner's Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Toyota dealer will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, please call the following number:
U.S. OWNERS:
When traveling in the U.S. mainland or Canada:
D
Toyota Customer Experience Center
Hawaii:
D
Servco Automotive Customer Services
CANADIAN OWNERS:
When traveling in Canada or the U.S. mainland:
D
Toyota Canada Customer Interaction Centre
Please leave this Owner's Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota's policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
Please access our websites for further information.
The U.S. mainland
www.toyota.com
D
Hawaii
www.toyotahawaii.com
D
Canada
www.toyota.ca
D
©
2008 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.
'08 Rav4_U (L/O 0802)
Foreword
Toll−free:1−800−331−4331
Toll−free:1−888−272−5515
Toll−free:1−888−TOYOTA−8 or 1−888−869−6828
i
2008 RAV4 from Feb. '08 Prod. (OM42726U)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2008 Rav4 and is the answer not in the manual?

Questions and answers

Russ Darrow
July 19, 2025

2008 rav4 4wd

Subscribe to Our Youtube Channel

Summary of Contents for Toyota 2008 Rav4

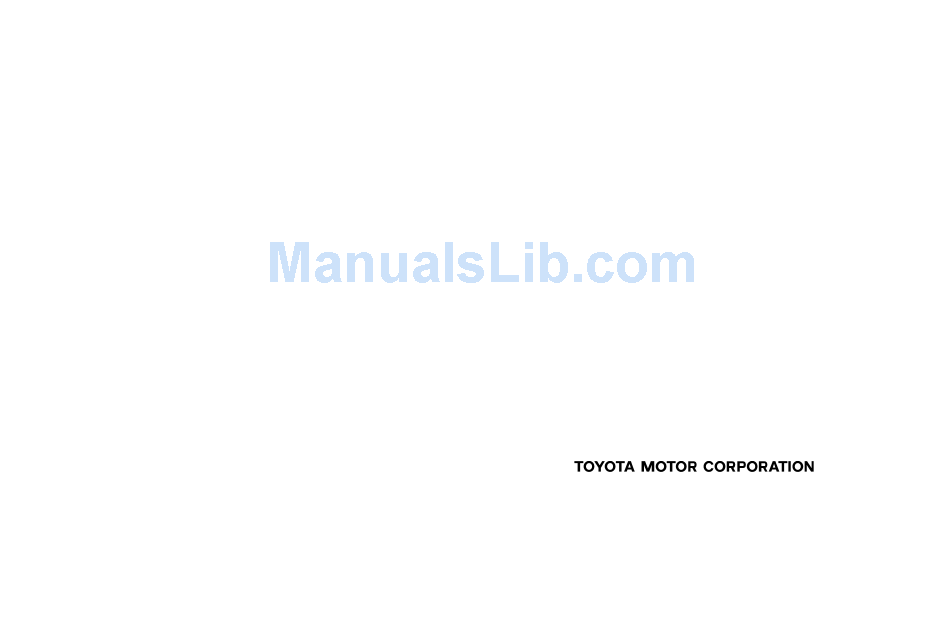

  • Page 1 Hawaii www.toyotahawaii.com Canada www.toyota.ca © 2008 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corporation. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 2: Important Information About This Manual

    You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 3: Occupant Restraint Systems

    None of these systems, either individ- Toyota encourages you and your family to take the time to ually or together, can ensure that there is no injury in the read Section 1−3 of this Owner’s Manual carefully.
  • Page 4: Event Data Recorder

    Toyota recommends you to read the provisions in Section D Engine speed 1−3 carefully and refer to them as needed during your time D Whether the brake pedal was applied or not of ownership of this vehicle.
  • Page 5 EDR does not record sound data such as conversation between passengers. D Front passenger’s occupant classification Toyota will not disclose the data recorded in an EDR to a D SRS airbag deployment data third party except when: D SRS airbag system diagnostic data D An agreement from the vehicle’s owner (or the leas-...
  • Page 6 ’08 Rav4_U (L/O 0802) New vehicle warranty Important health and safety information about your Toyota Your new vehicle is covered by the following Toyota limited warranties: CAUTION D New vehicle warranty D Emission control systems warranty WARNING: Engine exhaust, some of its constitu-...
  • Page 7 Toyota Toyota A wide variety of non−genuine spare parts and accessories The spark ignition system in your Toyota meets all require- for Toyota vehicles are currently available in the market. ments of the Canadian Interference−Causing Equipment You should know that Toyota does not warrant these prod- Standard.
  • Page 8 As the installation of a mobile two−way radio system in your vehicle could affect electronic systems such as fol- lows, be sure to check with your Toyota dealer for precau- tionary measures or special instructions regarding installa- Tires and loading on your tion.
  • Page 9: Driving Tips

    In addition, this vehicle shop or by your Toyota dealer before you dispose of your has a higher ground clearance and center of gravity than vehicle.
  • Page 10 ’08 Rav4_U (L/O 0802) Perchlorate Material Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Your vehicle has components that may contain perchlorate. These components may include airbag, seat belt preten- sioners, and wireless remote control batteries. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 11: Table Of Contents

    ........Indicator symbols on the instrument panel ..... . . 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 12: Instrument Panel Overview

    12. Power outlet (115 VAC) 13. Power outlet (12 VDC) 14. AUX adapter 15. Power rear view mirror control switches 16. Parking brake lever 17. Cup holders 18. Hood lock release lever 19. Window lock switch 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 13: Controls

    11. Power outlet 12. Windshield wiper de−icer switch 13. Seat heater switch 14. Downhill assist control switch 15. Front passenger’s seat belt reminder light 16. Engine immobilizer system indicator light 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 14 ’08 Rav4_U (L/O 0802) 17. Engine switch 18. Tilt and telescopic steering lock release lever 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 15: Controls

    10. Clock and air conditioning display 11. Power outlet 12. Windshield wiper de−icer switch 13. Seat heater switch 14. Downhill assist control switch 15. Front passenger’s seat belt reminder light 16. Engine immobilizer system indicator light 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 16 ’08 Rav4_U (L/O 0802) 17. Engine switch 18. Tilt and telescopic steering lock release lever 19. Power outlet main switch 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 17: Steering Switches Overview

    2. Microphone 3. Auxiliary box 4. Electric moon roof switch Without electric moon roof 1. Audio remote control switches 2. Telephone switch 3. Speech command switch 4. Cruise control switch With electric moon roof 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 18: Instrument Cluster Overview

    1. Tachometer 4. Engine coolant temperature gauge 7. Trip meter reset knob 2. Service reminder indicators and 5. Fuel gauge indicator lights 6. Odometer, two trip meters and outside 3. Speedometer temperature display 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 19: Indicator Symbols On The Instrument Panel

    Enhanced vehicle stability control ∗ 1 Low engine oil pressure warning light ∗ 1 system/traction control system warning light ∗ 1 Tire pressure warning light ∗ 1 Malfunction indicator lamp ∗ 1 “4WD” warning light 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 20 : For details, see “Service reminder indicators and warning Turn signal indicator lights buzzers” on page 129 in Section 1−6. ∗ 2 : If this light flashes, see “Cruise control” on page 168 in Section 1−7. Front fog light indicator light 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 21 ......... . . 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 22: Keys

    If you should lose your keys or if you a built−in transponder chip. glove box. need additional keys, duplicates can be made by a Toyota dealer using the key 2. Sub key—This key will not work in the To protect items locked in the glove box number.
  • Page 23 (includ- or may stop soon after it starts. ing keys of other vehicles) from the ring or while gripping or covering them with your hand to start the engine. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 24 If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend writing down the key num- ber and storing it in a safe place.
  • Page 25: Engine Immobilizer System

    ’08 Rav4_U (L/O 0802) Engine immobilizer system The system is maintenance−free. For your Toyota dealer to make you a new key with built−in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of additional keys your Toyota dealer can make for you.
  • Page 26: Wireless Remote Control

    At this time, the indi- cator light flashes once. The wireless remote control key is an electronic component. Observe the follow- ing instructions in order not to cause dam- age to the key. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 27 If you lose your wireless remote control key, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an accident. (See “If you lose your keys” on page 379 in Section 4.) 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 28 (1) this device may not cause interfer- ence, and (2) this device must accept The beep can be disabled. For details, any interference, including interference contact your Toyota dealer. that may cause undesired operation of the device. Unlocking operation 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 29 “ON” position. tion is not repeated. Release the switch The alarm function does not work when and then push again. the engine switch is in the “ON” position. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 30: Replacing Battery

    2. Remove module from equivalent type recommended by a driver wrapped with plastic tape. frame. Toyota dealer. z Dispose of used batteries according to the local laws. Replace the battery by following these procedures: 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 31 After replacing the battery, check that the 6. When pushing either switch on the key operates properly. If the key still does wireless key, make sure the indicator not operate properly, contact your Toyota light comes on. dealer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 32: Side Doors

    When the driver’s door is unlocked using the key, the illuminated entry system will be activated. (For further information, see “Illuminated entry system” on page 119 in Section 1−5.) 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 33 Unlock all the doors with the key or wireless remote control. Unlock the driver’s door with the inside lock knob, and then unlock all the Front passenger’s side doors with the power door lock switch. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 34: Power Windows

    Key off operation: If the either front door is closed, they work for 45 seconds even after the engine switch is turned off. They stop working when the either front door is opened. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 35 To open: Push down the switch. just before the window fully To close: Pull up the switch. closed. If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 36: Back Door

    Be sure to remove the key when When closing the back door, make sure you leave your vehicle. it is fully closed. See “—Stowage precautions” on page 336 in Section 2 for precautions when loading luggage. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 37: Hood

    CAUTION Before driving, be sure that the hood is closed and securely locked. Other- wise, the hood may open unexpected- ly while driving and an accident may occur. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 38: Fuel Tank Cap

    Then lower the hood and make sure it locks into place. If necessary, press down gently on the front edge to lock it. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 39 If the indicator lamp does neck if the cap is suddenly re- not go off, contact your Toyota dealer as moved. soon as possible. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 40: Electric Moon Roof

    To close: Push the switch on the “TILT UP” side. The roof will fully close automatically. To stop the roof partway, push the switch on Tilting operation either the “SLIDE OPEN” or “TILT UP” side briefly. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 41 Make sure that the moon roof opens and push release switch closes automatically. If the moon roof can- “SLIDE OPEN” side. not be operated properly, have it checked by your Toyota dealer. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
  • Page 42 The jam protection function may not work if something gets caught just before the moon roof is fully closed. 2008 RAV4 from Feb. ’08 Prod. (OM42726U)
