Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Operator's Manual
NOTICE
Always follow the directions given in the above repair manuals when handling
supplemental restraint system components (such as removal, installation,
inspection, etc.) in order to prevent accidents and supplemental restraint
system malfunction.
E2006
All rights reserved. This book may not be
reproduced or copied, in whole or in part, without
the written permission of Toyota Motor
Corporation.
First Printing : Aug. 02, 2006 01–060802–00

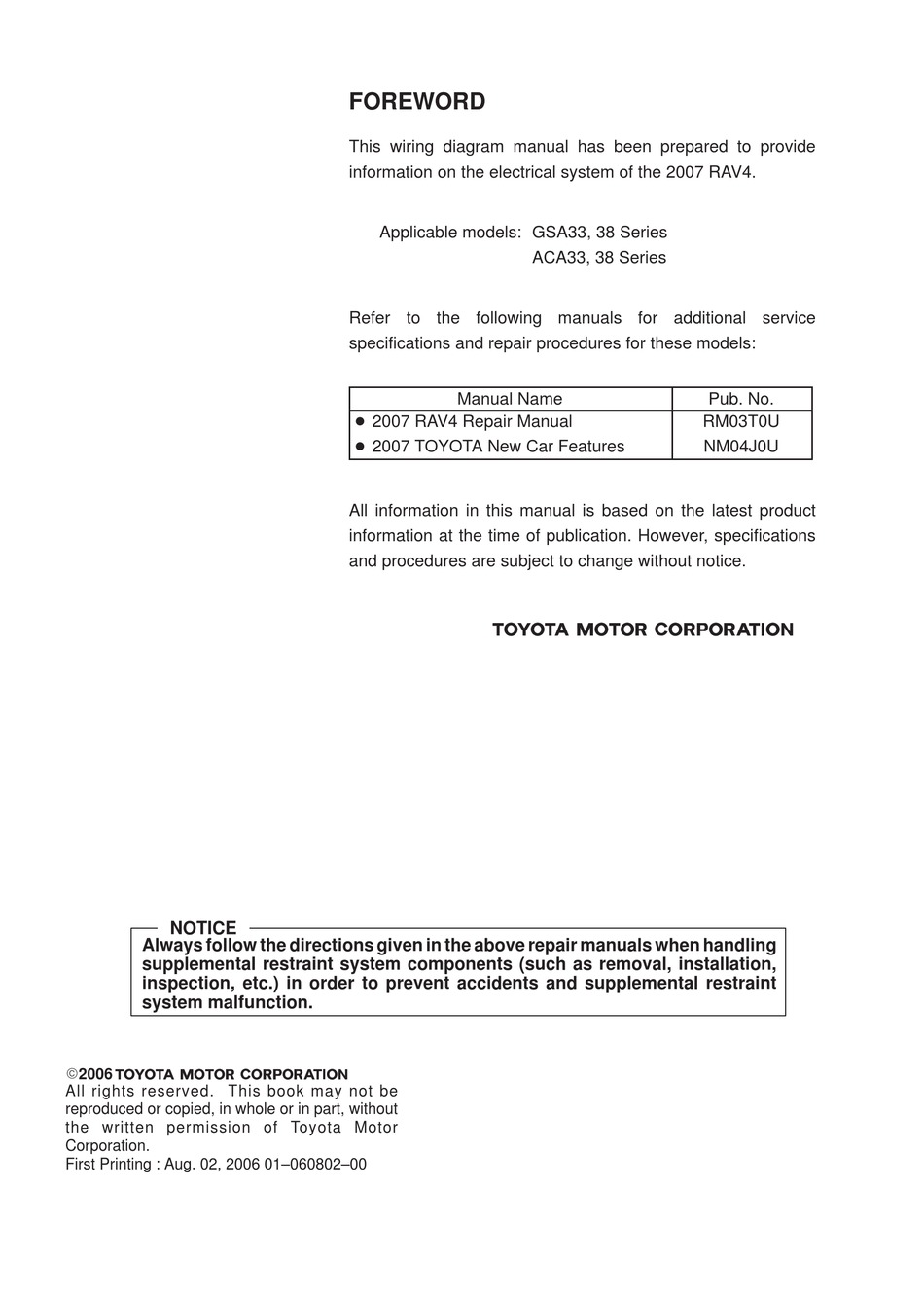

FOREWORD
This wiring diagram manual has been prepared to provide
information on the electrical system of the 2007 RAV4.
Applicable models: GSA33, 38 Series
Refer to the following manuals for additional service
specifications and repair procedures for these models:
Manual Name
D 2007 RAV4 Repair Manual
D 2007 TOYOTA New Car Features
All information in this manual is based on the latest product
information at the time of publication. However, specifications
and procedures are subject to change without notice.
ACA33, 38 Series
RM03T0U
NM04J0U
Pub. No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2007 RAV4 and is the answer not in the manual?

Questions and answers

Алексей
March 31, 2025

Схема электрической цепи отопителя салона

-1
1 comments:
Mr. Anderson
March 31, 2025

The electrical circuit diagram for the heater of a 2007 Toyota RAV4 includes the following components and connections:

- Heated Oxygen Sensor (connector A11) connected with wire color W-R.
- Fuel Pump (connector 73A) with a 15A fuse and relay control (Relay 9B).
- Data Link Connector (1B) for diagnostics.
- A/C Blower Assembly, A/C Amplifier, A/C Compressor, and A/C Evaporator Temp. Sensor.
- Junction connectors such as 86E, 63A, and 96E for CAN communication lines (CANH and CANL).
- Ambient Temperature Sensor connected to the Combination Meter (connector E19).
- Related relays and fuses include FAN NO.1 and NO.2 relays, ECU-B2 17.5A, and relays in R/B No.5 to No.7 on the cowl side left.

This setup forms part of the overall heating and air conditioning control system.

This answer is automatically generated

0

Related Manuals for Toyota 2007 RAV4

Summary of Contents for Toyota 2007 RAV4

  • Page 1 FOREWORD This wiring diagram manual has been prepared to provide information on the electrical system of the 2007 RAV4. Applicable models: GSA33, 38 Series ACA33, 38 Series Refer to the following manuals for additional service specifications and repair procedures for these models: Manual Name Pub.
  • Page 2 2007 RAV4 ELECTRICAL WIRING DIAGRAM Page Section Code INTRODUCTION .......
  • Page 3 A INTRODUCTION This manual consists of the following 13 sections: Section Description INDEX Index of the contents of this manual. INTRODUCTION Brief explanation of each section. HOW TO USE THIS Instructions on how to use this manual. MANUAL TROUBLE– Describes the basic inspection procedures for electrical circuits. SHOOTING ABBREVIATIONS Defines the abbreviations used in this manual.
  • Page 4 HOW TO USE THIS MANUAL B This manual provides information on the electrical circuits installed on vehicles by dividing them into a circuit for each system. The actual wiring of each system circuit is shown from the point where the power source is received from the battery as far as each ground point.

  • Page 5: How To Use This Manual

    B HOW TO USE THIS MANUAL * The system shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the SYSTEM CIRCUITS SECTION. Stop Light (BAT) (IG) 7.5A STOP GAUGE Stop Lamp SW 15 CH1 G –...
  • Page 6 [A] : System Title [H] : Indicates the wiring color. Wire colors are indicated by an alphabetical code. [B] : Indicates a Relay Block. No shading is used and only the Relay Block No. is shown to distinguish it B = Black W = White BR = Brown from the J/B...
  • Page 7 B HOW TO USE THIS MANUAL System Outline Current is applied at all times through the STOP fuse to TERMINAL 2 of the stop lamp SW. When the ignition SW is turned on, current flows from the GAUGE fuse to TERMINAL 8 of the light failure sensor, and also flows through the rear lights warning light to TERMINAL 4 of the light failure sensor.
  • Page 8 [O] : Explains the system outline. [P] : Indicates reference pages showing the parts locations in the system circuit on the vehicle. Example : Code ”H4” (Light Failure Sensor) is on page 36 of the manual. * The first character of the code indicates the alphabetical code allocated to the wire harness, and the second character indicates the serial number of the parts connected to the wire harness.
  • Page 9 B HOW TO USE THIS MANUAL The ground points circuit diagram shows the connections from all major parts to the respective ground points. When troubleshooting a faulty ground point, checking the system circuits which use a common ground may help you identify the problem ground quickly.

  • Page 10: Power Source

    The ”Current Flow Chart” section, describes which parts each power source (fuses, fusible links, and circuit breakers) transmits current to. In the Power Source circuit diagram, the conditions when battery power is supplied to each system are explained. Since all System Circuit diagrams start from the power source, the power source system must be fully understood.

  • Page 11: Connector List

    B HOW TO USE THIS MANUAL K CONNECTOR LIST Black Gray 1 2 3 4 1 2 3 4 5 Black Gray 1 2 3 6 7 8 9 10111213 K CONNECTOR LIST Black Gray 1 2 3 5 6 7 8 9 10 11 6 7 8 9 10 11 12 13 [A] : Indicates connector to be connected to a part.
  • Page 12 Airbag Squib Junction Connector 90980–11398 90980–12490 [A] : Part Code [B] : Part Name [C] : Part Number Toyota Part Number are indicated. Not all of the above part numbers of the connector are established for the supply. RAV4 (EM03T0U)

  • Page 13: Troubleshooting

    C TROUBLESHOOTING VOLTAGE CHECK To Ignition SW IG Terminal (a) Establish conditions in which voltage is present at the check point. Example: Fuse [A] – Ignition SW on [B] – Ignition SW and SW 1 on [C] – Ignition SW, SW 1 and Relay on (SW 2 off) (b) Using a voltmeter, connect the negative lead to a good ground point or negative battery terminal, and the positive lead to the SW 1...
  • Page 14 FINDING A SHORT CIRCUIT To Ignition SW IG Terminal (a) Remove the blown fuse and disconnect all loads of the fuse. (b) Connect a test light in place of the fuse. (c) Establish conditions in which the test light comes on. Test Light Fuse Case Example:...
  • Page 15 C TROUBLESHOOTING HOW TO REPLACE TERMINAL Reference: (with terminal retainer or secondary locking device) 1. PREPARE THE SPECIAL TOOL HINT : To remove the terminal from the connector, please construct and use the special tool or like object shown on the left.
  • Page 16 Tool For Waterproof Type Connector Example: Terminal (Case 1) Tool Retainer HINT : Terminal retainer color is different according to connector body. Example: Terminal Retainer : Connector Body Black or White : Gray Black or White : Dark Gray Tool Access Hole Gray or White : Black...
  • Page 17 C TROUBLESHOOTING Push the terminal retainer down to the temporary lock position. Retainer at Full Lock Position Retainer at Temporary Lock Position [Male] [Female] Locking Lug (c) Release the locking lug from terminal and pull the terminal out from rear. Tool 4.
  • Page 18 Sequential Multiport Fuel Injection Supplemental Restraint System Switch TEMP. Temperature TRAC Traction Control TVIP TOYOTA Vehicle Intrusion Protection Vehicle Stability Control Vacuum Switching Valve Variable Valve Timing VVT–i Variable Valve Timing–intelligent With Without ∗ The titles given inside the components are the names of the terminals (terminal codes) and are not treated as being abbreviations.
  • Page 19 E GLOSSARY OF TERMS AND SYMBOLS GROUND BATTERY The point at which wiring attaches to Stores chemical energy and the Body, thereby providing a return converts it into electrical energy. path for an electrical circuit; without a Provides DC current for the auto’s ground, current cannot flow.
  • Page 20 SPEAKER RELAY An electromechanical device which Basically, an electrically operated 1. NORMALLY creates sound waves from current switch which may be normally CLOSED flow. closed (1) or open (2). Current flow through a small coil creates a magnetic field which either opens or closes an attached switch.

  • Page 21: Engine Compartment

    F RELAY LOCATIONS [Engine Compartment] Skid Control ECU *1: w/ Trailer Towing with Actuator *2: w/o Trailer Towing Engine Room R/B No.2 Engine Room R/B No.1 Engine Room J/B No.1 Cooling Fan ECU(LH)(*1) Engine Control Cooling Fan ECU(RH) Cooling Fan ECU(*2) Module [Instrument Panel] Power Steering...
  • Page 22 [Body] Overhead J/B Sliding Roof Control ECU Tire Pressure Warning Antenna and Receiver Door Control Receiver Stereo Component Amplifier [Seat] Occupant Classification ECU RAV4 (EM03T0U)
  • Page 23 F RELAY LOCATIONS : Engine Room R/B No.1 Engine Compartment Left (See Page 20) Engine Compartment Left (See Page 20) : Engine Room J/B No.1 [2GR–FE] (Inner Circuit : See Page 25) Unit A * 1:60A EMPS (for High Current) * 2:80A MAIN (for High Current) * 3:140A ALT (w/ Trailer Towing) 120A ALT (w/o Trailer Towing)
  • Page 24 [2AZ–FE] Unit A * 1:60A EMPS (for High Current) * 2:80A MAIN (for High Current) * 3:120A ALT (for High Current) * 4:50A P/I (for High Current) EFI MAIN * 5:30A ABS2 (for High Current) 1 20A * 6:50A ABS1 (for High Current) VSC MTR Relay HORN 2 30A...
  • Page 25 F RELAY LOCATIONS : Engine Room R/B No.1 Engine Compartment Left (See Page 20) Engine Compartment Left (See Page 20) : Engine Room J/B No.1 (Inner Circuit : See Page 25) Unit A Top View Back View (from Engine Room Main Wire) (from Engine Room Main Wire)
  • Page 26 [Engine Room J/B No.1 Inner Circuit] Unit A 1 1A EFI MAIN Relay 1 1C 4 1A 20A EFI MAIN 3 1A 2 1A 5 1A HORN Relay 8 1A 10A HORN 7 1A 6 1A 1 1B 4 1B 3 1B 2 1B 5 1B...
  • Page 27 F RELAY LOCATIONS : Engine Room R/B No.2 Engine Compartment Right (See Page 20) [2GR–FE] * 1:50A HTR (for High Current) HEAD Relay DRL NO.4 DRL NO.3 * 2:50A FAN1 (for High Current) Relay Relay * 3:50A FAN2 (for High Current) * 4:50A HEAD MAIN (for High Current) ECU-B2...
  • Page 28 [2AZ–FE] * 1:50A HTR (for High Current) HEAD Relay DRL NO.4 DRL NO.3 * 2:30A CDS (for High Current) Relay Relay * 3:30A RDI (for High Current) * 4:50A HEAD MAIN (for High Current) FAN NO.3 Relay ECU-B2 FAN NO.2 17.5A Relay FAN NO.1...
  • Page 29 F RELAY LOCATIONS : R/B No.5 Cowl Side Left (See Page 20) PWR OUTLET Relay ACC Relay : R/B No.6 Cowl Side Left (See Page 20) INVT Relay FR FOG Relay RAV4 (EM03T0U)
  • Page 30 : R/B No.7 Cowl Side Left (See Page 20) ST Relay RAV4 (EM03T0U)
  • Page 31 F RELAY LOCATIONS : Instrument Panel J/B Cowl Side Left (See Page 20) 16151413121110 1413121110 9 8 7 6 5 4 3 2 7 6 5 4 3 (from Instrument (from Instrument Panel Wire) Panel Wire) (from Instrument Panel Wire) (from Engine Room Main Wire) 10 25...
  • Page 32 Main Body ECU 10111213141516 18 101112 6 7 8 9 10111213 13121110 9 8 7 6 1 2 3 4 5 6 7 1 2 3 3 2 1 (from Instrument (from Instrument Panel Wire) Panel Wire) 1011 1213 (from Instrument Panel Wire) RAV4 (EM03T0U)
  • Page 33 F RELAY LOCATIONS : Instrument Panel J/B Cowl Side Left (See Page 20) RAV4 (EM03T0U)
  • Page 34 Memo RAV4 (EM03T0U)
  • Page 35 F RELAY LOCATIONS [Instrument Panel J/B Inner Circuit] 2 ID 10 IA 6 IE 29 IA 13 IC 15 IB 30 IA 33 IB T-LP Relay 10A TAIL 1 IG 10 IE 7.5A PANEL 15 IE 3 IE 2 IQ 9 IS 13 IB 8 IQ...
  • Page 36 * 1:Automatic A/C * 2:Manual A/C (Cont'd) 10A STOP 18 IB 30 IE 7.5A OBD 5 IS 14 IE 2 IM 17 IE 8 IM 28 IE 15A PWR OUTLET 6 IM 12 IE 7 IM 9 IM 1 IK 7.5A 4WD 5 IM 15 IA...
  • Page 37 F RELAY LOCATIONS [Instrument Panel J/B Inner Circuit] (Cont'd) 15A RR WIP 11 IQ 10 IQ 15A S-HTR 1 IQ 29 IB 10 IS 10A GAUGE1 10 IM 8 IF 18 IE 2 IE C/OPN Relay 11 IB 8 IA 1 ID 5 IE 9 IB...
  • Page 38 (Cont'd) 14 IC HAZ GND1 TRLY ALTB 9 IE 24 IA PCTY 4 IK 6 IC DCTY 21 IA 14 IH 7 ID 5 IH 5 IA 2 IK 20 IA RRCY 27 IE 2 IS 13 IH 30 IB 4 IH 12 IH 3 IA...
  • Page 39 F RELAY LOCATIONS : J/B No.3 Instrument Panel Center (See Page 20) 3 4 5 6 7 8 9 12 11 10 8 7 6 5 4 3 13 14 15 16 17 18 19 20 2122 23 24 24 23 22 21 20 19 18 17 1615 14 13 25 26 27 28 29 30 31 32 3334 35 36 36 35 34 33 32 31 30 29 2827 26 25 37 38 39 40 41 42 43 44 4546 47 48...
  • Page 40 Memo RAV4 (EM03T0U)
  • Page 41 F RELAY LOCATIONS [J/B No.3 Inner Circuit] 11 3A 8 3A 12 3A 9 3A 23 3A 10 3A 24 3A 20 3A 34 3A 21 3A 35 3A 32 3A 36 3A 33 3A 46 3A 44 3A 47 3A 69 3A 48 3A 70 3A...
  • Page 42 (Cont'd) 4 3A 3 3A 52 3A 15 3A 64 3A 27 3A 76 3A 28 3A 4 3B 39 3A 40 3B 40 3A 16 3B 51 3A 1 3A 63 3A 13 3A 75 3A 14 3A 52 3B 25 3A 3 3B 26 3A...
  • Page 43 F RELAY LOCATIONS [J/B No.3 Inner Circuit] (Cont'd) 18 3A 17 3A 19 3A 53 3A 29 3A 65 3A 30 3A 77 3A 67 3A 5 3B 78 3A 17 3B 79 3A 53 3B 7 3B 65 3B 6 3B 16 3A 42 3B...
  • Page 44 Memo RAV4 (EM03T0U)
  • Page 45 F RELAY LOCATIONS : J/B No.4 Instrument Panel Center (See Page 20) 3 4 5 6 7 8 9 12 11 10 8 7 6 5 4 3 13 14 15 16 17 18 19 20 2122 23 24 24 23 22 21 20 19 18 17 1615 14 13 25 26 27 28 29 30 31 32 3334 35 36 36 35 34 33 32 31 30 29 2827 26 25 37 38 39 40 41 42 43 44 4546 47 48...
  • Page 46 Memo RAV4 (EM03T0U)
  • Page 47 F RELAY LOCATIONS [J/B No.4 Inner Circuit] 44 4A 11 4A 31 4A 12 4A 6 4A 71 4A 42 4A 83 4A 43 4A 84 4A 78 4A 8 4A 45 4A 9 4A 41 4A 10 4A 5 4A 70 4A 4 4A 80 4A...
  • Page 48 (Cont'd) 46 4A 37 4A 47 4A 49 4A 48 4A 61 4A 60 4A 62 4A 72 4A 13 4B 69 4A 25 4B 22 4A 37 4B 58 4A 61 4B 67 4A 76 4A 57 4A 65 4A 59 4A 77 4A 56 4A...
  • Page 49 F RELAY LOCATIONS [J/B No.4 Inner Circuit] (Cont'd) 26 4A 34 4B 62 4B 58 4B 55 4A 36 4A 7 4B 72 4B 51 4A 35 4A 3 4B 71 4B 50 4A 34 4A 2 4B 70 4B 8 4B 27 4A 32 4B...
  • Page 50 Memo RAV4 (EM03T0U)
  • Page 51 G ELECTRICAL WIRING ROUTING Position of Parts in Engine Compartment [2GR–FE] A 6 Windshield Wiper Motor A 22 Headlamp (RH High) A 7 Front Wiper Deicer A 23 Headlamp (RH Low) A 8 Brake Fluid Level Warning SW A 24 Side Marker Lamp (Front RH) A 9 Engine Control Module Turn Signal Lamp (Front RH) A 10 Wireless Door Lock Buzzer...
  • Page 52 Position of Parts in Engine Compartment [2GR–FE] B 1 Mass Air Flow Meter B 42 Ignition Coil (No.2) B 3 Throttle Body Assembly B 43 Camshaft Timing Oil Control Valve (LH Exhaust Side) B 4 Engine Coolant Temp. Sensor B 44 Camshaft Timing Oil Control Valve (LH Intake Side) B 5 Engine Oil Pressure SW B 45 VVT Sensor (Bank 2 Intake Side) B 19 Heated Oxygen Sensor (Bank 2 Sensor 2)
  • Page 53 G ELECTRICAL WIRING ROUTING Position of Parts in Engine Compartment [2AZ–FE] A 6 Windshield Wiper Motor A 22 Headlamp (RH High) A 7 Front Wiper Deicer A 23 Headlamp (RH Low) A 8 Brake Fluid Level Warning SW A 24 Side Marker Lamp (Front RH) A 9 Engine Control Module Turn Signal Lamp (Front RH) A 10 Wireless Door Lock Buzzer...
  • Page 54 Position of Parts in Engine Compartment [2AZ–FE] B 1 Mass Air Flow Meter B 17 Camshaft Timing Oil Control Valve B 2 VSV (Purge) B 18 Knock Control Sensor (Bank 1) B 3 Throttle Body Assembly B 19 Heated Oxygen Sensor (Bank 2 Sensor 2) B 4 Engine Coolant Temp.
  • Page 55 G ELECTRICAL WIRING ROUTING Position of Parts in Instrument Panel (*2) (*1) * 1: w/ Engine Immobiliser System * 2: w/o Engine Immobiliser System E 1 Main SW E 18 Power Steering ECU E 2 Light Control Rheostat E 19 Combination Meter E 3 Ignition SW E 20 Hazard Warning Signal SW E 4 Ignition Key Cylinder Lamp...
  • Page 56 Position of Parts in Instrument Panel (*6) (*5) * 3: Automatic A/C * 4: Manual A/C * 5: 4WD * 6: 2WD (*3) (*4) E 35 Heated Oxygen Sensor (Bank 1 Sensor 2) E 57 4WD Control ECU E 36 A/C Amplifier E 58 Option Connector (TVIP) E 37 A/C Amplifier E 59 Option Connector (Bus Buffer)
  • Page 57 G ELECTRICAL WIRING ROUTING Position of Parts in Instrument Panel A 1 Power Steering ECU A 35 Junction Connector A 2 Brake Pedal Load Sensing SW A 36 Junction Connector A 3 Stop Lamp SW A 37 Junction Connector A 4 Accelerator Position Sensor A 38 Junction Connector A 5 Trailer Socket RAV4 (EM03T0U)
  • Page 58 Position of Parts in Instrument Panel F 1 A/C Solar Sensor c 1 A/C Amplifier A/C Blower Assembly K 1 Airbag Sensor Assembly Center K 3 Power Outlet Socket (115V) d 1 Key Interlock Solenoid L 5 Video Terminal e 1 Power Steering ECU L 7 Airbag Sensor Assembly Center Power Steering Torque Sensor e 2 Power Steering ECU...
  • Page 59 G ELECTRICAL WIRING ROUTING Position of Parts in Body G 1 Speaker (Front Door RH) 1 Power Window SW (Rear RH) G 2 Power Window Regulator Motor (Front RH) 2 Speaker (Rear RH) G 3 Power Window SW (Front Passenger’s Side) 3 Power Window Regulator Motor (Rear RH) G 4 Outer Rear View Mirror (RH) 4 Door Lock Assembly (Rear RH)
  • Page 60 Position of Parts in Body K 6 Yaw Rate Sensor K 15 Voltage Inverter K 7 Door Courtesy SW (Front LH) K 16 Diode (Room Lamp) K 8 Pretensioner (LH) K 17 Power Outlet Socket (Rear) K 9 Side Airbag Sensor (Front LH) K 18 Door Courtesy SW (Back Door) K 10 Door Courtesy SW (Rear LH) K 19 Junction Connector...
  • Page 61 G ELECTRICAL WIRING ROUTING Position of Parts in Body L 8 Door Courtesy SW (Front RH) L 16 Rear Seat Entertainment Display L 9 Pretensioner (RH) L 17 Curtain Shield Airbag Squib (RH) L 10 Side Airbag Sensor (Front RH) L 18 Door Control Receiver L 11 Door Courtesy SW (Rear RH) L 19 Curtain Shield Airbag Squib (RH)
  • Page 62 Position of Parts in Body O 1 4WD Linear Solenoid S 1 Fuel Suction Pump S 2 Fuel Sender Gage P 1 Vanity Lamp SW (RH) S 3 Canister Pump Module P 2 Vanity Lamp (RH) P 3 Vanity Lamp (LH) V 1 Speed Sensor (Rear RH) P 4 Vanity Lamp SW (LH) P 5 Overhead J/B...
  • Page 63 G ELECTRICAL WIRING ROUTING Position of Parts in Seat K 4 Front Seat Inner Belt (Driver’s Side) X 1 Side Airbag Squib (LH) K 21 Junction Connector Y 1 Side Airbag Squib (RH) L 1 Occupant Classification ECU L 2 Front Seat Inner Belt (Front Passenger’s Side) a 1 Occupant Classification ECU L 3 Seat Heater (RH) a 2 Occupant Classification Sensor (Front LH)
  • Page 64 Memo RAV4 (EM03T0U)
  • Page 65 G ELECTRICAL WIRING ROUTING : Location of Connector Joining Wire Harness and Wire Harness : Location of Ground Points [2GR–FE] Engine Room Engine No.2 Wire Main Wire Engine Wire Sensor Wire Engine No.3 Wire RAV4 (EM03T0U)
  • Page 66 : Location of Connector Joining Wire Harness and Wire Harness : Location of Ground Points [2AZ–FE] Engine Room Engine No.2 Wire Main Wire Engine Wire Engine No.3 Wire RAV4 (EM03T0U)
  • Page 67 G ELECTRICAL WIRING ROUTING : Location of Connector Joining Wire Harness and Wire Harness AE10 : Location of Ground Points Instrument Panel Engine Room Instrument Panel Main Wire No.2 Wire Wire Assembly Roof Wire Front Door RH Wire Engine Room Main Wire Floor No.2 Wire...
  • Page 68 : Location of Connector Joining Wire Harness and Wire Harness : Location of Ground Points Roof Wire Front Door Rear Door Floor No.2 RH Wire No.1 RH Wire Wire Frame No.3 Wire Front Door LH Wire Back Door Floor Wire No.1 Wire Rear Door Skid Control...
  • Page 69 G ELECTRICAL WIRING ROUTING : Location of Connector Joining Wire Harness and Wire Harness Seat Airbag Seat Airbag Front Seat Floor Wire Seat No.2 Wire Floor No.2 Wire Wire LH Wire RH Wire RH RAV4 (EM03T0U)
  • Page 70 Memo RAV4 (EM03T0U)
  • Page 71 H SYSTEM CIRCUITS 2007 RAV4 ELECTRICAL WIRING DIAGRAM SYSTEM CIRCUITS Page ABS ............. . .
  • Page 72 Page Seat Belt Warning ........... Seat Heater .
  • Page 73 Power Source 15A IG2 ∗ 1 : w/ Trailer Towing ∗ 2 : w/o Trailer Towing ∗ 3 : 2GR–FE ∗ 4 : 2AZ–FE 30A AM2 10A ETCS 10A HAZ 50A ABS1 30A AMP 30A ABS2 140A ALT ( ∗1 ) 120A ALT ( ∗2 ) 20A EFI MAIN EFI MAIN...
  • Page 74 50A FAN2 ( ∗3 ) 30A RDI ( ∗4 ) Ignition SW 15A AC INV 50A HTR 50A FAN1 ( ∗3 ) 20A DEICER 30A CDS ( ∗4 ) 30A TOWING 10A EFI NO. 1 10A EFI NO. 2 DRL NO. 2 Relay 10A DOME 7.
  • Page 75 Power Source ACC Relay 7. 5A ACC 15A CIG IG2 Relay 7. 5A GAUGE2 7. 5A IGN W–B 12 4A 10A HEAD LH 70 4A 10A HEAD RH 10A HEAD LL 10A HEAD RL RAV4 (EM03T0U)
  • Page 76 10A ECU–IG1 10A ECU–IG2 10A GAUGE1 15A WSH Noise Filter 15A RR WIP 15A S–HTR IG1 Relay 25A ACC–B 25A WIP T–LP Relay 7. 5A OBD 7. 5A PANEL 7. 5A AM1 7. 5A 4WD 10A TAIL 10A STOP 30A PWR PWR Relay 15A PWR OUTLET 15A FR FOG...
  • Page 77 Power Source : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right)
  • Page 78 Memo RAV4 (EM03T0U)
  • Page 79 Multiplex Communication System – CAN Main Body ECU Power Steering ECU CANH CANL CANH CANL ∗ 1 : Automatic A/C ∗ 2 : Manual A/C Junction Connector CANH CANL CANH CANL CANH CANL CANH CANL CANH CANL A9 ( A ) Engine Control Module Skid Control ECU A/C Amplifier...
  • Page 80 Yaw Rate Sensor CANH CANL Airbag Sensor 4WD Control ECU Assembly Center 16 EK1 15 EK1 CANH CANL CANH CANL CANH CANL CANH CANL Combination Meter Steering Sensor RAV4 (EM03T0U)
  • Page 81 Multiplex Communication System – CAN System Outline CAN has two lines as a pair which make communication with operating voltage. CAN has excellent data speed and error detecting capacity. It consists of vehicle control systems such as 4WD control ECU, A/C amplifier, airbag sensor assembly center, combination meter, data link connector 3, engine control module, main body ECU, power steering ECU, skid control ECU with actuator, steering sensor and yaw rate sensor.
  • Page 82 Memo RAV4 (EM03T0U)
  • Page 83 Starting ( BAT ) ( BAT ) ∗ 1 : 2GR–FE ∗ 2 : 2AZ–FE 7. 5A Junction Connector Ignition SW ( ∗1 ) 13 BA4 ( ∗2 ) 13 BA2 7 AE2 ( ∗1 ) 5 BA4 ( ∗2 ) 5 BA2 STAR STAR...
  • Page 84 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 53 (2AZ–FE) 53 (2AZ–FE) 52 (2AZ–FE) 51 (2GR–FE) 51 (2GR–FE) 53 (2AZ–FE) 53 (2AZ–FE) 51 (2GR–FE) 51 (2GR–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left)
  • Page 85 Ignition for 2GR–FE ( BAT ) ( BAT ) 20 AE1 Ignition SW W–B IGT1 IGT1 IGF1 B30 ( B ) Engine Control Module RAV4 (EM03T0U)
  • Page 86 W–B W–B W–B W–B IGT2 IGT3 IGT4 IGT2 IGT3 IGT4 B30 ( B ) Engine Control Module RAV4 (EM03T0U)
  • Page 87 Ignition for 2GR–FE W–B W–B IGT5 IGT6 IGT5 IGT6 B30 ( B ) Engine Control Module RAV4 (EM03T0U)
  • Page 88 : Parts Location Code See Page Code See Page Code See Page 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) : Connector Joining Wire Harness and Wire Harness...
  • Page 89 Ignition for 2AZ–FE ( BAT ) ( BAT ) B30 ( C ) Engine Control Module Ignition SW 20 AE1 IGT1 IGT1 W–B RAV4 (EM03T0U)
  • Page 90 B30 ( C ) Engine Control Module IGT2 IGT3 IGF1 IGT4 IGT2 IGT3 IGT4 W–B W–B W–B RAV4 (EM03T0U)
  • Page 91 Ignition for 2AZ–FE : Parts Location Code See Page Code See Page Code See Page 53 (2AZ–FE) 53 (2AZ–FE) 53 (2AZ–FE) 53 (2AZ–FE) 53 (2AZ–FE) 53 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 23 (2AZ–FE) Engine Room R/B No.1 (Engine Compartment Left) : Connector Joining Wire Harness and Wire Harness Code...
  • Page 92 Memo RAV4 (EM03T0U)
  • Page 93 Charging with Trailer Towing ( IG ) GAUGE1 29 IB 5 BA1 B20 ( A ) , B21 ( B ) Generator 140A IC Regulator FL MAIN 3. 0W Battery RAV4 (EM03T0U)
  • Page 94 Battery Current Sensor VCIB A9 ( A ) , B30 ( B ) Engine Control Module CANH CANL RAV4 (EM03T0U)
  • Page 95 Charging with Trailer Towing ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B 1 IM 12 IH 22 3A Driver CAN I/F CANL CANH CHG– 8 AE6 Junction Connector RAV4 (EM03T0U)
  • Page 96 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) : Junction Block and Wire Harness Connector Code See Page...
  • Page 97 Charging without Trailer Towing ∗ 1 : 2GR–FE ( IG ) ∗ 2 : 2AZ–FE GAUGE1 Battery Current Sensor 120A ( ∗1 ) ( ∗2 ) VCIB A9 ( A ) , B30 ( B ) , ( C ) ( ∗1 ) Engine Control Module ( ∗2 )
  • Page 98 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B 1 IM 12 IH 22 3A Driver CAN I/F CANL CANH CHG– Junction Connector RAV4 (EM03T0U)
  • Page 99 Charging without Trailer Towing : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 51 (2GR–FE) 53 (2AZ–FE) 52 (2AZ–FE) 53 (2AZ–FE) 51 (2GR–FE) 51 (2GR–FE) 53 (2AZ–FE) 53 (2AZ–FE) 51 (2GR–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE)
  • Page 100 Memo RAV4 (EM03T0U)
  • Page 101 Engine Control for 2AZ–FE ( BAT ) ( BAT ) ( BAT ) EFI MAIN EFI MAIN Relay 20 AE1 1 1A 2 1A Ignition SW Relay 7 BA2 W–B RAV4 (EM03T0U)
  • Page 102 ( IG ) ( BAT ) 7. 5A ETCS C/OPN Relay 5 IE W–B 20 AE4 1 AK1 A9 ( A ) , B30 ( C ) Engine Control Module IGSW MREL BATT 20 A RAV4 (EM03T0U)
  • Page 103 Engine Control for 2AZ–FE Leak Detection Canister Pump Pressure Sensor MGND MTRB VOUT SGND VGND VLVB W–B 100 C 123 C MPMP VCPP PPMP EPPM VPMP OC1+ OC1– A9 ( A ) , B30 ( C ) Engine Control Module # 40 # 30 # 20...
  • Page 104 ∗ 1 : Shielded Ignition Coil Ignition Coil Ignition Coil Ignition Coil ( No. 1 ) ( No. 2 ) ( No. 3 ) ( No. 4 ) IGT1 IGT2 IGT3 IGT4 85 C 84 C 83 C 82 C 97 C IGT1 IGT2...
  • Page 105 Engine Control for 2AZ–FE ∗ 1 : Shielded ∗ 2 : w/ Power Outlet ( 115V ) ∗ 3 : w/o Power Outlet ( 115V ) Accelerator Position Sensor Battery Current Sensor VCP2 VPA2 EPA2 VCPA 56 A 69 C 120 C VCP2 VPA2...
  • Page 106 ( IG ) Throttle Body Assembly VTA2 M– 31 A 67 C 41 C ELS3 ELS1 VTA1 VTA2 VCTA M– GE01 A9 ( A ) , B30 ( C ) Engine Control Module FANL FANH 22 A 51 C Generator EFIO EFII EGND...
  • Page 107 Engine Control for 2AZ–FE ( BAT ) 7. 5A Ignition SW 2 BA1 52 C STAR A9 ( A ) , B30 ( C ) Engine Control Module ST1– 24 A ( BAT ) ( IG ) 7. 5A STOP 27 IB RAV4 (EM03T0U)
  • Page 108 Speed Sensors FL– FR– RL– RR– CANH CANL Junction Connector CANH CANL A9 ( A ) , B30 ( C ) Engine Control Module TACH Junction Connector CANH CANL RAV4 (EM03T0U)
  • Page 109 Engine Control for 2AZ–FE ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 110 System Outline The engine control system utilizes a microcomputer and maintains overall control of the engine, transmission etc. An outline of the engine control is given here. 1. Input Signals (1) Engine coolant temp. signal circuit The engine coolant temp. sensor detects the engine coolant temp. and has a built–in thermistor with a resistance, which varies according to the engine coolant temp..
  • Page 111 Engine Control for 2AZ–FE 2. Control System ∗ SFI system The SFI system monitors the engine condition through the signals input from each sensor to the engine control module. And the control signal is output to TERMINALS #10, #20, #30 and #40 of the engine control module to operate the injector (Inject the fuel).
  • Page 112 : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Engine Room Main Wire and Engine Room J/B (Engine Compartment Left) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Floor Wire and Instrument Panel J/B (Cowl Side Left) Engine Room Main Wire and Instrument Panel J/B (Cowl Side Left)
  • Page 113 Engine Control for 2GR–FE ( BAT ) ( BAT ) ( BAT ) 20 AE1 Ignition SW 6 1B Relay Relay NO. 2 NO. 1 8 1B 7 1B 7 BA1 W–B W–B W–B RAV4 (EM03T0U)
  • Page 114 ( BAT ) ( IG ) 7. 5A EFI MAIN EFI MAIN C/OPN Relay Relay 2 1A 5 IE 20 AE4 7 BA4 W–B RAV4 (EM03T0U)
  • Page 115 Engine Control for 2GR–FE ( BAT ) ETCS 2 AK1 1 AK1 F/PMP Relay A9 ( A ) , B30 ( B ) Engine Control Module BATT IGSW MREL 28 A 44 A RAV4 (EM03T0U)
  • Page 116 VVT Sensor VVT Sensor VVT Sensor VVT Sensor ( Bank 2 Intake Side ) ( Bank 1 Intake Side ) ( Bank 1 Exhaust Side ) ( Bank 2 Exhaust Side ) VVR+ VVR– VVL– VVL+ EX– EX– VV1+ VV1– VCV1 VV2–...
  • Page 117 Engine Control for 2GR–FE Throttle Body Assembly B20 ( A ) , B21 ( C ) Generator VTA2 M– ( ∗2 ) ( ∗3 ) 19 B OE1+ OE1– VCTA VTA1 VTA2 M– GE01 A9 ( A ) , B30 ( B ) Engine Control Module ST1–...
  • Page 118 ∗ 1 : Shielded ∗ 2 : w/ Trailer Towing ∗ 3 : w/o Trailer Towing OC1+ OC1– OC2+ OC2– OE2+ OE2– A9 ( A ) , B30 ( B ) Engine Control Module ETHA HA2A A2A+ A2A– A1A+ A1A– HA1A 93 B ( ∗1 )
  • Page 119 Engine Control for 2GR–FE Ignition Coil Ignition Coil Ignition Coil Ignition Coil Ignition Coil Ignition Coil ( No. 1 ) ( No. 2 ) ( No. 3 ) ( No. 4 ) ( No. 5 ) ( No. 6 ) IGT1 IGT2 IGT3...
  • Page 120 ∗ 1 : Shielded Accelerator Position Sensor Battery Current Sensor VCP2 VPA2 EPA2 VCPA 80 B 101 B 56 A VCIB VCP2 VPA2 EPA2 VCPA A9 ( A ) , B30 ( B ) Engine Control Module NE– KNK2 EKN2 KNK1 EKNK 111 B...
  • Page 121 Engine Control for 2GR–FE ( IG ) ∗ 2 : w/ Trailer Towing ∗ 3 : w/o Trailer Towing ∗ 4 : w/ Power Outlet ( 115V ) ∗ 5 : w/o Power Outlet ( 115V ) Junction Connector 33 A 31 A ELS2 A9 ( A ) , B30 ( B )
  • Page 122 ( BAT ) 7. 5A Ignition SW 62 B STAR A9 ( A ) , B30 ( B ) Engine Control Module EPPM PPMP VCPP VPMP MPMP 77 B 42 A 34 A 24 A W–B SGND VOUT VGND MTRB MGND Canister Leak Detection...
  • Page 123 Engine Control for 2GR–FE Speed Sensors FL– FR– RL– RR– TACH CANH CANL CANH CANL A9 ( A ) , B30 ( B ) Engine Control Module CANH CANL RAV4 (EM03T0U)
  • Page 124 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 125 Engine Control for 2GR–FE System Outline The engine control system utilizes a microcomputer and maintains overall control of the engine, transaxle etc. An outline of the engine control is given here. 1. Input Signals (1) Engine coolant temp. signal circuit The engine coolant temp.
  • Page 126 2. Control System ∗ SFI system The SFI system monitors the engine condition through the signals input from each sensors to the engine control module. The control signal is sent to the engine control module TERMINALS #10, #20, #30, #40, #50 and #60 to operate the injector (Fuel injection).
  • Page 127 Engine Control for 2GR–FE : Parts Location Code See Page Code See Page Code See Page 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 50 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 50 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 50 (2GR–FE) 51 (2GR–FE) 51 (2GR–FE) 50 (2GR–FE) 51 (2GR–FE)
  • Page 128 : Connector Joining Wire Harness and Wire Harness Code See Page Joining Wire Harness and Wire Harness (Connector Location) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) Engine Room Main Wire and Floor Wire (Left Kick Panel)

  • Page 129: Data Link Connector

    Data Link Connector 3 ( BAT ) 7. 5A ∗ 1 : 2GR–FE ∗ 2 : 2AZ–FE Data Link Connector 3 CANH CANL Transponder Key ECU 76 4A TACH A9 ( A ) Skid Control Engine Control Tire Pressure Occupant ECU with Module Warning ECU...
  • Page 130 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) 52 (2AZ–FE) 50 (2GR–FE) : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center)

  • Page 131: Engine Immobiliser System

    Engine Immobiliser System ( BAT ) ( IG ) ( BAT ) 7. 5A EFI MAIN ETCS EFI MAIN Relay 2 1A 44 A 20 A 28 A 11 A 10 A MREL BATT IGSW A9 ( A ) , B30 ( B ) , ( C ) Engine Control Module ME01 ( 2GR–FE )
  • Page 132 ( IG ) ( BAT ) ∗ 1 : Automatic A/C ∗ 2 : Manual A/C 7. 5A 7. 5A ECU–B2 Transponder Key Coil ANT1 ANT2 CODE TXCT AGND EGND EFII EFIO CODE TXCT AGND Transponder Key ECU 26 3B 38 3A Security Security...
  • Page 133 Engine Immobiliser System : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) 51 (2GR–FE) 53 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) 26 (2GR–FE)
  • Page 134 Memo RAV4 (EM03T0U)
  • Page 135 Headlight ( BAT ) HEAD MAIN AE10 HEAD LL HEAD RL HEAD LH HEAD RH RAV4 (EM03T0U)
  • Page 136 W–B RAV4 (EM03T0U)
  • Page 137 Headlight ( IG ) ( ACC ) ( BAT ) 7. 5A ECU– ECU–B E15 ( A ) , E16 ( B ) , E17 ( C ) Main Body ECU BECU HRLY GND1 RAV4 (EM03T0U)
  • Page 138 E15 ( A ) , E16 ( B ) , E17 ( C ) Main Body ECU HEAD CANH CANL Tail Head High Flash CANL CANH A9 ( A ) Engine Control Module RAV4 (EM03T0U)
  • Page 139 Headlight ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B 1 IM ∗ 1 : USA 12 IH 22 3A LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 140 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) 52 (2AZ–FE) 50 (2GR–FE) 50 (2GR–FE) 52 (2AZ–FE) 52 (2AZ–FE) 50 (2GR–FE) 52 (2AZ–FE) 50 (2GR–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right)
  • Page 141 Front Fog Light ( BAT ) ( BAT ) 140A ALT ( ∗1 ) FR FOG 120A ALT ( ∗2 ) 4 3A ∗ 1 : w/ Trailer Towing ∗ 2 : w/o Trailer Towing T–LP Relay FR FOG TAIL Relay FFGO TRLY...
  • Page 142 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B 1 IM 12 IH 22 3A LED Driver CAN I/F CANL CANH Junction Connector RAV4 (EM03T0U)

  • Page 143: Front Fog Light

    Front Fog Light : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 50 (2GR–FE) 52 (2AZ–FE) 52 (2AZ–FE) 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE)
  • Page 144 Memo RAV4 (EM03T0U)

  • Page 145: Light Auto Turn Off System

    Light Auto Turn Off System ∗ 1 : w/ Trailer Towing ∗ 2 : w/o Trailer Towing ( BAT ) ( BAT ) ( ACC ) ( IG ) ( BAT ) 140A ALT ( ∗1 ) HEAD MAIN 120A ALT ( ∗2 ) Door Control Receiver AE10...
  • Page 146 : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right)
  • Page 147 Turn Signal and Hazard Warning Light ( BAT ) ( IG ) ECU–IG2 FLSH Relay 17 IE Turn Headlamp Dimmer SW Assembly RAV4 (EM03T0U)
  • Page 148 RAV4 (EM03T0U)
  • Page 149 Turn Signal and Hazard Warning Light : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) 50 (2GR–FE) 50 (2GR–FE) 52 (2AZ–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left)
  • Page 150 Memo RAV4 (EM03T0U)

  • Page 151: Interior Light

    Interior Light ( BAT ) ( IG ) ( ACC ) 7. 5A ECU– ECU–B E15 ( A ) , E17 ( C ) Main Body ECU BECU GND1 RAV4 (EM03T0U)
  • Page 152 E15 ( A ) , E17 ( C ) Main Body ECU ( BAT ) DOME Parsonal Lamp RAV4 (EM03T0U)
  • Page 153 Interior Light ∗ 1 : w/ Engine Immobiliser System ∗ 2 : w/o Engine Immobiliser System E15 ( A ) , E17 ( C ) Main Body ECU FSPT 47 3B KEY– ILL– ILL+ KEY+ RAV4 (EM03T0U)
  • Page 154 E15 ( A ) , E17 ( C ) Main Body ECU BCTY DCTY PCTY RRCY LCTY 21 IA RAV4 (EM03T0U)
  • Page 155 Interior Light E15 ( A ) , E17 ( C ) Main Body ECU CANH CANL ( BAT ) ECU–B ∗ 3 : Audio System ( JBL ) ∗ 4 : Audio System ( Except JBL ) RAV4 (EM03T0U)
  • Page 156 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B 1 IM 12 IH 22 3A LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)

  • Page 157: Interior Light

    Interior Light : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector Code...
  • Page 158 Memo RAV4 (EM03T0U)
  • Page 159 Taillight and Illumination ( BAT ) 140A ALT ( ∗1 ) 120A ALT ( ∗2 ) TRLY E15 ( A ) , E17 ( C ) Main Body ECU TAIL CANH CANL Tail Head 23 4B 70 4A RAV4 (EM03T0U)
  • Page 160 ∗ 1 : w/ Trailer Towing ∗ 2 : w/o Trailer Towing ∗ 3 : Automatic A/C ∗ 4 : Manual A/C ILL+ ILL+ ILL– ILL– W–B RAV4 (EM03T0U)
  • Page 161 Taillight and Illumination IL+2 ILL+ ILL– Spiral Cable RAV4 (EM03T0U)
  • Page 162 ∗ 5 : Audio System ( JBL ) ∗ 6 : Audio System ( Except JBL ) 60 3B ( ∗5 ) ( ∗6 ) ILL+ ILL– ( ∗5 ) ( ∗6 ) RAV4 (EM03T0U)
  • Page 163 Taillight and Illumination ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B ∗ 7 : Except USA Combination Meter ILL+ LED Driver CAN I/F CANL CANH IND1 IND2 ILL– Light Control Rheostat RAV4 (EM03T0U)
  • Page 164 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) 26 (2GR–FE)

  • Page 165: Trailer Towing

    Trailer Towing ( BAT ) TOWING Trailer Socket RAV4 (EM03T0U)
  • Page 166 : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) RAV4 (EM03T0U)
  • Page 167 Stop Light ( BAT ) ( IG ) STOP ECU–IG1 Junction Connector Junction Connector STPO Junction Connector RAV4 (EM03T0U)
  • Page 168 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) : Junction Block and Wire Harness Connector Code...

  • Page 169: Back–Up Light

    Back–Up Light ( IG ) GAUGE1 Park/Neutral Position SW Junction Connector RAV4 (EM03T0U)
  • Page 170 : Parts Location Code See Page Code See Page Code See Page 51 (2GR–FE) 53 (2AZ–FE) : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Floor Wire and Instrument Panel J/B (Cowl Side Left) Engine Room Main Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) : Connector Joining Wire Harness and Wire Harness...

  • Page 171: Key Reminder

    Key Reminder ( ACC ) ( IG ) ( BAT ) ( IG ) 7. 5A 7. 5A ECU–IG1 ECU–B GAUGE2 1 IM 22 3A BECU E17 ( C ) Main Body ECU Buzzer DCTY GND1 CANH CANL 15 C 21 IA CAN I/F CANL...
  • Page 172 : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector Code See Page...

  • Page 173: Seat Belt Warning

    Seat Belt Warning ( IG ) ( BAT ) ( IG ) 7. 5A 7. 5A ECU–B ∗ 3 : Automatic A/C ∗ 4 : Manual A/C 16 IE Front Seat Inner Belt ( Driver' s Side ) Buckle SW LBE+ LBE–...
  • Page 174 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B 1 IM 12 IH 22 3A PBLT Buzzer LED Driver PBEW PBEW Front Front Passenger Passenger Seat Belt Seat Belt Warning Lamp Warning Lamp CAN I/F CANL CANH RAV4 (EM03T0U)

  • Page 175: Seat Belt Warning

    Seat Belt Warning : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector Code...
  • Page 176 Memo RAV4 (EM03T0U)

  • Page 177: Power Seat

    Power Seat ( BAT ) P/SEAT 13 IQ Reclining Lifter Slide RCLR RCLF RDWN SLDR SLDF BACK DOWN BACK Power Seat Motor Power Seat Motor Power Seat Motor ( Driver' s Seat ( Driver' s Seat ( Driver' s Seat Slide Control ) Reclining Control ) Lifter Control ) RAV4 (EM03T0U)
  • Page 178 Front Vertical FDWN DOWN K21 ( A ) , N8 ( B ) Junction Connector Power Seat Motor Power Seat Motor ( Driver' s Seat ( Driver' s Seat Lumbar Support Control ) Front Vertical Control ) RAV4 (EM03T0U)
  • Page 179 Power Seat : Parts Location Code See Page Code See Page Code See Page : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) : Connector Joining Wire Harness and Wire Harness Code See Page...
  • Page 180 Memo RAV4 (EM03T0U)

  • Page 181: Seat Heater

    Seat Heater ( IG ) S–HTR RAV4 (EM03T0U)
  • Page 182 : Parts Location Code See Page Code See Page Code See Page : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) : Connector Joining Wire Harness and Wire Harness...
  • Page 183 Power Outlet – 115V ( IG ) ( BAT ) ECU–IG1 AC INV ELS1 ∗ 1 : 2GR–FE ∗ 2 : 2AZ–FE INVT Relay 15 EK2 EXCD 8 4A Voltage Inverter 70 4A Junction Connector RAV4 (EM03T0U)
  • Page 184 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) R/B No.6 (Cowl Side Left) : Junction Block and Wire Harness Connector...
  • Page 185 Power Outlet – 12V ( ACC ) ( BAT ) ( ACC ) 7. 5A OUTLET OUTLET Relay 10 4A 70 4A RAV4 (EM03T0U)
  • Page 186 : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) R/B No.5 (Cowl Side Left) : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left)

  • Page 187: Front Wiper And Washer

    Front Wiper and Washer ( IG ) ( IG ) 2 IJ 36 IB 2 IB E9 ( A ) , E10 ( B ) Windshield Wiper SW Assembly Wiper Relay Front Wiper SW Front Washer SW 2 AE3 10 AE3 W–B Windshield Wiper Motor...
  • Page 188 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) 52 (2AZ–FE) 52 (2AZ–FE) 50 (2GR–FE) 50 (2GR–FE) : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Engine Room Main Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) : Connector Joining Wire Harness and Wire Harness...

  • Page 189: Rear Wiper And Washer

    Rear Wiper and Washer ( IG ) ( IG ) E9 ( A ) , E10 ( B ) Windshield Wiper SW Assembly RR WIP Washer On+Washer Junction Connector Junction Connector Diode ( Rear Wiper ) 19 QL1 Rear Wiper Motor Rear Wiper Relay Rear Wiper Motor...
  • Page 190 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) 52 (2AZ–FE) 50 (2GR–FE) : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Floor Wire and Instrument Panel J/B (Cowl Side Left) Engine Room Main Wire and Instrument Panel J/B (Cowl Side Left) : Connector Joining Wire Harness and Wire Harness...

  • Page 191: Front Window Deicer

    Front Window Deicer ( BAT ) ( IG ) DEICER ECU–IG1 24 IB 7 IS 69 3B 33 3A 8 AE7 Front Wiper Deicer Front Wiper Deicer SW Front Wiper 47 4A Deicer 22 4A RAV4 (EM03T0U)
  • Page 192 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector Code...

  • Page 193: Power Window

    Power Window ( BAT ) ( BAT ) 140A ALT ( ∗1 ) D FR 120A DOOR ALT ( ∗2 ) Relay DOOR DOOR E15 ( A ) Main Body ECU DCTY LIN2 RAV4 (EM03T0U)
  • Page 194 Power Window SW ( Driver' s Side ) DOWN AUTO 8 HE2 8 GE2 17 GE2 Power Window Regulator Motor ( Front LH ) ∗ 1 : w/ Trailer Towing ∗ 2 : w/o Trailer Towing MPX1 Sliding Roof Control ECU RAV4 (EM03T0U)
  • Page 195 Power Window Power Window SW ( Driver' s Side ) 10 HE1 7 HE1 12 HE1 6 EK1 14 EK1 4 EL1 12 EL1 12 JK1 2 JK1 12 IL1 2 IL1 RAV4 (EM03T0U)
  • Page 196 : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) : Junction Block and Wire Harness Connector Code See Page...
  • Page 197 Wireless Door Lock Control ( BAT ) ( IG ) ( ACC ) 7. 5A ECU– ECU–B E15 ( A ) , E17 ( C ) Main Body ECU BECU GND1 DCTY PCTY RRCY 21 IA RAV4 (EM03T0U)
  • Page 198 E15 ( A ) , E17 ( C ) Main Body ECU LCTY ACT– ACT+ 70 4A ACT– ACT+ Back Door Lock Assembly RAV4 (EM03T0U)
  • Page 199 Wireless Door Lock Control E15 ( A ) , E17 ( C ) Main Body ECU LSWP ACTD LSWD 25 A 11 GE1 11 HE1 5 HE2 9 EL1 1 EL1 LSSR LSSR 19 IL1 13 IL1 18 GE2 Door Lock Assembly ( Rear RH ) RAV4 (EM03T0U)
  • Page 200 E15 ( A ) , E17 ( C ) Main Body ECU ( BAT ) ECU–B FLSH Relay 19 JK1 13 JK1 ∗ 3 : Audio System ( JBL ) ∗ 4 : Audio System ( Except JBL ) Door Lock Assembly ( Rear LH ) RAV4 (EM03T0U)
  • Page 201 Wireless Door Lock Control E15 ( A ) , E17 ( C ) Main Body ECU ( BAT ) DOME Parsonal Lamp RAV4 (EM03T0U)
  • Page 202 ∗ 1 : w/ Engine Immobiliser System ( BAT ) ∗ 2 : w/o Engine Immobiliser System DOOR E15 ( A ) , E17 ( C ) Main Body ECU BCTY ALTB 47 3B KEY– ILL– ILL+ KEY+ RAV4 (EM03T0U)
  • Page 203 Wireless Door Lock Control : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector...
  • Page 204 : Ground Points Code See Page Ground Points Location 64 (2GR–FE) Front Left Fender Front Left Fender 65 (2AZ–FE) Left Kick Panel Instrument Panel Reinforcement Center Right Kick Panel Right Quarter Panel RAV4 (EM03T0U)
  • Page 205 Door Lock Control ( BAT ) ( IG ) ( ACC ) 7. 5A ECU– ECU–B E15 ( A ) , E17 ( C ) Main Body ECU BECU GND1 DCTY 21 IA RAV4 (EM03T0U)
  • Page 206 E15 ( A ) , E17 ( C ) Main Body ECU CANH CANL ACT– ACT+ Front Seat Inner Belt ( Driver' s Side ) Buckle SW LBE+ LBE– 70 4A DBE+ DBE– CANH CANL E45 ( C ) , K1 ( A ) Airbag Sensor Assembly Center ACT–...
  • Page 207 Door Lock Control E15 ( A ) , E17 ( C ) Main Body ECU LSWP 11 GE1 LSSR W–B W–B 18 GE2 RAV4 (EM03T0U)
  • Page 208 ( BAT ) DOOR E15 ( A ) , E17 ( C ) Main Body ECU ACTD LSWD ALTB 25 A 9 EL1 1 EL1 11 HE1 5 HE2 9 HE1 19 IL1 13 IL1 19 JK1 13 JK1 LSSR W–B Door Lock Assembly Door Lock Assembly...
  • Page 209 Door Lock Control : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector Code...
  • Page 210 Memo RAV4 (EM03T0U)

  • Page 211: Shift Lock

    Shift Lock ( IG ) ( ACC ) ( BAT ) 7. 5A ECU–IG1 STOP Shift Lock Solenoid SLS+ SLS– Shift Lock Control ECU KLS+ RAV4 (EM03T0U)
  • Page 212 : Parts Location Code See Page Code See Page Code See Page : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Engine Room Main Wire and Instrument Panel J/B (Cowl Side Left)
  • Page 213 ECT and A/T Indicator for 2GR–FE ( BAT ) ( BAT ) ( IG ) ( BAT ) 7. 5A STOP EFI MAIN ETCS EFI MAIN Relay 2 1A IGSW 28 A NO. 1 7 BA4 RAV4 (EM03T0U)
  • Page 214 ∗ 1 : Shielded ( IG ) Throttle Body Assembly GAUGE1 VTA2 M– 19 B 41 B VCTA VTA1 VTA2 M– GE01 A9 ( A ) , B30 ( B ) Engine Control Module BATT MREL ETHW ETHA ST1– RAV4 (EM03T0U)
  • Page 215 ECT and A/T Indicator for 2GR–FE 16 AE4 NSSD NSSL 1 AE4 24 B 25 A 26 A A9 ( A ) , B30 ( B ) Engine Control Module THO1 ETHO SLT+ SLT– SL3+ SL3– SL2+ SL2– SL1+ SL1– 126 B 124 B 11 B...
  • Page 216 ( BAT ) 7. 5A Ignition SW 62 B STAR A9 ( A ) , B30 ( B ) Engine Control Module ME01 NT– NC– RAV4 (EM03T0U)
  • Page 217 ECT and A/T Indicator for 2GR–FE Speed Sensors TACH FL– FR– RL– RR– A9 ( A ) , B30 ( B ) Engine Control Module CANH CANL CANL CANH Junction Connector RAV4 (EM03T0U)
  • Page 218 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B Combination Meter CANL CANH Shift Indicator LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 219 ECT and A/T Indicator for 2GR–FE System Outline 1. Line Pressure Optimal Control Through the use of the solenoid valve SLT+, the line pressure is optimally controlled in accordance with the engine torque information, as well as with the internal operating conditions of the torque converter and the transaxle. Accordingly, the line pressure can be controlled minutely in accordance with the engine output, traveling condition, and the ATF temperature, thus realizing smooth shift characteristics and optimizing the workload in the oil pump.
  • Page 220 : Ground Points Code See Page Ground Points Location 64 (2GR–FE) 64 (2GR–FE) Front Left Fender Front Left Fender 64 (2GR–FE) 64 (2GR–FE) Left Side of the Cylinder Head Left Side of the Cylinder Head Left Kick Panel RAV4 (EM03T0U)
  • Page 221 ECT and A/T Indicator for 2AZ–FE ( BAT ) ( IG ) ( BAT ) 7. 5A EFI MAIN ETCS EFI MAIN Relay 1 1A 2 1A IGSW A9 ( A ) , B30 ( C ) Engine Control Module MREL BATT 20 A...
  • Page 222 Accelerator Position Sensor VCP2 VPA2 EPA2 VCPA 97 C 56 A ETHW VCP2 VPA2 EPA2 VCPA A9 ( A ) , B30 ( C ) Engine Control Module ETHA ME01 104 C 46 C 45 C Mass Air Flow Meter RAV4 (EM03T0U)
  • Page 223 ECT and A/T Indicator for 2AZ–FE Throttle Body Assembly VTA2 M– 67 C 41 C VTA1 VTA2 VCTA M– GE01 A9 ( A ) , B30 ( C ) Engine Control Module SLT+ SLT– SL2+ SL2– SL1+ SL1– THO1 ETHO 57 C 77 C SLT+...
  • Page 224 ( IG ) GAUGE1 Park/Neutral Position SW NSSD Transmission Control SW 73 C 53 C 56 C 55 C A9 ( A ) , B30 ( C ) Engine Control Module ST1– ( BAT ) ( IG ) 7. 5A STOP 27 IB RAV4 (EM03T0U)
  • Page 225 ECT and A/T Indicator for 2AZ–FE ( BAT ) 7. 5A Ignition SW 2 BA1 52 C STAR A9 ( A ) , B30 ( C ) Engine Control Module NT– NC– RAV4 (EM03T0U)
  • Page 226 Speed Sensors FL– FR– RL– RR– CANH CANL Junction Connector CANH CANL A9 ( A ) , B30 ( C ) Engine Control Module TACH Junction Connector CANH CANL RAV4 (EM03T0U)
  • Page 227 ECT and A/T Indicator for 2AZ–FE ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B LED Driver CAN I/F Shift Indicator CANL CANH RAV4 (EM03T0U)
  • Page 228 System Outline Previous automatic transaxle have selected each gear shift using mechanically controlled throttle hydraulic pressure, governor hydraulic pressure and lock–up hydraulic pressure. The electronically controlled transmission, however, electrically controls the line pressure, throttle pressure, lock–up pressure and accumulator pressure etc. through the solenoid valve. The electronically controlled transmission is a system which precisely controls gear shift timing and lock–up timing in response to the vehicle’s driving conditions and the engine condition detected by various sensors.
  • Page 229 ECT and A/T Indicator for 2AZ–FE : Connector Joining Wire Harness and Wire Harness Code See Page Joining Wire Harness and Wire Harness (Connector Location) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) 65 (2AZ–FE) 65 (2AZ–FE)
  • Page 230 Memo RAV4 (EM03T0U)
  • Page 231 Cruise Control for 2GR–FE ( BAT ) ( BAT ) ( IG ) ( BAT ) 7. 5A STOP EFI MAIN ETCS EFI MAIN Relay 2 1A IGSW 28 A NO. 1 7 BA4 RAV4 (EM03T0U)
  • Page 232 ∗ 1 : Shielded Throttle Body Assembly VTA2 M– 19 B 41 B VCTA VTA1 VTA2 M– GE01 A9 ( A ) , B30 ( B ) Engine Control Module BATT MREL ETHW ETHA ST1– RAV4 (EM03T0U)
  • Page 233 Cruise Control for 2GR–FE ( IG ) GAUGE1 A9 ( A ) , B30 ( B ) Engine Control Module THO1 ETHO SLT+ SLT– SL3+ SL3– SL2+ SL2– SL1+ SL1– 126 B 124 B 11 B 10 B 14 B 15 B 12 B 13 B...
  • Page 234 ( BAT ) 7. 5A Ignition SW 62 B STAR A9 ( A ) , B30 ( B ) Engine Control Module ME01 Spiral 20 3B Cable ON–OFF +RES –SET CANCEL Spiral Cable RAV4 (EM03T0U)
  • Page 235 Cruise Control for 2GR–FE Speed Sensors TACH FL– FR– RL– RR– A9 ( A ) , B30 ( B ) Engine Control Module CANH CANL CANH CANL Junction Connector RAV4 (EM03T0U)
  • Page 236 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B CANL CANH Combination Meter LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 237 Cruise Control for 2GR–FE System Outline The cruise control system is a constant vehicle speed controller in which control of the switch on the instrument panel makes it possible to automatically adjust the opening of the engine throttle valve without depressing of the accel pedal. 1.
  • Page 238 : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Engine Room Main Wire and Engine Room J/B (Engine Compartment Left) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Engine Room Main Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left)
  • Page 239 Cruise Control for 2AZ–FE ( BAT ) ( IG ) ( BAT ) 7. 5A EFI MAIN ETCS EFI MAIN Relay 1 1A 2 1A IGSW A9 ( A ) , B30 ( C ) Engine Control Module MREL BATT 20 A 7 BA2 RAV4 (EM03T0U)
  • Page 240 Accelerator Position Sensor VCP2 VPA2 EPA2 VCPA 97 C 56 A ETHW VCP2 VPA2 EPA2 VCPA A9 ( A ) , B30 ( C ) Engine Control Module ETHA ME01 104 C 46 C 45 C Mass Air Flow Meter RAV4 (EM03T0U)
  • Page 241 Cruise Control for 2AZ–FE ( IG ) GAUGE1 Throttle Body Assembly VTA2 M– 67 C 41 C 56 C VTA1 VTA2 VCTA M– GE01 A9 ( A ) , B30 ( C ) Engine Control Module SLT+ SLT– SL2+ SL2– SL1+ SL1–...
  • Page 242 ( BAT ) ( IG ) 7. 5A STOP 27 IB Junction Connector Junction Connector 36 A 35 A 101 C 102 C ST1– NT– NC– A9 ( A ) , B30 ( C ) Engine Control Module Spiral Cable ON–OFF 6 AE3 +RES...
  • Page 243 Cruise Control for 2AZ–FE Speed Sensors FL– FR– RL– RR– CANH CANL Junction Connector CANH CANL A9 ( A ) , B30 ( C ) Engine Control Module TACH Junction Connector CANH CANL RAV4 (EM03T0U)
  • Page 244 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 245 Cruise Control for 2AZ–FE System Outline The cruise control system is a constant vehicle speed controller in which control of the switch on the instrument panel makes it possible to automatically adjust the opening of the engine throttle valve without depressing of the accel pedal. 1.
  • Page 246 : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Engine Room Main Wire and Engine Room J/B (Engine Compartment Left) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Engine Room Main Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left)
  • Page 247 ( IG ) ( BAT ) 7. 5A ECU–IG1 ( IG ) GAUGE1 BSLC CANH CANL 4WD Control ECU SLC+ SLC– SSLC 4WDL 56 C A9 ( A ) , B30 ( C ) Engine Control Module NE– 122 C 121 C 4WD Linear Solenoid RAV4 (EM03T0U)
  • Page 248 ∗ 1 : 2GR–FE ( IG ) ∗ 2 : 2AZ–FE ∗ 3 : Shielded GAUGE1 Throttle Body Assembly VTA2 M– 67 C 41 C VTA1 VTA2 VCTA M– GE01 A9 ( A ) , B30 ( C ) A9 ( A ) , B30 ( B ) Engine Control Module Engine Control Module CANL...
  • Page 249 ∗ 1 : 2GR–FE ∗ 2 : 2AZ–FE ∗ 3 : Shielded Throttle Body Assembly VTA2 M– 19 B VCTA VTA1 VTA2 M– GE01 A9 ( A ) , B30 ( B ) Engine Control Module CANL CANH ( ∗1 ) ( ∗2 ) ( ∗2 ) ( ∗2 )
  • Page 250 ( BAT ) ( IG ) STOP ECU–IG1 Junction Connector Speed Sensors 8 AE4 FL– FR– RL– RR– Skid Control ECU with Actuator CANL CANH STPO STP1 STP2 Junction Connector 12 IB 21 IB ( ∗1 ) 19 AE4 11 AE4 ( ∗2 ) ( ∗2 ) ( ∗1 )
  • Page 251 Yaw Rate Sensor CANH CANL CANH CANL 16 EK1 15 EK1 Junction Connector CANH CANL RAV4 (EM03T0U)
  • Page 252 ( IG ) ( BAT ) ECU–IG1 ECU–B 7 IS 12 IH 69 3B 9 3B 10 3B CANL CANH 43 3B 28 IE 17 IE RAV4 (EM03T0U)
  • Page 253 ( BAT ) ( IG ) 7. 5A ECU–B GAUGE2 1 IM 12 IH 22 3A LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 254 System Outline Driving conditions are detected through indicators such as wheel speed, yaw rate sensor and steering angle signals, which are sent by ECUs, sensors and switches. The current delivered to the solenoid is controlled to provide the optimum torque to the rear wheels, in accordance with the driving conditions.
  • Page 255 : Ground Points Code See Page Ground Points Location 65 (2AZ–FE) Left Side of the Cylinder Head Left Side of the Cylinder Head 64 (2GR–FE) Left Kick Panel Instrument Panel Reinforcement Left Right Kick Panel Left Center Pillar RAV4 (EM03T0U)
  • Page 256 Memo RAV4 (EM03T0U)
  • Page 257 ABS, TRAC, VSC, Downhill Assist Control, Hill–Start Assist Control and Auto LSD ( BAT ) ( BAT ) ( IG ) ABS1 ABS2 ECU–IG1 Speed Sensor Speed Sensor ( Front LH ) ( Front RH ) FL– FR– Skid Control ECU with Actuator GND1 GND2 FSW+...
  • Page 258 ( BAT ) ( IG ) STOP ECU–IG1 Junction Connector RL– RR– Skid Control ECU with Actuator CANL CANH STPO STP1 STP2 RAV4 (EM03T0U)
  • Page 259 ABS, TRAC, VSC, Downhill Assist Control, Hill–Start Assist Control and Auto LSD ( IG ) ( BAT ) ECU–IG1 ECU–B 7 IS Yaw Rate Sensor 12 IH CANH CANL CANH CANL 69 3B 9 3B 10 3B 16 EK1 15 EK1 Junction Connector CANL CANH...
  • Page 260 ( IG ) 7. 5A GAUGE2 Buzzer LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 261 ABS, TRAC, VSC, Downhill Assist Control, Hill–Start Assist Control and Auto LSD System Outline 1. ABS Operation If the brake pedal is depressed suddenly, the ABS controls the hydraulic pressure of the wheel cylinders for all the four wheels to automatically avoid wheel locking and ensure the directional and steering stability of the vehicle. If the brake pedal is depressed suddenly, the skid control ECU controls the solenoids in the actuators using the signals from the sensors to move the brake fluid to the reservoir in order to release the braking pressure applied to the wheel cylinder.
  • Page 262 : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector Code...
  • Page 263 ( IG ) ( BAT ) ECU–IG1 EMPS 7 IS e3 ( E ) Power Steering Motor PGND CANL CANH TRQG TRQ2 TRQV TRQF TRQ1 Power Steering Rotation Angle Sensor Torque Sensor e2 ( D ) e1 ( C ) Rotation Angle Sensor Power Steering Torque Sensor...
  • Page 264 ( IG ) ( BAT ) ECU–IG1 ECU–B 7 IS 12 IH 69 3B 9 3B 10 3B CANH CANL CANH CANL Junction Connector 43 3B 28 IE 17 IE RAV4 (EM03T0U)
  • Page 265 Speed Sensors FL– FR– RL– RR– CANL CANH CANL CANH RAV4 (EM03T0U)
  • Page 266 ( BAT ) ( IG ) 7. 5A ECU–B GAUGE2 1 IM 12 IH 22 3A LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 267 System Outline ∗ To reduce driver’s steering force, assist current is calculated from torque sensor signal and vehicle speed signal to output them to the motor. ∗ When abnormality is found in the system, the power relay and motor relay (Built in the ECU) are shut off to stop the assistance and the warning lamp (P/S) illuminates in the meter.
  • Page 268 NOTICE: When inspecting or repairing the SRS, perform service in accordance with the following precautionary instructions and the procedure, and precautions in the Repair Manual applicable for the model year. D Malfunction symptoms of the SRS are difficult to confirm, so the DTCs become the most important source of information when troubleshooting.
  • Page 269 ( IG ) 7. 5A Side Airbag Sensor ( Rear LH ) 16 IE BCL+ BCL– Airbag Sensor Airbag Sensor Side Airbag Side Airbag ( Front LH ) ( Front RH ) Squib ( LH ) Squib ( RH ) BCL+ BCL–...
  • Page 270 ∗ 3 : Automatic A/C Data Link ∗ 4 : Manual A/C Connector 3 ∗ 5 : w/ Sliding Roof ∗ 6 : w/o Sliding Roof Front Seat Inner Belt ( Driver' s Side ) Side Airbag Sensor ( Rear RH ) Seat Position Airbag Sensor BCR+...
  • Page 271 ( BAT ) ( IG ) 7. 5A ECU–B Occupant Classification Occupant Classification Sensor ( Front LH ) Sensor ( Front RH ) SIG1 SVC1 SGD1 SIG2 SVC2 SGD2 FSR– FSR+ SIG1 SVC1 SGD1 SIG2 SVC2 SGD2 L1 ( A ) , a1 ( B ) Occupant Classification ECU BGND SIG3...
  • Page 272 ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B 1 IM 12 IH 22 3A A9 ( A ) Engine Control Module CANL CANH LED Driver CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 273 System Outline ∗ The system reaches an ignition judgment to deploy the following device based on the signals received from the front airbag sensor and deceleration sensor. – Driver Airbag – Front Passenger Airbag – Seat Belt Pretensioner ∗ The system reaches an ignition judgment to deploy the following device based on the signals received from the side airbag sensors.
  • Page 274 : Connector Joining Wire Harness and Wire Harness Code See Page Joining Wire Harness and Wire Harness (Connector Location) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) Engine Room Main Wire and Instrument Panel Wire (Left Side of the Instrument Panel) Engine Room Main Wire and Instrument Panel Wire (Right Side of the Instrument Panel) Instrument Panel Wire and Floor No.2 Wire (Right Kick Panel) Instrument Panel Wire and Instrument Panel Wire Assembly (Behind the Glove Box)
  • Page 275 Tire Pressure Warning System ( IG ) ( BAT ) ECU–IG1 ECU–B Data Link Connector 3 Tire Pressure Warning ECU GND2 RF5V Tire Pressure Warning Antenna and Receiver RAV4 (EM03T0U)
  • Page 276 ( IG ) 7. 5A GAUGE2 46 3B 22 3A Speed Sensors FL– FR– RL– RR– Skid Control ECU with Actuator Driver TIRE RAV4 (EM03T0U)

  • Page 277: Tire Pressure Warning System

    Tire Pressure Warning System System Outline ∗ In the tire pressure warning system, the warning light illuminates to alert the driver about the low tire pressure when the vehicle continues driving with one of the five tires (Include spare tire) under such low pressure to cause possible driving disturbance.
  • Page 278 Memo RAV4 (EM03T0U)

  • Page 279: Sliding Roof

    Sliding Roof ( BAT ) ( IG ) S/ROOF ECU–IG1 E15 ( A ) Main Body ECU LIN2 DCTY M– Sliding Roof Control ECU MPX1 DOWN Sliding Roof Control SW Overhead J/B RAV4 (EM03T0U)
  • Page 280 : Parts Location Code See Page Code See Page Code See Page : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Floor Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) Roof Wire and Instrument Panel J/B (Cowl Side Left)
  • Page 281 Horn ( BAT ) HORN HORN Relay 7 1A Horn ( Low ) Horn ( High ) Spiral Cable RAV4 (EM03T0U)
  • Page 282 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 50 (2GR–FE) 52 (2AZ–FE) 52 (2AZ–FE) : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Engine Room Main Wire and Engine Room J/B (Engine Compartment Left) Engine Room Main Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) RAV4 (EM03T0U)
  • Page 283 Clock without Automatic Air Conditioning ( BAT ) ( IG ) ( ACC ) 7. 5A ECU–B ECU–IG1 Clock PBEW ILL+ ILL– PAON P–AB RAV4 (EM03T0U)
  • Page 284 : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector Code See Page...

  • Page 285: Rear Window Defogger And Mirror Heater

    Rear Window Defogger and Mirror Heater ( IG ) ( BAT ) ∗ 1 : Automatic A/C ∗ 2 : Manual A/C ECU–IG2 ∗ 3 : w/ Power Outlet ( 115V ) ∗ 4 : w/o Power Outlet ( 115V ) A9 ( A ) Engine Control ∗...
  • Page 286 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left)

  • Page 287: Remote Control Mirror

    Remote Control Mirror ( ACC ) 7. 5A 40 4B 51 4B Outer Mirror SW Left Right Left Right 7 HE2 6 HE2 16 HE2 Outer Rear View Mirror ( LH ) Outer Rear View Mirror ( RH ) RAV4 (EM03T0U)
  • Page 288 : Parts Location Code See Page Code See Page Code See Page : Junction Block and Wire Harness Connector Code See Page Junction Block and Wire Harness (Connector Location) Instrument Panel Wire and J/B No.3 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Instrument Panel Wire and J/B No.4 (Instrument Panel Center) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left) Instrument Panel Wire and Instrument Panel J/B (Cowl Side Left)
  • Page 289 Audio System for JBL ( ACC ) ( BAT ) ( BAT ) 7. 5A RAD NO. 1 E62 ( A ) , E64 ( B ) , E49 ( C ) , E76 ( D ) Radio Receiver Assembly ATX+ ATX–...
  • Page 290 E62 ( A ) , E64 ( B ) , E49 ( C ) , E76 ( D ) Radio Receiver Assembly L– R– IVO+ IVO– SLD1 16 EL3 28 EL3 10 EL3 29 EL3 1 EL3 19 EL3 L– R–...
  • Page 291 Audio System for JBL E62 ( A ) , E64 ( B ) , E49 ( C ) , E76 ( D ) Radio Receiver Assembly ASGN AUXI MGND TSW– ( ∗1 ) W–B ASGN AUXO Stereo Jack Adapter L13 ( A ) , L14 ( B ) , L15 ( C ) Stereo Component Amplifier WFL+ WFL–...
  • Page 292 E62 ( A ) , E64 ( B ) , E49 ( C ) , E76 ( D ) Radio Receiver Assembly MCVD MIC+ MIC– TXM+ TXM– MUTE ( ∗1 ) ( ACC ) ( BAT ) 7. 5A 7. 5A MI1+ MIC–...
  • Page 293 Audio System for JBL ∗ 1 : Shielded ∗ 2 : w/ Rear Seat Entertainment System ∗ 3 : w/ Audio SW in Steering Wheel E62 ( A ) , E64 ( B ) , E49 ( C ) , E76 ( D ) Radio Receiver Assembly CDL+ CDL–...
  • Page 294 ( BAT ) ( IG ) 7. 5A ECU–B GAUGE2 12 IH CAN I/F CANH CANL CANH CANL RAV4 (EM03T0U)
  • Page 295 Audio System for JBL : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) 26 (2GR–FE)
  • Page 296 Memo RAV4 (EM03T0U)
  • Page 297 Audio System Except JBL ( BAT ) ( ACC ) 7. 5A ∗ 1 : w/ Audio SW in Steering Wheel NO. 1 Speaker Speaker ( Rear LH ) ( Rear RH ) AE10 RL– RR– E47 ( A ) , E48 ( B ) , E49 ( C ) Radio Receiver Assembly FL–...
  • Page 298 Stereo Jack Adapter ASGN AUXO ASGN AUXI E47 ( A ) , E48 ( B ) , E49 ( C ) Radio Receiver Assembly Speed Sensors FL– FR– RL– RR– CANH CANL RAV4 (EM03T0U)
  • Page 299 Audio System Except JBL ( BAT ) ( IG ) ECU–B 7. 5A GAUGE2 1 IM 12 IH 22 3A CAN I/F CANH CANL RAV4 (EM03T0U)
  • Page 300 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 52 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right) 27 (2AZ–FE) : Junction Block and Wire Harness Connector Code...

  • Page 301: Combination Meter

    Combination Meter ( BAT ) ECU–B Combination Meter IND1 IND2 Buzzer ILL– ILL+ Light Control Rheostat RAV4 (EM03T0U)
  • Page 302 ( IG ) 7. 5A GAUGE2 Combination Meter CANL CANH Shift Indicator ODO/TRIP CAN I/F Outside Temp. TX1+ TEMP 3 AE6 OT– Ambient Temp. Sensor RAV4 (EM03T0U)
  • Page 303 Combination Meter ∗ 1 : USA ∗ 2 : Except USA Combination Meter LED Driver RAV4 (EM03T0U)
  • Page 304 Combination Meter LED Driver TIRE CHG– WLVL W–B RAV4 (EM03T0U)
  • Page 305 Combination Meter ∗ 3 : Audio System ( JBL ) ∗ 4 : Audio System ( Except JBL ) ∗ 5 : 2GR–FE ∗ 6 : 2AZ–FE ( ∗5 ) ( ∗6 ) ( ∗5 ) ( ∗6 ) ( Shielded ) ( ∗5 ) ( ∗6 ) 97 C...
  • Page 306 E17 ( C ) Main Body ECU CANH CANL 4 ID CANH CANL 11 AE4 Speed Sensors TACH CANH CANL CANH CANL FL– FR– RL– RR– A9 ( A ) , B30 ( B ) , ( C ) Engine Control Module Skid Control ECU with Actuator RAV4 (EM03T0U)
  • Page 307 Combination Meter : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 51 (2GR–FE) 52 (2AZ–FE) 53 (2AZ–FE) 50 (2GR–FE) 51 (2GR–FE) 52 (2AZ–FE) 53 (2AZ–FE) 50 (2GR–FE) 53 (2AZ–FE) 52 (2AZ–FE) 51 (2GR–FE) 50 (2GR–FE) 53 (2AZ–FE) 52 (2AZ–FE) 51 (2GR–FE)
  • Page 308 Memo RAV4 (EM03T0U)
  • Page 309 Cooling Fan for 2GR–FE ( BAT ) ( IG ) ( BAT ) FAN2 ECU–IG1 FAN1 Junction Connector ( ∗1 ) ∗ 1 : w/ Trailer Towing ∗ 2 : w/o Trailer Towing FAN NO. 1 FAN NO. 2 Relay Relay W–B ( ∗2 )
  • Page 310 ( ∗1 ) Motor M– Cooling Fan ECU ( LH ) ( ∗1 ) 79 B ETHW ( ∗2 ) A9 ( A ) , B30 ( B ) Engine Control Module W–B ( ∗1 ) RAV4 (EM03T0U)
  • Page 311 Cooling Fan for 2GR–FE Junction Connector ∗ 3 : Automatic A/C ∗ 4 : Manual A/C ∗ 5 : Shielded CANH CANL CANH CANL S5–3 SG–2 S5–3 SG–2 4 AE7 3 AE7 9 AE7 11 AE4 19 AE4 – – Junction Connector Speed Sensors CANH...
  • Page 312 Junction Connector ( IG ) ( BAT ) 7. 5A GAUGE2 ECU–B 1 IM 12 IH 22 3A CAN I/F CANL CANH 17 3A 77 3A RAV4 (EM03T0U)
  • Page 313 Cooling Fan for 2GR–FE System Outline In accordance with signals from the engine control module, which calculates the engine coolant temperature, the air conditioner refrigerant pressure and the engine and vehicle speeds, the cooling fan controller seamlessly controls rotational speed of the cooling fan, to maintain the balance between the cooling performance and the air conditioning performance. : Parts Location Code See Page...
  • Page 314 Memo RAV4 (EM03T0U)
  • Page 315 Radiator Fan and Condenser Fan for 2AZ–FE ( BAT ) ( IG ) ( BAT ) ECU–IG1 Junction Connector W–B W–B 97 C FANH FANL ETHW A9 ( A ) , B30 ( C ) Engine Control Module W–B RAV4 (EM03T0U)
  • Page 316 Junction Connector CANH CANL CANH CANL S5–3 SG–2 S5–3 SG–2 ∗ 1 : Automatic A/C ∗ 2 : Manual A/C ∗ 3 : Shielded 4 AE7 3 AE7 9 AE7 – – Junction Connector Speed Sensors CANH CANL FL– FR– RL–...
  • Page 317 Radiator Fan and Condenser Fan for 2AZ–FE ( IG ) ( BAT ) Junction Connector 7. 5A GAUGE2 ECU–B CAN I/F CANL CANH RAV4 (EM03T0U)
  • Page 318 System Outline In accordance with signals from the engine control module, which calculates the engine coolant temperature, the air conditioner refrigerant pressure and the engine and vehicle speeds, the fan relay is activated to control the fan motor in two steps, to maintain the balance between the cooling performance and the air conditioning performance.
  • Page 319 Automatic Air Conditioning and Clock ( IG ) ( BAT ) ( IG ) ( ACC ) ( IG ) ( BAT ) 7. 5A 7. 5A ECU– ECU– ECU–IG1 ECU–B ECU–B2 Junction Connector ( ∗1 ) MG CLT Relay SG–1 E37 ( A ) , c1 ( B ) A/C Amplifier...
  • Page 320 Combination Meter A9 ( A ) , B30 ( B ) , ( C ) Engine Control Module ∗ 1 : 2GR–FE TX1+ TEMP CANL CANH ∗ 2 : 2AZ–FE CANH CANL 3 AE6 OT– Ambient Temp. Sensor 11 A 12 A S5–4 CANH...
  • Page 321 Automatic Air Conditioning and Clock ∗ 1 : 2GR–FE A9 ( A ) , B30 ( B ) , ( C ) ∗ 2 : 2AZ–FE Engine Control Module ∗ 3 : Shielded ETHW ETHW NE– NE– 122 C 121 C 111 B ( ∗1 ) ( ∗2 )
  • Page 322 ( BAT ) ( ∗1 ) ( ∗2 ) Blower Motor RAV4 (EM03T0U)
  • Page 323 Automatic Air Conditioning and Clock : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 51 (2GR–FE) 52 (2AZ–FE) 53 (2AZ–FE) 50 (2GR–FE) 53 (2AZ–FE) 52 (2AZ–FE) 51 (2GR–FE) 50 (2GR–FE) 53 (2AZ–FE) 52 (2AZ–FE) 51 (2GR–FE) 53 (2AZ–FE) 51 (2GR–FE) 50 (2GR–FE)
  • Page 324 Memo RAV4 (EM03T0U)
  • Page 325 Manual Air Conditioning ( IG ) ( BAT ) ECU–IG2 Blower Resistor RAV4 (EM03T0U)
  • Page 326 ( IG ) ∗ 1 : 2GR–FE ∗ 2 : 2AZ–FE ECU–IG1 MG CLT Relay SBLW A/C Amplifier S5–3 SG–2 ( ∗1 ) 5 BA3 ( ∗1 ) SSR+ SSR– ( ∗1 ) – ( ∗1 ) ( ∗1 ) ( ∗1 ) ( ∗1 ) RAV4 (EM03T0U)
  • Page 327 Manual Air Conditioning ∗ 1 : 2GR–FE ∗ 2 : 2AZ–FE A9 ( A ) , B30 ( B ) , ( C ) ∗ 3 : Shielded Engine Control Module CANH CANL NE– NE– 122 C 121 C 111 B CANH CANL A/C Amplifier...
  • Page 328 ( IG ) ECU– 6 ID Air Vent Mode Control SW FRS LED+ REC F/D ACID Free Lock A/C+ LED+ ACID RAV4 (EM03T0U)

  • Page 329: Manual Air Conditioning

    Manual Air Conditioning A/C SW A/C SW Free Lock AIND RAV4 (EM03T0U)
  • Page 330 : Parts Location Code See Page Code See Page Code See Page 50 (2GR–FE) 51 (2GR–FE) 52 (2AZ–FE) 53 (2AZ–FE) 50 (2GR–FE) 51 (2GR–FE) 52 (2AZ–FE) 53 (2AZ–FE) 51 (2GR–FE) 51 (2GR–FE) 50 (2GR–FE) 52 (2AZ–FE) 53 (2AZ–FE) : Relay Blocks Code See Page Relay Blocks (Relay Block Location)
  • Page 331 I GROUND POINT W–B W–B ( E ) EFI MAIN Relay Windshield Wiper Motor W–B W–B ( E ) A/F Relay Front Wiper Deicer W–B W–B ( –S ) ( E ) IG2 Relay Brake Fluid Level Warning SW W–B W–B ( E ) ( E )
  • Page 332 W–B ( GND ) ( CG ) Ignition Coil ( No. 4 ) Data Link Connector 3 W–B ( GND ) ( ECC ) Ignition Coil ( No. 3 ) Spiral Cable ( Shielded ) W–B ( GND ) Ignition Coil ( No. 2 ) ( Shielded ) W–B ( GND )
  • Page 333 I GROUND POINT W–B W–B ( REC ) ( E ) ( Manual A/C ) Air Vent Mode Clock Control SW W–B ( E ) ( GND ) ( Automatic A/C ) Front Wiper Integration Deicer SW Control and Panel Assembly W–B W–B ( GND )
  • Page 334 W–B ( EL ) ( SG ) Headlamp Dimmer Data Link SW Assembly Connector 3 W–B W–B ( LFG ) ( E ) Headlamp Dimmer Shift Lock SW Assembly Control ECU W–B W–B ( GND ) ( GND ) Tire Pressure Transponder Key Warning ECU W–B...
  • Page 335 I GROUND POINT W–B W–B W–B ( E ) ( E ) Power Outlet Fuel Suction Pump Socket ( Rear ) W–B W–B ( GND ) ( GND ) Voltage Inverter Yaw Rate Sensor K21 ( A ) , N8 ( B ) Junction W–B Connector...
  • Page 336 : Parts Location Code See Page Code See Page Code See Page : Relay Blocks Code See Page Relay Blocks (Relay Block Location) 22 (2GR–FE) Engine Room R/B No.1 (Engine Compartment Left) Engine Room R/B No.1 (Engine Compartment Left) 23 (2AZ–FE) 26 (2GR–FE) Engine Room R/B No.2 (Engine Compartment Right) Engine Room R/B No.2 (Engine Compartment Right)
  • Page 337 I GROUND POINT : Ground Points Code See Page Ground Points Location 64 (2GR–FE) 65 (2AZ–FE) Front Left Fender Front Left Fender Front Left Fender 64 (2GR–FE) 65 (2AZ–FE) 64 (2GR–FE) 65 (2AZ–FE) Front Right Fender Front Right Fender Front Right Fender 64 (2GR–FE) 65 (2AZ–FE) Left Side of the Instrument Panel...
  • Page 338 Memo RAV4 (EM03T0U)
  • Page 339 J POWER SOURCE (Current Flow Chart) The chart below shows the route by which current flows from the battery to each electrical source (Fusible Link, Circuit Breaker, Fuse, etc.) and other Parts. IG2 Relay 15A IG2 (Point Side) 10A HORN 50A P/I 20A A/F 30A AM2...
  • Page 340 7.5A GAUGE2 7.5A IGN 10A EFI NO.1 EFI MAIN Relay (Point Side) 10A EFI NO.2 10A DOME 10A ECU-B 20A RAD NO.1 10A HEAD LH DRL NO.2 Relay (Point Side) 10A HEAD RH 10A HEAD LL HEAD Relay (Point Side) 10A HEAD RL 10A ECU-IG1 10A ECU-IG2...
  • Page 341 J POWER SOURCE (Current Flow Chart) Engine Room R/B No.1 and Engine Room J/B No.1 (See Page 22 (2GR–FE), 23 (2AZ–FE)) Fuse System Page Cruise Control (2AZ–FE) Cruise Control (2GR–FE) Electronically Controlled Transmission and A/T Indicator (2AZ–FE) EFI NO.1 Electronically Controlled Transmission and A/T Indicator (2GR–FE) Engine Control (2AZ–FE) Engine Control (2GR–FE) Engine Control (2AZ–FE)
  • Page 342 Fuse System Page Charging (w/o Trailer Towing) Front Fog Light 120A Light Auto Turn Off System (w/o Trailer Towing) Power Window Taillight and Illumination Charging (w/ Trailer Towing) Front Fog Light 140A ALT (w/ Trailer Towing) Light Auto Turn Off System Power Window Taillight and Illumination Engine Room R/B No.2 (See Page 26 (2GR–FE), 27 (2AZ–FE))
  • Page 343 J POWER SOURCE (Current Flow Chart) Fuse System Page Taillight and Illumination ECU–B Tire Pressure Warning System Wireless Door Lock Control HEAD LH Headlight HEAD LL Headlight HEAD RH Headlight HEAD RL Headlight AC INV Power Outlet (115V) DEICER Front Window Deicer Audio System (Except JBL) RAD NO.1 Audio System (JBL)
  • Page 344 Fuse System Page Engine Control (2GR–FE) 7.5A Starting ABS, TRAC, VSC, Auto LSD, Downhill Assist Control and Hill–Start Assist Control Audio System (Except JBL) Audio System (JBL) Charging (w/ Trailer Towing) Charging (w/o Trailer Towing) Combination Meter Cooling Fan (2GR–FE) Cruise Control (2AZ–FE) Cruise Control (2GR–FE) Electronically Controlled Transmission and A/T Indicator (2AZ–FE)

  • Page 345: Table Of Contents

    J POWER SOURCE (Current Flow Chart) Fuse System Page Door Lock Control Front Window Deicer Headlight Interior Light Key Reminder Light Auto Turn Off System Manual Air Conditioning ECU–IG1 Power Outlet (115V) Radiator Fan and Condenser Fan (2AZ–FE) Shift Lock Sliding Roof Stop Light Tire Pressure Warning System...
  • Page 346 Fuse System Page FR FOG Front Fog Light PWR OUTLET Power Outlet (12V) RR WIP Rear Wiper and Washer S–HTR Seat Heater Front Wiper and Washer Rear Wiper and Washer D FR DOOR Power Window RL DOOR Power Window RR DOOR Power Window Door Lock Control DOOR...
  • Page 347 K CONNECTOR LIST Gray Gray Black Black Black 1 2 3 4 5 6 1 2 3 Gray Black Black Black Black Gray Brown Black Yellow Black Black Black Black 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 33 34 35 36 37 38 39 40 41 42 43 44 45 46 Black...
  • Page 348 Black Gray Black Yellow Black Black Black Gray Black 1 2 3 6 7 8 9 10111213 Gray Gray Black 6 7 8 9 101112 RAV4 (EM03T0U)
  • Page 349 K CONNECTOR LIST Black Gray Black 6 7 8 9 101112 6 7 8 9 101112 Black Black Blue Black (2AZ–FE) Gray 1 2 3 4 5 1 2 3 4 5 6 (2GR–FE) Black Gray Black Dark Gray Gray Gray Black Gray...
  • Page 350 Black Black Black Gray Gray Black Gray 9 10 (2AZ–FE) Black 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86...
  • Page 351 K CONNECTOR LIST Gray Dark Gray Black Gray Black 1 2 3 4 5 6 7 8 9 10 11 12 13 Gray Gray Black Black Brown 1 2 3 4 1 2 3 4 1 2 3 Black Black Black Black Black...
  • Page 352 Black Black Yellow 1 2 3 4 2 3 4 5 6 Gray 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 6 7 8 9 16 15 14 13 12 11 10 9 11 12 13 14 16 17...
  • Page 353 K CONNECTOR LIST Gray Black 1 2 3 4 5 6 7 8 Black Gray Gray 2 3 4 5 6 7 8 1 2 3 4 15 16 Black Gray 1 2 3 4 1 2 3 4 5 6 7 8 9 10 Yellow 3 4 5 6 7 8 9 5 6 7 8 9 10...
  • Page 354 Black Black 1 2 3 18 19 20 21 22 23 24 25 26 1011 1213 Black 5 6 7 8 9 11 12 13 14 15 16 17 18 19 20 Gray 6 7 8 9 101112 Gray Black RAV4 (EM03T0U)
  • Page 355 K CONNECTOR LIST Gray Black 1 2 3 Black Black Black 1 2 3 4 1 2 3 4 8 9 10 11 12 13 14 Black Black Black 1 2 3 1 2 3 4 5 3 4 5 6 1 2 3 4 1 2 3 4 5 6 7 8 9 10...
  • Page 356 Black 1 2 3 4 5 3 4 5 6 5 6 7 8 9 10 5 6 7 8 9 10 Yellow Black Black 1 2 3 4 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Yellow Yellow...
  • Page 357 K CONNECTOR LIST Black 1 2 3 4 5 7 8 9 101112 1 2 3 4 5 6 7 8 9 10 11 12 Yellow 1 2 3 4 5 6 7 8 3 4 5 6 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Yellow Yellow...
  • Page 358 Black Black Black Black 5 6 7 8 9 10 1 2 3 4 5 Gray Black 3 4 5 6 1 2 3 4 5 6 7 8 9 10 11 12 Gray Gray Black 5 6 7 8 9 10 1 2 3 Gray Black...
  • Page 359 K CONNECTOR LIST Black Black Black 1 2 3 4 5 6 7 8 9 10 Orange Black Gray 1 2 3 4 5 7 8 9 101112 Black Black Black Black 1 2 3 1 2 3 1 2 3 1 2 3 Black 1 2 3...
  • Page 360 Memo RAV4 (EM03T0U)
  • Page 361 K CONNECTOR LIST 7 6 5 4 3 14 15 16 17 16 15 14 13 Black 9 10 7 6 5 4 3 13 14 15 16 15 14 13 12 Gray Yellow 4 5 6 7 6 5 4 3 14 13 12 11 10 18 19...
  • Page 362 Yellow 1 2 3 6 7 8 9 10 11 12 13 AE10 7 6 5 4 3 14 15 16 17 16 15 14 13 9 10 7 6 5 4 3 13 14 15 16 15 14 13 12 Gray 1 2 3 4 5 1 2 3...
  • Page 363 K CONNECTOR LIST Blue 6 5 4 3 2 3 4 5 16 15 14 13 12 11 10 9 12 11 10 9 7 6 5 4 3 14 15 16 17 16 15 14 13 16 15 14 13 12 11 10 9 7 6 5 4 3 14 15 16 17...
  • Page 364 1011 4 3 2 161718 22 21 20 2829 Yellow 1 2 3 4 6 5 4 3 2 3 4 5 12 11 10 9 Black 3 4 5 6 7 8 9 10 11 12 3 4 5 6 7 7 6 5 4 3 8 9 10 11 12 13 14...
  • Page 365 K CONNECTOR LIST 7 6 5 4 3 13 14 15 16 15 14 13 12 7 8 9 1011 12 13 21 20 1415161718 7 8 9 1011 12 13 21 20 1415161718 Yellow Yellow RAV4 (EM03T0U)
  • Page 366 Black 4 5 6 7 6 5 4 3 14 13 12 11 10 18 19 22 21 20 19 1 2 3 4 5 5 4 3 2 1 6 7 8 9 10 7 6 5 4 3 10 9 8 7 6 14 15 16 17...
  • Page 367 L PART NUMBER OF CONNECTORS Code Part Name Part Number Code Part Name Part Number Power Steering ECU 90980–12653 Throttle Body Assembly 90980–11858 Brake Pedal Load Sensing SW 90980–10860 Engine Coolant Temp. Sensor 90980–10735 Stop Lamp SW 90980–11118 Engine Oil Pressure SW 90980–11363 Accelerator Position Sensor 90980–12303...
  • Page 368 Code Part Name Part Number Code Part Name Part Number Camshaft Timing Oil Control Valve (LH Front Console Illumination 90980–11918 Exhaust Side) Front Wiper Deicer SW 90980–12551 90980–11162 90980–11162 Camshaft Timing Oil Control Valve (LH Seat Heater SW 90980–11989 Intake Side) Power Outlet Socket (Front) 90980–12498 VVT Sensor (Bank 2 Intake Side)
  • Page 369 L PART NUMBER OF CONNECTORS Code Part Name Part Number Code Part Name Part Number Speaker (Front Door RH) 90980–10935 Occupant Classification ECU 90980–12356 Power Window Regulator Motor (Front RH) 90980–10797 Front Seat Inner Belt (Front Passenger’s 90980–10942 Side) Power Window SW (Front Passenger’s 90980–10789 Side) Seat Heater (RH)
  • Page 370 Code Part Name Part Number Code Part Name Part Number Speaker (Woofer) 90980–11013 Occupant Classification Sensor (Front LH) License Plate Lamp 90980–11003 Occupant Classification Sensor (Rear LH) 90980–12353 90980–12353 90980–12353 Back Door Lock Assembly 90980–12226 Occupant Classification Sensor (Front RH) Knock Control Sensor (Bank 2) Occupant Classification Sensor (Rear RH) 90980–11875...
  • Page 371 * The system shown here is an EXAMPLE ONLY. It is different to the HOW TO READ THIS SECTION actual circuit shown in the wiring diagram section. S ta rtin g E n g in e C o n tro l B- R B- R (BAT)
  • Page 372 [A] : System Title [F] : Junction Block (The number in the circle is the J/B No. and the connector code is shown beside it). [B] : Indicates the wiring color. Junction Blocks are shaded to clearly separate them Wire colors are indicated by an alphabetical code. from other parts.

  • Page 373: Table Of Contents

    SYSTEM INDEX SYSTEMS LOCATION SYSTEMS LOCATION ............20–1 Manual Air Conditioning .
  • Page 374 Memo RAV4 (EM03T0U)
  • Page 375 ( Cont. next page ) 1 RAV4 P o w e r S o u rc e 15A IG2 ∗ 1 : w/ Trailer Towing ∗ 2 : w/o Trailer Towing ∗ 3 : 2GR–FE ∗ 4 : 2AZ–FE 30A AM2 10A ETCS 50A FAN2 (∗3) 30A RDI (∗4)
  • Page 376 1 RAV4 ( Cont' d ) P o w e r S o u rc e ACC Relay 7. 5A ACC 10A ECU–IG1 15A CIG 10A ECU–IG2 10A GAUGE1 IG2 Relay 7. 5A GAUGE2 15A WSH 7. 5A IGN W–B Noise Filter 15A RR WIP...
  • Page 377 ( Cont. next page ) 2 RAV4 M u ltip le x C o m m u n ic a tio n S y s te m ( C A N ) (BAT) HEAD MAIN DRL NO. 4 Relay DRL NO. 2 Relay HEAD Relay...
  • Page 378 2 RAV4 ( Cont' d ) ( Cont. next page ) M u ltip le x C o m m u n ic a tio n S y s te m ( C A N ) (BAT) (IG) (ACC) (BAT) 7.
  • Page 379 2 RAV4 ( Cont' d ) ( Cont. next page ) M u ltip le x C o m m u n ic a tio n S y s te m ( C A N ) ∗ 1 : w/ Engine Immobiliser System ∗...
  • Page 380 2 RAV4 ( Cont' d ) ( Cont. next page ) M u ltip le x C o m m u n ic a tio n S y s te m ( C A N ) E15(A), E16(B), E17(C) Main Body ECU TAIL TRLY ACT–...
  • Page 381 2 RAV4 ( Cont' d ) ( Cont. next page ) M u ltip le x C o m m u n ic a tio n S y s te m ( C A N ) E15(A), E16(B), E17(C) Main Body ECU ACTD LSWD (BAT)
  • Page 382 2 RAV4 ( Cont' d ) ( Cont. next page ) M u ltip le x C o m m u n ic a tio n S y s te m ( C A N ) (IG) (BAT) Power Steering ECU Yaw Rate Sensor ECU–IG1 ECU–B...
  • Page 383 2 RAV4 ( Cont' d ) M u ltip le x C o m m u n ic a tio n S y s te m ( C A N ) (IG) (BAT) 7. 5A GAUGE2 ECU–B ∗ 7 : USA ∗...
  • Page 384 3 RAV4 C h a rg in g ( w /o T ra ile r T o w in g ) S ta rtin g (IG) (BAT) (IG) (BAT) (BAT) ∗ 1 : 2GR–FE 7. 5A 7. 5A ∗ 2 : 2AZ–FE GAUGE1 ECU–B GAUGE2...
  • Page 385 4 RAV4 C h a rg in g ( w / T ra ile r T o w in g ) (IG) (IG) (BAT) 7. 5A GAUGE1 GAUGE2 ECU–B 1 IM 12 IH 22 3A Engine Control Module< 7–17> 140A B20(A), B21(B) Generator Driver...
  • Page 386 5 RAV4 Ig n itio n ( 2 G R – F E ) (BAT) (BAT) 20 AE1 Ignition SW W–B W–B W–B W–B W–B IGT1 IGT2 IGT3 IGT4 IGT5 IGT6 Engine Control Module < 7–13>...
  • Page 387 6 RAV4 Ig n itio n ( 2 A Z – F E ) (BAT) (BAT) Ignition SW Engine Control Module< 8–7> IGT1 IGT2 IGT3 IGT4 W–B W–B Engine Control Module < 8–8>...
  • Page 388 Memo RAV4 (EM03T0U)
  • Page 389 ( Cont. next page ) 7 RAV4 E n g in e C o n tro l ( 2 G R – F E ) (BAT) (BAT) (BAT) (BAT) (IG) 7. 5A EFI MAIN C/OPN Relay EFI MAIN Relay Ignition SW F/PMP Relay NO.
  • Page 390 7 RAV4 ( Cont' d ) ( Cont. next page ) E n g in e C o n tro l ( 2 G R – F E ) (BAT) ETCS VVT Sensor (Bank 1 Intake Side) VVT Sensor (Bank 2 Intake Side) VVT Sensor (Bank 1 Exhaust Side) VVT Sensor (Bank 2 Exhaust Side) VVR+...
  • Page 391 7 RAV4 ( Cont' d ) ( Cont. next page ) E n g in e C o n tro l ( 2 G R – F E ) ∗ 1 : Shielded Battery Current Sensor Throttle Body Assembly VTA2 M–...
  • Page 392 7 RAV4 ( Cont' d ) ( Cont. next page ) E n g in e C o n tro l ( 2 G R – F E ) C ru is e C o n tro l ( 2 G R – F E ) ∗...
  • Page 393 7 RAV4 ( Cont' d ) ( Cont. next page ) E le c tro n ic a lly C o n tro lle d T ra n s m is s io n a n d A /T In d ic a to r ( 2 G R – F E ) ∗...
  • Page 394 7 RAV4 ( Cont' d ) E le c tro n ic a lly C o n tro lle d T ra n s m is s io n a n d A /T In d ic a to r ( 2 G R – F E ) (IG) (BAT) 7.
  • Page 395 ( Cont. next page ) 8 RAV4 E n g in e C o n tro l ( 2 A Z – F E ) (BAT) (BAT) (BAT) (IG) (BAT) 7. 5A EFI MAIN ETCS EFI MAIN C/OPN Relay Relay Ignition SW W–B A9(A), B30(C)
  • Page 396 8 RAV4 ( Cont' d ) ( Cont. next page ) E n g in e C o n tro l ( 2 A Z – F E ) Leak Detection Canister Pump Pressure Sensor Accelerator Position Sensor VCP2 VPA2 EPA2 VCPA MGND...
  • Page 397 8 RAV4 ( Cont' d ) ( Cont. next page ) E n g in e C o n tro l ( 2 A Z – F E ) C ru is e C o n tro l ( 2 A Z – F E ) ∗...
  • Page 398 8 RAV4 ( Cont' d ) E le c tro n ic a lly C o n tro lle d T ra n s m is s io n a n d A /T In d ic a to r ( 2 A Z – F E ) (IG) (IG) (BAT)
  • Page 399 9 RAV4 D a ta L in k C o n n e c to r 3 E n g in e Im m o b ilis e r S y s te m (BAT) (IG) (BAT) ∗ 1 : Automatic A/C ∗...
  • Page 400 10 RAV4 T u rn S ig n a l a n d H a z a rd W a rn in g L ig h t (BAT) (IG) ECU–IG2 FLSH Relay Main Body ECU< 2–11> Turn Headlamp Dimmer SW Assembly W–B W–B...
  • Page 401 ( Cont. next page ) 11 RAV4 T a illig h t a n d Illu m in a tio n (BAT) ∗ 1 : w/ Trailer Towing 140A ∗ 2 : w/o Trailer Towing ALT (∗1) 120A ∗ 3 : Automatic A/C ALT (∗2) ∗...
  • Page 402 11 RAV4 ( Cont' d ) ( Cont. next page ) T a illig h t a n d Illu m in a tio n ∗ 5 : Audio System (JBL) ∗ 6 : Audio System (Except JBL) IL+2 ILL+ ILL+ ILL+ ILL–...
  • Page 403 11 RAV4 ( Cont' d ) T a illig h t a n d Illu m in a tio n (IG) (BAT) 7. 5A GAUGE2 ECU–B ∗ 7 : Except USA Combination Meter ILL+ LED Driver CAN I/F IND1 IND2 ILL–...
  • Page 404 12 RAV4 B a c k – U p L ig h t S to p L ig h t (IG) (BAT) (IG) GAUGE1 STOP ECU–IG1 Junction Connector Junction Connector Park/Neutral Position SW Junction Connector Taillight and Taillight and Illumination Illumination System<...
  • Page 405 ( Cont. next page ) 13 RAV4 P o w e r W in d o w (BAT) (BAT) Power Window SW (Driver' s Side) 140A ALT(∗1) D FR 120A DOOR ALT(∗2) DOWN AUTO Relay 8 HE2 17 HE2 8 GE2 17 GE2 RL DOOR DOOR...
  • Page 406 13 RAV4 ( Cont' d ) P o w e r W in d o w Power Window SW (Driver' s Side)
  • Page 407 14 RAV4 ∗ 1 : w/ Trailer Towing H o rn F ro n t F o g L ig h t ∗ 2 : w/o Trailer Towing (BAT) (BAT) (BAT) (IG) (BAT) 140A ALT(∗1) 7. 5A HORN FR FOG 120A GAUGE2 ECU–B...
  • Page 408 15 RAV4 F ro n t W ip e r a n d W a s h e r R e a r W ip e r a n d W a s h e r (IG) (IG) (IG) E9(A), E10(B) Windshield Wiper SW Assembly RR WIP Washer...
  • Page 409 16 RAV4 R e m o te C o n tro l M irro r R e a r W in d o w D e fo g g e r a n d M irro r H e a te r ∗...
  • Page 410 17 RAV4 F ro n t W in d o w D e ic e r C lo c k ( w /o A u to m a tic A ir C o n d itio n in g ) (BAT) (IG) (BAT)
  • Page 411 18 RAV4 S e a t H e a te r T ra ile r T o w in g (IG) (BAT) S–HTR TOWING Trailer Socket...
  • Page 412 Memo RAV4 (EM03T0U)
  • Page 413 ( Cont. next page ) 19 RAV4 S R S (IG) ∗ 3 : Automatic A/C ∗ 4 : Manual A/C 7. 5A ∗ 5 : w/ Sliding Roof ∗ 6 : w/o Sliding Roof Side Airbag Side Airbag Sensor (Rear LH) Sensor (Rear RH) Front Seat Inner Belt (Driver' s Side) 16 IE...
  • Page 414 19 RAV4 ( Cont' d ) S R S S e a t B e lt W a rn in g ∗ 3 : Automatic A/C ∗ 4 : Manual A/C (BAT) (IG) (IG) (BAT) 7. 5A 7. 5A ECU–B GAUGE2 ECU–B 1 IM...
  • Page 415 ( Cont. next page ) 20 RAV4 A B S , T R A C , V S C , A u to L S D , D o w n h ill A s s is t C o n tro l a n d H ill– S ta rt A s s is t C o n tro l (BAT) (BAT) (IG)
  • Page 416 20 RAV4 ( Cont' d ) A B S , T R A C , V S C , A u to L S D , D o w n h ill A s s is t C o n tro l a n d H ill– S ta rt A s s is t C o n tro l (BAT) (IG) 7.
  • Page 417 21 RAV4 S h ift L o c k T ire P re s s u re W a rn in g S y s te m (IG) (ACC) (IG) (BAT) (IG) 7. 5A 7. 5A ECU–IG1 ECU–IG1 ECU–B GAUGE2 Shift Lock Solenoid Tire Pressure Warning ECU...
  • Page 418 22 RAV4 E P S (IG) (BAT) (BAT) (IG) 7. 5A ECU–IG1 EMPS ECU–B GAUGE2 e3(E) Power Steering Motor 7 IS 1 IM 12 IH 22 3A TRQG TRQ2 TRQV TRQF TRQ1 CANH CANL PGND Rotation Angle Sensor Power Steering Torque Sensor LED Driver e2(D)
  • Page 419 23 RAV4 4 W D S lid in g R o o f (BAT) (IG) (IG) (BAT) (BAT) (IG) 7. 5A ECU–B GAUGE2 7. 5A ECU–IG1 S/ROOF ECU–IG1 1 IM 12 IH ∗ 1 : Shielded 22 3A BSLC CANH CANL M–...
  • Page 420 24 RAV4 P o w e r O u tle t ( 1 2 V ) P o w e r O u tle t ( 1 1 5 V ) (ACC) (BAT) (ACC) (IG) (BAT) 7. 5A ECU–IG1 AC INV OUTLET INVT Relay...
  • Page 421 25 RAV4 P o w e r S e a t (BAT) P/SEAT Reclining Lifter Slide Front Vertical RCLR RCLF RDWN SLDR SLDF FDWN BACK DOWN BACK DOWN K21(A), N8(B) Junction Connector Power Seat Motor Power Seat Motor Power Seat Motor Power Seat Motor Power Seat Motor (Driver' s Seat...
  • Page 422 Memo RAV4 (EM03T0U)
  • Page 423 ( Cont. next page ) 26 RAV4 A u d io S y s te m ( J B L ) (BAT) (ACC) (BAT) (BAT) 7. 5A ECU–B RAD NO. 1 E62(A), E64(B), E49(C), E76(D) Radio Receiver Assembly ATX+ ATX– MUTE L–...
  • Page 424 26 RAV4 ( Cont' d ) ( Cont. next page ) A u d io S y s te m ( J B L ) E62(A), E64(B), E49(C), E76(D) Radio Receiver Assembly ASGN AUXI IVO+ IVO– SLD1 MCVD MIC+ MIC– MGND TSW–...
  • Page 425 26 RAV4 ( Cont' d ) A u d io S y s te m ( J B L ) ∗ 1 : Shielded E62(A), E64(B), E49(C), E76(D) ∗ 3 : w/ Rear Seat Entertainment System Radio Receiver Assembly TXM+ TXM–...
  • Page 426 27 RAV4 A u d io S y s te m ( E x c e p t J B L ) (BAT) (ACC) ∗ 1 : w/ Audio SW in Steering Wheel 7. 5A NO. 1 Speaker Speaker (Rear LH) (Rear RH) Stereo Jack Adapter AE10...
  • Page 427 ( Cont. next page ) 28 RAV4 C o m b in a tio n M e te r ∗ 1 : Audio System (JBL) (BAT) (IG) ∗ 2 : Audio System (Except JBL) 7. 5A ECU–B GAUGE2 Combination Meter ILL–...
  • Page 428 28 RAV4 ( Cont' d ) C o m b in a tio n M e te r ∗ 3 : USA ∗ 4 : Except USA Combination Meter LED Driver PBLT TIRE CHG– WLVL W–B...
  • Page 429 29 RAV4 C o o lin g F a n ( 2 G R – F E ) R a d ia to r F a n a n d C o n d e n s e r F a n ( 2 A Z – F E ) (BAT) (IG) (BAT)
  • Page 430 Memo RAV4 (EM03T0U)
  • Page 431 ( Cont. next page ) 30 RAV4 A u to m a tic A ir C o n d itio n in g a n d C lo c k ( w / A u to m a tic A ir C o n d itio n in g ) (IG) (BAT) (IG)
  • Page 432 30 RAV 4 ( Cont' d ) A u to m a tic A ir C o n d itio n in g a n d C lo c k ( w / A u to m a tic A ir C o n d itio n in g ) (BAT) E37(A), c1(B) A/C Amplifier...
  • Page 433 ( Cont. next page ) 31 RAV4 M a n u a l A ir C o n d itio n in g (IG) (BAT) (IG) ECU–IG2 ECU–IG1 ∗ 1 : 2GR–FE ∗ 2 : 2AZ–FE MG CLT Relay SBLW CANH CANL Blower Resistor...
  • Page 434 31 RAV4 ( Cont' d ) M a n u a l A ir C o n d itio n in g (IG) ∗ 1 : 2GR–FE ∗ 2 : 2AZ–FE ECU–IG2 A/C SW Air Vent Mode Control SW A/C SW Free FRS LED+ REC F/D ACID...

This manual is also suitable for:

Gsa33 seriesGsa38 seriesAca33 seriesAca38 series

Table of Contents

Save PDF
