Harbor Breeze EDENTON L2B1 Installation Manual

Hide thumbs

Table Of Contents

Harbor Breeze ® is a registered trademark

ATTACH YOUR RECEIPT HERE

Serial Number

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5

p.m., EST, Friday.

EB14425

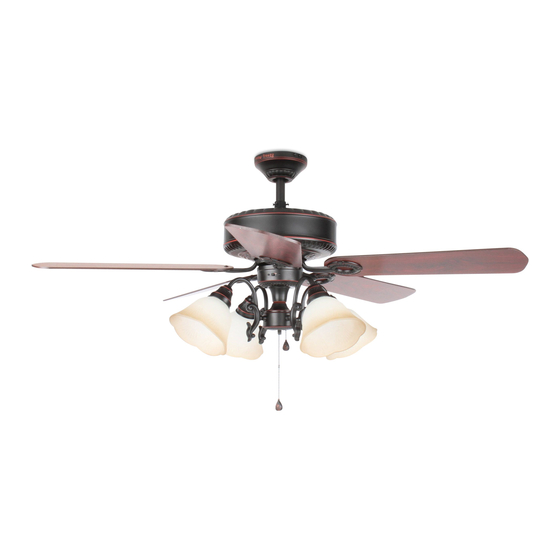

EDENTON CEILING FAN

Purchase Date

ITEM #0102524

MODEL #L2B1

Español p. 20

Lowes.com/harborbreeze

Table of Contents

Need help?

Do you have a question about the EDENTON L2B1 and is the answer not in the manual?

Questions and answers

Carl Holman

May 7, 2025

Looking for lamp globes for this fan. Edenton model L2B2

Summary of Contents for Harbor Breeze EDENTON L2B1

Page 1 ITEM #0102524 EDENTON CEILING FAN ® MODEL #L2B1 Harbor Breeze ® is a registered trademark of LF, LLC. All Rights Reserved. Español p. 20 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents ........................ Hardware Contents ......................Safety Information ........................ 4 Preparation ........................... Initial Instructions ........................Standard/Angle-Mounting Instructions .................. Flushmount Instructions ......................Wiring Instructions ......................Final Instructions ........................Operating Instructions ......................Care and Maintenance ......................Troubleshooting ........................Limited Lifetime Warranty ....................Replacement Parts List ......................
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTIT PART DESCRIPTION QUANTIT Mounting Bracket Glass Bowl Switch Housing Canopy (preassembled to Light Kit (J)) Canopy Cover Socket Ring (preassembled on Canopy (B)) (preassembled to Light Kit (J)) Downrod Assembly Bulb Coupling Clevis Pin (preassembled on Motor (preassembled to Coupling (E)) Housing (H)) Hairpin Clip...
Page 4: Hardware Contents
HARDWARE CONTENTS (not shown actual size) Plastic Plug Blade Screw Wire Connector Qty. 1 Qty. 15 + 1 extra Motor Screw Qty. 4 Qty. 10 (5 preassembled) + 1 extra Qty. 2 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product. All electrical connections must comply with local codes, ordinances or the National Electric Code (NEC).
Page 5: Preparation
SAFETY INFORMATION WARNING Risk of fire. Most dwellings built before 1985 have supply wire rated for 140°F. Consult a qualified electrician before installation. To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed device or variable speed control.
Page 6: Initial Instructions
INITIAL INSTALLATION INSTRUCTIONS 1. Turn off circuit breakers and wall switch to the fan supply line leads. DANGER: Failure to disconnect power supply prior to installation may result in serious injury or death. 2a. Choose the desired mounting method: A. Standard Mounting: Standard mounting is best suited for ceilings 8 ft.
Page 7: Standard/Angle-Mounting Instructions
INITIAL INSTRUCTIONS 3. Check existing outlet box (not included) to ensure it is securely fastened to at least two points in a structural ceiling member and can support the full weight of the fan. Once verified, install mounting bracket (A) to the outlet box using the screws and washers provided with the outlet box.
Page 8 STANDARD/ANGLE-MOUNTING INSTRUCTIONS 2. Feed power wires from motor housing (H) through downrod assembly (D), then insert downrod assembly (D) into the coupling (E) on motor housing (H). Align the hole on downrod assembly (D) to hole on coupling (E), then re-install clevis pin (O). Re-attach Screw hairpin clip (P) into clevis pin (O) until it snaps into place, then tighten the two previously loosened screws.
Page 9: Flushmount Instructions
FLUSHMOUNT INSTRUCTIONS 1. Press out on the inner edges of the canopy cover (C) from inside the canopy (B) until it releases from the canopy (B). Note: Flushmount installation will not use canopy cover (C), downrod assembly (D), clevin pin (O), hairpin clip (P) or coupling screws.
Page 10: Wiring Instructions
WIRING INSTRUCTIONS WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. WARNING: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. WARNING: If house wires are different colors than referred to in the following steps, stop immediately.
Page 11: Final Instructions
WIRING INSTRUCTIONS 3. Wrap electrical tape (not included) around each wire Outlet Box connector (AA) and make sure no bare wire or wire strands are visible after making connections. Then, turn wires upward and carefully push them into the outlet box; make sure the WHITE and GREEN GREEN connections are on one side and the BLACK connections are on the other side.
Page 12 FINAL INSTRUCTIONS 3. Remove the 5 motor screws (CC) preassembled at the bottom of motor housing (H), discarding the preassembled motor blocks but retaining the motor screws (CC) for later use. Position one completed blade assembly under motor housing (H). Align the holes on the motor housing (H) and blade iron (F), then adjust the slot on the preassembled mounting plate (I) over the holes.
Page 13 FINAL INSTRUCTIONS 6. Attach the switch housing (L) with light kit (J) to the mounting plate (I) using the three screws previously removed (step 4, page 12). Tighten securely. Screw Remove socket ring (M) from each socket on light kit (J). Slide glass bowl (K) to each socket, securing with socket rings (M).
Page 14: Operating Instructions
FINAL INSTRUCTIONS Attach the connector from the switch housing (L) to connector from the motor housing (H). Then, attach the switch housing (L) to the mounting plate (I) using the three screws previously removed (step 4, page 12). Tighten securely, then attach plastic plug (DD) into hole in the middle of switch housing (L).
Page 15: Care And Maintenance
OPERATING INSTRUCTION 2. When the season changes, you may want to change the direction the fan spins. In warmer weather, counterclockwise rotation creates a downward air flow, which cools the air. Push the reverse switch located on switch housing (L) LEFT and see a SUN icon. In cooler weather, clockwise rotation creates an upward air flow, which moves hot air from the ceiling into room.
Page 16 TROUBLESHOOTING PROBLEM CORRECTIVE ACTION PROBABLE CAUSE 6. The distance from canopy 6. Make sure upper canopy is a short distance to ceiling is too great. from ceiling. It should not touch the ceiling. Fan sounds noisy. 7. Faulty light bulb installation. 7. Make sure light bulb is tight in socket and does not touch glass shade.
Page 17 TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION 1. Power turned off, fuse blown 1. Turn power on, replace fuse or reset breaker. or circuit breaker tripped. 2. Loose wire connections or 2a. Turn power off and loosen canopy; check wrong connections. all connections according to section WIRING INSTRUCTIONS on page 10.
Page 18: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The manufacturer warrants this fan to be free from defects in workmanship and material present at time of shipment from the factory for life (with limitations) from the date of purchase. This warranty applies only to the original purchaser. The manufacturer agrees to correct such defect at no charge or, at our option, replace the ceiling fan with a comparable or superior model.
Page 19: Replacement Parts List
Downrod Assembly A103-0156184 Blade Iron A143-0186184 Blade A141-0138001 Light Kit A187-0179184 Glass Bowl A182-0069036 Wire Connector Blade Screw B168-0382005 Motor Screw Plastic Plug Printed in China Harbor Breeze ® is a registered trademark of LF, LLC. All Rights Reserved. Lowes.com/harborbreeze...
