Page 1: Table Of Contents

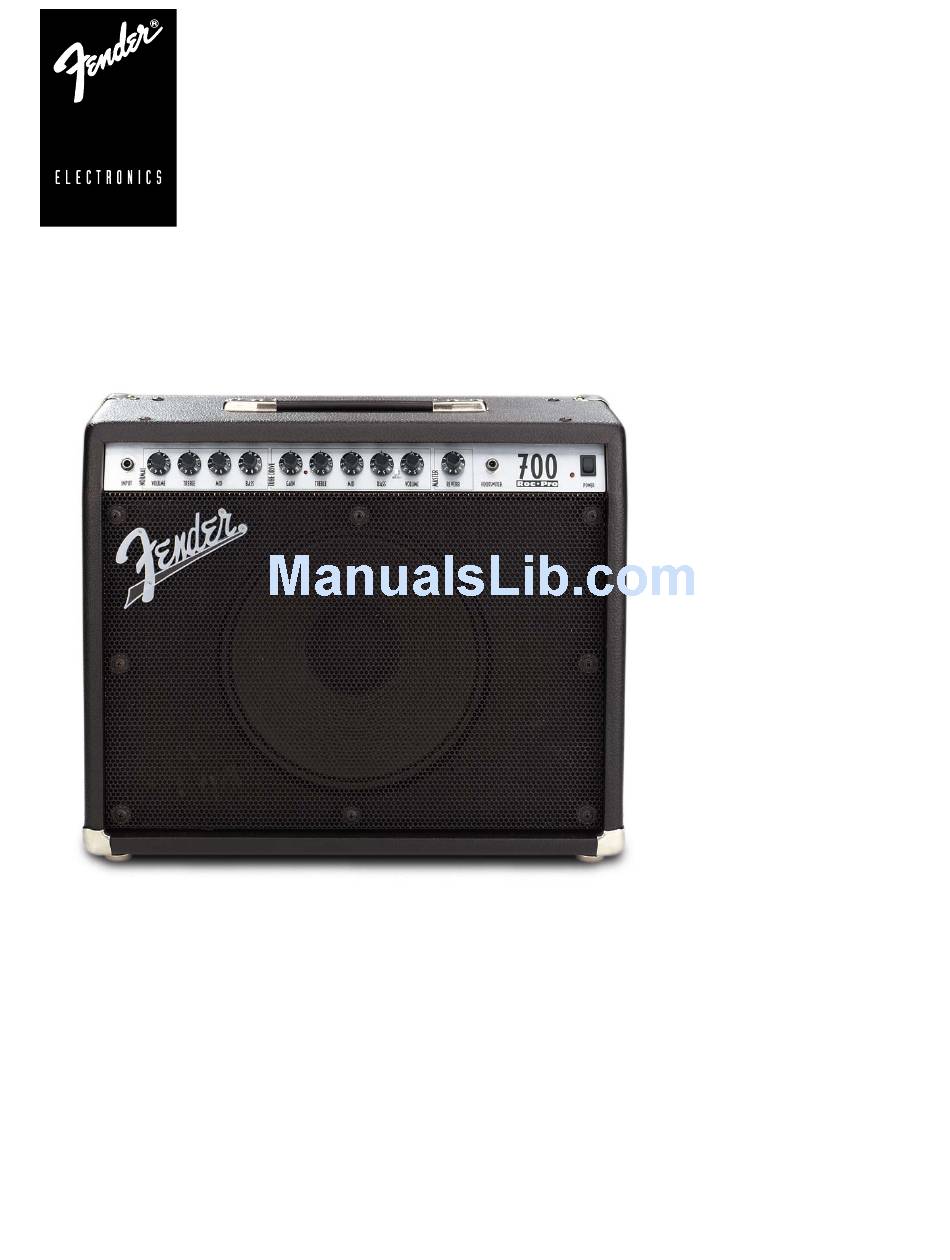

ROC PRO 700 SERVICE MANUAL CONTENTS: Notices Specifications Parts lists: PCB assembly Chassis assembly Cabinet assembly Footswitch assembly Miscellaneous Schematics/diagrams Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258... -
Page 2: Roc Pro 700
Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. -
Page 3: Specifications
ROC PRO 700 SPECIFICATIONS Product Release No.: PR 242 (This is not a model number) Input impedance: > 1MΩ Nominal level: 100mV 65 Watts RMS into 8 Ω @ 5% THD Power output: Effects loop Nominal level; Selectable +4, -7, -16 dBV Output Impedance: 1.2kΩ... - Page 4 ROC PRO 700 PRINTED CIRCUIT BOARD ASSEMBLY (CONT) PART # DESCRIPTION REFERENCE DESIGNATION 039263 CAP CA 1000PF 50V 5% 039265 CAP CA 2200PF 100V 039266 CAP CA 3300PF 100V 039268 CAP CA .4700PF 50V C2,3 027278 CAP MPF .1uF 63V 10%...
-
Page 5: Chassis Assembly
XSTR NPN TIP142 TO-218AC 028115 XSTR PNP TIP147 TO-218AC CHASSIS ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 050318 CHS ASSY ROC PRO 700 120V (COMPLETE CHASSIS) 021709 BUSHING SR .437X.602X13/32 BLK (@ SPEAKER CABLE) 026038 BUSHING SR .625X.062X37/64 BLK (@ POWER CABLE 100V/120V) 010401 BUSHING SR .625X.125X37/64 WHT 230V... -
Page 6: Cabinet Assembly
XFMR PWR EXP 230V (100V/230V EXPORT ONLY) CABINET ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 050254 CAB ASSY ROC PRO 700/DLX 112+ (COMPLETE CABINET) 022491 CLAMP CABLE NYL SCRW MNT 5/16 (@REVERB CABLE) 026566 CORNER 2 HOLE W/ TAB NI...
