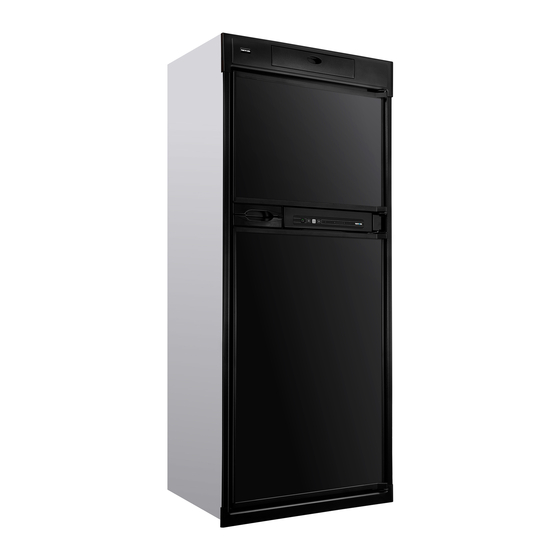

Page 1 Owner’s Manual For Australian refrigerator model: N614E.3F (184L (approx.) 3-way operation with LP gas, 230 volts AC, or 12 volts DC ) Improper installation, adjustment, alteration, service or maintenance can WARNING cause personal injury or property damage. Refer to this manual. For assistance or additional information, contact a qualified installer, service agency, or the LP gas supplier.
Page 2: Table Of Contents
Table of Contents For defined warranty terms, please see the one page warranty statement included in the product information packet. Safety Awareness ....................................2 Safety Instructions ....................................3 About Your Refrigerator ..................................4 Storage volume .....................................4 Leveling ......................................4 Operation during travel ..................................4 Food compartment ..................................4 Crispers ......................................4 Door bins .......................................4 Adjustable shelves ..................................5...
Page 3: Safety Instructions
- Incorrect installation, adjustment, change to, or maintenance of this refrigerator can cause personal injury, property damage, or both. Have service and maintenance work done by your dealer or by a Thetford authorized Service Center. - Disconnect both the AC and DC power sources before doing any maintenance work on the refrigerator.
Page 4: About Your Refrigerator
Ignite or start up the refrigerator and let it cool for eight hours before loading with food. If the refrigerator does not start to cool down after about two hours, contact your dealer or an authorized Thetford Service Center. For the best cooling performance: - Let air move freely inside the entire food compartment.
Page 5: Adjustable Shelves
Temperature switch monitor: The refrigerator is equipped with a temperature switch [142] for overheating protection (See Art01869). A Thetford authorized service technician can determine if this switch Art01869 has been triggered.
Page 6: Operating The Refrigerator Controls
Operating the Refrigerator Controls LED Control Panel: The control display panel is located between the freezer door and the fresh food door (See Art02450). On/Off switch ..................30 Selector switch .................207 Confirmation button................. 307 Mode indicator ................276 Cooling level indicators ..............308 Art02450 Moisture reduction symbol ..............
Page 7: Battery Pack Operation (Optional)
Battery pack operation (optional): If neither 230VAC nor 12VDC power is available, this refrigerator can still operate on LP gas for up to seven (7) days by using six (6) AA batteries to power the LED control panel. It is possible to use only three (3) AA batteries in a row in the battery pack. The refrigerator will run for approximately one half week with three (3) batteries and LP gas.
Page 8: Anti-Condensation Heater
Switch the refrigerator off and on and select the gas source again. - If the flame does not ignite after several attempts, contact your dealer or authorized Thetford Service Center. - When the burner lights, set the refrigerator to the desired cooling level.
Page 9: Dc Operation Precautions And Guidelines
- You may experience reduced cooling performance of the refrigerator. - You may experience burner outages. To avoid these possible problems, Thetford recommends that you operate the refrigerator on AC when at altitudes higher than 1700m above sea level. Effects of Freezing Temperatures on Refrigerator Operation A gas absorption refrigerator is not designed to operate in freezing temperatures.
Page 10: Defrosting
Defrosting The cooling fins of the refrigerator operate at below freezing temperature and will naturally form frost from humidity which is always present in the air. The humidity inside the refrigerator increases: - with higher outside temperature and humidity. - with the storage of non-sealed fresh foods or warm foods. - with the amount of time that the door(s) are open.
Page 11: Cleaning
- Do this on all four sides of the door. - If you do not feel a slight drag on the paper, the door does not seal correctly. Art00980 - Have your dealer or an authorized Thetford Service Center correct the seal of the door. Installation /Owner’s Manual 11...
Page 12: Refrigerator Maintenance Checklist
NOTICE than a qualified RV dealer or an authorized Thetford Service Center. Have a qualified RV dealer or an authorized Thetford Service Center do these annual safety and maintenance checks: - Examine the LP gas supply lines for leaks. - Replace or repair if necessary.
Page 13: Refrigerator Maintenance
- Close the burner box door. Remove and clean the burner orifice: NOTICE Your dealer or an authorized Thetford Service Center must do this procedure. To remove and clean the burner orifice: - Close the valve at the LP gas tank(s).
Page 14: Remove The Refrigerator
- Assemble the drip cup. Remove the Refrigerator NOTICE Your dealer or an authorized Thetford Service Center must do this procedure. The rear of the refrigerator has sharp edges and corners. To prevent cuts or abrasions when working on CAUTION the refrigerator, be careful and wear cut resistant gloves.
Page 15: Reinstall The Refrigerator
- Connect the DC supply to the refrigerator’s DC wire harness. 9. Connect the AC power cord to the receptacle. Replacement Parts You may purchase replacement parts through your local RV dealer or an authorized Thetford Service Center. Installation /Owner’s Manual 15...
Page 16: Wiring Pictorial
Wiring Schematic ART 02456 Wiring Pictorial ART 02455 A copy of the wiring pictorial / diagram is in a clear plastic bag on the rear of the refrigerator. Get access to the rear of the refrigerator through the lower intake vent. Installation / Owner’s Manual 16...
