Thetford N604M.3 Owner's Manual

184l (approx.) 3-way operation with lp gas, 240 volts ac, or 12 volts dc
Hide thumbs
Table of Contents

Advertisement

Quick Links

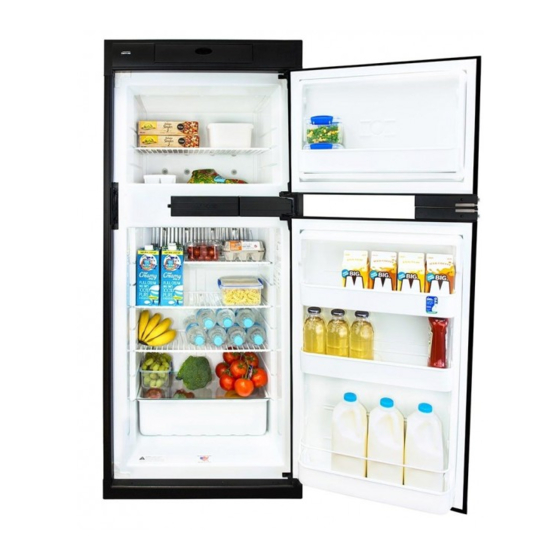

N604M.3 (184L (approx.) 3-way operation with LP gas, 240 volts AC, or 12 volts DC )
!
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquid in the
vicinity of this or any other appliance.
FOR YOUR SAFETY
If you smell gas:
DO NOT install this refrigerator in below deck marine applications. Do not install this refrigerator in
!
WARNING
fixed indoor cabin or other dwelling applications. This refrigerator must use only Thetford designed and
approved outside air intake and exhaust ventilation for correct and safe operation. Any other ventilation
could cause lethal combustion exhaust fumes and/or explosive LP gas fumes to be in the living area and/
or to be below deck.
Thetford Australia
41 Lara Way
Campbellfield, VIC 3061
Owner's Manual
For Australian refrigerator model:
Improper installation, adjustment, alteration, service or maintenance can
cause personal injury or property damage. Refer to this manual. For
assistance or additional information, contact a qualified installer, service
agency, or the LP gas supplier.
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
Thetford Customer Support
Telephone: (61) 03-9358-0700
Fax: (61) 03-9357-7060
Web Site: www.thetford.com.au
Part No. 636527D (02/04/2016)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N604M.3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thetford N604M.3

Summary of Contents for Thetford N604M.3

  • Page 1 Owner’s Manual For Australian refrigerator model: N604M.3 (184L (approx.) 3-way operation with LP gas, 240 volts AC, or 12 volts DC ) Improper installation, adjustment, alteration, service or maintenance can WARNING cause personal injury or property damage. Refer to this manual. For assistance or additional information, contact a qualified installer, service agency, or the LP gas supplier.

  • Page 2: Table Of Contents

    Table of Contents For defined warranty terms, please see the one page warranty statement included in the product information packet. Safety Awareness ....................................2 Safety Instructions ....................................3 About Your Refrigerator ..................................4 Storage volume .....................................4 Leveling ......................................4 Operation during travel ..................................4 Food compartment ..................................4 Crispers ......................................4 Door bins .......................................4 Adjustable shelves ..................................5...

  • Page 3: Safety Instructions

    - Do not remove the round ground prong from the refrigerator AC power cord. Do not use a two prong adapter or extension cord on the AC power cord. If the AC power cord is damaged, it must be replaced by a qualified Recreational Vehicle dealer or an authorized Thetford Service Center in order to avoid a hazard.

  • Page 4: About Your Refrigerator

    Ignite or start up the refrigerator and let it cool for eight hours before loading with food. If the refrigerator does not start to cool down after about two hours, contact your dealer or an authorized Thetford Service Center. For the best cooling performance: - Let air move freely inside the entire food compartment.

  • Page 5: Adjustable Shelves

    Temperature switch monitor: The refrigerator is equipped with a temperature switch [142] for overheating protection (See Art01869). A Thetford authorized service technician can determine if this switch Art01869 has been triggered.

  • Page 6: Operating The Refrigerator Controls

    Operating the Refrigerator Controls Control panel: (See Art02472) Selector switch ..............207 AC thermostat ..............293 Flame meter ..............217 Piezo lighter ..............216 Cooling system fan switch (fan models only) ....252 Gas control................ 294 AC power indicator............310 DC power indicator ............311 Divider Heater Switch ............

  • Page 7: Ignition - Lp Gas Operation

    When the outside air temperature is below 10°C, the refrigerator may have a tendency to freeze food at the colder temperature settings. To reduce the tendency to freeze food: - Turn the gas control to LO position. - Keep the refrigerator full. - Put foods that are more likely to freeze on the lower shelf.

  • Page 8: Dc Operation Precautions

    - You may experience reduced cooling performance of the refrigerator. - You may experience burner outages. To avoid these possible problems, Thetford recommends that you operate the refrigerator on AC when at altitudes higher than 1.7 km above sea level.

  • Page 9: Refrigerator Care Checklist

    - Be aware of any cooling changes that are not because of weather, loading, or gas control changes. If changes occur, contact your dealer or an authorized Thetford Service Center. - When in LP gas operation, examine the appearance of the flame. See “LP Gas Flame Appearance”.

  • Page 10: Cleaning

    - Do this on all four sides of the door. - If you do not feel a slight drag on the paper, the door does not seal correctly. Art00980 - Have your dealer or an authorized Thetford Service Center correct the seal of the door. Owner’s Manual 10...

  • Page 11: Refrigerator Maintenance Checklist

    NOTICE than a qualified RV dealer or an authorized Thetford Service Center. Have a qualified RV dealer or an authorized Thetford Service Center do these annual safety and maintenance checks: - Examine the LP gas supply lines for leaks. - Replace or repair if necessary.

  • Page 12: Refrigerator Maintenance

    Art00955 outside of the flame. - a constant shape without flickering. - Contact your dealer or Thetford authorized service center if the flame is: - yellow - flickering or changing shape. - Make sure the flame does not touch the inside of the flue tube [76].

  • Page 13: Remove The Refrigerator

    - Examine all of the connections for gas leaks. Remove the Refrigerator NOTICE Your dealer or an authorized Thetford Service Center must do this procedure. The rear of the refrigerator has sharp edges and corners. To prevent cuts or abrasions when working on CAUTION the refrigerator, be careful and wear cut resistant gloves.

  • Page 14: Reinstall The Refrigerator

    - Install the DC fuse or connect the DC wiring to the battery or the converter. - Connect the DC wires from the refrigerator. 9. Connect the AC power cord to the receptacle. Replacement Parts You may purchase replacement parts through your local RV dealer or an authorized Thetford Service Center. Owner’s Manual 14...

  • Page 15: Wiring Pictorial

    Wiring Pictorial Spark Temperature Mode Selector Switch Temperature Flame Meter Piezo Switch Blue Yellow/Green Divider Heater Blue Switch White/Red Gray White/Black White White/Black Thermocouple - To Burner Blue Blue Yellow/Green Brown White/Red Brown Red/White Blue White Yellow/Green White/Red White/Black Brown Blue Black White...

  • Page 16: Wiring Diagram

    Wiring Diagram High Temp Limit Switch T-Stat 3-Amp 240VAC 240VAC C-7 B-7 AC Heater t° t° AC Light C-3 B-3 DC Light 3-Amp +12Vdc_In Lighted Divider Heater Switch Splice 2 Splice 1 Lighted Fan Switch Divider Heater T-Stat t° 30-Amp 12Vdc_Ground +12Vdc_In 12Vdc_Ground...
