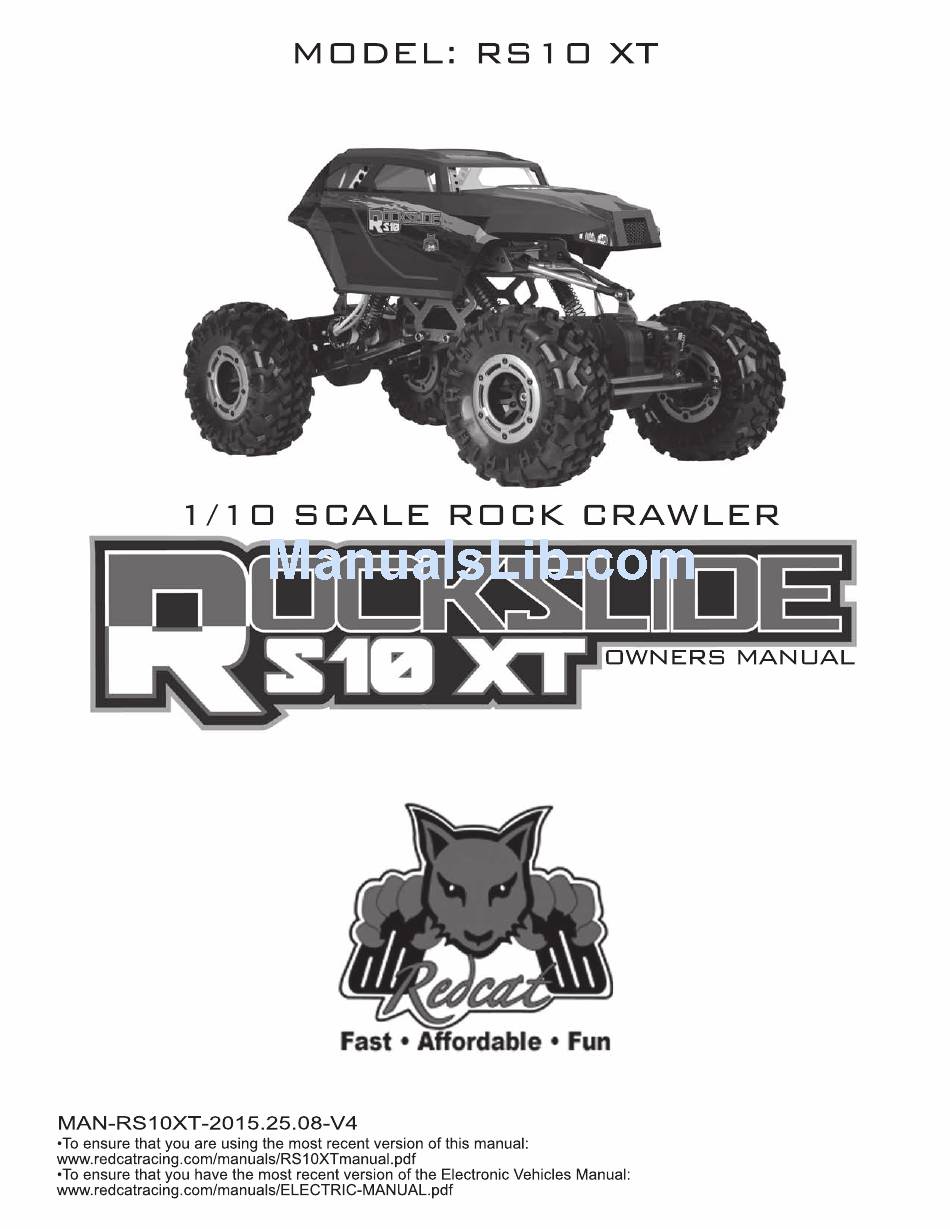

REDCAT RockSlide S10 XT Owner's Manual
  1. Manuals
  2. Brands
  3. REDCAT Manuals
  4. Toy
  5. RockSlide S10 XT
  6. Owner's manual

REDCAT RockSlide S10 XT Owner's Manual

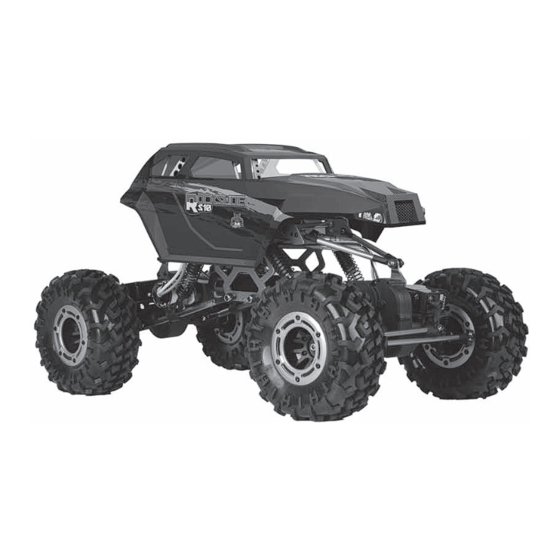

1/10 scale rock crawler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RockSlide S10 XT and is the answer not in the manual?

Questions and answers

Related Manuals for REDCAT RockSlide S10 XT

Summary of Contents for REDCAT RockSlide S10 XT

  • Page 2 WARNING...

  • Page 3: Technical Data

    1. Before Using The RS10XT Thank you for purchasing the Redcat Racing RS10XT rock crawler. The RS10XT is a hobby grade vehicle and is not a toy. Please read the entire manual before attempting to operate this vehicle. Before running the RS10XT, please look over the entire vehicle to ensure there are no damaged or loose parts. Once the vehicle has been used, we can only assume broken parts are a result of improper use.

  • Page 4: General Information

    4. Using the 2.4GHz radio system General information -2.4GHz transmitter and receiver. - Full functional, computer transmitter, with LCD screen. - Four steering modes for extreme versatility. -Always remove batteries from this product when not in use. -Do not mix old and new batteries. Do not mix alkaline batteries, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
  • Page 5 Full function steering modes This 2.4GHz transmitter contains various steering modes, which are perfect for the rock crawler. Press this button to toggle steering modes. LCD screen on the transmitter LCD screen on the transmitter Front wheel steering Four wheel steering - wheels in the same direction Mode 1 engages front wheel steering only.
  • Page 6 Steering Trim/Steering Reverse Function LCD screen on the transmitter TRM.ST (Steering Trim) range is around 0-100% for both left and right steering on the front wheels. Toggle this switch to select your desired steering trim volume. To Reverse Steering: Press SEL (Select Button) on your radio once, the LCD display appears as Channel 1 (NOR.) Toggle the SWITCH (Steering Trim /Reverse Switch) to change from NOR to REV as shown below: Throttle Trim/Throttle Reverse Switch LCD screen on the transmitter...

  • Page 7: Steering Wheel

    Steering Dual Rate (D/R) This lever adjusts the overall travel of the steering servo, push the lever forward for maximum steering. Pull the lever back to reduce steering travel. D/R adjustable range is around 5-100%. LCD screen on the transmitter Trim Switch (For Rear Wheels) This dial is to center the rear wheels.
  • Page 8 5. ESC And Receiver Placement The RS10XT is a fully assembled RTR vehicle. The following is intended to familiarize you with the placement of electrical components. Electronic Speed Controller (ESC) The ESC is attached to the radio If you remove the ESC, clean off the The power switch is secured with tray with foam mounting tape.
  • Page 9 How to bind the receiver with the transmitter? 1) Insert the bind plug into Channel 4 before switching on the receiver. 2) Switch on the receiver. The LED light will flash. 4) Press and hold the SEL button on the transmitter. The LED on the receiver will continue to flash.

  • Page 10: Charging The Nimh Battery

    7. Charging the NiMH battery • Only use NiMH specific chargers to charge Ni-MH battery packs. Never tempt to use this • Never overcharge your Ni-MH battery packs. charger to charge the • Never charge the battery pack unattended. batteries of your •...

  • Page 11: Part List

    PART LIST-1 RCT-H001 RCT-H111 RCT-H112 RCT-H004 Upper Link Mounts + Screws 4pcs(Round Head Self Tapping Radio Tray+ Stick Battery Plate Screw 2.6*8mm) + Screws 2pcs + Battery Strap+Screws 4pcs Drive Shaft (front/rear) (Round Head Screw 2.5*17mm) (Round Head Screw 2.5*6) + Aluminum Side Plate (left/right) L=62.5mm + Washers 2pcs (2.5*5.5*0.5)
  • Page 12 PART LIST-2 RCT-H020A RCT-H021 RCT-H022 3338-H016 Gear Shaft Outdrive Cup Spring Pad( Inner Dia.:2.5mm) Washer( 2.5*5.5*0.5mm) 8P Linkage Bar Bolt {front/rear) (apply to motor with screws) Washer (3.1*6*0.5mm) 8P H007 H009 H016 H032 Steering Linkage Ball Stud. Ball Bearing 5*11*4mm Ball Bearing 10*15*4mm (Dia.:5.8mm) Ball Bearing 4*7*2.5mm...
  • Page 13 PART LIST-3 RCT-P002 RCT-P003 RCT-P004 RCT-P005 Spur Gear(47T)+Drive Gears+ Servo Plate+Servo Mount+ Front/rear Gear Box Housing + Gear Gasket + Gear Seal Set + Shock Lower Retainer 2P Dust Cover Gear Casing Front/rear Axle Assembly RCT-P008 RCT-P011 RCT-P060 RCT-P070 One Pair Front/rear Steering Hub(left/ Sero Arm+Power Switch Mount Body Post...
  • Page 14 PART LIST-4 P019 P100 E600T 01003-CHARGER-T RC390 Motor (Front) U.S. Standard Ni-MH Battery Receiver Antenna Tube Yellow Wire (-), Blue Wire(+) Body Post Pad Charger E600R HX-2200MH-T E710 3CH-24GHz-RADIO RC390 Motor (Rear) Optional Reachable NiMh 3 Channel 2.4GHz Radio with Blue Wire (-), Yellow Wire(+) Battery Pack 7.2V, 2200mAh Receiver...
  • Page 15 PART LIST-5 S030 S031 S059 S060 Round Head Self Tapping Round Head Round Head Screw (3*10mm) Cap Head Screw (2*8mm) Screw (3*8mm) Screw (2.5*12mm) S063 S089 S093 S098 Round Head Round Head Self Tapping Round Head Self Tapping Round Head Screw (2.5*17mm) Screw (2.6*6mm) Screw (2*6mm)

  • Page 16: Assembly Diagram

    Assembly Diagram-1 Shock Assembly A13: washer (3*6*0.15mm) A14: washer (3*6*0.5mm Front/Rear Gear Box Assembly...
  • Page 17 Assembly Diagram-2 Front/Rear Spur Gear Assembly...
  • Page 19 CENTER UNIT ASSEMBLY...
