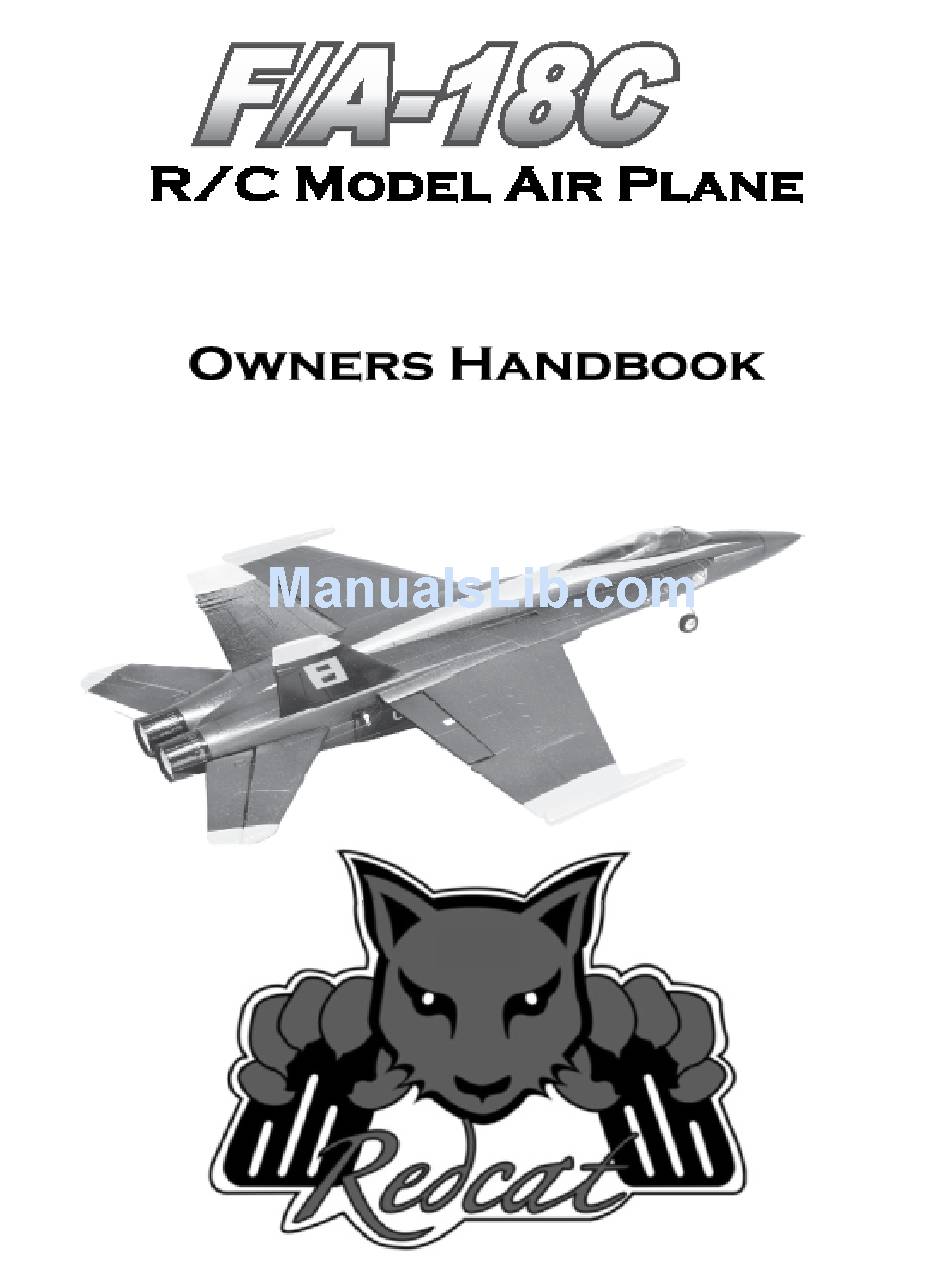

REDCAT F/A-18C Owner's Handbook Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WWW.REDCATRACING.COM
602-454-6445

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F/A-18C and is the answer not in the manual?

Questions and answers

Related Manuals for REDCAT F/A-18C

Summary of Contents for REDCAT F/A-18C

  • Page 1 WWW.REDCATRACING.COM 602-454-6445...
  • Page 2 ESC combo. Combined with a 4-channel 2.4ghz transmitter and 11.1V LiPo battery, the F/A-18C is capable of both high and low speed flights. The high performance and simple flight controls makes this a perfect aircraft for the entry-level flyer.

  • Page 3: Safety Warnings

    Safety Warnings Redcat wishes to ensure you receive the most enjoyment from your purchase possible. This aircraft is not a toy, and requires proper training and inspection for safe operation. The warnings listed below should be followed at all times while operating your aircraft! Redcat Racing is not responsible for any injury or damage that may be caused by the improper use or operation of this aircraft or charging system.

  • Page 4: Parts Included

    4-Channel 2.4ghz Parts Included Your Redcat Racing F/A-18C comes complete with every pictured below. This consists of the following: Fuselage, Main Wing Set, Vertical and Horizontal Stabilizers, Main Landing Gear, Canopy, Radio System, Battery, Charger, Hardware, Assembly Glue and Owners Handbook WWW.REDCATRACING.COM...
  • Page 5 Understanding & Charging the Battery Your Redcat Racing F/A-18C comes with a powerful 3 cell, 11.1V LiPo battery pack and balance charger. Special care should be taken when charging your battery to ensure safe and optimal battery life. Charger Specifications & Operation WWW.REDCATRACING.COM...
  • Page 6 Charger & Battery Safety Precautions Your Redcat Racing P-51 comes with a powerful 3 cell, 11.1V LiPo battery pack and balance charger. Special care should be taken when charging your battery to ensure safe and optimal battery life. Pay special attention to these safety precautions listed below. Failure to do so...

  • Page 7: Aircraft Assembly

    Aircraft Assembly Minor assembly of your F/A-18C aircraft is required. Please pay close attention to the following assembly steps to obtain maximum performance from your aircraft while flying. Step 1: Installation of the Main Wings. Add glue to the edges of each main wing where it will attach to the plane fuselage.
  • Page 8 Aircraft Assembly Minor assembly of your F/A-18C aircraft is required. Please pay close attention to the following assembly steps to obtain maximum performance from your aircraft while flying. Step 2: Installation of servo connectors Note: When connecting servo connectors, ensure wire colors match up.
  • Page 9 Aircraft Assembly Minor assembly of your F/A-18C aircraft is required. Please pay close attention to the following assembly steps to obtain maximum performance from your aircraft while flying. Step 3: Installation of Horizontal Stabilizers. Add glue to the edges of each horizontal stabilizer where they will attach to the plane fuselage.
  • Page 10 Aircraft Assembly Minor assembly of your F/A-18C aircraft is required. Please pay close attention to the following assembly steps to obtain maximum performance from your aircraft while flying. Step 4: Installation of Vertical Stabilizers. Add glue to the edges of vertical stabilizer where they will attach to the plane fuselage.
  • Page 11 Aircraft Assembly Minor assembly of your F/A-18C aircraft is required. Please pay close attention to the following assembly steps to obtain maximum performance from your aircraft while flying. Step 6: Installation of Nose Cone. Add glue to the edges of nose cone where it will attach to the plane fuselage.
  • Page 12 Aircraft Assembly Minor assembly of your F/A-18C aircraft is required. Please pay close attention to the following assembly steps to obtain maximum performance from your aircraft while flying. Step 8: Installation of Main Landing Gear. Install the steel wire from the main landing gear into the grooves on the underside of the plane fuselage.
  • Page 13 Aircraft Assembly Minor assembly of your F/A-18C aircraft is required. Please pay close attention to the following assembly steps to obtain maximum performance from your aircraft while flying. Step 10: Checking the Center of Gravity (CoG). The CoG is the point where your aircraft will balance itself.

  • Page 14: Control Mode

    Understanding the Radio System Your Redcat Racing F/A-18C comes from the factory with a high-quality 2.4ghz radio transmitter and receiver. Since these are your only source of control over the aircraft, it’s important to take time to review and understand their function. Your radio transmitter has two separate modes which are pictured below.
  • Page 15 Understanding the Radio System Your Redcat Racing F/A-18C comes from the factory with a high-quality 2.4ghz radio transmitter and receiver. Since these are your only source of control over the aircraft, it’s important to take time to review and understand their function. Your radio transmitter has two separate modes which are pictured below.

  • Page 16: Receiver Controls

    Understanding the Radio System Your Redcat Racing F/A-18C comes from the factory with a high-quality 2.4ghz radio transmitter and receiver. Since these are your only source of control over the aircraft, it’s important to take time to review and understand their function.
  • Page 17 Binding the Transmitter & Receiver: To ensure proper operation of your aircraft, your radio transmitter and aircraft receiver are bound. These should arrive from the factory, but if you experience problems during your pre-flight check, you may need to follow these instructions to re-bind your receiver. Never cut the length of your receiver antenna! Doing so will severely reduce your transmitter’s range.
  • Page 18 Binding the Transmitter & Receiver: To ensure proper operation of your aircraft, your radio transmitter and aircraft receiver are bound. These should arrive from the factory, but if you experience problems during your pre-flight check, you may need to follow these instructions to re-bind your receiver. Never cut the length of your receiver antenna! Doing so will severely reduce your transmitter’s range.

  • Page 19: Learning To Fly

    Learning to Fly Your Redcat Racing aircraft is intended for 1 time flyers as well as for experienced operators. By reading and understanding these simple instructions, you will learn to fly your R/C aircraft in no time! Understanding how an Aircraft Flies: By understanding how an aircraft flies you will have greater control over your R/C aircraft.

  • Page 20: Troubleshooting Guide

    This is meant as a guide only. If you are encountering problems not described below, contact your local Redcat dealer. You can also contact Redcat customer support directly through the phone number listed at the bottom of each page in your owners handbook.

  • Page 21: General Notes

    General Notes ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ WWW.REDCATRACING.COM 602-454-6445...
  • Page 22 General Notes ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ ____________________________________________________________________________ WWW.REDCATRACING.COM 602-454-6445...

  • Page 23: Replacement Parts List

    Replacement Parts List 5O031: Main Wing Set 5O051: Vertical Stabilizers 5O041: Horizontal Stabilizers 5O071: 5O101: 33013: Nose Cone LiPo Battery Brushless ESC 5O091: 5O061: Main Fuselage 5O081: Landing Gear Set Ducted Fan WWW.REDCATRACING.COM 602-454-6445...

  • Page 24: Replacement Parts Order Form

    Redcat. Redcat offers this mail-in replacement parts order form as a service to our customers who do not have access to a local Redcat Authorized Service Center or online Redcat dealer.
  • Page 25 Redcat. Redcat offers this mail-in replacement parts order form as a service to our customers who do not have access to a local Redcat Authorized Service Center or online Redcat dealer.
  • Page 26 Redcat Racing 23 West Watkins Street Phoenix, AZ 85003...
