PANEL DESCRIPTION

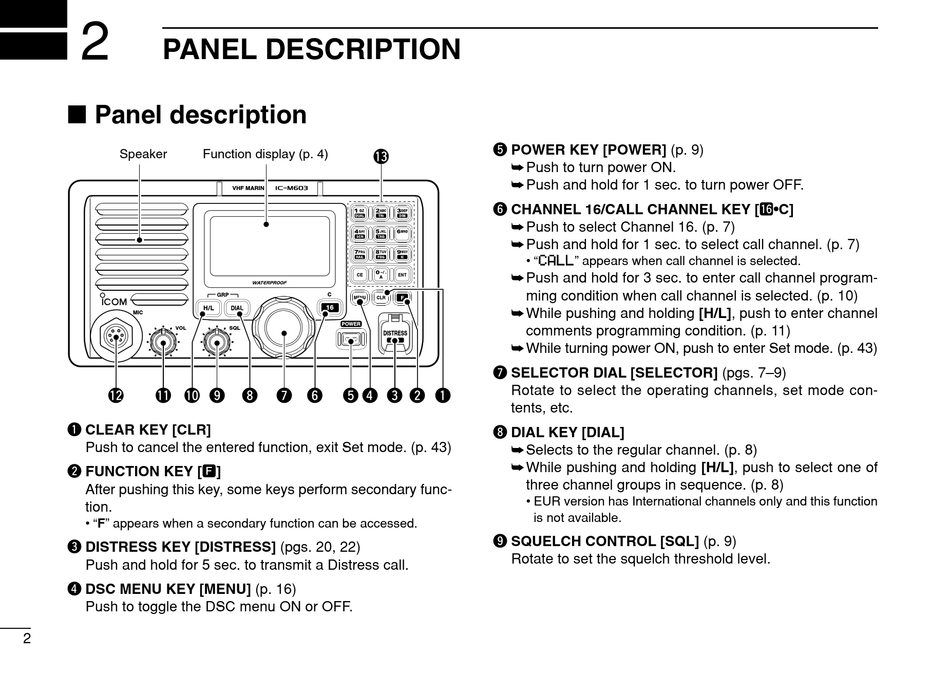

I Panel description

Speaker Function display (p. 4)
MIC
VOL
!2 !1 !0 o
q CLEAR KEY [CLR]
Push to cancel the entered function, exit Set mode. (p. 43)
w FUNCTION KEY [F]
After pushing this key, some keys perform secondary func-
tion.
• "F" appears when a secondary function can be accessed.
e DISTRESS KEY [DISTRESS] (pgs. 20, 22)
Push and hold for 5 sec. to transmit a Distress call.
r DSC MENU KEY [MENU] (p. 16)
Push to toggle the DSC menu ON or OFF.
2
!3
iM603
VHF MARINE
C
H/L DIAL 16
SQL
i u y t r e w
t POWER KEY [POWER] (p. 9)
➥ Push to turn power ON.
➥ Push and hold for 1 sec. to turn power OFF.
y CHANNEL 16/CALL CHANNEL KEY [!6 • C]
➥ Push to select Channel 16. (p. 7)
➥ Push and hold for 1 sec. to select call channel. (p. 7)
• "C C A A L L L L " appears when call channel is selected.
➥ Push and hold for 3 sec. to enter call channel program-
ming condition when call channel is selected. (p. 10)
➥ While pushing and holding [H/L], push to enter channel
comments programming condition. (p. 11)
DISTRESS
➥ While turning power ON, push to enter Set mode. (p. 43)
u SELECTOR DIAL [SELECTOR] (pgs. 7–9)
Rotate to select the operating channels, set mode con-
q
tents, etc.
i DIAL KEY [DIAL]
➥ Selects to the regular channel. (p. 8)
➥ While pushing and holding [H/L], push to select one of
three channel groups in sequence. (p. 8)
• EUR version has International channels only and this function
is not available.
o SQUELCH CONTROL [SQL] (p. 9)
Rotate to set the squelch threshold level.
