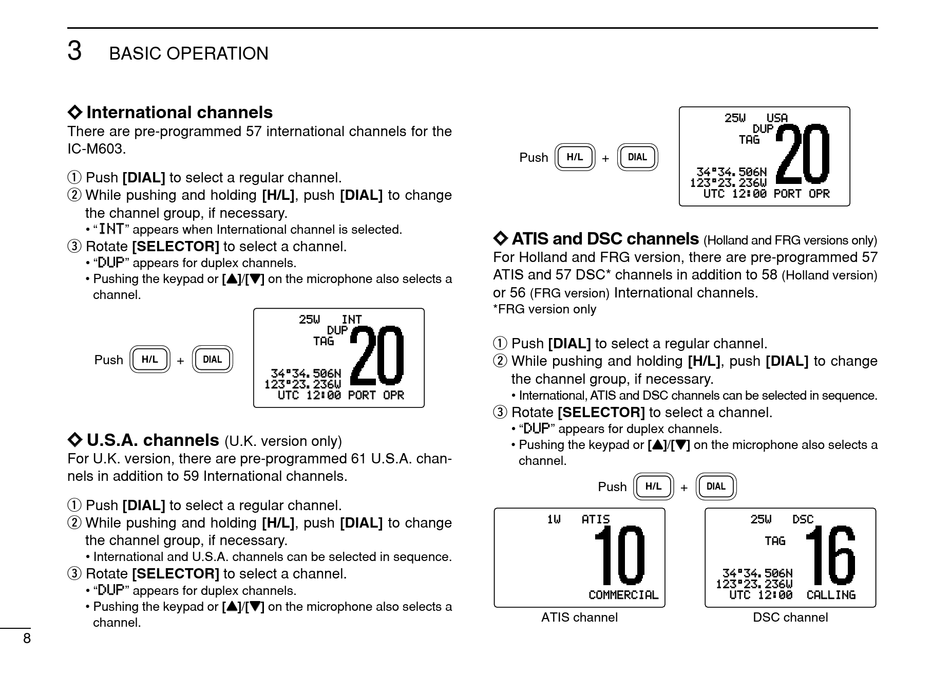

Icom IC-M603 Instruction Manual page 14

3
BASIC OPERATION
ï ï International channels
There are pre-programmed 57 international channels for the
IC-M603.
q Push [DIAL] to select a regular channel.
w While pushing and holding [H/L], push [DIAL] to change
the channel group, if necessary.
• "I I N N T T " appears when International channel is selected.
e Rotate [SELECTOR] to select a channel.
• "D D U U P P " appears for duplex channels.
• Pushing the keypad or [Y Y ]/[Z Z ] on the microphone also selects a
channel.
Push H/L +
ï ï U.S.A. channels
For U.K. version, there are pre-programmed 61 U.S.A. chan-
nels in addition to 59 International channels.
q Push [DIAL] to select a regular channel.
w While pushing and holding [H/L], push [DIAL] to change
the channel group, if necessary.
• International and U.S.A. channels can be selected in sequence.
e Rotate [SELECTOR] to select a channel.
• "D D U U P P " appears for duplex channels.
• Pushing the keypad or [Y Y ]/[Z Z ] on the microphone also selects a
channel.
8
25W 25W INT INT
DUP DUP
TAG TAG
DIAL
34°34.506N 34 34.506N
123 123°23.236W 23.236W
UTC UTC 12 12:00 :00 PORT PORT OPR
(U.K. version only)
Push
ï ï ATIS and DSC channels
For Holland and FRG version, there are pre-programmed 57
ATIS and 57 DSC* channels in addition to 58
or 56
(FRG version)
*FRG version only
q Push [DIAL] to select a regular channel.
w While pushing and holding [H/L], push [DIAL] to change
the channel group, if necessary.
• International, ATIS and DSC channels can be selected in sequence.
OPR
e Rotate [SELECTOR] to select a channel.
• "D D U U P P " appears for duplex channels.
• Pushing the keypad or [Y Y ]/[Z Z ] on the microphone also selects a
channel.
1W 1W
ATIS channel
25W 25W
TAG TAG
H/L + DIAL
34°34.506N 34 34.506N
123°23.236W 123 23.236W
UTC UTC 12 12:00 :00 PORT
(Holland and FRG versions only)
International channels.
Push H/L + DIAL
ATIS ATIS
34°34.506N 34 34.506N
123 123°23.236W 23.236W
COMMERCIAL COMMERCIAL UTC 12 UTC
USA USA
DUP DUP
PORT OPR OPR
(Holland version)
25W 25W DSC DSC
TAG TAG
12:00 :00 CALLING CALLING
DSC channel
