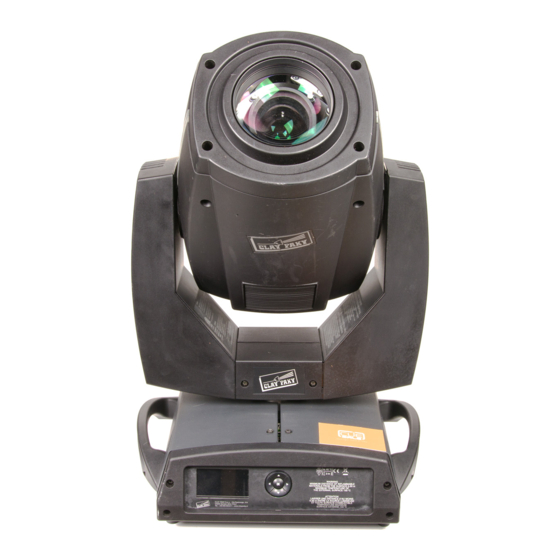

Clay Paky ALPHA PROFILE 800 ST Instruction Manual

Hide thumbs Also See for ALPHA PROFILE 800 ST:
Table of Contents

Advertisement

Quick Links

INDEX
Pag.
Contents
2
3
4
5
7
15
23
24
24
25

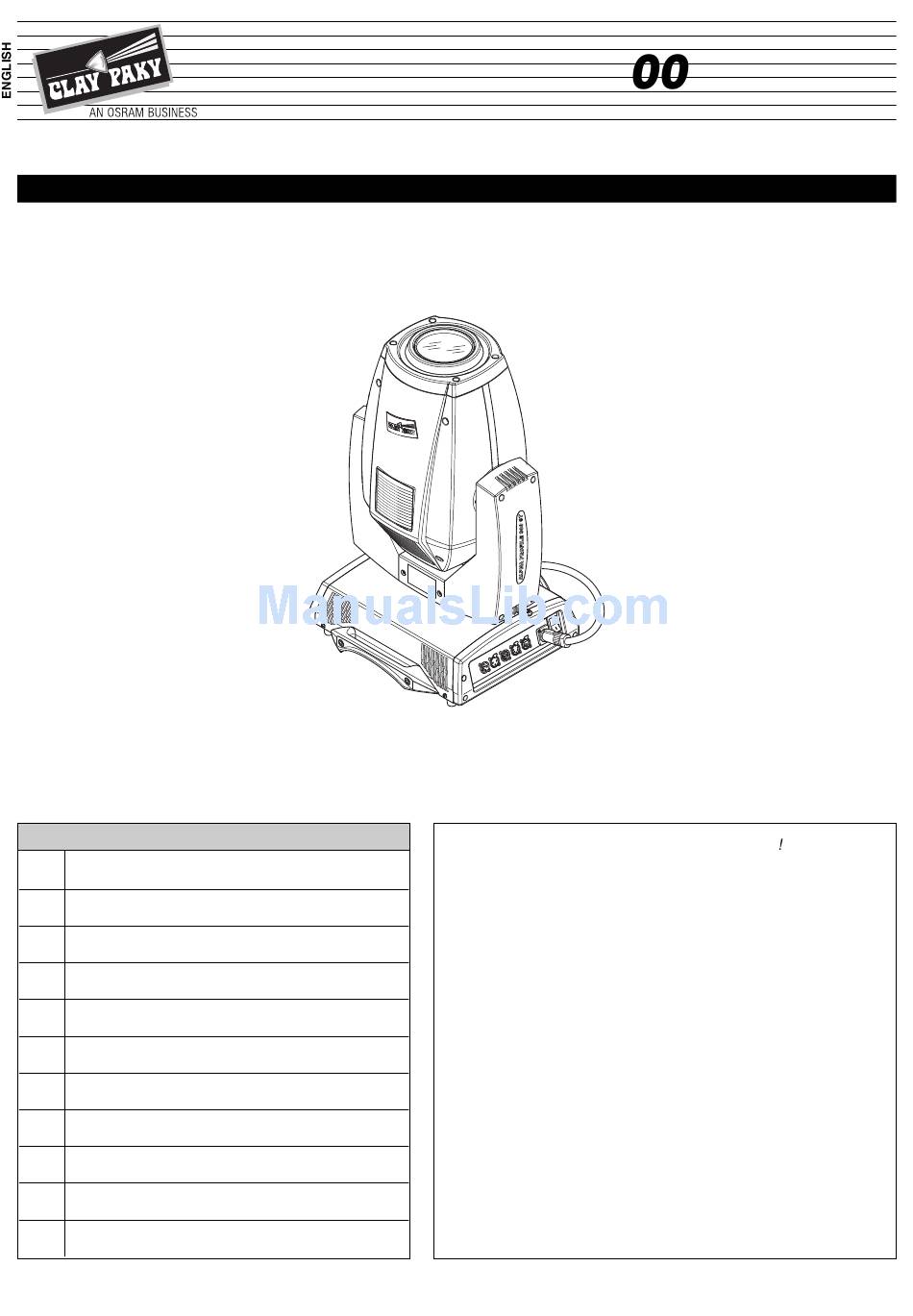

ALPHA PROFILE 8
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
1
ST
"
"
C61385

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA PROFILE 800 ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clay Paky ALPHA PROFILE 800 ST

Summary of Contents for Clay Paky ALPHA PROFILE 800 ST

  • Page 1: Table Of Contents

    Menu setting CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Maintenance or to other property or persons deriving from installation, use and...

  • Page 2: Safety Information

    SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.

  • Page 3: Unpacking And Preparation

    UNPACKING AND PREPARATION IST000/001 2 x 183102/805 Lamp 800W (fitted into projector) Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 ALPHA PROFILE 8 “ST”...

  • Page 4: Installation And Start-Up

    INSTALLATION AND START-UP Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 5: Control Panel

    CONTROL PANEL Mains Connecting to the mains supply - Fig. 6 DMX 512 5 PIN SCREEN SIGNAL SIGNAL DMX 512 DMX 512 3 PIN SIGNAL SCREEN SIGNAL Connecting to the control signal line (DMX) - Fig. 7 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified.
  • Page 6 Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

  • Page 7: Menu Setting

    MENU SETTING System Set Up Option Lamp Dmx Information Address Errors Invert Pan / Tilt Channel Fixture Mode Hours Invert Tilt Lamp Fixture ID Swap Hours Pan-Tilt Ethernet Encoder Lamp Interface Pan-Tilt Strikes P/T Homing Mode Option System Version Pan Home Def Pos Information Board...
  • Page 8 NOTE: On grey the default options SET UP MENU DMX ADDRESS Set Up Address xxx Address NOTE: without the DMX signal the Address (XXX) flashing Allows you to select the DMX ADDRESS 1) Press - the current DMX Adress appear on the display. 2) Use the UP , DOWN , RIGHT...
  • Page 9 OPTIONS MENU LAMP DMX Option Lamp Dmx Used for enabling lamp remote control channel. 1) Press - the current settings appear on the display (On or Off). 2) Use the UP and DOWN keys to enable (On) or disable (Off) the lamp remote control channel.
  • Page 10 Tilt Home Def Pos Tilt Home Option Pan / Tilt Def Pos Lets you assign the Tilt channel “home” position at the end of Reset, without a DMX input signal. 1) Press , the current setting appears on the display. 2) Use the UP and DOWN keys to select one of the following...
  • Page 11 AUTO-FOCUS MODE Auto-focus Limited It lets you select the “Auto-focus Mode” from the two available. Mode Zoom Range 1) Press the current setting appears on the display. 2) Use the UP and DOWN keys to select one of the following set- tings: Complete Limited Zoom Range: The “Autofocus”...

  • Page 12: Information Menu

    OPTION DEFAULT Option Lamp DMX Invert Pan Invert Tilt Swap Pan-Tilt Encoder Pan-Tilt Colour mixing Color mixing curve Curve 2 Fixed Wheel Shortcut Maco color adjustment Shutter on Error Auto-focus mode Limited Zoom Range Dimmer on Shutter Display INFORMATION MENU SYSTEM ERRORS System Shows a list of warnings and messages relevant to errors occurred since...

  • Page 13: Manual Control

    SISTEM VERSION System Board Revis. Hw.rv. Version Used for displaying the software and hardware version of each board CPU brd x.x.x com.dev installed in the projector. 0: PT-3f CPU brd (CPU board) 1: 6-Ch 0: PT-3f (Pan / Tilt board) 2: 6-Ch 3: 6-Ch 1: 6-Ch (6 channel board)

  • Page 14: Test Menu

    TEST MENU AUTOTEST Pan-Tilt Test Colour Allows you to check the proper functioning of effects. Beam 1) Press Gobo 2) Use the UP and DOWN keys to select the required test. 3) Press to confirm the selection or LEFT to return to the top menu level.

  • Page 15: Maintenance

    MAINTENANCE 1/4 Turn 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10 Closing the head covers - Fig. 11 Continued ALPHA PROFILE 8 “ST”...
  • Page 16 Upper Side Lower Side Lamp change - Fig 13 Take the new lamp out of its package and insert in the fitting. WARNING: do not touch the lamp s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it with a clean, dry cloth.
  • Page 17 Replacing rotating gobos (ø 25.7 mm - max 19 mm image – thickness max 1.1 mm) - Fig. 16 IMPORTANT: Use only glass gobos on the rotating gobos wheels. WARNING: Before using personalised gobos contact Clay Paky. GOBO DI VETRO DICROICI TIPO 1...
  • Page 18 • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc.
  • Page 19 Upper Side Lower Side Extraction of the effect modules: Preliminary operations - Fig. 19 Continued ALPHA PROFILE 8 “ST”...
  • Page 20 Upper Side Upper Side Upper Side Extraction of the effect modules - Fig. 20 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. ALPHA PROFILE 8 “ST”...
  • Page 21 Lower Side Upper Side Upper Side Extraction of the effect modules - Fig. 21 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. Continued ALPHA PROFILE 8 “ST”...
  • Page 22 Lower Side Lower Side Extraction of the effect modules - Fig. 22 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. Battery removal - Fig.

  • Page 23: Optional Accessories

    OPTIONAL ACCESSORIES C61188 - HEAVY FROST FILTER KIT Accessory filter available request, it can replace the standard frost filter mounted on the projector. The optional diffuser filter 279207/801 can be installed C61173 only on the projector with serial number AB24201 and Lower Side Diffuser filter subsequent ones.

  • Page 24: Technical Information

    TECHNICAL INFORMATION Power supplies available: IP20 protection rating: 100-120V 50/60Hz • Protected against the entry of solid bodies larger 200-240V 50/60Hz than 12mm (0.47”). • No protection against the entry of liquids. Input power: 1200VA a 230V 50Hz. CE Marking Complies with the following European Directives Total output - 2006/95/EC (LVD)

  • Page 25: Channel Functions

    CHANNEL FUNCTION NB: To prevent accidental breakage of the effects, which could collide with each other during transport, before ALPHA PROFILE 800 “ST” switching the projector OFF check that all the projector Channels have been excluded (DMX level = 0 bit). CHANNEL MODE CHANNEL STANDARD...
  • Page 26 NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the Home position (Pan 128 bit - Tilt 128 bit) all the others channels stay at 0 bit. • COLOUR MIXING - channel 1 - 2 - 3 •...
  • Page 27 • ROTATING GOBO CHANGE - channel 11 • STOP / STROBE - channel 7 EFFECT OPEN 252 - 255 EFFECT 239 - 251 RANDOM FAST STROBE GOBO 7 SHAKE, FAST SPEED 226 - 238 RANDOM MEDIUM STROBE 213 - 225 RANDOM SLOW STROBE 208 - 212 OPEN...
  • Page 28 • PRISM - channel 14 • BLADE DW 1 - channel: 18 EFFECT EFFECT BLADE IN PRISM INSERTED PRISM EXCLUDED BLADE OUT • FROST - channel 15 • BLADE DW 2 - channel: 19 EFFECT EFFECT FROST INSERTED BLADE IN BLADE OUT FROST EXCLUDED •...
  • Page 29 • BLADE LF 1 - channel: 22 • FOCUS - channel 25 EFFECT EFFECT NEAR BLADE IN BLADE OUT DISTANT • BLADE LF 2 - channel: 23 • FOCUS FINE - channel 26 EFFECT EFFECT NEAR BLADE IN BLADE OUT DISTANT Important: The lamp automatically dim to half power in any condition in which the blades...
  • Page 30 • AUTOFOCUS ADJUSTMENT - channel 29 • PAN - channel 31 Operation with option InvertPan (Tilt conventionally represented at 35 bit and option Invert Tilt Off) EFFECT FOCUS FINE FOCUS FINE • MACRO EFFECTS - channel 30 Operation with option InvertPan (Tilt conventionally represented at 35 bit and option Invert Tilt Off) EFFECT...
  • Page 31 • FUNCTION - channel: 35 • TILT - channel 33 Operation with option Invert Tilt (Pan conventionally represented at 0 bit and option Invert Pan Off) EFFECT UNUSED RANGE 51-62 LINEAR (Default) DIMMER CURVE FUNCTION 38-50 CONVENTIONAL 0-37 UNUSED RANGE The functions are actived passing through unused range and staying 5 seconds in necessary level.
  • Page 32 Rotating Gobo change - Framing - Framing rotation TIME TABLE Seconds Seconds Seconds Seconds Seconds Seconds Full 10.2 10.4 10.6 Follow cue Data CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
