Summary of Contents for Elektra Beckum hobbymaster MIG/MAG 140

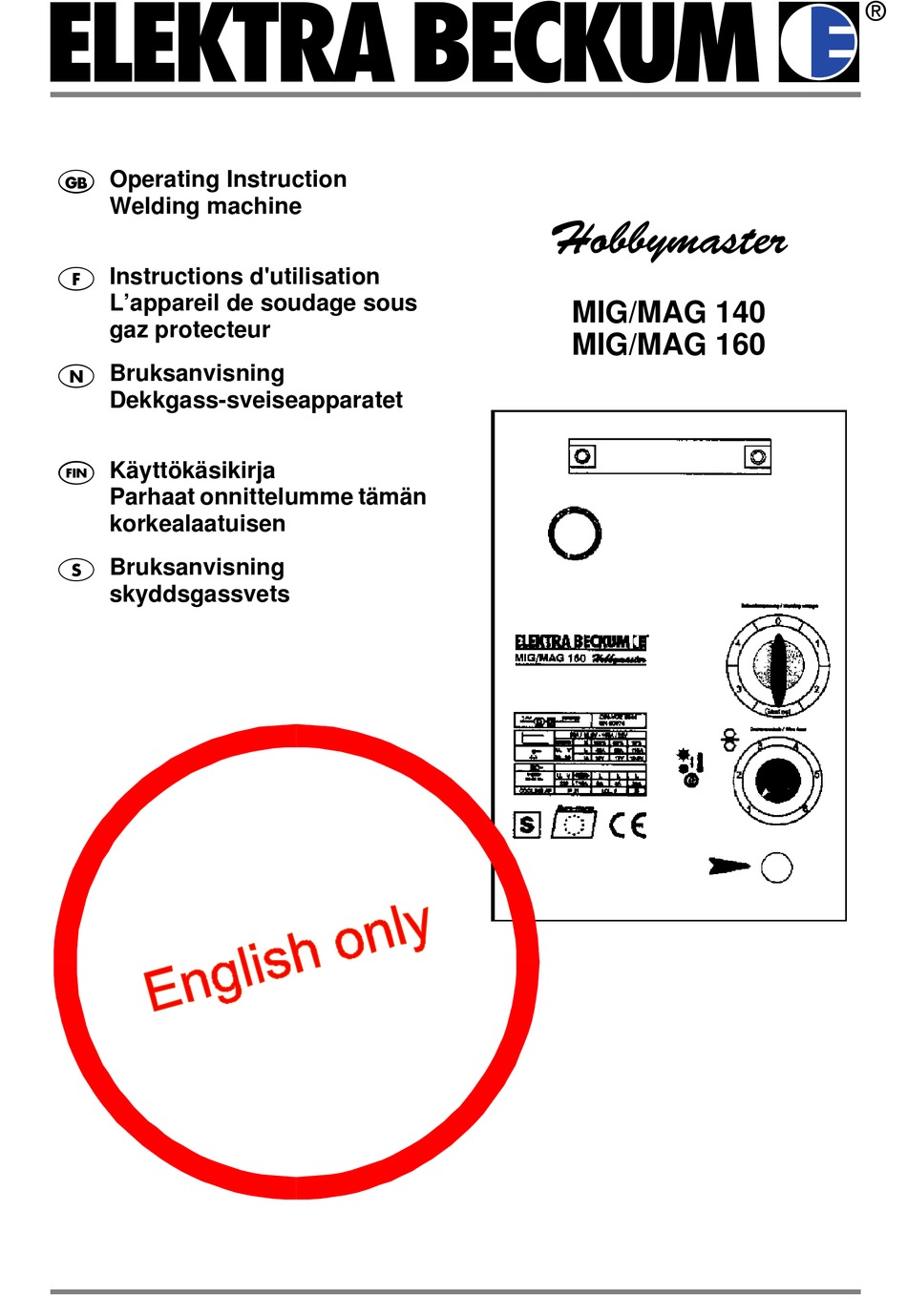

- Page 1 Operating Instruction Welding machine Instructions d'utilisation L’appareil de soudage sous MIG/MAG 140 gaz protecteur MIG/MAG 160 Bruksanvisning Dekkgass-sveiseapparatet Käyttökäsikirja Parhaat onnittelumme tämän korkealaatuisen Bruksanvisning skyddsgassvets...
- Page 2 Please return the enclosed warranty card to us. Retain proof of purchase! You are only entitled to claim warranty against Great Britain proof of purchase. Please see back cover for manufacturer representative´s address near- est you. SVP, retournez-nous la carte de garantie jointe. Conservez le reçu d'achat! La garantie ne peut être accordée que sur France présentation de ce reçu.
-
Page 3: Operation Elements
XS0006E.fm 1Great Britain Operation elements cause disturbances to other consumers in the distri- bution system. Check with your power utility before connecting to power. Keep the welding machine out of the reach of chil- dren. Please note the hazards associated with the weld- ing process and observe any work and fire preven- tion regulations. -
Page 4: Fumes - Vapours - Smoke
Fumes – Vapours – Smoke Fire · During welding hazardous smoke and metal Danger! dust develops. We strongly recommend the The arc temperature is approx. 2400 ˚C. wearing of welding fume respirators, and to weld Before starting to weld observe the following infor- only in sufficiently vented rooms, to ensure the mation: necessary operator protection. -
Page 5: General Machine Description
Electrical Hazards Commissioning · The connection to power mains and servicing of Taking out of enclosed parts the welding machine is to be done in accord- All enclosed parts are inside the wire feed compart- ance with VDE regulations or other standards ment and can be taken out after the wire feed com- applicable in your area. -
Page 6: Hints For Setting And Welding Techniques
Earth lead connection The tripping of the thermal overload protector is indi- cated by the front panel control light. Welding power Connect earth clamp of the unit's earth cable as source and wire feed are temporarily disabled. close as possible to the welding point. Ensure good After cooling down the welding power source is metal to metal contact. -
Page 7: Care And Maintenance
Care and Maintenance The unit is nearly maintenance-free. Fault, Likely causes Remedy • Noisy or unstable arc? Danger – Voltage! Disconnect from power before servicing! Incorrect welding volt- Correct with welding step switch · Check feed roller, pressure roller and wire lead- Too much/too little wire Correct with wire feed pot in nozzle at regular intervals for dirt build-up,... -
Page 8: Technical Specification
Technical Specification MIG/MAG 140 MIG/MAG 160 Power supply 1 x 230 V, 50/60 Hz 1 x 230 V, 50/60 Hz Power input max. 4,4 kVA 4,4 kVA Current draw max. 21 A 20 A Mains fuse, time-lag 16 A 16 A Open-circuit voltage 17,5 –... - Page 9 Belgium Great Britain Elektra Beckum Belgium N.V.S.A. Elektra Beckum Machinery Ltd. Industriezone 6 The Quadrangle Hofte te Bollebeeklaan Premier Way B-1730 Asse-Mollem GB-SO51 9AQ Romsey Tel.: 0032-24540454 Tel.: 0044-1794-834900 Fax: 0032-24540450 Fax: 0044-1794830083 Deutschland Italia Elektra Beckum AG Elektra Beckum AG Germania Daimlerstraße 1...
