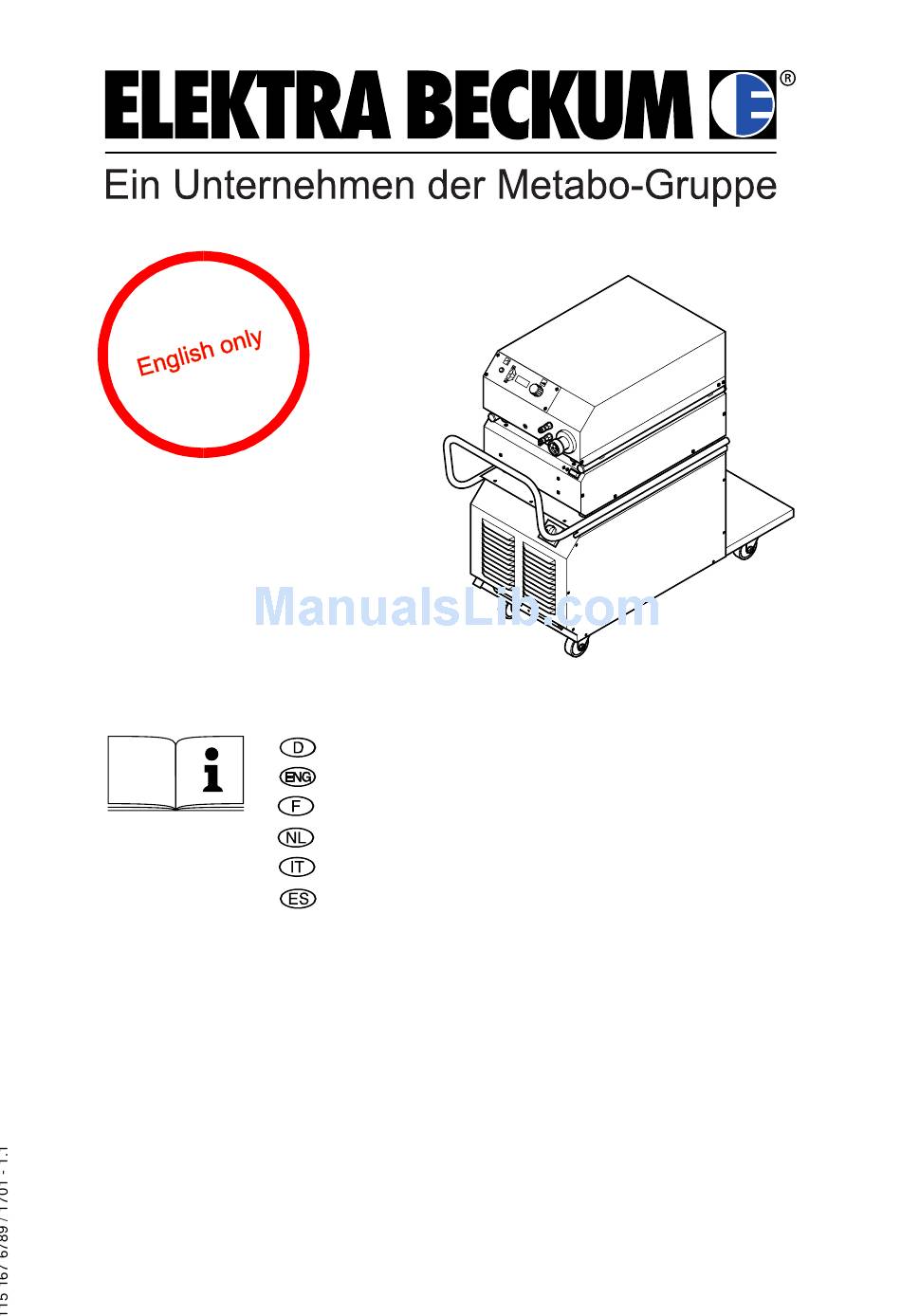

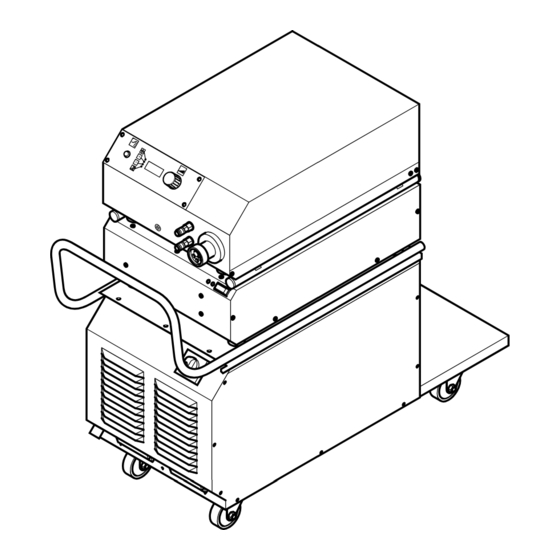

MIG MAG 232 EP
MIG MAG 302 EP
MIG MAG 402 EP
MIG MAG 502 EP
Betriebsanleitung . . . . . . . . . . . . . . . . . . . . .3
Operating Instruction . . . . . . . . . . . . . . . . .12
Instructions d'utilisation . . . . . . . . . . . . . . .20
Handleiding . . . . . . . . . . . . . . . . . . . . . . . .29
Manuale d'istruzioni . . . . . . . . . . . . . . . . . .38
Manual de uso . . . . . . . . . . . . . . . . . . . . . .47

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mig mag 232 ep and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elektra Beckum mig mag 232 ep

Summary of Contents for Elektra Beckum mig mag 232 ep

  • Page 1 S0021IVZ.fm MIG MAG 232 EP MIG MAG 302 EP MIG MAG 402 EP MIG MAG 502 EP Betriebsanleitung .....3 Operating Instruction ....12 Instructions d’utilisation .
  • Page 2 σύµφωνα µε τις διατάξεις των οδηγιών** megfelel az alábbi irányelvek előírásainak** MIG MAG 232 EP, MIG MAG 302 EP, MIG MAG 402 EP, MIG MAG 502 EP * EN 60974-1 ** 98/37/EG, 73/23/EWG, 89/336/EWG, 93/68/EWG Jürgen Kusserow...

  • Page 3: Table Of Contents

    Xs0014e.fm Operating Instruction ENGLISH ENGLISH • Dispose of the packing in an envi- equipment or in the proximity of mag- Table of Contents ronmentally friendly manner. Take netic data media (sound recording to a proper collecting point. tapes, floppy disks, data recording Please Read First! .....12 •...

  • Page 4: Operating Elements

    ENGLISH For machine performance see "Techni- Power cable cal Specifications". Connection for shielding gas SDV motor. When using a SWK the line Any other use is not as specified and power supply cable is connected to prohibited. the SWK. The SDV then automati- Connector socket for exteral cally controls the water cooling The manufacturer is not liable for any...

  • Page 5: Control Unit For Default Machine Settings

    ENGLISH Fit the hoisting straps as illustrated LED welding voltage [V] below. LED arc length [%] 7-segment display (3 digits) The display shows: − the value of the selected parameter or − an error message. Parameter adjustment to adjust the selected parameter. Connect the cables as illustrated Control unit for default below.

  • Page 6: Threading The Electrode Wire In

    ENGLISH − Put the arbor cap back on. Connect earth cable to the Power- box - pole). Check setting of brake, correct with screw (36) if necessary. The Check coolant level of the SWK. brake prevents post-running of the wire roll when the welding Note: process stops.

  • Page 7: Connect The Gas Cylinder

    ENGLISH Connect the gas cylinder Wire type: Cu/CuZn ABS (reduced value for end crater fill- ing) Gas type: I1 (Argon) or Place gas cylinder on Powerbox and With the ABS function the parameters of M12 (0-5% CO2, secure with chain against turning the charateristics curve are reduced for balance Argon) over.

  • Page 8: Operation

    ENGLISH The adjustment range is from 50% 8. Operation 9. Maintenance through 150%. 100% is the best operat- ing point. Caution! This welding machine contains no user- Check all connections and serviceable parts. supply lines before switching ON. Note: Depending on dust accumulation, the When using interconnecting torch Powerbox and the SDV should be blown Caution!

  • Page 9: Repairs

    ENGLISH Error message 775 and 776 Brittle or porous weld seam 11. Repairs No match between SDV and Powerbox. Dif- Gas line connection not tight? ferent revison numbers (software): Danger! − Check connections. − Contact customer service. Repairs to electric tools must Gas cylinder empty? be carried out by qualified electrici- Error message 777...

  • Page 10: Technical Specifications

    ENGLISH 14. Technical Specifications Model 232 EP 302 EP 402 EP 502 EP Supply voltage 3 x 400 V 50-60 Hz Open-circuit voltage 54 V 15.5...25.5 V 15.5...29 V 15.5...34 V Working voltage MIG/MAG: 15.5...39 V Working voltage, manual arc 20.4...29.2 V 20.4...32 V 20.4...36 V...
  • Page 11 Xs0014f.fm Instructions d’utilisation FRANÇAIS FRANÇAIS soudure en intérieur afin que les concen- Table des matières 1. A lire impérativement ! trations maximales tolérées de produits • toxiques ne soient pas dépassées sur le A lire impérativement ! .....20 Avant la mise en marche, lire attenti- lieu de travail.
  • Page 12 U3S0021.fm 090 200 8411 090 201 9413 090 200 8373 090 200 8420 090 201 9421 090 200 8381 090 200 8438 090 201 9430 090 200 8390 090 201 1307 090 201 9472 090 200 8462 090 201 1315 090 200 8470 090 201 9480 090 201 1323...
