Elektra Beckum Invert 130/40 Operating Instructions Manual

Metabo operating instructions inverter welding machines invert 130/40, invert 130/60
Hide thumbs
Table of Contents

Advertisement

Quick Links

Bedienungsanleitung

Operating Instructions

Instructions de service
Gebruiksaanwijzing
Instrucciones de uso

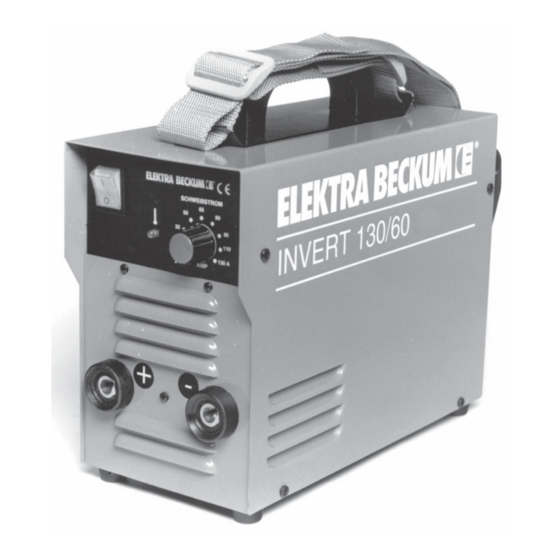

Invert 130/40
Invert 130/60
Achtung!
Lesen Sie diese Anleitung vor der Installation und Inbetriebnahme aufmerksam durch.
Attention!
Carefully read through these instructions prior to installation and commissioning.
Attention!
Prière de lire attentivement la présente notice avant l'installation et la mise en service.
Attentie!
Lees deze instructies voor de installatie en ingebruikname aandachtig door.
¡Atención! Lea con detenimiento estas instrucciones antes de la instalación y de la puesta en servicio.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Invert 130/40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elektra Beckum Invert 130/40

Summary of Contents for Elektra Beckum Invert 130/40

  • Page 1: Operating Instructions

    Bedienungsanleitung Operating Instructions Instructions de service Gebruiksaanwijzing Instrucciones de uso Invert 130/40 Invert 130/60 Achtung! Lesen Sie diese Anleitung vor der Installation und Inbetriebnahme aufmerksam durch. Attention! Carefully read through these instructions prior to installation and commissioning. Attention! Prière de lire attentivement la présente notice avant l'installation et la mise en service.
  • Page 2 Product Liability/Warranty This product shall only be used as specified. Any other use requires the written consent of Metabo GmbH, Business Unit Elektra Beckum, P.O.Box 1352, D-49703 Meppen, Germany. Please contact your dealer for any warranty claims. Warranty work will essentially be carried out by service centres authorised by us. Repairs beyond the warranty period may be carried out only by our authorised service centres.
  • Page 3 2.1 Information - Shown On Type Plate The following explanations refer to the numbered boxes shown in Figure 2.3 according to ISO/IEC 60974-1. a) Identification Box l Name and address of the manufacturer or distributor or importer and, optionally, a trade mark and the country of origin, if required Box 2 Type (identification) as given by the manufacturer...
  • Page 4 Box 6 Welding process Symbol e.g.: Box 7 Symbol for welding power sources which are suitable for supplying power to welding operations carried out in an environment with increased hazard of electric shock (if applicable). Box 8 Welding current symbol e.g.: Direct current Alternating current, and additionally the rated frequency in hertz e.g.: ~50 Hz...
  • Page 5 current is 60 % or 100 %. Column b) need not be used if the duty cycle (duty factor) at the rated maximum welding current is 100 %. c) Energy input Box 14 Energy input symbol e.g.: Box 22 IP.. Degree of protection, e.g.
  • Page 6 8 Cooling fan Operation The welding machines Invert 130/40 and 130/60 are primary clocked inverters, suitable for manual arc welding with coated stick electrodes and for direct current TIG welding (optional). The electrode diameter and the required welding current are selected according to the material to be welded.
  • Page 7 The Invert 130/40 and 130/60 works perfectly with thin plate, which is the outstanding feature of this machine, aside from its extreme compact and robust design. It is characteristic of an inverter to generate a true direct current, which makes for a soft and smooth running arc with reduced spatter formation.
  • Page 8 Welding Hints Because of the multitude of and great differences in the important points for welding only the very basic operations for the most common electrodes for low-carbon steels, the rutile or rutile cellulose electrode, are introduced here. In the case that other electrodes have to be used, the electrode manufacturers supply upon request all relevant information for the type of special electrode to be used.

  • Page 9: Trouble Shooting

    TIG Welding (optional) Due to the same welding characteristics as with manual arc welding, TIG welding is possible with models Invert 130/40 and 130/60. For TIG welding a TIG torch model SR 17 V (see section 11) is used, which is always connected to the negative (-) pole.
  • Page 10 Safety Precautions/Accident Prevention - This Welding Machine should only be used for its intended application (TIG and manual arc welding). - Operate machine only on power supply circuits having a fully operational protective bonding circuit (earth/ground lead). - Know and adhere to all applicable local safety standards and codes. 9.1 Protection against the Risk of Electric Shock The earth cable is to be firmly attached to the workpiece, ensuring good conduction.
  • Page 11 10 Wiring Diagram Invert 130/40 and 130/60 11 Exploded View Drawing and Spare Parts List TIG-Torch SR 17 V Ø 1,0 Ø 1,6 Ø 1,0 Ø 1,6 (5) Ø 8,0 (6) Ø 9,5 132 712 7230 132 712 7248 132 712 7892...
  • Page 12 MEGEGYEZŐSÉGI NYILATKOZAT Kizárólagos felelősségünk tudatában ezennel igazoljuk, hogy ez a termék kielégíti az alábbi szabványokban lefektetett követelményeket*.megfelel az alábbi irányelvek előírásainak** INVERT 130/40 * EN 60974-1, EN 50199 ** 89/ 336/ EWG, 72/ 23/ EWG, 93/68/ EWG Jürgen Kusserow Vorstand...

This manual is also suitable for:

Invert 130/60
