9A09877100
Z
PL - D2100
DVD Home Theater System
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Teac PL-D2100

Summary of Contents for Teac PL-D2100

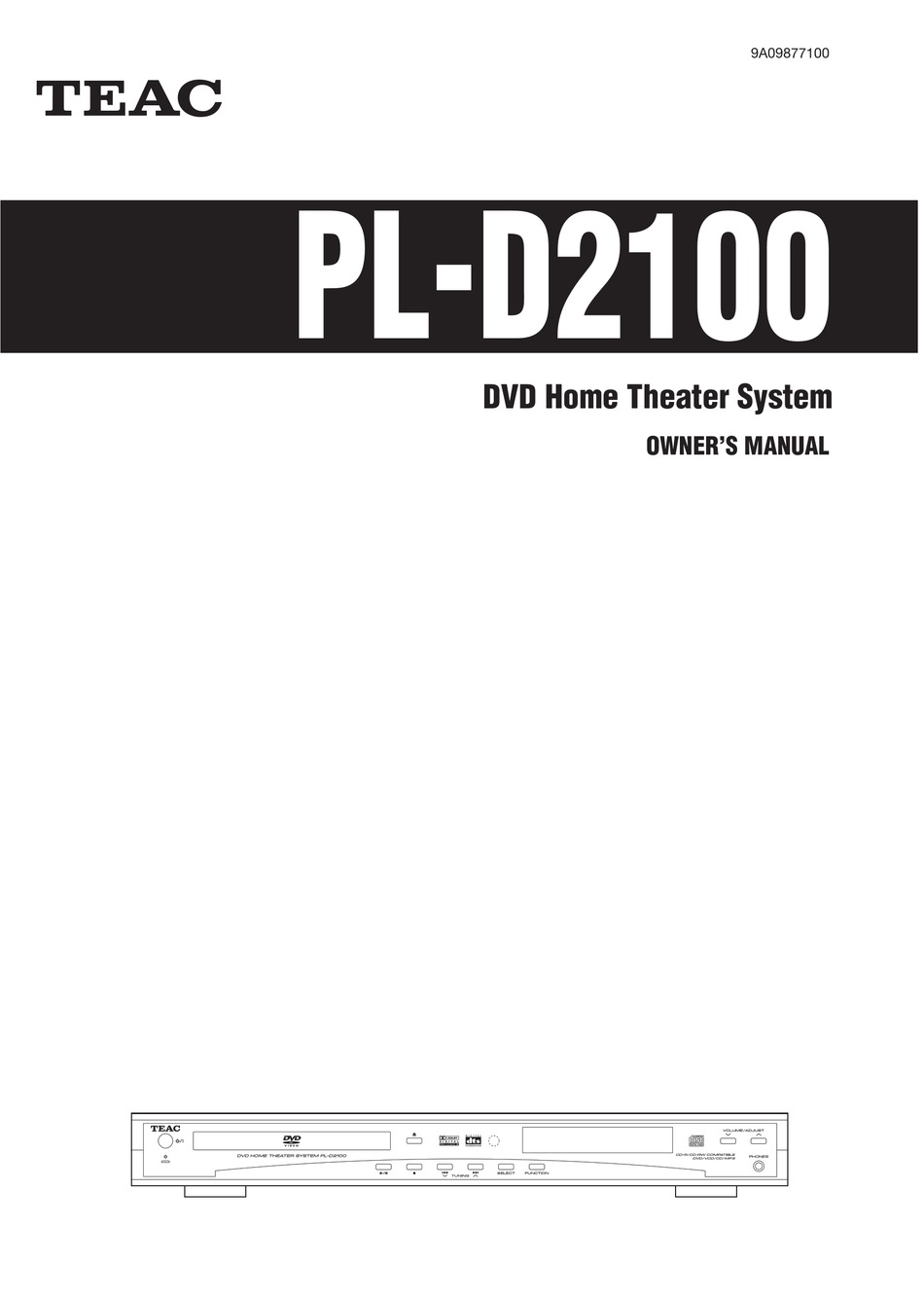

  • Page 1 9A09877100 PL - D2100 DVD Home Theater System OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Contents Important Safety Instructions Thank you for choosing TEAC. Read this manual carefully to get IMPORTANT(for U.K.Customers) the best performance from this unit. DO NOT cut off the mains plug from this equipment. If the plug Contents ..........3 fitted is not suitable for the power points in your home or the Important Safety Instructions .

  • Page 3: Before Use

    Before Use What's in the box DO NOT MOVE THE UNIT DURING PLAYBACK During playback, the disc rotates at high speed. Do NOT lift or Please confirm that the following accessories are in the box move the unit during playback. Doing so may damage the disc when you open it.

  • Page 4: Discs 1

    CD standard may not play back correctly in this player. If you picture CD, etc.) discs that contain MP3 audio tracks or JPEG use such discs in this unit, TEAC Corporation and its subsidiaries files. cannot be responsible for any consequences or guarantee the quality of reproduction.
  • Page 5 Discs 2 Example of Icons used on DVD discs: < Always place the disc on the disc tray with the label side uppermost. (Compact discs can be played or recorded only on one side.) number of audio tracks recorded on the disc <...

  • Page 6: Remote Control Unit

    Remote Control Unit Connecting Antennas The provided Remote Control Unit allows the unit to be operated from a distance. When operating the remote control unit, point it towards the REMOTE SENSOR on the front panel of the unit. < Even if the remote control unit is operated within the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control.

  • Page 7: Connection

    Connection CAUTION: < Switch off the power to all equipment before making connections. < Read the instructions of each component you intend to use with this unit. < Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal interconnection cables together with the AC power cord or speaker cables.

  • Page 8: Connection To A Tv

    S-VIDEO cable. DIGITAL OUT (PL-D2100) q DIGITAL IN (CD-R, MD, etc.) S-VIDEO OUT (PL-D2100) q S-VIDEO IN (TV) < Select the proper digital output mode in accordance with If neither SCART nor S-VIDEO is available, connect the your connection. (see page 29) component with a high quality RCA cable designed for video <...

  • Page 9: Speaker Connections

    < Do not connect the supplied speakers to other amplifier or receiver. Also, do not connect other speakers to the PL-D2100. It may damage the unit. < The speaker terminals and cables are distinguished by colors.

  • Page 10: Positioning Of The Speakers

    Positioning of the Speakers FRONT CENTER FRONT (LEFT) (RIGHT) SUBWOOFER SURROUND SURROUND (LEFT) (RIGHT) The positioning of speakers differs according to the size and acoustics of the listening room. While actually listening to a program source, try various speaker positions to determine which layout provides the best surround effect.

  • Page 11: Names Of Each Control

    Names of Each Control STANDBY indicator This indicator lights when the unit is in the standby mode. When the unit is turned on, it goes off. POWER switch Press this switch to turn the unit on or off (standby). The equipment draws nominal non-operating power from the AC outlet with its POWER switch in the OFF position.

  • Page 12: Front Panel Display

    numeric buttons DOLBY PL II MODE Use these buttons to key in track numbers, password, preset Use this button to change the Dolby Pro Logic II mode. channels, etc. PROGRAM SETUP Used for programmed playback. Use this button to display the SETUP menu. TOP MENU/PBC RESET Use this button to display the title menu of DVD.

  • Page 13: Basic Operation

    Basic Operation Headphones Press the POWER switch to turn the unit on. The power can be also turned on by pressing the FUNCTION For private listening, first reduce the volume level on the buttons or OPEN/CLOSE button. receiver to minimum. Then insert the plug from your headphones into the PHONES jack, and adjust the volume by <...

  • Page 14: Channel Level

    Channel Level EEPS (Electronic Equalizer Preset System) The EEPS button offers rock, pop, jazz and classic modes to Press the SELECT button. enhance your listening. Each time the EEPS button is pressed, the mode is changed as follows: CLASSIC (flat) ROCK JAZZ Muting...

  • Page 15: Surround Mode

    This mode is useful when recording multi-channel sound on a cassette tape deck or CD recorder connected via the AUDIO OUT jacks. With a Dolby Pro Logic decoder (including TEAC PL-D2100), the recorded sound can be decoded into multi- MUSIC: channel sound.

  • Page 16: Playback 1

    DVD VCD CD MP3 JPEG Playback 1 < Turn the TV on and set its input to the correct position for DVD When a DVD is loaded, the playback may start automatically. viewing (VIDEO etc.). If a title menu appears on the screen, select an item by pressing the /g / t buttons and then press the ENTER Press the POWER switch to turn the unit on.
  • Page 17 DVD VCD CD MP3 JPEG Playback 2 JPEG To stop playback of CD, VCD, MP3 and When a disc containing JPEG files is loaded, slide show will JPEG start. < Press the PBC button (in the stop mode) to turn on or off the MP3 MENU.

  • Page 18: To Skip To A Specific Chapter/Track

    DVD VCD CD MP3 DVD VCD To skip to a specific chapter/track Slow-Motion Playback During playback, press the SKIP button(. or/ ) To play a disc in slow-motion, press the SLOW button ( ) during repeatedly until the desired chapter or track is found. The playback.

  • Page 19: Direct Playback (Except Dvd/Mp3)

    VCD CD MP3 Direct playback (except DVD) Change the Angle Select a track by pressing the numeric buttons. Playback starts When a scene recorded with multiple angles is played, the angle from the selected track. icon appears on the screen. Each time you press the ANGLE button while the angle icon is displayed, the camera angle example : To select track No.5 changes.

  • Page 20: Select An Audio Language

    VCD CD Select an Audio Language Programmed Playback Up to 99 tracks can be programmed in the desired order. Note that the total time of the programmed tracks cannot exceed "1 hour 39 minutes 59 seconds". Press the PROGRAM button in the stop mode. To select an audio language, press the AUDIO button during playback.

  • Page 21: Title And Chapter Select

    Title and Chapter Select Press the GO TO button. Press the t button. TITLE 02/58 CHAPTER 001/018 current title number current chapter number Press the numeric button to select a chapter. TITLE 01/58 CHAPTER 001/021 total number of the titles total number of the chapters on the disc in the current title...

  • Page 22: Time Select

    DVD VCD CD Time Select Press the ENTER button. Press the GO TO button twice. Playback starts from the selected part. TITLE 01/58 TIME -- : -- : -- < If you select the numbers which doesn't exist on the disc, PROHIBIT icon will be displayed.

  • Page 23: Repeat Playback

    DVD VCD CD MP3 Repeat Playback Repeat Playback of DVD Repeat Playback of CD, VCD, MP3 Each time the REPEAT button is pressed during playback, the Each time the REPEAT button is pressed, the mode is changed as mode is changed as follows: follows: CD/VCD/MP3* CHAPTER REPEAT...

  • Page 24: A-B Repeat

    DVD VCD CD DVD VCD CD MP3 A-B Repeat Display Repeat Playback of a Designated Section (A-B Repeat) This function isn't available for MP3. Each time the DISPLAY button is pressed during playback, following information will appear on the screen. <...

  • Page 25: Settings

    Settings This chapter describes how to use the SETUP menu. Most Select an item you want to change using the buttons. settings and adjustments are required to be set when you first Press the t button to go to the right option list. use the system.

  • Page 26: Tv Display

    Settings (General Setup) TV Display Video Output -- GENERAL PAGE -- -- GENERAL PAGE -- TV DISPLAY NORMAL /PS TV DISPLAY TV TYPE NORMAL /LB TV TYPE VIDEO OUTPUT WIDE VIDEO OUTPUT SCART ANGLE MARK ANGLE MARK S-VIDEO OSD LANG OSD LANG SCREEN SAVER SCREEN SAVER...

  • Page 27: Selecting The Language For Osd

    Settings (General Setup) Settings (Speaker Setup) Selecting the Language for OSD Delay Time (Center/Surround) -- GENERAL PAGE -- -- SPEAKER SETUP PAGE -- -- SPEAKER SETUP PAGE -- TV DISPLAY CENTER DELAY CENTER DELAY TV TYPE SURROUND DELAY SURROUND DELAY 15MS VIDEO OUTPUT TEST TONE...

  • Page 28: Audio Out

    Settings (Audio Setup) Settings (Preferences) Audio Out Setting the Language -- AUDIO SETUP -- -- PREFERENCES PAGE -- AUDIO OUT SPDIF/RAW AUDIO ENGLISH DYNAMIC SPDIF/PCM SUBTITLE FRENCH ANALOG DISC MENU GERMAN MAIN PAGE PARENTAL ITALIAN PASSWORD SPANISH DEFAULTS MAIN PAGE SELECT AUDIO OUTPUT PREFERRED AUDIO LANGUAGE -- PREFERENCES PAGE --...

  • Page 29: Parental Control

    Parental Control Playing some DVD discs can be limited depending on the age of Setting the Parental Control Level the users. The parental control function in this system allows playback limitation level to be set by the parent. The default Select a parental control level using the buttons.

  • Page 30: Tuner

    Tuner FM MODE Button Press the TUNER button (or the FUNCTION button) to select "TUNER". Make sure the antennas have been connected (see page 7). Pressing this button alternates between Stereo mode and Mono mode. Select AM or FM by pressing the TUNER button. Stereo FM stereo broadcasts are received in stereo.

  • Page 31: Preset Tuning

    Preset Tuning Manual Memory Presetting How to select preset stations You can store up to 40 stations. Press a preset number. Tune in a station you want to listen to (see steps page 31). Press the MEMORY button. Preset stations can also be selected by the PRESET button. Press the PRESET button repeatedly until the desired preset station is found.

  • Page 32: Troubleshooting

    Severe hum or noise is heard. problem yourself before you call your dealer or a TEAC service e Check that the speakers and components are connected center.

  • Page 33: Specifications

    Specifications DVD Player Active Subwoofer Pickup ... . Semiconductor laser, Wavelength 650 nm Output Power ..... . . 75 W (80 Hz, THD 10%) Signal system.
  • Page 34 7733 Telegraph Road, Montebello, California 90640 Phone: (323) 726-0303 TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008 TEAC MEXICO, S.A. De C.V Campesinos N°184, Colonia Granjas Esmeralda, Delegacion Iztapalapa, CP 09810, México DF Phone: (525) 581-5500 TEAC UK LIMITED 5 Marlin House, Croxley Business Park, Watford, Hertfordshire, WD18 8TE, U.K.
