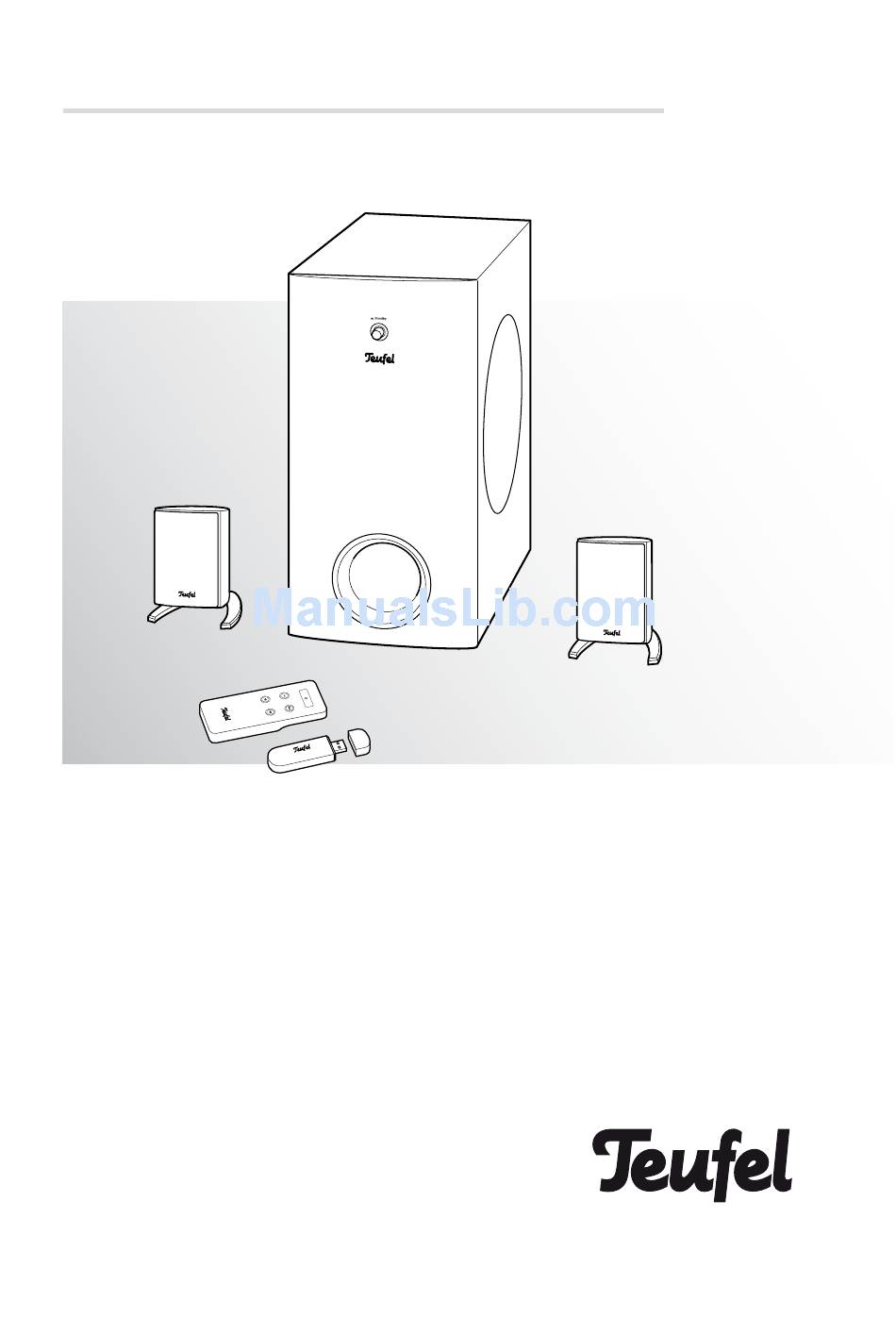

- Page 1 Technical Description and Operating Instructions Concept C 300 Black Edition The 2.1 set with USB soundcard and wireless transmission from the PC...
-
Page 2: Table Of Contents
Contents General notes and information ............................3 Safety notes ..................................4 Caution icons ..............................4 Safety notes ..............................4 Explanation of symbols ........................... 5 Overview ..................................6 Controls and connections ...............................7 Setup and connection ..............................8 Setup location ............................... 8 Connecting the satellites ..........................8 RCA input .............................. -
Page 3: General Notes And Information
For questions, suggestions or any other issues please prior notice and in no way constitutes any liability on the contact our customer service department: part of Lautsprecher Teufel GmbH. Lautsprecher Teufel GmbH No part of these instructions may be reproduced in any Gewerbehof Buelowbogen ·... -
Page 4: Safety Notes
Safety notes Caution icons Danger Danger to children! You will find the following caution icons in these instruc- Children can become trapped in the packing tions: film when playing and suffocate. • Do not allow children to play with the unit or the pack- Danger High risk! ing film. -
Page 5: Explanation Of Symbols
Explanation of symbols • Carefully follow the installation instructions. • Ensure that wall mounting is carried out by a profes- sional. Verify the carrying capacity of the walls. Protection class II • Do not place the unit near sources of heat (e. g. heat- ers, ovens, other heat generating equipment such as amplifiers etc.). -
Page 6: Overview
Overview Product Contents a 1 x subwoofer b 2 x satellite speaker c 2 x table stand for satellite d 1 x mains cord e 1 x remote control f 1 x antenna g 1 x USB transmitter h 2 x screw for table stand i 3 x battery Micro/AAA for remote control j 1 x USB extension cord Check to be sure... -
Page 7: Controls And Connections
Controls and connections Pos Name Description Switch the unit on or to standby Standby mode – Bass speaker – Reflex opening Front Pos Name Description RCA jacks for connecting to an LINE IN audio source ANTENNA Connector jack for antenna f Connector jacks for satellite SPEAKER OUT speakers b... -
Page 8: Setup And Connection
Setup and connection Setup location Wall mounting You will need the following materials for wall mounting: • Preferably, the room, where you plan to use a • one screw for each speaker, 4 x 40 mm Concept C 300, should not be larger than 25 sqm. (screw head = ø... -
Page 9: Rca Input
USB soundcard with wireless transmission Observe the correct polarity! The enclosed USB sound card g can be Connect the like-coloured terminals with one used under Windows XP, Windows Vista another. Otherwise, the sound quality will and Mac OS X without having to install suffer. -
Page 10: Connecting To A Power Supply
Connecting to a power supply • Ensure that the mains switch 7 “Power” has been turned off (“0 OFF” setting). • Connect the mains connector jack 8 with a power sup- ply socket via the mains cord d. Basic functions Activating and deactivating •... -
Page 11: Care An Cleaning
Care an cleaning Clean your Concept C 300 regularly with a soft, slightly Attention Risk of damage! damp microfibre cloth. Please be absolutely sure to ob- Using the wrong cleaning materials may dam- serve the following: age the delicate surface of the case. •... -
Page 12: Troubleshooting
Troubleshooting The following notes and further detailed information on our website should help you to rectify malfunctions. If this does not lead to success, please contact our hotline 00800 - 200 300 40 (free of charge). Please also observe the warranty notes. -
Page 13: Technical Data
Technical data Subwoofer Power consumption, max: 400 W Operating voltage: 230 V~, 50 Hz Dimensions (W x H x D): 247 x 500 x 430 mm Net weight: 17.6 kg Satellites Dimensions (W x H x D): 90 x 125 x 98 mm Net weight: 530 g USB soundcard with wireless transmission... - Page 14 • Concept C 300...
- Page 15 • Concept C 300...
- Page 16 For questions, suggestions or other issues please contact our customer service department: Lautsprecher Teufel GmbH Tel.: 00800 200 300 40 (toll-free) No liability is accepted for the Gewerbehof Buelowbogen - Aufgang D1 Fax: +49 (0)30 - 300 930 930 accuracy of this information. Tech- 10783 Berlin (Germany), Buelowstr.
