Teufel Cinebar One User Manual

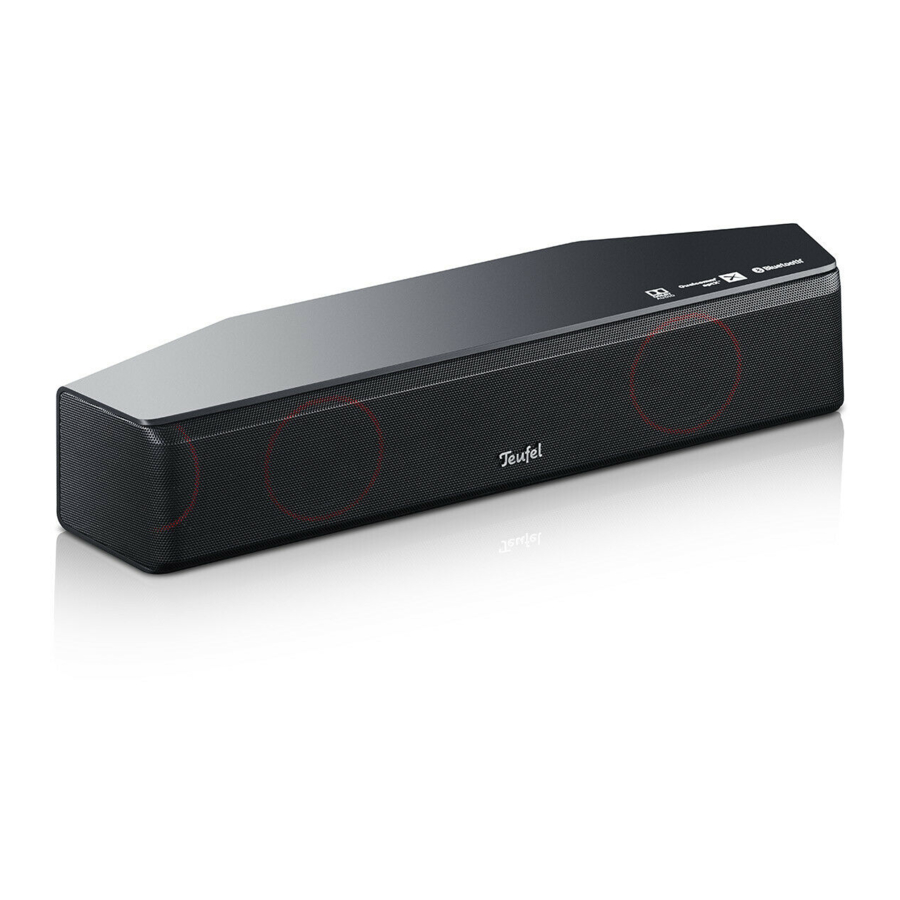

Ultra-compact 2.0 soundbar with subwoofer connection and usb sound card function
Hide thumbs Also See for Cinebar One:
Table of Contents

Advertisement

Quick Links

Download this manual

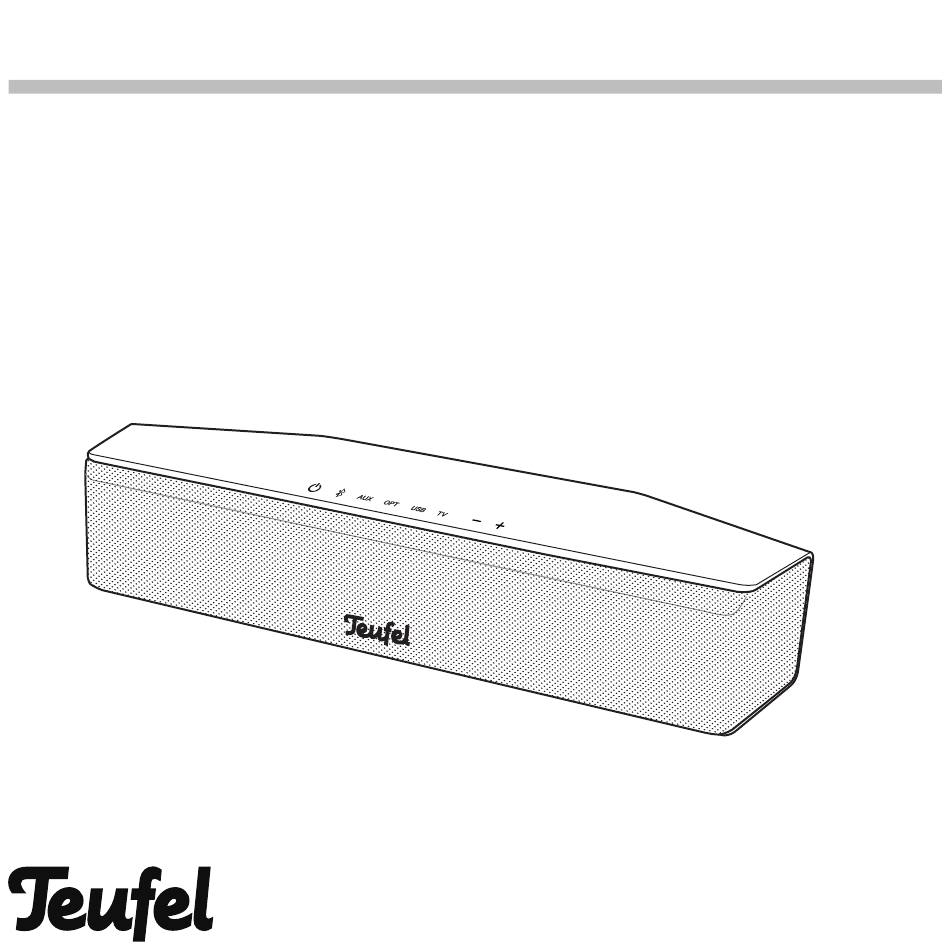

User Manual
Cinebar One
Ultra-compact 2.0 soundbar with subwoofer connection and USB
sound card function

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cinebar One and is the answer not in the manual?

Questions and answers

Related Manuals for Teufel Cinebar One

Summary of Contents for Teufel Cinebar One

  • Page 1 User Manual Cinebar One Ultra-compact 2.0 soundbar with subwoofer connection and USB sound card function...

  • Page 2: Table Of Contents

    Table of contents General Information 3.6 Power control 3.7 Selecting a source Notice 3.8 Adjusting the volume Original packaging 3.9 Mute Complaints 3.10 Bass and Treble For Your Safety 3.11 Sound Modes 3.12 Dynamore Proper Use 4. Wireless Subwoofer Safety notes Explanation of terms 5.

  • Page 3: General Information

    The information in this document is subject to change without prior notice and in no way constitutes any liability on the part of Lautsprecher Teufel GmbH. No part of this user manual may be reproduced in any form or be broadcasted in any way electronically, mechanically, by photocopying or recording without the written permission of Lautsprecher Teufel GmbH.

  • Page 4: Complaints

    Complaints In case of a complaint we will need the following information to process your enquiry: 1. Invoice number Can be found on the sales slip (enclosed with the product) or on the order confirmation received as a PDF document, e.g. 4322543 2.

  • Page 5: For Your Safety

    For Your Safety Proper Use The speaker is designed for the playback of music and speech from an external player. Only use the speaker as described in this user manual. Any other use will be deemed as not in accordance with the instructions and may lead to damage of property or even persons.

  • Page 6: Safety Notes

    Safety notes This chapter contains general safety notes which you should always observe to protect yourself and third parties. Also observe the warning notes in each chapter of this user manual. Explanation of terms You can find the following signal terms in this user manual: CAUTION This signal term indicates a low risk, which, if not avoided, may result in minor or moderate injury.
  • Page 7 Touching live parts can result in severe injury or death. When connecting the mains adapter, make sure that the correct voltage is present. You can find more information about this on the rating plate. Check the device regularly for damage. Immediately disconnect the mains plug and do not operate the device if its housing, mains adapter or mains cord is defective or exhibits other visible damages.
  • Page 8 Then send the device to our service address. Never modify the device. Unauthorised modifications may affect the safety and functionality. Never touch the mains plug with wet hands. An unsuitable setup location may result in injury and damage. Never use the device unmounted in vehicles, in unstable locations, on wobbly tripods or furniture, on insufficiently dimensioned brackets etc.
  • Page 9 Children can become trapped in the plastic wrapping when playing and suffocate. Do not allow children to play with the device or the plastic wrapping. There is a danger of suffocation. Never allow children to operate electrical equipment unsupervised. Swallowing a product battery may result in severe internal injury or even death.
  • Page 10 Batteries (particularly lithium batteries) can explode if used improperly. Never attempt to recharge batteries. Only use batteries of the same or equivalent type. You must not heat or short circuit batteries and rechargeable batteries or dispose of them in fire. Do not expose batteries and rechargeable batteries to direct sunlight.
  • Page 11 This product contains magnetic material. If necessary, consult your physician and ask for effects on implants such as pacemakers or defibrillators. Improper use may lead to damage or fire. Do not place open flames such as burning candles or similar on the device. Ensure sufficient ventilation.

  • Page 12: Explanation Of Symbols

    Explanation of symbols Protection class II Dual insulation May only be used indoors Risk of electrical shock – do not open the housing. Disconnect the mains cord before changing a fuse. Polarity of the round connector: outside (–), inside (+)
  • Page 13 Old devices must not be disposed of with household waste! Electrical equipment contains harmful substances and valuable resources. Every consumer is required by law to bring all old electrical devices to an authorised collection or return point so that they can be disposed of in a manner that is environmentally friendly and which preserves resources.

  • Page 14: Trademarks

    ® The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Lautsprecher Teufel is under license. Qualcomm aptX is a product of Qualcomm Technologies International, Ltd. Qualcomm is a trademark of Qualcomm Incorporated, which is registered in the USA and other countries;...

  • Page 15: What's In The Box

    1. What's in the box 1.1 Unpacking Carefully open the box, take out the EPE foam half-shell and carefully lift the device out of the box. BASS TREBLE MOVIE MUSIC VOICE...

  • Page 16: Package Contents

    1.2 Package contents (1) 1× Soundbar Cinebar One (2) 1× Remote control Cinebar One RC (3) 1× Mains adapter for the Soundbar (4) 1× Mains cord for the mains adapter (5) 2× AAA batteries for the remote control 1.3 Checking the product contents Check that all items have been delivered and that nothing is damaged.

  • Page 17: Product Overview

    2. Product overview 2.1 Controls And Connections (2) (4) (6) (1) (3) (5) (1) Switch on the device and to standby (2) Select Bluetooth as source (3) Select analogue source AUX (4) Select digital source OPTICAL (5) Select USB as source (6) Select TV as source (7) Adjust the volume...
  • Page 18 (10) (11) (12) (13) (14) HDMI TV OPTICAL AUTO ON SUB PAIRING DIGITAL IN AUX IN POWER (8) Auto on switch (9) SUB PAIRING Button (Hold for 5s to start pairing) (10) HDMI connection for the TV set (11) OPTICAL – input jack for digital audio source device (TOSLINK) (12) AUX IN –...
  • Page 19 LED feedback has the following meanings: Standby Blue Bluetooth® selected as source AUX White AUX selected as source OPTICAL White OPTICAL selected as source USB White USB selected as source TV White TV selected as source Blue, slow pulsing Waiting for a Bluetooth® connection Blue, fast blinking Waiting for Bluetooth®...

  • Page 20: Remote Control

    2.2 Remote Control (1) Switch on the device and to standby (2) Mute speaker (3) Select Bluetooth as source (4) Select TV as source (5) Adjust the volume BASS TREBLE (6) Playback/Pause (10) (11) (7) Forward/Backward MOVIE MUSIC VOICE (8) Adjust low tones (bass) (13) (12) (14)
  • Page 21 CAUTION Leaking battery acid may lead to chemical burns. – Do not allow battery acid to come into contact with skin, eyes or mucous membranes. In the event of contact with acid, immediately flush the applicable areas with plenty of clean water and consult a physician if necessary.

  • Page 22: Inserting/Changing The Batteries

    2.3 Inserting/changing the batteries In order to operate the remote control, you will need two type LR03 batteries (AAA – included in the package contents). You should change the batteries if the remote control stops working properly or after 2 years at the latest: 1.

  • Page 23: Connecting

    3. Connecting 3.1 TV set If your TV is equipped with an ARC capable HDMI jack, connect it via the HDMI jack. You will need an ARC capable HDMI cable for this. The ARC (audio return channel) HDMI function plays the television audio via HDMI.

  • Page 24: Pc Sound Card

    3.4 PC sound card The Cinebar One has an integrated USB sound card for audio output. No driver software is required for playback from the PC under Windows 7, 8 and 10 as well as Mac OS X 10.5 and higher.

  • Page 25: Selecting A Source

    In TV mode, the volume can also be adjusted with the remote control of the TV set (if HDMI CEC is supported by the TV set). The volume setting of an external player often affects the volume of the Cinebar One.

  • Page 26: Mute

    3.9 Mute By pushing the button, you can either switch the device sound off or back 3.10 Bass and Treble Press the Bass or Treble buttons to change these sound settings An LED will appear in te center to show the balance point You can use either +/- or / buttons to boost or reduce bass/treble tones Without the optional Subwoofer, the effect of the bass settings will not be so pronounced.

  • Page 27: Wireless Subwoofer

    You can connect the Cinebar One with a compatible wireless subwoofer. For this, pair the devices: 1. Push the SUB PAIRING button and you will hear a sound – the Cinebar One will now search for a wireless subwoofer for approx. 60 seconds.

  • Page 28: Bluetooth® Mode

    5. Bluetooth® Mode Via Bluetooth®, you can wirelessly connect a compatible external player with the Cinebar One. The audio output of your external player is then played by the Cinebar One. The Bluetooth® wireless transmission system has a range of approximately 20 metres that is limited by walls and furnishings.

  • Page 29: Pairing And Connecting

    5.2 Pairing and connecting To play the audio of your external player on your Cinebar One via Bluetooth®, connect the devices with each other. The technical term for this is “pairing”. 1. Turn on the Bluetooth® function on your external player (e.g. smartphone).
  • Page 30 120 seconds, the connection will be re-established automatically. Playback The volume setting of the external player affects the volume of the Cinebar One. 1. Use the button to select Bluetooth® as the source. 2. Turn on the Bluetooth® function on your source device.

  • Page 31: Usb Sound Card

    With Windows 7, 8 and 10 as well as Mac OS X 10.5 and higher, no special driver software is required to operate the Cinebar One. The operating systems detect the Cinebar One as a “USB Advanced Audio Device” when it is connected to the USB port.
  • Page 32 “Sound” system preference In the “Sound” system preference, you can select the Cinebar One as the playback device on the “Output” tab: Click “Teufel Cinebar One” in the list. All Mac sounds will now be played back via the Cinebar One.

  • Page 33: Windows 7, 8 And

    “Sound” control panel In the “Sound” control panel, you can select the Cinebar One as the default playback device on the “Playback” tab: Click on the "Teufel Cinebar One" entry in the list and select "As standard". All PC sounds will now be played back via the Cinebar One.

  • Page 34: Care And Cleaning

    7. Care And Cleaning NOTICE External influences may damage or destroy the device. – If the device is to be left unattended for a prolonged period of time (e.g. during a vacation) or if a thunderstorm is forecast, pull the mains plug out of the socket.

  • Page 35: Troubleshooting

    8. Troubleshooting The following advice should help you to solve problems. If this does not help, you will find useful information in the detailed FAQs on our website. Otherwise, please contact our hotline (see page 40). Take note of the warranty instructions.
  • Page 36 Cinebar One” as the Bluetooth® output No sound with device. device. Bluetooth®. Bluetooth® connection Set up the Cinebar One and/or external impaired by another radio player in another location. Move to system (e.g. cordless another room to test. telephone, Wi-Fi).
  • Page 37 Problem Possible cause Solution Generally speaking, the Cinebar One is a very low- noise system. The speaker system with very high Ensure that the source is sending a Playback is noisy. resolution in the high clear signal to the Cinebar One.

  • Page 38: Technical Data

    Cinebar One Dimensions (WxHxD): 350 x 68 x 113 mm Weight (net): 1 kg Mains adapter Manufacturer = Lautsprecher Teufel GmbH Address = Budapester Straße 44, D-10787 Berlin Companies register number = HRB198813B Model = Dongguan Dongsong Electronic Co. LTD DYS850-120400-20303 Input = 100 –...

  • Page 39: Declaration Of Conformity

    10. Declaration Of Conformity Declaration of Conformity Lautsprecher Teufel GmbH hereby declares that this product complies with the requirements of the directives 2014/30/EU, 2014/35/EU and 2014/53/EU to the extent they are installed and used in accordance with the instructions of the manufacturer.
  • Page 40 Lautsprecher Teufel GmbH Telephone: 00800 200 300 40 (toll-free) BIKINI Berlin Fax: +49(0)30 / 300 930 930 Budapester Straße 44 Online support: 10787 Berlin (Germany) www.teufelaudio.com/service www.teufelaudio.com Contact form: www.teufel.de www.teufelaudio.com/contact www.teufelaudio.at www.teufelaudio.nl www.teufelaudio.fr www.teufelaudio.pl www.teufel.cn Teufel Cinebar One NG_UM-V1.0...
