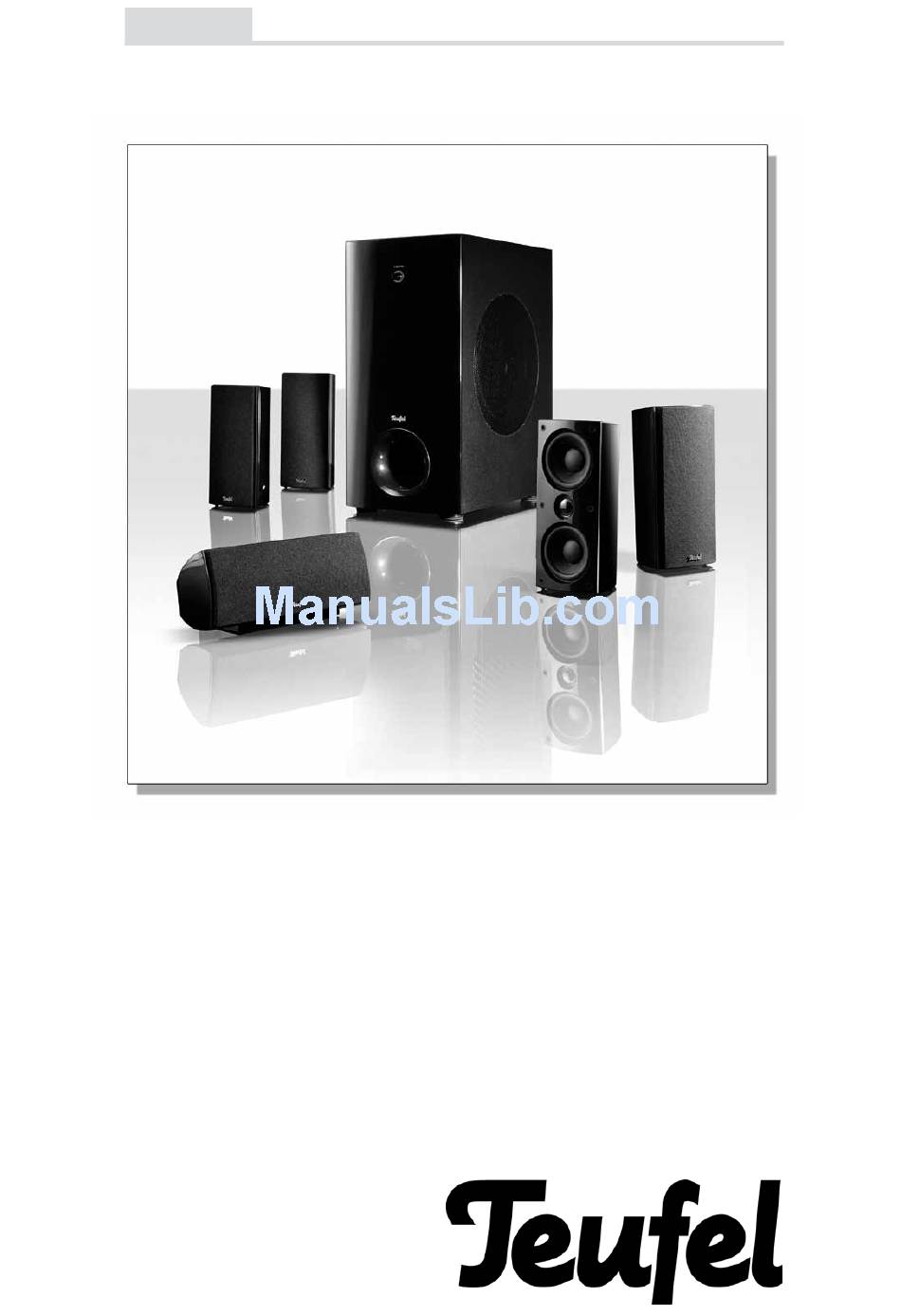

- Page 1 Technical description and operating instructions gb was here Consono 35 Active subwoofer US 5110/1...
- Page 2 Technical description and operating instructions gb was here Consono 35 5.1 Home Cinema Speaker Set...
-
Page 3: Table Of Contents
Check that all items have been delivered and that noth- ing is damaged. • If the delivery is incomplete or you fi nd damage sus- tained in transit, do not operate the product but contact our service department (see page 3). • Consono 35... -
Page 4: General Notes And Information
Any other use will be deemed as not in accordance with the part of Lautsprecher Teufel GmbH. the instructions and may lead to damage to property No part of these instructions may be reproduced in any or even persons. -
Page 5: Safety Notes
• When the volume is set high, always keep a certain distance from the unit and never place your ear directly on the speaker. • To avoid damage to health, avoid extended listening at high volume. • Consono 35... -
Page 6: Setup
You can mount the satellite speakers on the wall using the long hole on the back of the speaker. • You can purchase installation materials (cables, wall brackets and resonance dampers) espe- cially designed for these speakers in our webshop (www.teufelaudio.com) in the “Accessories” area. • Consono 35... -
Page 7: Connection And Settings
When reattaching the grids, ensure that the installation pins slide into the corresponding holes on the speaker. Crossover frequency • The optimal crossover frequency for the Consono-35- System is 150 Hz. To the extent possible, set your AV amplifi er to this value. • Consono 35... -
Page 8: Care And Cleaning
If the unit is no longer operational, every friendly manner. consumer is required by law to dispose of For this reason, electrical equipment is labelled with the used devices separate from household waste, displayed symbol • Consono 35... -
Page 9: Technical Data
For questions, suggestions or other issues please contact our customer service department: Tel.: 00800 200 300 40 (toll-free) No liability is accepted for the Lautsprecher Teufel GmbH Gewerbehof Bülowbogen - Aufgang D1 Fax: +49 (0)30 - 300 930 930 accuracy of this information. Tech- 10783 Berlin (Germany), Bülowstr. - Page 10 Technical description and operating instructions gb was here Active subwoofer US 5108/1 US 5110/1...
-
Page 11: Product Contents
Contents General notes and information ..............3 Notice . -
Page 12: General Notes And Information
Lautsprecher Teufel GmbH. instructions and may lead to damage to property or even No part of these instructions may be reproduced in any persons. -
Page 13: Safety Notes
Safety notes Caution icons Danger Danger to children! You will fi nd the following caution icons used in these Children can become trapped in the packing instructions : fi lm when playing and suffocate. • Do not allow children to play with the unit or the pack- Danger High risk ! ing fi... -
Page 14: Product Contents, Control Elements And Connections
Attention Fire hazard! Check to be sure! Improper use may lead to damage or fi re. Check that all items have been delivered and that nothing is damaged. • Do not place open fl ames such as burning candles or •... -
Page 15: Connection And Operation
Connection and operation Danger Danger of injury/damage! Auto Level US 5108/1 Power Limiter Arrange the cables so that they do not pose a High Auto Line Input trip hazard. 0° 180° Phase Volume Line Input Subwoofer Signal connection • Connect the RCA jack 7 “Line Input”... -
Page 16: Troubleshooting
Troubleshooting The following instructions should help you to solve problems. If this doesn’t work, please contact our hotline (see page 3). Mind the warranty instructions. Problem Possible cause Solution The subwoofer doesn’t The subwoofer is off or Turn on the “Power” switch 10 (“On I”). work. -
Page 17: Protecting The Environment
For questions, suggestions or criticism please contact our customer service department: Tel.: 00800 200 300 40 (toll-free) No liability is accepted for the Lautsprecher Teufel GmbH Gewerbehof Bülowbogen - Aufgang D1 Fax: +49 (0)30 - 300 930 930 accuracy of this information. Tech- 10783 Berlin (Germany), Bülowstr.
