4

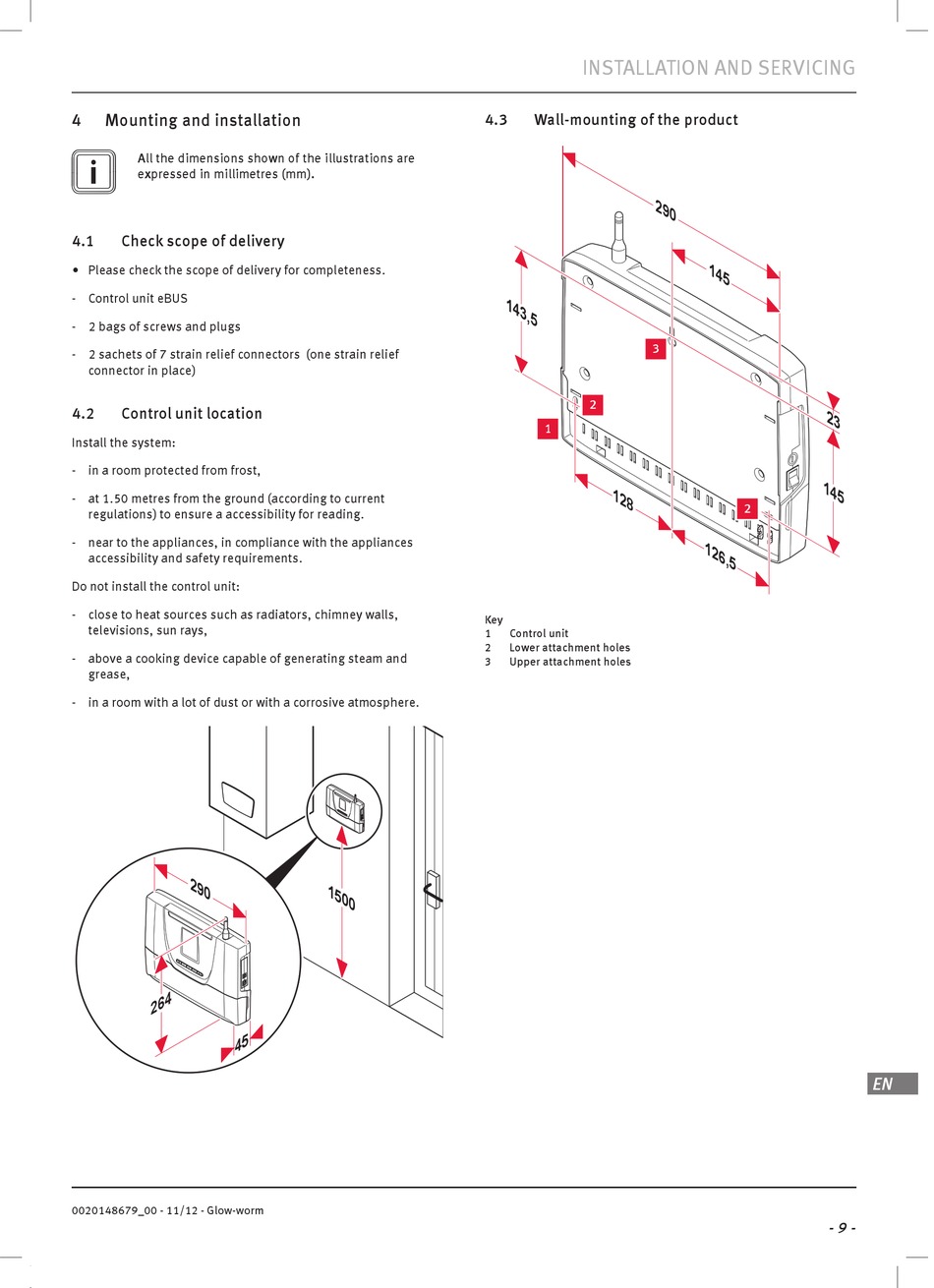

Mounting and installation

All the dimensions shown of the illustrations are
i
expressed in millimetres (mm).
4.1

Check scope of delivery

∙ Please check the scope of delivery for completeness.
- Control unit eBUS
- 2 bags of screws and plugs
- 2 sachets of 7 strain relief connectors (one strain relief
connector in place)
4.2

Control unit location

Install the system:
- in a room protected from frost,
- at 1.50 metres from the ground (according to current
regulations) to ensure a accessibility for reading.
- near to the appliances, in compliance with the appliances
accessibility and safety requirements.
Do not install the control unit:
- close to heat sources such as radiators, chimney walls,
televisions, sun rays,
- above a cooking device capable of generating steam and
grease,
- in a room with a lot of dust or with a corrosive atmosphere.
2 9 0
2 6 4
4 5
0020148679_00 - 11/12 - Glow-worm
4.3
Key
1
2
3
1 5 0
0
INSTALLATION AND SERVICING

Wall-mounting of the product

2 9 0
1 4 3
, 5
3
2
1
1 2 8
Control unit
Lower attachment holes
Upper attachment holes
1 4 5
2 3
1 4 5
2
1 2 6
, 5
EN
- 9 -
