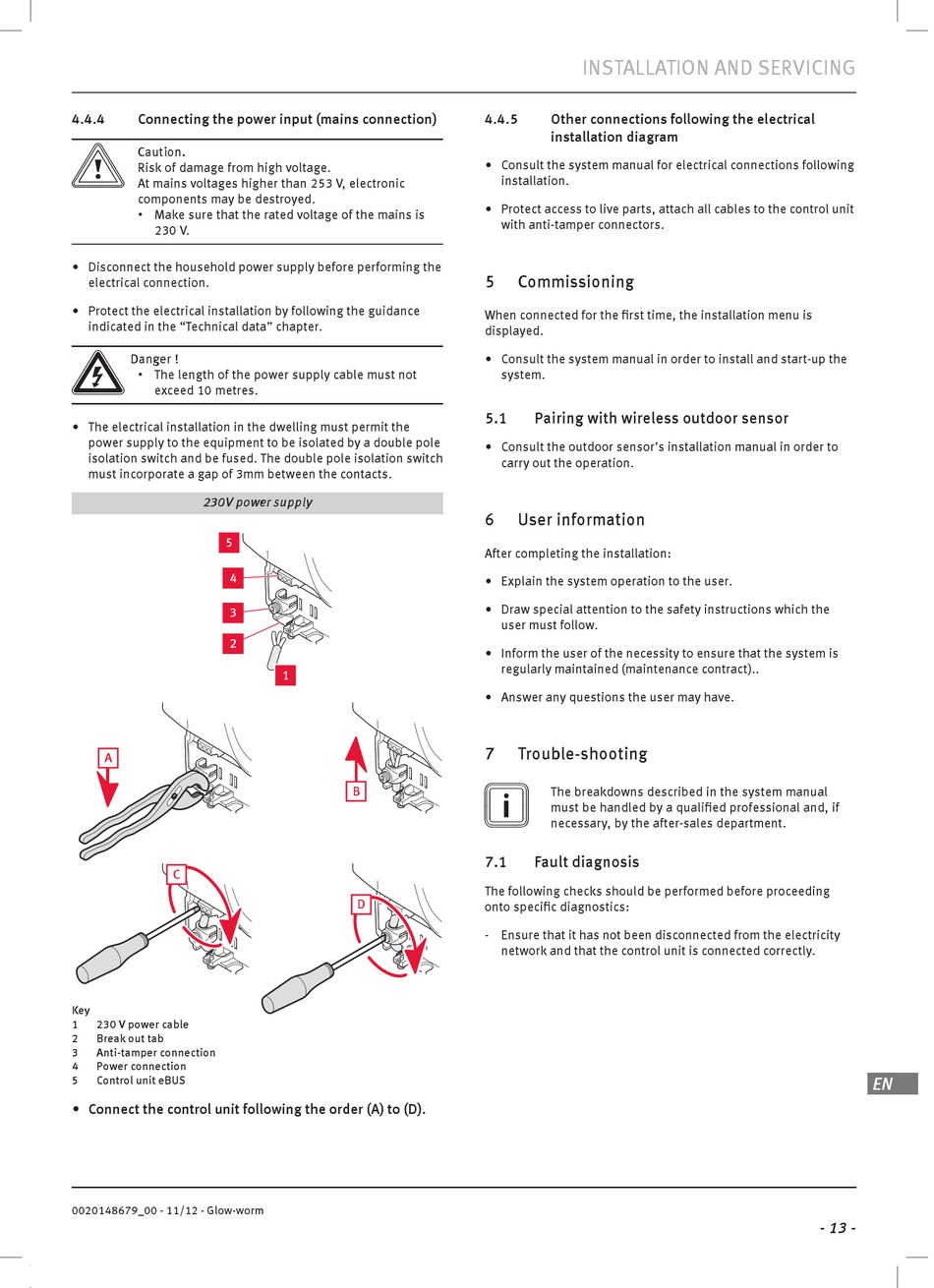

4.4.4 Connecting the power input (mains connection)
Caution.
b
Risk of damage from high voltage.
At mains voltages higher than 253 V, electronic
components may be destroyed.
• Make sure that the rated voltage of the mains is
230 V.
∙ Disconnect the household power supply before performing the
electrical connection.
∙ Protect the electrical installation by following the guidance
indicated in the "Technical data" chapter.
Danger !
e
• The length of the power supply cable must not
exceed 10 metres.
∙ The electrical installation in the dwelling must permit the
power supply to the equipment to be isolated by a double pole
isolation switch and be fused. The double pole isolation switch
must incorporate a gap of 3mm between the contacts.
230V power supply
5
4
3
2
A
C
Key
1 230 V power cable
2 Break out tab
3 Anti-tamper connection
4 Power connection
5 Control unit eBUS
∙ Connect the control unit following the order (A) to (D).
0020148679_00 - 11/12 - Glow-worm
1
B
D
INSTALLATION AND SERVICING
4.4.5 Other connections following the electrical
installation diagram
∙ Consult the system manual for electrical connections following
installation.
∙ Protect access to live parts, attach all cables to the control unit
with anti-tamper connectors.
5

Commissioning

When connected for the fi rst time, the installation menu is
displayed.
∙ Consult the system manual in order to install and start-up the
system.
5.1

Pairing with wireless outdoor sensor

∙ Consult the outdoor sensor's installation manual in order to
carry out the operation.
6

User information

After completing the installation:
∙ Explain the system operation to the user.
∙ Draw special attention to the safety instructions which the
user must follow.
∙ Inform the user of the necessity to ensure that the system is
regularly maintained (maintenance contract)..
∙ Answer any questions the user may have.
7

Trouble-shooting

The breakdowns described in the system manual
i
must be handled by a qualifi ed professional and, if
necessary, by the after-sales department.
7.1

Fault diagnosis

The following checks should be performed before proceeding
onto specifi c diagnostics:
- Ensure that it has not been disconnected from the electricity
network and that the control unit is connected correctly.
EN
- 13 -
