8. HANDRAIL

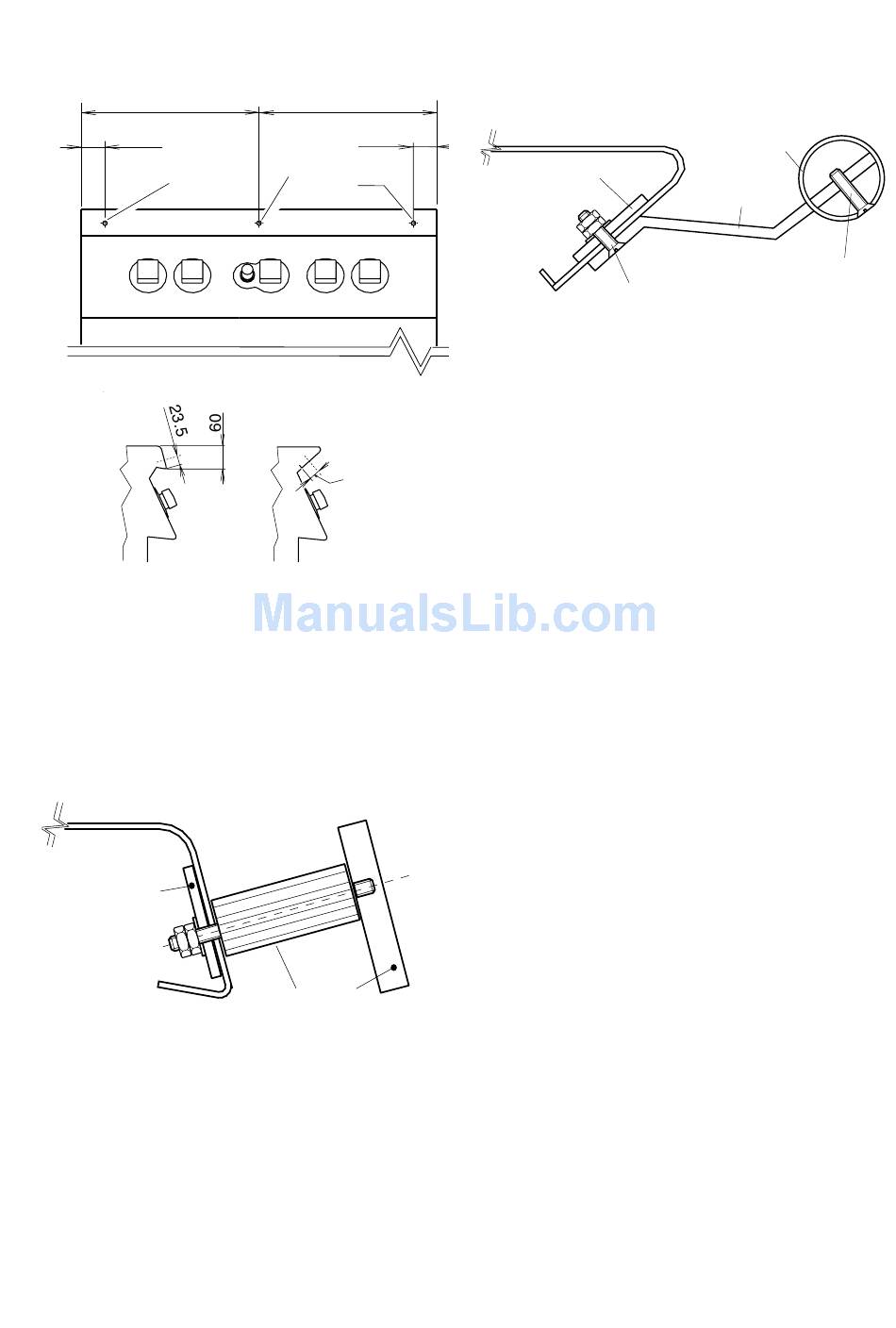

Marine appliances are equipped with a front handrail that can
be fitted by drilling the shelf according to the following diagram
=
52.5
=
52.5
A
8.1. INSTALLATION OF HANDRAIL
8.1.1 PREPARATION FOR INSTALLING ACCESSORY:
• Prepare the equipment by drilling the edge of the top (make
ø6 holes) at points "A". For 1200mm and 1600mm appliances
also drill at point "B";
8.1.2 ZANUSSI HANDRAIL
• Screw supports "D" on handrail "C" and insert them at the
holes prepared.
• Insert reinforcement plate "R" and fix the supports "S" with
the nuts and washer.
R
B
A
A
32.6
C
S
8.1.3 ELECTROLUX HANDRAIL
• Fix supports "A" to the edge of the top at the holes prepared,
with screw "B", plate "C" and respective nuts and washer, as
shown in the figure.
=
• Fit handrail "D" on support "A" and secure it with screw "E",
as shown in the figure.
52.5
A
1a
C
A
32.6 (*)
27.2 (**)
B
D
1c
E
27
