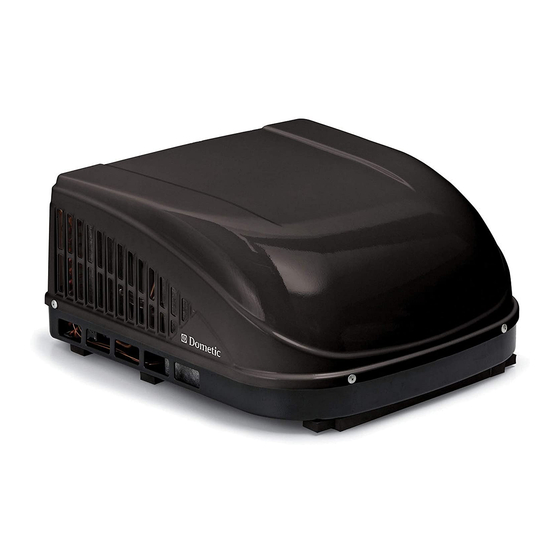

Dometic 541815 Installation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

REVISION B
Form No. 3315085.000 1/14
(French 3315442.000_B)
©2014 Dometic Corporation
LaGrange, IN 46761
Roof Top Unit Used With 3314850.000 Air Distribution Box
Description
Model
Air Conditioner
CCC 2 Controls
541815, 541816
641815, 641816
457915, 459516
459530, 540315
540316, 640312
640315, B57915
B59516, B59530
B57935, B59536
CCC 2 Controls
641835
W/Electric Heat
LCD SZ Controls
541915
541916
641915
641916
457915, 459516
540315, 540316
B57915, B59516
640312, 640315
459530, B59530
B57935, B59536
LCD SZ Controls
641935
W/Electric Heat
Heat Pump
CCC 2 Controls
551816
651815
651816
459186, B59186
LCD SZ Controls
551916
651916
459196
B59196
This Unit is designed for OEM installation.
Read these instructions carefully. These
instructions MUST stay with this product.
USA
SERVICE OFFICE
Dometic Corporation
2320 Industrial Parkway
Elkhart, IN 46516
RECORD THIS INFORMATION FOR FUTURE
REFERENCE:
Model Number
Serial Number
ADB Model Number
ADB Serial Number
Date Purchased
Board Built In
Thermostat
OR
Electronic Control Kit
Board Built In
3314082.000 CCC2-Blk
3314082.011 CCC2-Wht
3312020.000
Board Built In
Board Built In
3313192.000 C/F-Wht
3313192.019 C/F-Blk
3313189.000 C/F-Wht
Thermostat Included
3313189.015 C/F-Blk
With Electronic Control Kit
3313189.049 C/F/HS-Wht
3313189.056 C/F/HS-Blk
3313189.000 C/F-Wht
3313189.015 C/F-Blk
3313189.049 C/F/HS-Wht
3313189.056 C/F/HS-Blk
Board Built In
3313194.000 C/F/HS-Wht
3313194.015 C/F/HS-Blk
Board Built In
3314082.000 CCC2-Blk
3314082.011 CCC2-Wht
3312020.000
Board Built In
3313193.000 C/F/HP-Wht
3313193.017 C/F/HP-Blk
3313189.064 C/F/HP-Wht
Thermostat Included
3313189.072 C/F/HP-Blk
With Electronic Control Kit
CANADA
Dometic Corporation
46 Zatonski, Unit 3
Brantford, ON N3T 5L8
CANADA
Optional Indoor
Temperature
Sensor
3311931.000-20'
3311931.012-40'
3311931.020-60'
N/A
3311931.000-20'
3311931.012-40'
3311931.020-60'
N/A
SERVICE CENTER &
DEALER LOCATIONS
Please Visit:
www.eDometic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 541815 and is the answer not in the manual?

Questions and answers

Jody Eld
July 12, 2025

Is there a restart capacitor on this unit

0

Subscribe to Our Youtube Channel

Related Manuals for Dometic 541815

Summary of Contents for Dometic 541815

  • Page 1 Description Model Board Built In Thermostat Optional Indoor Temperature Electronic Control Kit Sensor Air Conditioner 3311931.000-20′ CCC 2 Controls 541815, 541816 Board Built In 3314082.000 CCC2-Blk 3311931.012-40′ 641815, 641816 3314082.011 CCC2-Wht 3311931.020-60′ 457915, 459516 3312020.000 459530, 540315 540316, 640312 640315, B57915...
