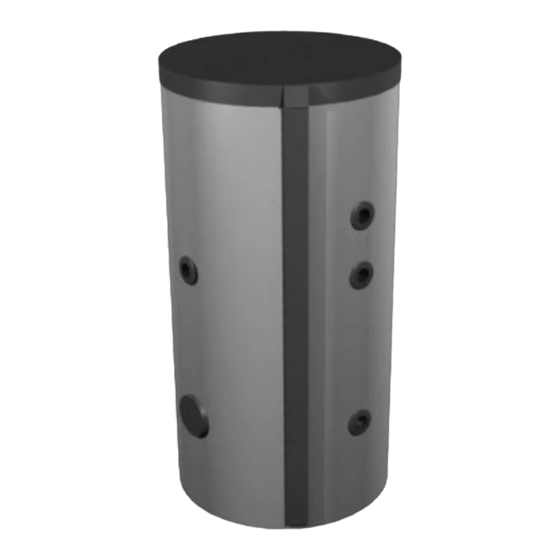

Drazice NADO 500/200v7 Operation And Installation Manual
Hide thumbs
Also See for NADO 500/200v7:
- Operation and installation manual (6 pages) ,
- Installation manual (10 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Drazice NADO 500/200v7
Summary of Contents for Drazice NADO 500/200v7
-
Page 1: Storage Tanks
Operation and Installation Manual Storage Tanks NADO 500/200v7 NADO 750/200v7 NADO 1000/200v7 Družstevní závody Dražice-strojírna s.r.o. (Works Cooperative - Dražice – Machine Plant, Ltd.) Dražice 69 294 71 Benátky nad Jizerou Tel.: 326 370 911, fax: 326 370 980 www.dzd.cz... - Page 2 1. Description Storage tanks serve accumulation of excessive heat from its source. The source may be a solid fuel boiler, heat pump, solar collectors, fireplace inserts, etc. Some types of storage tanks allow combination of connecting even multiple sources. The NADO type storage tanks serve accumulation of heat in the heating system and allow heating or preheating of HSW (Hot Service Water) in an inner vessel.
-
Page 3: Technical Description
3. General dimensions NADO NADO NADO 500/200 v7 750/200 v7 1000/200v7 Storage tank capacity (l) 1000 Inner vessel capacity (l) Storage tank weight (kg) Storage tank diameter Diameter of storage tank with insulation Heating surface of the exchanger (m Maximum tank pressure (MPa) Maximum pressure of the inner vessel (MPa) Maximum pressure of exchanger (MPa) Maximum temperature of water in the tank and... - Page 4 NADO 500 / 200v7 Funnels 6/4“ are fitted only with NADO750,1000/200v7, for the electric heating element of TJ6/4“ series with an extended cooling compartment!!!
- Page 5 NADO 750 / 200v7, NADO 1000 / 200v7 NADO NADO 750/200 v7 1000/200v7 TYPE 1940 2240 1606 1906 1560 1406 1606 1896...
- Page 6 Thermal insulation Polyester sheet of 100 mm thickness. It consists of an upper cover, flange cover and hole caps. Insulation is supplied in a separate packaging. We recommend that the insulation was fitted at room temperature. At temperatures significantly below 20°C the insulation shrinks. This disables its easy fitting.
