Page 1: User Guide
Built from experience USER GUIDE & INSTALLATION INSTRUCTIONS Elise SE 110 Dual Fuel... - Page 2 Terms & Conditions 1. This is my Rangemaster is open to residents of UK mainland only, aged 18 years & over. 2. All entries should be submitted to the advertised e-mail address, or Rangemaster UK Facebook, Instagram or Twitter page using the advertised hashtag &...
-
Page 3: Table Of Contents
Stick on Label The Wok Cradle Pressure Testing The Griddle (optional) The Ovens 12. Circuit Diagram Accessories 13. Technical Data Oven Light Storage Cooking Tips Cooking with a Multifunction Oven General Oven Tips Cooking Table Elise SE 110 Dual Fuel U110094-08a... -
Page 4: Before You Start
1. Before You Start... Personal Safety Your cooker should give you many years of trouble-free cooking if installed and operated correctly. It is important This appliance is for cooking purposes only. It must not be that you read this section before you start. used for other purposes, for example heating a room. -
Page 5: Electrical Connection Safety
Electrical Connection Safety Gas Connection Safety A Gas Safe registered engineer should service the cooker • This cooker is a Class 2 Subclass 1 appliance. and only approved spare parts should be used. • This appliance can be converted for use on another gas. The electrical installation must be installed in accordance •... -
Page 6: Ventilation
Ventilation • DO NOT use water on grease fires and never pick up a flaming pan. Turn the controls off and then smother The use of a cooking appliance results in the production a flaming pan on a surface unit by covering the pan of heat and moisture in the room in which it is installed. -
Page 7: Oven Care
• Take care when placing hot lids onto the hob surface. Fig. 1.1 Lids that have been covering boiling or steaming foods ArtNo.312-0001 Not cooking surface can ‘stick’ to the ceramic glass. Should this occur, DO NOT attempt to lift the lid off the hotplate: this may damage the hob surface. -
Page 8: Hob Care
Cleaning • DO NOT place warm food in the oven to be timed. • DO NOT use a timed oven that is already warm. • Isolate the electricity supply before carrying out any • Use dry oven gloves when applicable – using damp thorough cleaning. -
Page 9: Cooker Overview

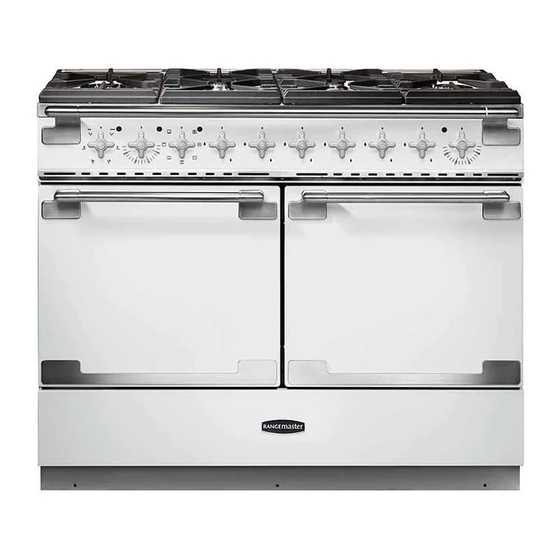

2. Cooker Overview DocAUS.020-0004 - Overview - 110DF - Elan Fig. 2.1 ArtNo.255-0019 - 110DF - Elise SE anno The 110 dual fuel cooker (Fig. 2.1) has the following features: Fig. 2.2 6 hotplate burners including 2 wok burners A control panel Main multi-function oven Fan oven Storage drawer... -
Page 10: Wok Burners
ten seconds. Fig. 2.3 If, when you let go of the control knob, the burner goes out, then the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 11: The Wok Cradle
The Wok Cradle Fig. 2.9 The wok cradle is designed to fit a Professional 35 cm wok. If you use a different wok, make sure that it fits the cradle. Woks vary very widely in size and shape. It is important that the wok sits down on the pan support –... -
Page 12: The Ovens
The Ovens Function References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed To thaw small items in the oven without Defrost from the front of the appliance. heat A full cooking function, even heat The left-hand oven is a multi-function oven, while the right- Fan oven throughout, great for baking hand oven is a fan oven. - Page 13 Fan Assisted Oven Multi-function Oven Functions Defrost This function operates the fan, circulating air heated by the elements at the top and the base of the oven. This function operates the fan to circulate cold air The combination of fan and conventional cooking only.
- Page 14 Operating the Ovens Fig. 2.16 Operating the Multi-function Oven The multi-function oven has two controls: a function selector and a temperature setting knob (Fig. 2.16). Turn the function selector control to a cooking function. Fig. 2.17 shows the control set for convectional oven cooking. Turn the oven temperature knob to the temperature required (Fig.
-
Page 15: Accessories
Accessories Fig. 2.20 Oven Shelves Shelf guard The oven shelves (Fig. 2.20) are retained when pulled forward but can be easily removed and refitted. Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig. 2.21). Lift up the front of the shelf so the back of the shelf will pass Front under the shelf stop and then pull the shelf forward... -
Page 16: Oven Light
Oven Light Fig. 2.27 Rotate the oven light control to the appropriate position, as shown (Fig. 2.27). If the oven light fails, turn off the power supply before changing the bulb. See the ‘Troubleshooting’ section for details on how to change the bulb. Storage The bottom drawer is for storing oven trays and other cooking utensils. -
Page 17: Cooking Tips
3. Cooking Tips Cooking with a Multifunction Oven General Oven Tips Remember: not all modes are suitable for all food types. The The wire shelves should always be pushed firmly to the back oven cooking times given are intended for a guide only. of the oven. -
Page 18: Cooking Table
4. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a ArtNo.050-0007 preferred result. -
Page 19: Cleaning Your Cooker
5. Cleaning Your Cooker Essential Information Fig. 5.1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix different cleaning products –... -
Page 20: Control Panel And Doors
Control Panel and Doors Fig. 5.5 Avoid using any abrasive cleaners including cream cleaners. For best results, use a liquid detergent. The same cleaner can be used on the doors or alternatively, with a soft cloth wrung out in clean hot soapy water – but take care that no surplus water seeps into the appliance. -
Page 21: Cleaning Table
Cleaning Table Cleaners listed (Table 5-1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 22: Troubleshooting
6. Troubleshooting Hotplate/Cooktop ignition or hotplate burners faulty Food is cooking too slowly, too quickly, or burning Is the power on? If not, there maybe something wrong Cooking times may differ from your previous oven. with the power supply. Check that you are using the recommended Are the sparker (ignition electrode) or burner slots temperatures and shelf positions –... - Page 23 Oven light is not working Fig. 6.1 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 15 W – 230 V lamp, FOR OVENS. It must be a special bulb, heat ArtNo.324-0005 Oven light bulb resistant to 300 °C (Fig.
-
Page 24: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 7. Installation Dear Installer In the UK the cooker must be installed in accordance with: Before you start your installation, please complete the details below, so that, if your customer has a problem relating to •... -
Page 25: Location Of Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Location of Cooker The cooker may be installed in a kitchen/kitchen diner but NOT in a room containing a bath or shower. This appliance is designed for domestic cooking only. Use for any other purpose could invalidate any warranty or liability claim. - Page 26 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Checking the Parts: You will need the following equipment to complete the cooker installation satisfactorily: 4 pan supports Wok cradle • Stability bracket: If the cooker is to be supplied with gas through a flexible hose, a stability bracket or chain MUST be fitted.
-
Page 27: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe when you have finished. 8. Positioning the Cooker Fig. 8-1 and Fig. 8-2 show the minimum recommended Fig. 8-1 distance from the cooker to nearby surfaces. The cooker should not be placed on a base. 75 mm 75 mm The hotplate surround should be level with, or above,... -
Page 28: Completing The Move
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Moving the Cooker Fig. 8.1 On no account try and move the cooker while it is plugged into the electricity supply. The cooker is very heavy, so take extra care. We recommend that two people manoeuvre the cooker. -
Page 29: Repositioning The Cooker Following
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fitting the Stability Bracket or Chain Stability bracket Fig. 8.5 Unless otherwise stated, a cooker using a flexible gas connector must be secured with a suitable stability device. Suitable stability devices are shown in Fig. -
Page 30: Gas Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 9. Gas Connection Conversion to Another Gas Fig. 9.1 If the appliance is to be converted to another gas do the conversion at this point. See ‘Conversion to LP Gas’ . Gas Connection This must be in accordance with the relevant standards. -
Page 31: Electrical Connection
INSTALLATION Check the appliance is electrically safe when you have finished. Electrical Connection Current Operated Earth Leakage Breakers The cooker must be installed by a qualified electrician, in The combined use of your cooker and other domestic accordance with all relevant British Standards/Codes of appliances may cause nuisance tripping, so we recommend Practice (in particular BS 7671), or with the relevant national that the cooker is protected on an individual RCD (Residual... -
Page 32: Final Fitting
INSTALLATION Check the appliance is electrically safe when you have finished. 10. Final Fitting Fitting the Handrail Fig. 10-1 Using the 2 mm Allen key supplied, loosen the two retaining Retaining screw screws in the base and side of the handrail support. Fit the handrail support onto the locating bosses on the fascia (Fig. -
Page 33: Conversion To Lp Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 11. Conversion to LP Gas Check the ‘Technical Data’ section at the back of the book Fig. -
Page 34: Pressure Testing
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Pressure Testing Connect the appliance to the gas supply. Check the appliance is gas sound. The gas pressure can be measured at one of the hotplate burner jets (not a wok burner). -
Page 35: Circuit Diagram
12. Circuit Diagram The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Left-hand multi-function oven thermostat Oven light switch Blue Left-hand multi-function oven control switch Oven lamp Brown Left-hand multi-function oven base element... -
Page 36: Technical Data
29 mbar 230/400 V 50 Hz Propane 37 mbar See the appliance badge for test pressures. Dimensions Model Elise SE 110 Dual Fuel Overall height minimum 910 mm maximum 930 mm Overall width 1092 mm Overall depth 596 mm excluding handles, 650 mm including handles... - Page 37 Hotplate Efficiency Brand Rangemaster Model Identification Elise SE Size Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner)
- Page 38 Oven Data Brand Rangemaster Model identification Elise SE Type of oven Electric Mass Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Multifunction Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional kWh / cycle 1.08...
- Page 39 Gas Safe registered engineer for gas appliances or an approved electrician for electrical models. CONSUMER SERVICE For a competetive quote and to arrange for a Rangemaster approved engineer to attend, call Consumer Services on: If you have any product enquiries, or in the event of a problem 0800 804 6261 or 0370 789 5107 from a mobile.
- Page 40 Registered Office: Juno Drive, Leamington Spa, Warwickshire, CV31 3RG Rangemaster continuously seeks improvements in specification, design and production of products and thus, alterations take place periodically. Whilst every effort is made to produce up-to-date literature, this brochure should not be regarded as...
