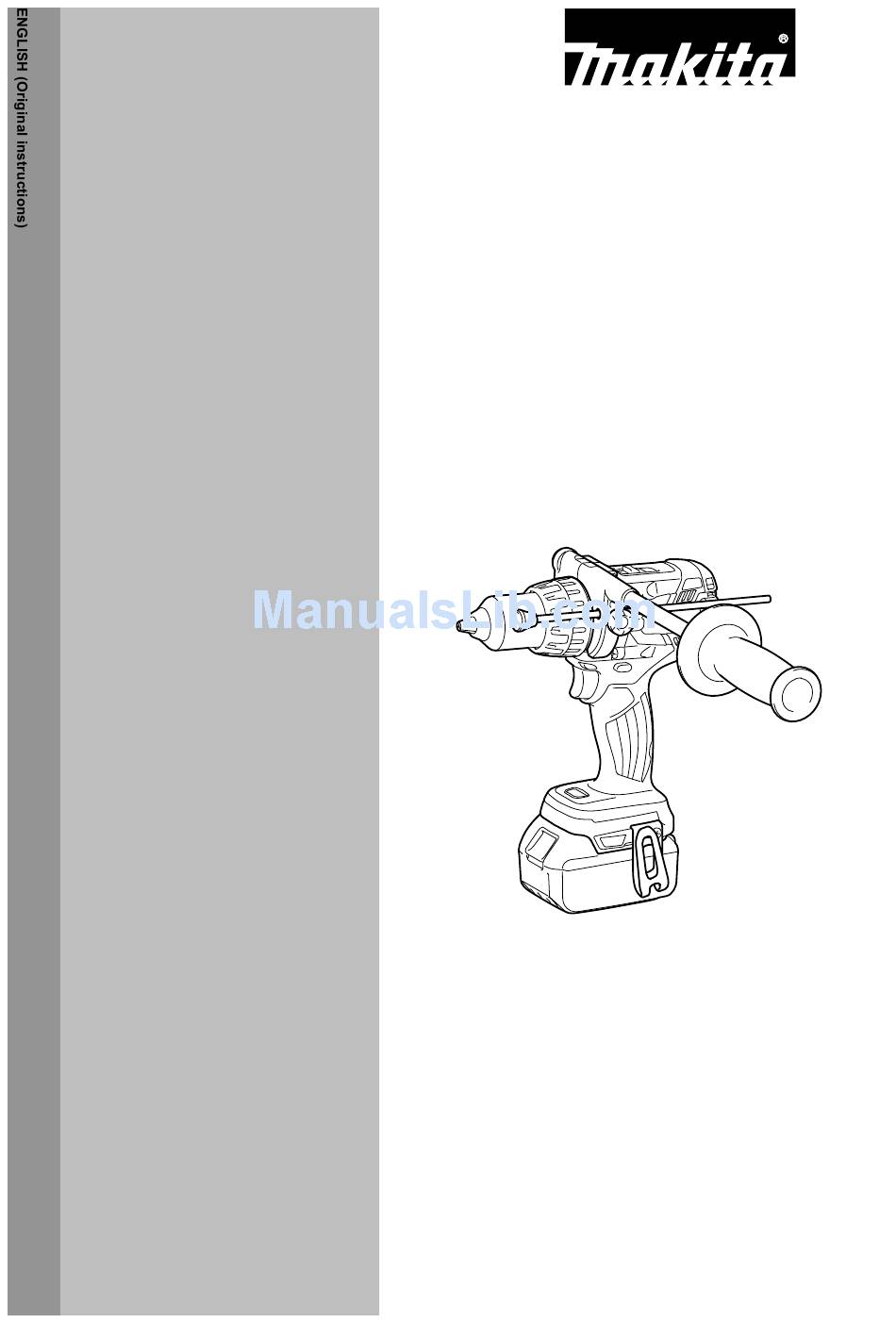

- Page 1 INSTRUCTION MANUAL Cordless Hammer Driver Drill DHP481 014694 IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model DHP481 Drilling into concrete 16 mm Drilling into steel 13 mm Capacities Drilling into wood 76 mm Fastening wood screw 10 mm x 90 mm Fastening machine screw 6 mm High (2) 0 - 2,100... -
Page 3: General Power Tool Safety Warnings
Cordless Hammer Driver Drill Do not expose power tools to rain or wet Model No./ Type: DHP481 conditions. Water entering a power tool will Conforms to the following European Directives: increase the risk of electric shock. - Page 4 15. Dress properly. Do not wear loose clothing or 26. When battery pack is not in use, keep it away jewellery. Keep your hair, clothing, and gloves from other metal objects, like paper clips, away from moving parts. Loose clothes, coins, keys, nails, screws or other small metal jewellery or long hair can be caught in moving objects, that can make a connection from one...
- Page 5 10. Some material contains chemicals which may Tips for maintaining maximum battery life be toxic. Take caution to prevent dust Charge battery cartridge before inhalation and skin contact. Follow material completely discharged. supplier safety data. Always stop tool operation and charge the battery cartridge when you notice less tool SAVE THESE INSTRUCTIONS.
-
Page 6: Functional Description
Lithium-ion batteries with a star marking are equipped FUNCTIONAL DESCRIPTION with a protection system. This system automatically cuts off power to the tool to extend battery life. The tool will automatically stop during operation if the CAUTION: tool and/or battery are placed under one of the following Always be sure that the tool is switched off and the •... -
Page 7: Switch Action
When the LED display lights up but the tool does • Reversing switch action not work even with a recharged battery cartridge, cool down the tool fully. If the condition does not CAUTION: change, have the tool repaired by a Makita local Always check the direction of rotation before •... - Page 8 Selecting the action mode ASSEMBLY CAUTION: CAUTION: Always set the ring correctly to your desired mode mark. • If you operate the tool with the ring positioned halfway Always be sure that the tool is switched off and the • between the mode marks, the tool may be damaged.
-
Page 9: Operation
First, slide the action mode change lever so that it Adjustable depth rod points to the marking. The adjusting ring can be aligned in any torque levels for this operation. 1. Depth rod Be sure to use a tungsten-carbide tipped bit. 2. -
Page 10: Maintenance
There is a tremendous force exerted on the tool/bit • OPTIONAL ACCESSORIES at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the workpiece. CAUTION: A stuck bit can be removed simply by setting the These accessories attachments... - Page 12 Makita Jan-Baptist Vinkstraat 2, 3070, Belgium Makita Corporation Anjo, Aichi, Japan www.makita.com 885341-229...
