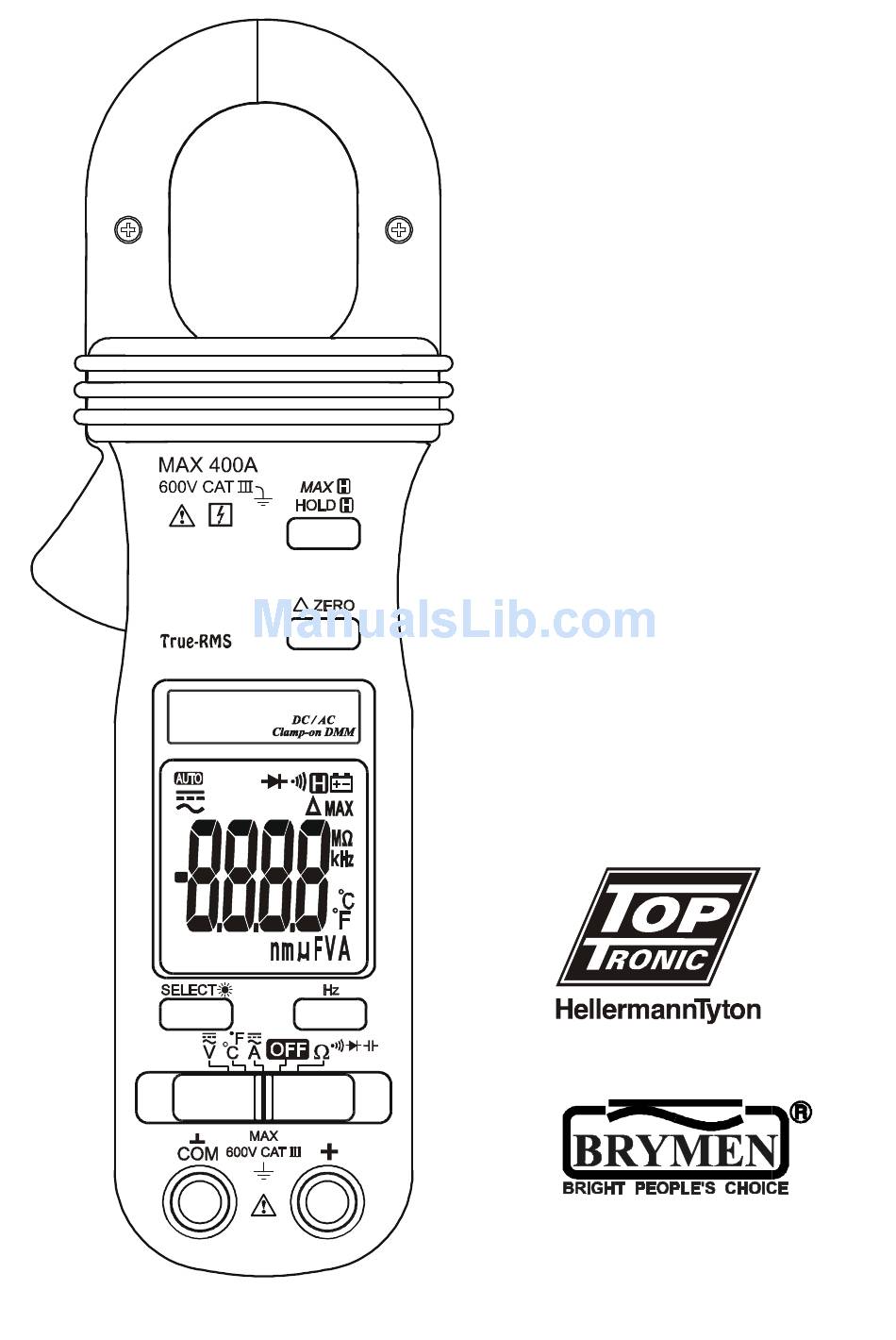

- Page 1 USER'S MANUAL TBM061 TBM062 TBM063 TBM065 Compact AC/DC Clamp-on Multimeter Series...
-
Page 2: Overvoltage Category
1) SAFETY This manual contains information and warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition. If the instrument is used in a manner not specified by the manufacturer, the protection provided by the instrument may be impaired. -
Page 3: International Electrical Symbols
WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. To avoid electrical shock hazard, observe the proper safety precautions when working with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential shock hazard to the user. -
Page 4: Product Description
3) PRODUCT DESCRIPTION Note: Top of the line model is used as representative for illustration purposes. Please refer to your respective model for function availability. 1) Hall-effect Clamp Jaw for AC & DC current magnetic field pick 2) Hand/Finger Barrier to indicate the limits of safe access of the meter during measurement... -
Page 5: Operation
4) OPERATION CAUTION: Before and after hazardous voltage measurements, test the voltage function on a known source such as line voltage to determine proper meter functioning. DC Voltage, AC Voltage, Hz Frequency functions Set slide-switch to Voltage function position. Inputs are made through the test leads terminals. - Page 6 Note: DC 400.0mV range is designed with 1000M high input impedance for least current drain in measuring small signals, and can cope better with most commercially available voltage output transducers/adapters. The non-zero display reading is normal when the meter inputs are open circuit, which will not affect actual measurement accuracy.
- Page 7 For removal, press the jaw trigger and remove the jaws from the conductor(s). Note: In DCA measurements, hysteresis of the jaws (after measuring high DC currents) may introduce non-zero residual readings. Relative Zero mode should be used each time to offset the residual readings, if any, for more accurate measurements. Adjacent current-carrying devices such as transformers, motors and conductor wires will affect measurement accuracy.
- Page 8 Diode test function Inputs are made through the test leads terminals. Slide-switch on defaults at . Press SELECT button momentarily 2 times to select Diode test function. Normal forward voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V. A reading higher than that indicates a leaky diode (defective).
- Page 9 Temperature function (Model 065 & 063 only) Be sure to insert the banana plug type-K temperature bead probe Bkp60 with correct polarities. Slide-switch on defaults at degree C (Celsius). Press SELECT button momentarily to select degree F (Fahrenheit). You can also use a plug adapter Bkb32 (Optional purchase) with banana pins to type-K socket to adapt other type-K standard mini plug temperature probes.
-
Page 10: Maintenance Warning
30ms with auto-ranging capability. It allows the meter to capture in-rush currents in current functions. Press and hold the MAX button for 1 second or more to toggle to the max feature. The annunciators “MAX” and “ ” turn on. Relative Zero mode Relative Zero... - Page 11 functions through this terminal will then be open circuit. The series fusible resistors and the spark gaps should then be replaced by qualified technician. Refer to the LIMITED WARRANTY section for obtaining warranty or repairing service. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents.
-
Page 12: Specifications
6) SPECIFICATIONS Display : 3-3/4 digits 4000 counts LCD display(s) Update Rate : 3 per second nominal Polarity : Automatic Low Battery : Below approx. 2.4V Operating Temperature : 0 C to 40 Relative Humidity : Maximum relative humidity 80% for temperature up to 31 decreasing linearly to 50% relative humidity at 40 Altitude : Operating below 2000m Storage Temperature : -20... - Page 13 Accessories : Test lead pair, batteries installed, user's manual, soft carrying pouch, & BKP60 banana plug type-K thermocouple (model 063 & 065 only) Optional accessories : BKB32 banana plug to type-K socket plug adaptor (model 063 & 065 only) Electrical Specifications Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23 C ±...
- Page 14 Ohms RANGE Accuracy 0.8% + 6d 400.0 0.6% + 4d 4.000k, 40.00k, 400.0k 1.0% + 4d 4.000M 2.0% + 4d 40.00M Open Circuit Voltage : 0.4VDC typical Audible Continuity Tester Open Circuit Voltage: 0.4VDC typical Range: 400.0; Accuracy: 1.5% + 8d Audible threshold: between 10...
- Page 15 ACA Current (Clamp-on) RANGE Accuracy 400.0A 40Hz ~ 60Hz @ 0 ~ 50A 1.0% + 6d 60Hz ~ 400Hz @ 0 ~ 50A 1.5% + 5d 40Hz ~ 60Hz @ 50A ~ 200A 1.5% + 5d 60Hz ~ 200Hz @ 50A ~ 200A 2.0% + 5d 40Hz ~ 60Hz @ 200A ~ 300A 2.0% + 5d...
-
Page 16: Limited Warranty
BRYMEN's warranty does not apply to accessories, fuses, fusible resistors, spark gaps, batteries or any product which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling.
