Summary of Contents for Spypoint SMART

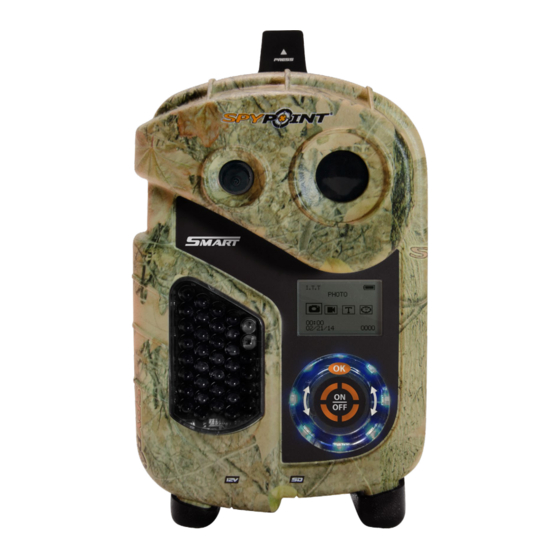

- Page 1 SURVEILLANCE CAMERA | SMART SERIES Adventure expedition summit pro smart series · série series · série series · série series · série serie USER MANUAL Models : SMART SMART-8 v1.1...
- Page 2 CAMERAS WITH CELLULAR TRANSMISSION • If you need information or would like to subscribe to mySPYPOINT service, go to www.myspypoint.com. • For the latest version of the activation procedure, go to www.spypoint.com/activation.
-
Page 3: Table Of Contents
Memory card ................8 Mounting bracket ..............8 Settings ..................9 I.T.T. mode ................10 I.T.T. mode (Advanced configuration) ........11 File transfer to a computer ............14 Troubleshooting ..............15 Error message .................15 Available accessories ...............16 Specifications SMART ..................18 SMART-8 ...................19 Limited warranty ..............20 Repair service ................20... -
Page 4: Package Contents
To see battery level, date, time, number of Models: LIT-09: Battery only LIT-C-8: LIT-09 Battery & charger RECHARGEABLE 7.4 VOLT LI-ION POLYMER BATTERY 2.0 Ah Smart series RECYCLE OR DISPOSE OF PROPERLY screen recorded files, error messages and options. WARNING: To reduce risk of fire or burns, - Do not attempt to open, disassemble, or service the battery pack. -
Page 5: Components
Components Photo lens Access to the time Mounting bracket 12V power jack battery Fresnel lens Slot for installation SD card slot strap Battery case Configuration screen Tripod mount Cable lock hole Test light Light sensor OK button ON/OFF button Touch wheel Invisibles LEDs... - Page 6 Components Photo lens Image sensor and infrared filter. 12V power jack This camera can be powered from an external 12-volt DC input such as a 12V battery or a Fresnel lens Expands the detection area and increases the 12V adapter, sold separately (p.16). sensitivity of the camera’s motion sensor. SD card slot An SD card is required to record photos/ Configuration screen...
-
Page 7: Power
We also recommend the ® use of new batteries to ensure maximum performance of the camera. LITHIUM BATTERY PACK This SPYPOINT camera can be powered by a rechargeable lithium battery ® pack LIT-09/LIT-C-8 (sold separately, p.16). This type of battery is less 4. Using a flat screwdriver, push the battery upwards and lift to remove it... -
Page 8: Memory Card
Memory card/Mounting bracket MEMORY CARD INSERTING THE MEMORY CARD Insert an SD/SDHC memory card (up to 32 GB capa- A memory card is required to record photos and videos. The camera is city) in the card slot. The card is inserted correctly compatible with SD/SDHC memory cards, up to 32 GB capacity. (sold when a click is heard. -
Page 9: Settings
Settings VIDEO Gently slide one finger on the wheel Touch the top of the wheel (OK) to Allows the user to take videos. When the VIDEO mode is selected, clockwise or counterclockwise to select an option. the initialization countdown appears on the screen and the test light in front navigate on the interface and to of the camera will flash for 60 seconds to allow the user to leave the area change option. -
Page 10: I.t.t. Mode
I.T.T. mode The camera is configured by default in I.T.T. I.T.T. mode (Intelligent Triggering Technology) for the PHOTO or VIDEO mode. PHOTO To change the settings, see the ADVANCED CONFIGURATION USING THE SMARTSET oo:oo o2/21/14 oooo SOFTWARE section (p.11). PHOTO (I.T.T.) On detection, one photo is taken. If a new movement is detected by the camera, a second photo is taken within 60 seconds after taking the first photo. -
Page 11: Mode (Advanced Configuration)
I.T.T. mode (Advanced configuration) ADVANCED CONFIGURATION USING THE SMARTSET SOFTWARE When using a new memory card, insert it into the camera and turn it on for the SMARTSET software copy to the SD/SDHC card. The SMARTSET software is always automatically copied from the camera to the memory card. - Page 12 I.T.T. mode (Advanced configuration) Here are the advanced settings of the software: Time format: (12h/24h) Some settings are only available when the I.T.T. Technology option is Allows the user to select the time display over a period of 12 or 24 hours on the photos (e.g. 6:00 pm or 18:00). deactivated. These parameters are identified by an asterisk*. Delay* Start time/Stop time: (10s/30s/1m/5m/15m/30m) Allows the user to set the operation period of the camera. The start and Allows the user to choose the time interval between each detection before stop time programmed hours are the hours during which the camera is in the camera records the next photo or video.
- Page 13 I.T.T. mode (Advanced configuration) Quality: (Low/Medium/High) Allows the user to set the photo and video resolution. The low resolution allows the user to save space on the card and the high resolution allows the user to get a better photo quality. When the quality is set to" High", the video resolution is automatically set to 640 x 480 and when is set to "Medium" or "Low", the video resolution is automatically set to 320 x 240.
-
Page 14: File Transfer To A Computer
File transfer to a computer To transfer photos to a computer, remove the memory card (sold separately, p.16) out of the camera and insert it into the computer slot. MEMORY CARD 1. Click on "My Computer" and select "Removable Disk". 2. Then click on "DCIM" and "100DSCIM" to find all the recorded photos. 3. Drag or save the files to the desired location. The names of the photos recorded by the camera starts by PICT. Note: Videos in .MP4 format require the use of a compatible video player software such as VLC, Windows Media Player or QuickTime. -
Page 15: Troubleshooting
• Verify if the batteries are correctly installed (p.7). or recorded. camera • Install the latest update (available on www.spypoint. The computer • The .MP4 video format requires the use of a video com under SUPPORT section). -
Page 16: Available Accessories
ABS plastic case, AC charger, power the camera. 12 ft power cable (#PW-12FT) and carrying strap included. Compa- Lithium battery pack & charger 12V DC Power cable tible with all SPYPOINT products ® #LIT-C-8, Rechargeable lithium #CB-12FT, Power cable with alli- equipped with a 12V power jack. - Page 17 Steel security box (completely invisible to the naked red module that allows the user to #CL-6FT, 6 ft cable lock fits all #SB-SMART, Steel box to secure eye) wireless infrared module that amplify the strength of the infra- SPYPOINT cameras.
-
Page 18: Specifications Smart
Specifications (SMART) Photo recording Night time illumination system LEDs 36 LEDs Photo resolution 3 MP, 5 MP, 10 MP Type Invisible LEDs File format Exposure Automatic infrared level adjustment Time lapse mode Predefined intervals from 30 s to 30 min Interface Multi-shot mode Up to 6 photos per detection Touch wheel Stamp (only on photos) Date, time, temperature (°C/°F) and... -
Page 19: Smart-8
Specifications (SMART-8) Photo recording Night time illumination system LEDs 36 LEDs Photo resolution 3 MP, 5 MP, 8 MP Type Invisible LEDs File format Exposure Automatic infrared level adjustment Time lapse mode Predefined intervals from 30 s to 30 min Interface Multi-shot mode Up to 6 photos per detection... -
Page 20: Limited Warranty
BEFORE sending a product for repair, please contact our purchased online from an unauthorized dealer. Any modification or tam- technical support team at 1-888-779-7646 or tech@spypoint.com. pering of the product will affect its operation, performance, durability and Clearly describe the problem and give a phone number where we voids this warranty.
