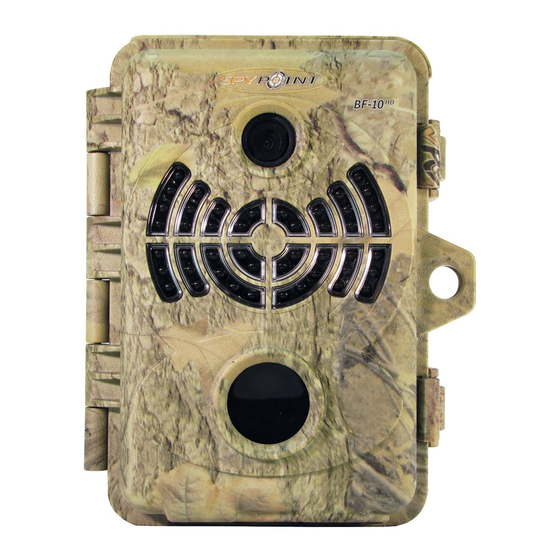

Spypoint BF-10HD User Manual

Spypoint BF-10HD User Manual

Expedition series surveillance camera
Hide thumbs Also See for BF-10HD:

Advertisement

SURVEILLANCE CAMERA |
SPY
SPY
P
P
EXPEDITION SERIES
INT
INT
Adventure
series · série
USER
MANUAL
Models :
BF-10
HD
BF-12
HD
expedition
series · série
v1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF-10HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Spypoint BF-10HD

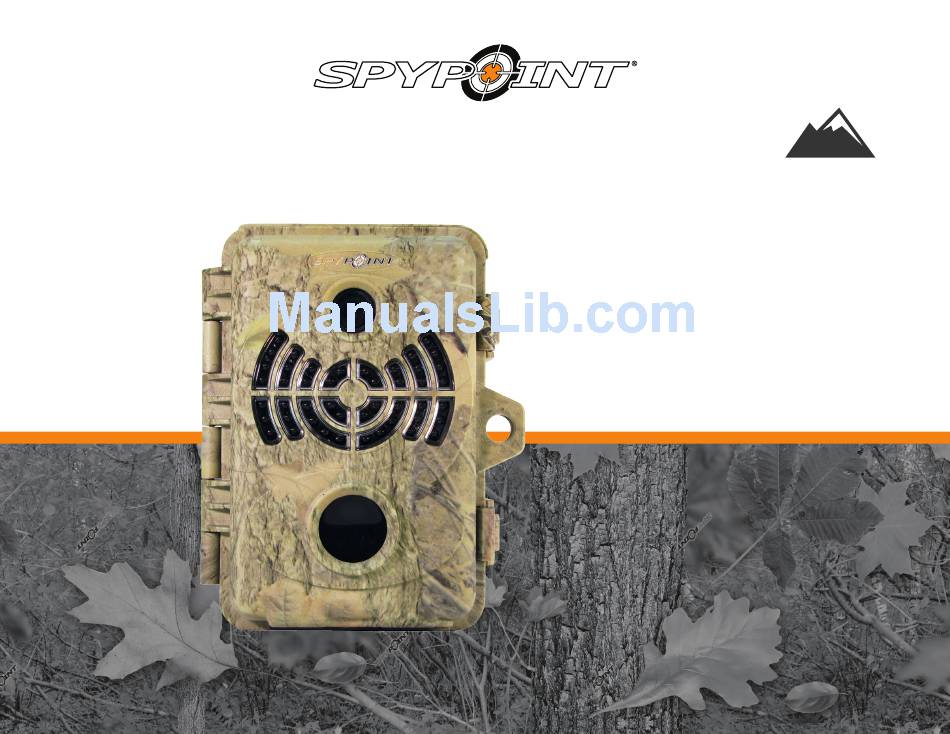

  • Page 1 SURVEILLANCE CAMERA | EXPEDITION SERIES Adventure expedition series · série series · série USER MANUAL Models : BF-10 BF-12 v1.1...
  • Page 2 CAMERAS WITH CELLULAR TRANSMISSION  • If you need information or would like to subscribe to mySPYPOINT service, go to www.myspypoint.com. • For the latest version of the activation procedure, go to www.spypoint.com/activation.
  • Page 3: Table Of Contents

    Table of contents Package contents ................. 4 Components ................. 5 Power ................... 7 Memory card ................9 "BUSY" DEL .................. 9 Settings ..................10 Distance ..................13 REMOS Technology (BF-12HD) ............14 Sound recording ................15 File transfer to a computer ............16 Troubleshooting ................17 Error messages................18 Available accessories ..............19 Specifications...
  • Page 4: Package Contents

    Screen with zoom and pan functions. Error messages Navigation Buttons to set the camera. buttons Complete instructions www.spypoint.com SPYPOINT Quick start ® Position du commutateur (selon la source d’alimentation) Pour commencer Lentille photo Capteur d’image et filtre infrarouge.
  • Page 5: Components

    Components Slot for installation TV OUT Photo lens 12V Power jack Access to the time strap battery Invisible LEDs Tripod mount USB port Cable lock hole Battery switch Test light Microphone SD card slot BUSY Led Light sensor DISTANCE dial Solar panel jack ON/OFF Fresnel lens...
  • Page 6 Components Photo lens Image sensor and infrared filter. Battery switch Allows the user to select the power source ac- cording to the type of batteries used (p.7). Invisible LEDs Night lighting to obtain black and white photos and videos. BUSY LED Lights up when the camera is recording (p.9).
  • Page 7: Power

    LIT-09 Please note that the voltage of rechargeable AA batteries (1.2V) is • Solar panel + LIT-09* insufficient to power the SPYPOINT camera. We also recommend the ® use of new batteries to ensure maximum performance of the camera. Rechargeable lithium battery pack, sold separately (LIT-09) or with a charger (LIT-C-8).
  • Page 8 Power TIME BATTERY The camera has a CR2032 lithium button battery which saves the time and date. To replace the battery: 1. Turn off the camera and remove it from the housing. 2. Using a flat screwdriver, push the tab to the right. 3.
  • Page 9: Memory Card

    Memory card/ "BUSY" LED MEMORY CARD INSERTING THE MEMORY CARD Insert an SD/SDHC memory card (up to 32 GB capa- A memory card is required to record photos and videos. The camera is city) in the card slot. The card is inserted correctly compatible with SD/SDHC memory cards, up to 32 GB capacity.
  • Page 10: Settings

    Settings Use the ◄, ►, ▲ or ▼ buttons to navigate in the interface and change SETTINGS options. Use the OK button to confirm and the BACK button to return to the Allows the user to change the different settings. To set the system in previous menu.
  • Page 11 Settings Video length: Quality: (10s/30s/60s/90s) (Low/Medium/High) Allows the user to select the duration of the recording when the camera Allows the user to set the photo and video resolution. The low resolution is set in VIDEO mode. allows the user to save space on the card and the high resolution allows the user to get a better photo quality.
  • Page 12 Settings VIEW Time lapse: Allows the user to view or delete recorded photos and videos on the (Off/30s/1m/3m/5m/15m/30m/1h) camera screen or on a TV. Allows the camera to take photos at regular preset intervals. For example, if the option "5m" is selected in the TIME LAPSE mode, the camera takes a •...
  • Page 13: Distance

    Settings/Distance • Watching on TV: DISTANCE Allows the user to view or delete the photos or videos directly on a TV. Turn the DISTANCE dial to the right to increase the detection distance and the sensitivity of the detector. 1. Turn on the camera. 2.
  • Page 14: Remos Tm

    REMOS Technology (BF-12 The cameras compatible with the REMOS technology (wireless functionna- lities), can be combined with: • RC-1 :Remote control Allows the user to control the camera remotely. • MS-1 :Motion sensor Allows the user to trigger the camera remotely. •...
  • Page 15: Sound Recording

    Sound recording The SPYPOINT camera offers the possibility to record sound in VIDEO ® mode. When the VIDEO mode is selected, the camera automatically re- cords the sound. Under the camera, you will find a rubber cap with the inscription MIC. If the user does not want to record the sound, the rubber cap needs to stay in place.
  • Page 16: File Transfer To A Computer

    File transfer to a computer To transfer photos/videos to a computer: 1. Turn OFF the camera. 2. Connect the USB cable (supplied) from the camera to a computer 3. The computer will detect the camera and install the driver automatically. 4.
  • Page 17: Troubleshooting

    (p.13). according to the power source (p.7). • Small animals may trigger the unit. Reduce distance • Install the latest update (available on www.spypoint. setting (p.13) and/or raise height of camera. com under SUPPORT section). • Motion detector may detect animals through foliage.
  • Page 18: Error Messages

    Error messages Error message Possible solutions Insert memory The use of a memory card is required to record video card and photos. • Delete the files or use a new memory card. Memory card full • Afterwards, the "Continuous" option can be activated for a continuous recording (p.11).
  • Page 19: Available Accessories

    Available accessories obtain more information available accessories, www.spypoint.com. Here are the main accessories available: Rechargeable 12V battery, POWER Solar panel charger & housing kit #SP-12V, Solar panel with adjus- #KIT-12V, 12-volt 7.0Ah rechar- table steel mounting kit. Maintains geable battery with a water resis-...
  • Page 20 4.9 ft (1.5 m), min. height: patible with REMOS™ technology. 1.7 ft (0.5 m), max. load weight: Requires 1 alkaline 9V battery or a 11 lbs (5 kg). Fits most SPYPOINT ® 12V power supply (not included). products. Also available in black.
  • Page 21: Specifications

    Specifications (BF-10 Photo recording Detection system Motion sensor Photo resolution 3 MP, 5 MP, 10 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Time lapse mode Predefined intervals from 30 s to 1 h Delay between each detection Adjustable from 10 s to 30 min Multi-shot mode...
  • Page 22 Specifications (BF-12 Photo recording Detection system Motion sensor Photo resolution 5 MP, 8 MP, 12 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Time lapse mode Predefined intervals from 30 s to 1 h Delay between each detection Adjustable from 10 s to 30 min Multi-shot mode...
  • Page 23: Regulation

    Industry Canada technical specifications. Hereby, GG Telecom declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 99/5/EC. The user can obtain a copy of the Declaration of Conformity by e-mail at info@spypoint.com.
  • Page 24: Limited Warranty

    BEFORE sending a product for repair, please contact our purchased online from an unauthorized dealer. Any modification or tam- technical support team at 1-888-779-7646 or tech@spypoint.com. pering of the product will affect its operation, performance, durability and Clearly describe the problem and give a phone number where we voids this warranty.

This manual is also suitable for:

Bf-12hd
