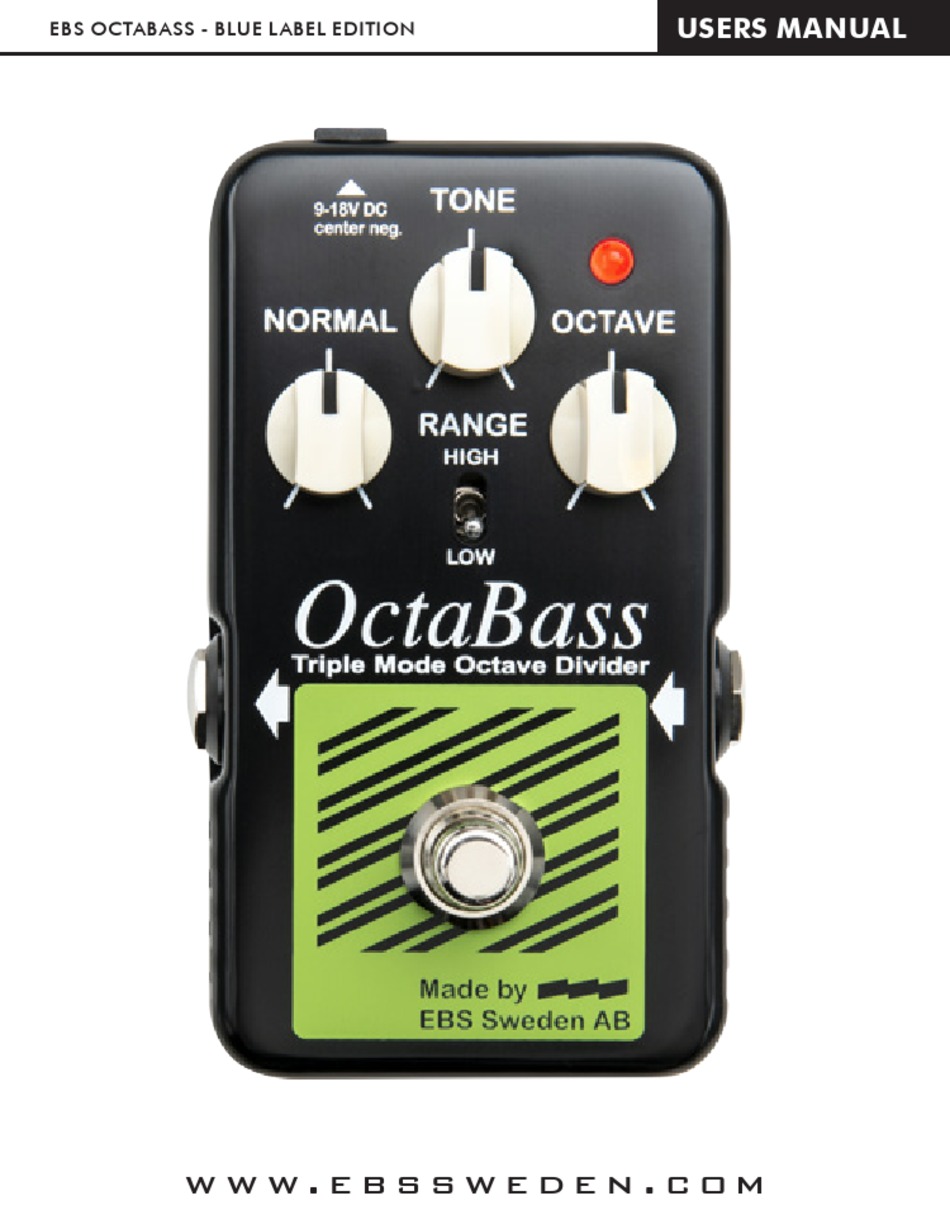

- Page 1 USERS MANUAL EBS OCTABASS - BLUE LABEL EDITION w w w . e b s s w e d e n . c o m...

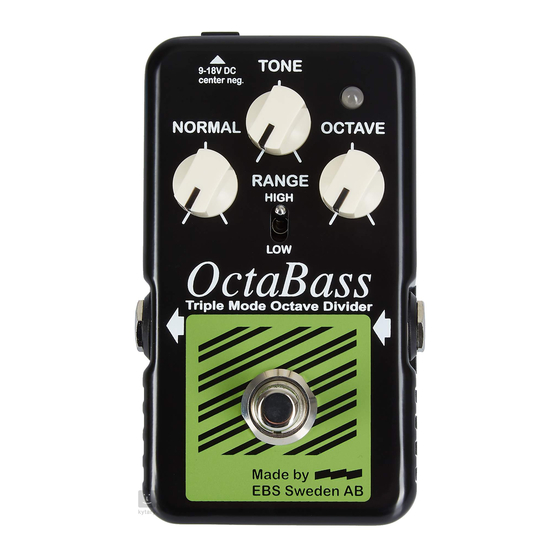

- Page 2 THANK YOU FOR PURCHASING THE EBS OCTABASS - BLUE LABEL EDITION PEDAL! The EBS OctaBass analog octave divider creates a single note one octave below the pitch of the played note, adding a new dimension to your sound. The incredibly fast tracking allows rapid playing techni- ques to be accurately reproduced.
- Page 3 USERS MANUAL EBS OCTABASS - BLUE LABEL EDITION THE CONTROLS TONE changes the character of the suboctave TONE note. A higher setting gives the most synthesized type of sound, and suits best when using the pedal with guitar and other high-pitched instruments.
- Page 4 POWER OPTIONS DC POWER ADAPTOR For environmental reasons, we recommend the use of a DC Power Supply, such as the EBS AD-9 Pro. The EBS OctaBass Blue Label Edition handles 9-18 V DC, and require a 2.1 mm pin center negative type of connector.
- Page 5 Try playing these notes on other positions on the fingerboard if nothing else helps. 6) If you are the happy owner of an EBS MultiComp compressor pedal, try to put this pedal before the OctaBass. The MultiComp pedal can fix a poor signal from the instrument and improve triggering considerably.
- Page 6 Useful for solo playing, fill-ins as well useful for other instrument than bass or guitar. (Even more synth-like in combination with an EBS BassIQ set to Down mode). w w w . e b s s w e d e n . c o m...
- Page 7 USERS MANUAL EBS OCTABASS - BLUE LABEL EDITION TROUBLE SHOOTING GUIDE Please consult the following checkpoints, before consulting one of the authorized EBS service centers. Checkpoint Action if answered NO 1) Does the cable(s) work - Replace cable(s). properly? 2) Are the 1/4” plugs properly - Push the 1/4”...
- Page 8 USERS MANUAL EBS OCTABASS - BLUE LABEL EDITION TECHNICAL SPECIFICATIONS EBS OCTABASS Blue Label Edition Nominal Input Level -10 dBv Input Impedance 1.8 Mohms Output Impedance 100 ohms Dry Bandwidth +0/-2 dB 20 - 20k Hz Dry Level min/max -oo / 0 dB...
