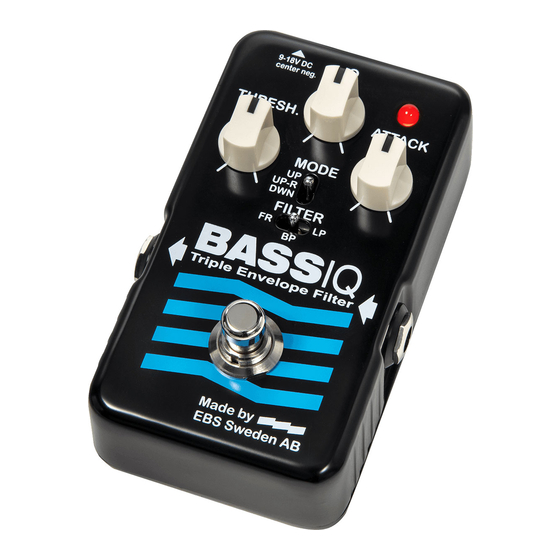

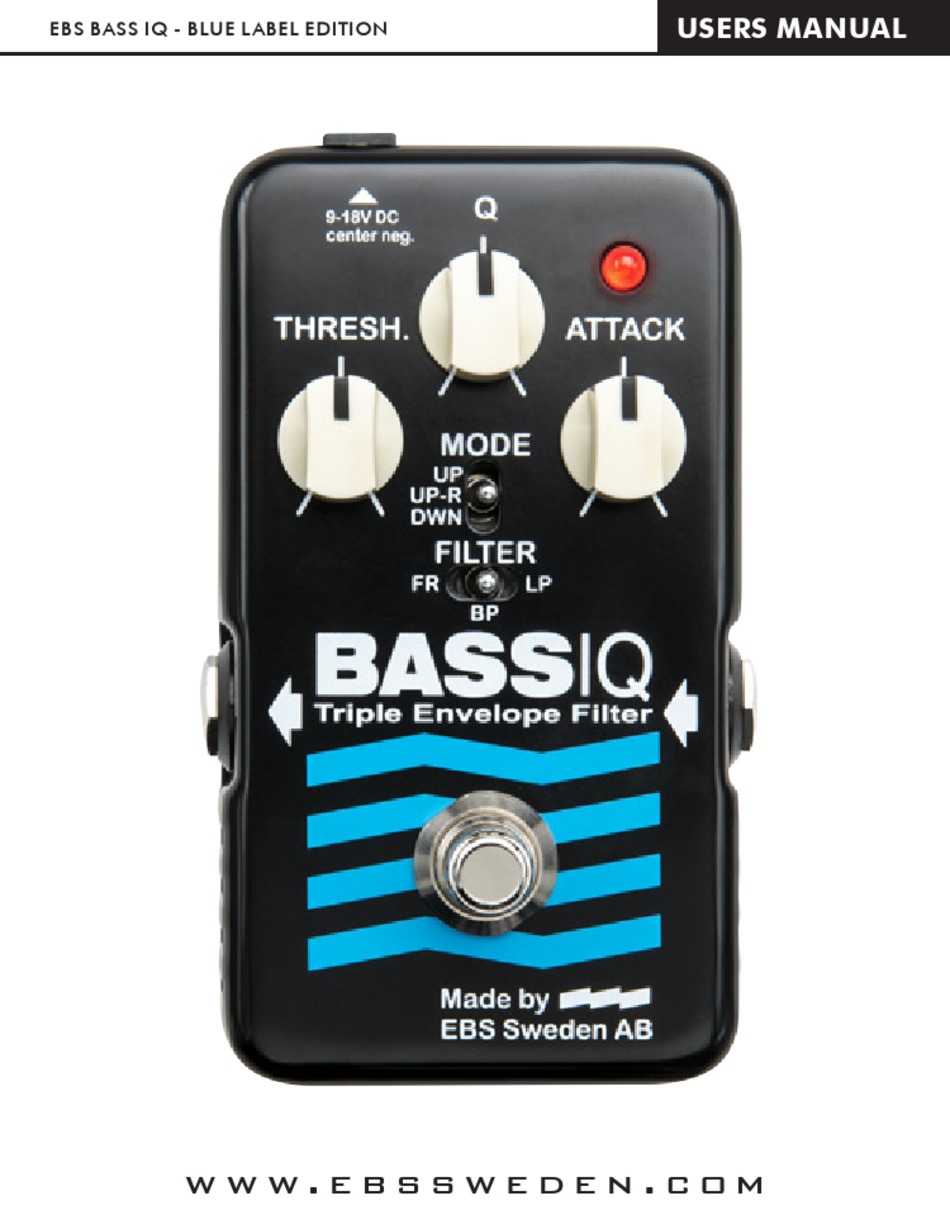

  • Page 1 USERS MANUAL EBS BASS IQ - BLUE LABEL EDITION w w w . e b s s w e d e n . c o m...
  • Page 2 THANK YOU FOR PURCHASING THE EBS BASS IQ - BLUE LABEL PEDAL! The EBS Bass IQ is an analog envelope filter pedal that is triggered by the notes you play. The new version has added controls and filters that expands the palette of funky sounds that can be created with the pedal.
  • Page 3 USERS MANUAL EBS BASS IQ - BLUE LABEL EDITION THE CONTROLS Q controls the bandwidth or the ’Q’ value of the filter, i.e. the sharpness and peak of the filter. THRESH. controls the sensitivity of the filter. The THRESH. higher the setting, the higher the sensitivity.
  • Page 4 USERS MANUAL EBS BASS IQ - BLUE LABEL EDITION FILTER FR means Fullrange. In this position the filter regains the higher frequencies when opening up completely, maintaining the high frequency contents of the original signal. BP is a Bandpass filter. This can be called the AutoWah position, since the effect is similar to wah effects.
  • Page 5 0% to 100% mix. Factory setting is minimum position. GAIN sets the overall gain of the EBS BassIQ when in use. The factory setting for this trimmer is minimum position. RANGE sets the maximum upper range for the pedal while in UP-R mode.

  • Page 6: Power Options

    POWER OPTIONS DC POWER ADAPTOR For environmental reasons, we recommend the use of a DC Power Supply, such as the EBS AD-9 Pro. The EBS BassIQ Blue Label handles 9-18 V DC, and require a 2.1 mm pin center negative type of connector.

  • Page 7: Troubleshooting Guide

    USERS MANUAL EBS BASS IQ - BLUE LABEL EDITION TROUBLE SHOOTING GUIDE Please consult the following checkpoints, before consulting one of the authorized EBS service centers. Checkpoint Action if answered NO 1) Does the cable(s) work - Replace cable(s). properly? 2) Are the 1/4”...
  • Page 8 USERS MANUAL EBS BASS IQ - BLUE LABEL EDITION TECHNICAL SPECIFICATIONS EBS BASS IQ BLUE LABEL EDITION Nominal Input Level -10 dBv Input Impedance 1.8 Mohms Output Impedance 100 ohms Dry Bandwidth +0/-2 dB 20 - 20k Hz Filter: Range 100 - 2.5k Hz...
