Summary of Contents for EBS Billy Sheehan Ultimate Signature Drive

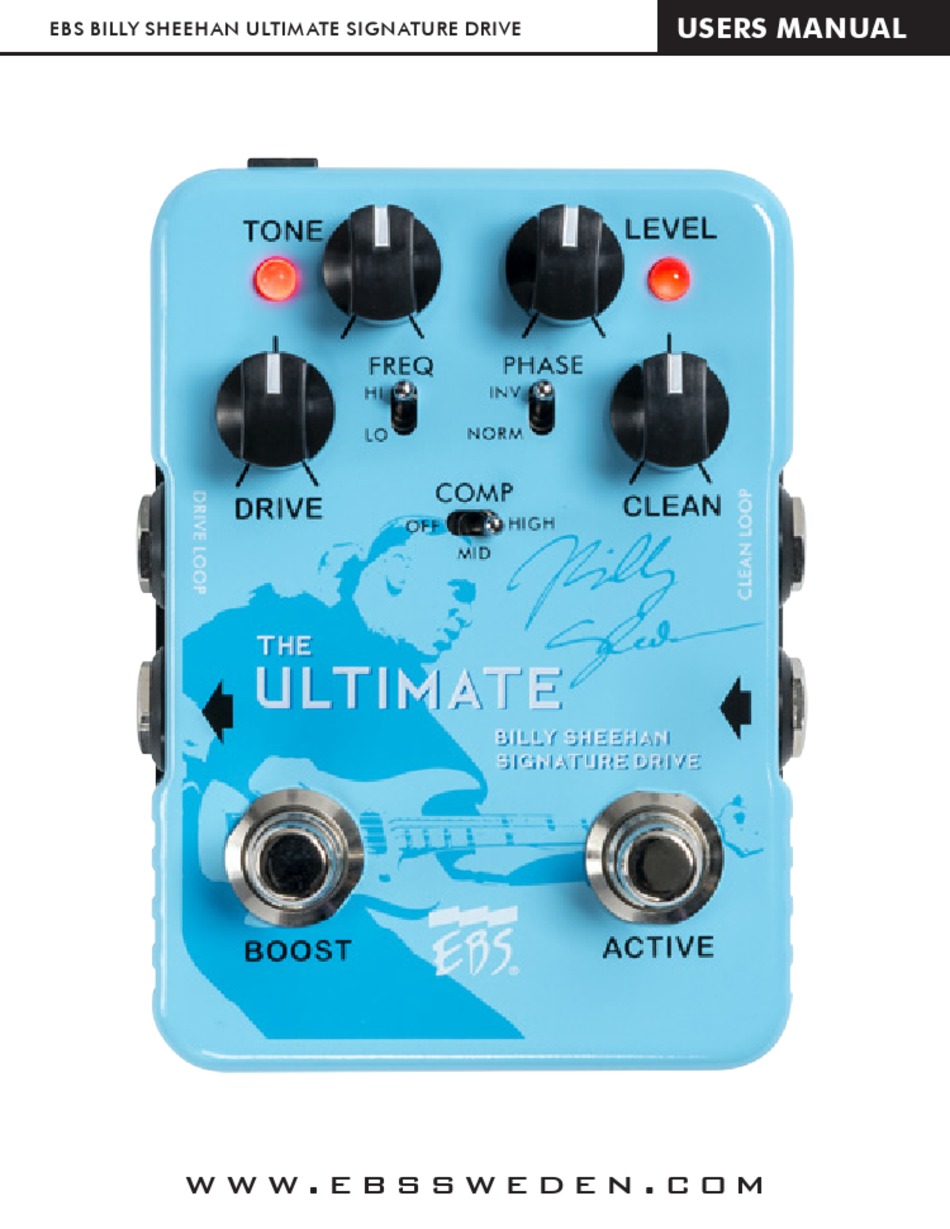

- Page 1 USERS MANUAL EBS BILLY SHEEHAN ULTIMATE SIGNATURE DRIVE w w w . e b s s w e d e n . c o m...
- Page 2 THANK YOU FOR PURCHASING THE EBS BILLY SHEEHAN ULTIMATE SIGNATURE DRIVE PEDAL Thank you for purchasing the Billy Sheehan Ultimate Signature Drive! The ’Ultimate’ version has inherited all the features from the Deluxe version (including the possibility to swap the drive chip without the need of soldering).
- Page 3 USERS MANUAL EBS BILLY SHEEHAN ULTIMATE SIGNATURE DRIVE THE CONTROLS DRIVE sets the gain for the classic overdrive engine, all from subtle to high gain tone. DRIVE TONE fine tunes the desired frequency scoop, ranging from lower to higher midrange.
- Page 4 POWER OPTIONS DC POWER ADAPTOR We recommend the use of a DC Power Supply, such as the EBS AD-9 Pro. The pedal handles 9-18 V DC, and require a 2.1 mm pin center negative type of connector. BATTERY The pedal can run on battery (not included). Use a 9V alkaline type;...
- Page 5 USERS MANUAL EBS BILLY SHEEHAN ULTIMATE SIGNATURE DRIVE THRESHOLD LEVEL REPLACEABLE TRIM POT (THR) OP-AMP CHIP COMP LEVEL TRIM POT BOOST FOR MID POSITION (COMP) TRIM POT BATTERY SOCKET w w w . e b s s w e d e n . c o m...
- Page 6 (the photo shows a reverb connected to the Drive Loop). When using the loops, use an insert cable of a standard TRS type, such as the EBS ICY-30, where the RING is the SEND signal, and the TIP is the RETURN signal back to the pedal.
- Page 7 USERS MANUAL EBS BILLY SHEEHAN ULTIMATE SIGNATURE DRIVE BLOCK DIAGRAM w w w . e b s s w e d e n . c o m...
- Page 8 USERS MANUAL EBS BILLY SHEEHAN ULTIMATE SIGNATURE DRIVE TECHNICAL SPECIFICATIONS Nominal Input Level - 8 dBv Input Impedance 700 kohms Gain Range* Drive 20 - 50 dB Boost adjustable +3- 10 dB Tone Filter Range 175 - 8000 Hz in two ranges 0.7-0.9...
