INSTALLATION INSTRUCTIONS
1. Remove all packing materials from the oven cavity, (do not remove the waveguide cover, item 9 below),
and the feature sticker from the outside of the door, if there is one. Check the unit for any damage, such as
a misaligned door, damaged door seals around the door or dents inside the oven cavity or on the door. If there
is any damage, please do not operate the oven until it has been checked by a SERVICE CENTRE
APPROVED BY SHARP and repaired, if necessary.
2. Accessories provided
1) Turntable tray
2) Roller stay
3) Operation manual and cooking guide
3. Locate the roller stay in the centre of the oven, then fit the turntable on the roller stay. Make sure the turntable
is centrally located and locked together. Refer to OVEN DIAGRAM below. Never operate the oven without
the roller stay and turntable.
4. The oven should not be installed in any area where heat and steam are generated, for example, next to a
conventional oven unit. The oven should be installed so as not to block ventilation openings.
Allow at least 10 cm on the top, 5 cm on the both sides and at the rear of the oven for free air space.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or personal
injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage must be single phase • 230-240V, 50Hz.
6. Operate the oven from a general purpose domestic outlet.
If a generator is used, do not operate the oven with NON–SINUSOIDAL outputs.

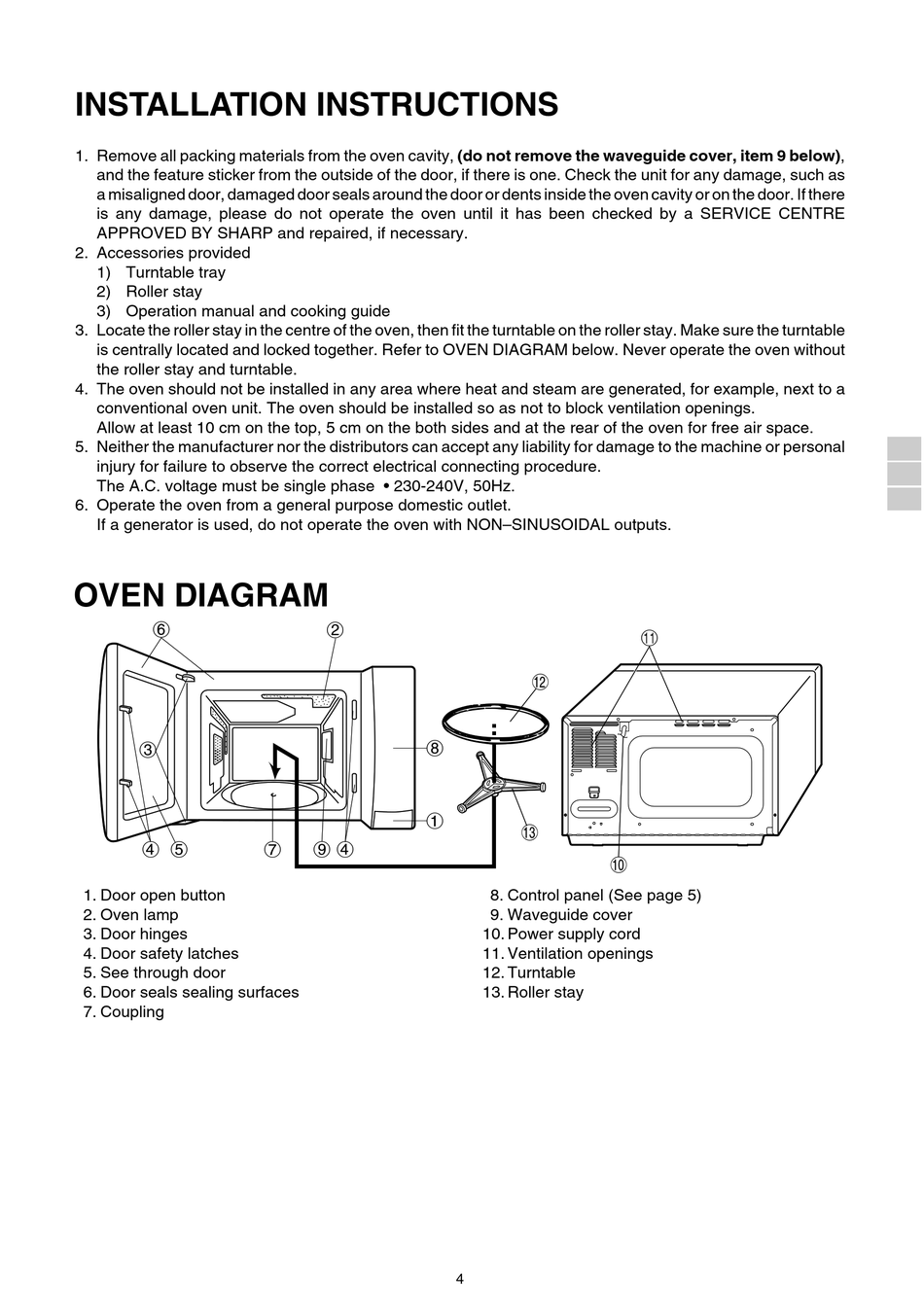

OVEN DIAGRAM
6
3
4 5
1. Door open button
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals sealing surfaces
7. Coupling
2
8
1
7
9 4
w
e
0
8. Control panel (See page 5)
9. Waveguide cover
10. Power supply cord
11. Ventilation openings
12. Turntable
13. Roller stay
