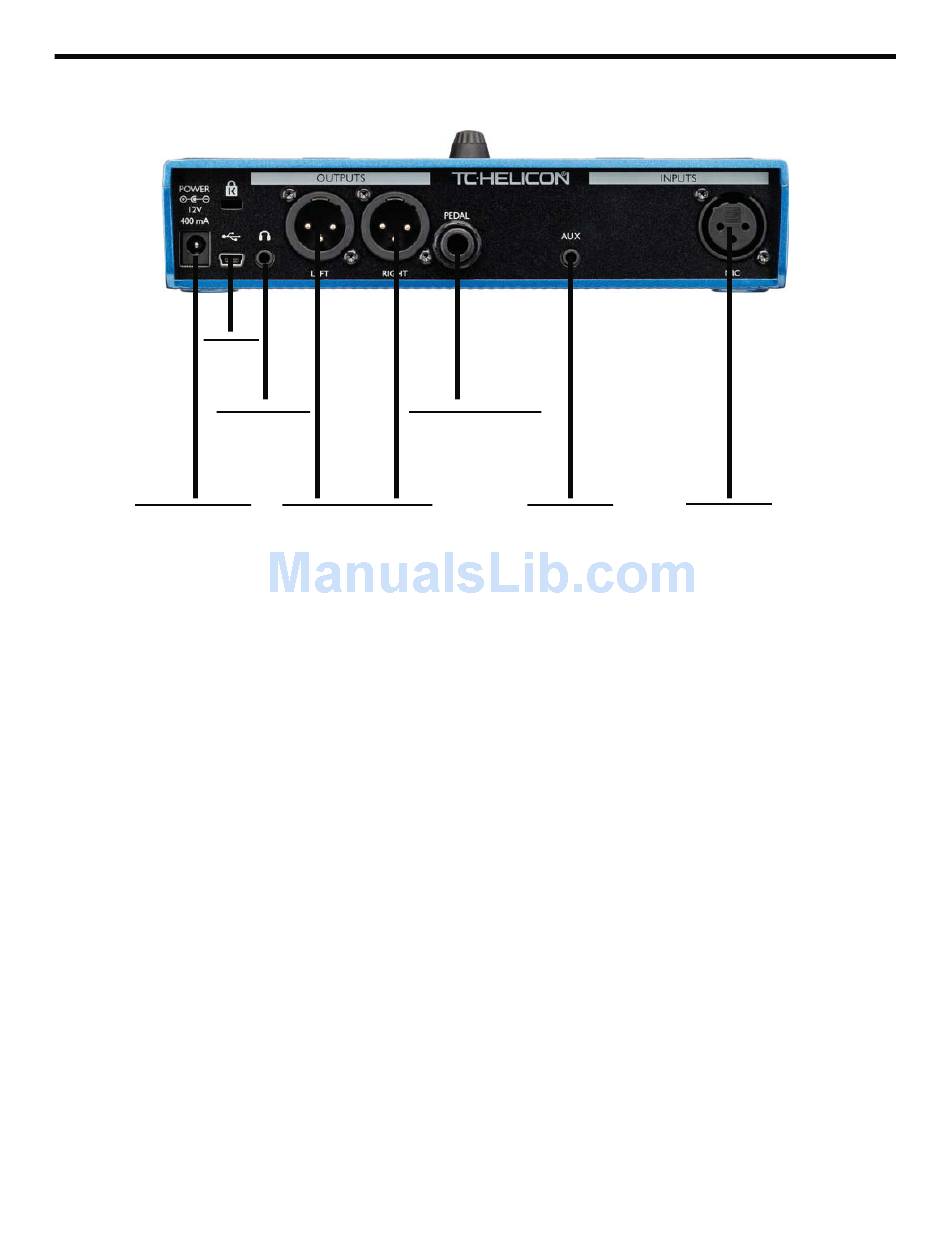

Connection Guide

USB
Phones
Power In
Power In - Connect the included power supply
USB - Connect to your computer with the included cable. Use VoiceSupport to manage presets and up-
date Firmware. www.tc-helicon.com/products/voicesupport
Phones - Headphone output.
Left+Right - Main XLR outputs connect to your P.A. system or audio interface. Always use balanced
cables to avoid HUMMMMMMM.
Switch3 In - Use a TRS cable to connect a Switch 3, which can control looping. If you use the S3, you
have access to looping without pressing the Up and Down footswitches.
Aux In - Use a 1/8" cable to connect any music source you like, espcially the 8-Track from your 1974
Comet. When an input is detected here, Play will use the music to figure out Key/Scale info.
Mic In - This is where the magic happens. Plug your dynamic, condenser or MP-75 Mic in here. Re-
member to set the mic type and level, as described in the QuickStart Guide.
*WARNING: ALWAYS USE A TC-HELICON POWER SUPPLY. THE USE OF ANY OTHER POWER SUPPLY
MAY CAUSE DAMAGE TO THE UNIT AND WILL NOT BE COVERED BY WARRANTY.
Switch3 In
Out to P.A.
or DAW
Aux In
6
Mic In
