Extreme Flight RC EDGE 540T EXP Manual page 4

Items needed for completion
-Masking tape.
-Hobby knife with #11 blades.
-Razor saw.
-Thin and medium CA. We highly recommend Mercury M5T thin and M100XF
medium formulas as well as the Mercury glue tips.

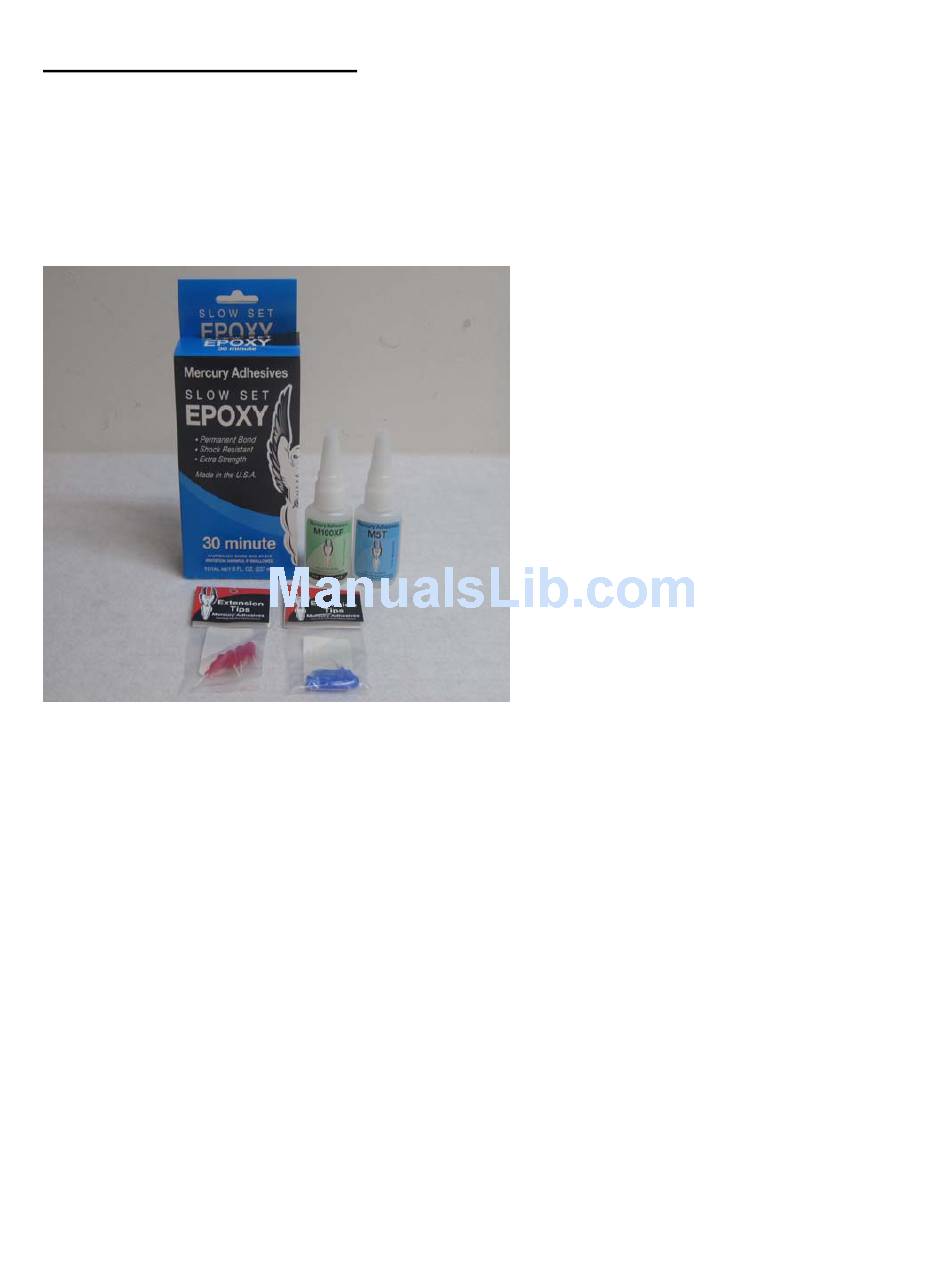

-30 minute epoxy. The new Mercury adhesives Epoxies have worked very well for
us.
-Blue Loctite.
-Electric drill with an assortment of small drill bits.
-Small flat head and Phillips head screw drivers.
-Standard and needle nose pliers.
-Metric balldriver or allen key set.
-Sanding block and sandpaper.
-4 mini metal geared servos. All flight testing was performed with Hitec HS-
5245MGs and we strongly recommend the use of these high quality servos.
-Dubro Super Strength servo arm set.
-Torque 4016T/500 Brushless Outrunner or Hacker A50-14XS v2 Outrunner
motor.
-Airboss Elite 80 Amp ESC.
-5S-6S 3300-5000 mah LiPo battery.
- 16x8 prop for 5S operation, 15x6 for 6S operation.
-63mm Extreme Flight Elite spinner.
-2-24" extensions for the 2 rear servos and 2-6"extensions to go between the receiver
and the aileron servo leads.
-Adhesive backed Velcro and Velcro strap for battery retention.
4
