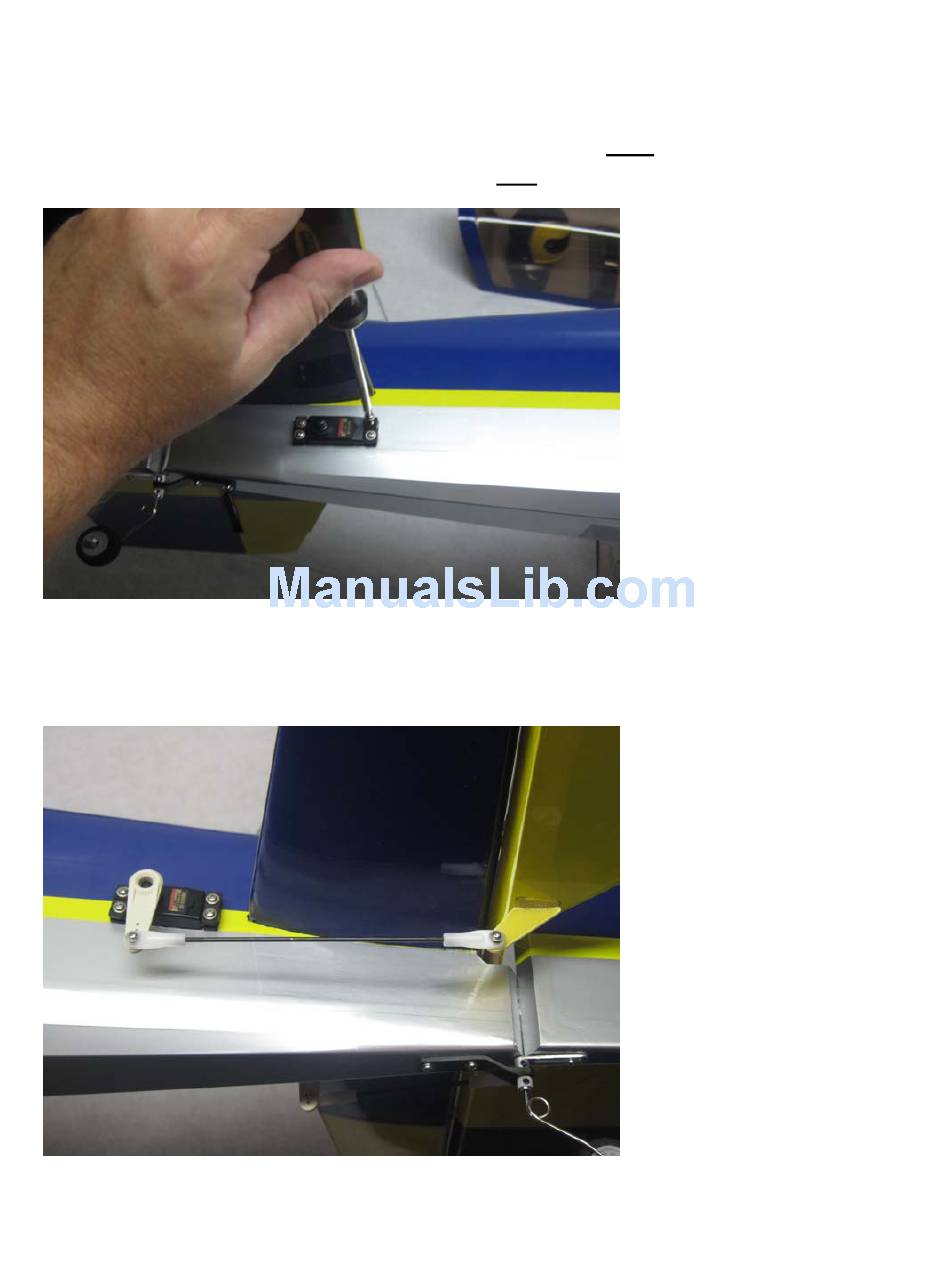

22. Use the hardware provided with the servos to install the rudder and elevator servos in
their respective location in the rear of the aircraft. From the pilot's perspective the rudder
servo mounts on the right side of the fuselage and the elevator servo mounts on the left side.
The elevator servo should have the output shaft toward the front of the aircraft while the
rudder servo output shaft should be toward the rear of the aircraft.
23. The rudder and elevator servo linkages assemble and are installed just like the aileron
linkages. For maximum control surface travel we highly recommend using the Dubro
Super Strength servo arms.
