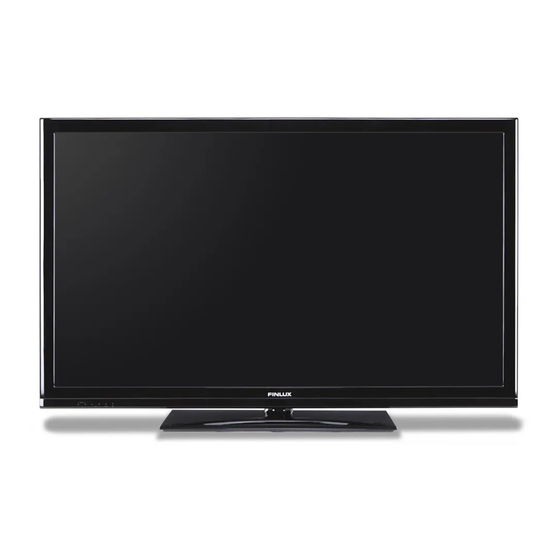

Summary of Contents for Finlux 47S7010
-
Page 2: Table Of Contents
Contents Features ..............2 Playing Music via USB ........21 Recordings Library..........21 Introduction ............. 2 Media Browser Settings ........22 Preparation ............. 2 Timeshift Recording ..........22 Safety Precautions ..........2 Instant Recording ..........22 Package Contents ..........5 Watching Recorded Programmes ....... -
Page 3: Features
Features Introduction • 3D Viewing: This product supports the 3D viewing Thank you for choosing this product. This manual function via an available broadcast or via HDMI, will guide you through the proper operation of your PC,YPBPR source. TV. Before operating the TV, please read this manual thoroughly. -
Page 4: Disconnecting The Device
batteries in an environmentally friendly manner. Find Moisture and Water out about the legal regulations which apply in your Do not use this device in a humid and area. damp place (avoid the bathroom, the • Do not try to recharge batteries, there is a danger sink in the kitchen, etc). -
Page 5: Headphone Volume
Caution • Flickering may be generated by the 3D glasses (60 Hz) when watching the 3D screen when a magnetic Please read these safety instructions carefully to uorescent lamp (50 Hz) is on. ensure your personal safety and to prevent •... -
Page 6: Package Contents
Licence Notification (optional) Package Contents Manufactured under license from Dolby Laboratories. TRADEMARK ACKNOWLEDGMENT “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. LED TV Connection to a Television Distribution System (Cable TV etc.) from Tuner Devices connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using... -
Page 7: Environmental Information
Environmental Information • This television is designed to consume less energy to save the environment. You not only help to save the environment but you can also save money by reducing electricity bills thanks to the energy efficiency features of this TV. To reduce energy consumption, you should take the following steps: •... -
Page 8: Remote Control Buttons
Remote Control Buttons Standby Pause / Timeshift recording Stop (in Media Browser mode) No function Rapid advance (in Media Browser mode) No function Subtitle on-off / TXT subtitle (analogue TV mode) / Subtitle (in Media Browser mode) Blue button Yellow buton Numeric buttons(**) Previous programme OK / Select / Hold (in TXT mode) / Channel List... -
Page 9: Tv And Operating Buttons
TV and Operating Buttons FRONT and REAR VIEW Control buttons VIEW Control Buttons 1. Standby/On button 2. TV/AV button 3. Programme Up/Down buttons 4. Volume Up/Down buttons Note: Press “ ” and “ ” buttons at the same time to view main menu. -
Page 10: Viewing The Connections - Side Connectors
Note: that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages. PC Input is for connecting a personal computer to the TV set. Connect the PC cable between the PC INPUT on the TV and the PC output on your PC HDMI Inputs are for connecting a device that has an HDMI socket. -
Page 11: Using Usb Inputs
CAUTION ! Using USB Inputs • Quickly plugging and unplugging USB devices, USB Connection is a very hazardous operation. Especially, do not • You can connect a USB hard disk drive or USB repeatedly quickly plug and unplug the drive. This memory stick to your TV by using the USB inputs may cause physical damage to the USB player and of the TV. -
Page 12: Connecting The Tv To A Pc
• Multipartiton support is available. Maximum two Connecting to a DVD Player different partitions are supported. If the disk have If you want to connect a DVD player to your TV, more than two partitions, crash may occur. First you can use the connectors of the TV set. DVD partition of the usb disk is used for PVR ready players may have different connectors. -
Page 13: Using Side Av Connectors
Using Side AV Connectors Remote Control Handset You can connect a range of optional equipment to your Inserting Batteries LED TV using side connectors of the TV. • Remove the battery cover located on the back of • For connecting a camcorder or camera , you should the handset by gently pulling backwards from the use AV socket (side). -
Page 14: Digital Teletext
Standby Notifications Input Selection If the TV switches off while in No Signal mode, the Once you have connected external systems to following on-screen message will be displayed on the your TV, you can switch to different input sources. next switch-on: Press “SOURCE”... -
Page 15: Viewing The Electronic Programme Guide (Epg)
Programme Selection (Previous or Next Programme) • Press “ P-” button to select the previous programme. • Press “ P+” button to select the next programme. Programme Selection (Direct Access) • Press the numeric buttons on the remote control to select programmes between 0 and 9. -
Page 16: Recording Via Epg Screen
Text (Search): Displays “Guide Search” menu. Note: You cannot switch to any other channel or source while there is an active recording on the SUBTTL: Press SUBTITLE button to view Select current channel. Genre menu. Using this feature, you can search the programme guide database in accordance with the Set Timer / Delete Timer genre. -
Page 17: Installation
• After all the available stations are stored, the • By pressing “ ” or “ ” button, select the country Channel List will be displayed on the screen. If you you want to set and press “ ” button to highlight like the order of the channels, please select “Yes”... -
Page 18: Manual Tuning
Analog Fine Tune Manual Tuning • Select Analog Fine Tune from the Installation menu HINT: This feature can be used for direct broadcast by using “ ” or “ ” and OK buttons. Analog fine tune entry. screen will be displayed. Analog Fine Tune feature will not be available if there are no analog channels, •... -
Page 19: Operating The Channel List
Operating the Channel List characters printed above the button one by one as the button is pressed. • When finished, press the OK button to save. Press “MENU” to cancel. Locking a Channel You can press GREEN button to tag/untag all channels;... -
Page 20: Managing Stations: Sorting The Channel List
Media Playback Using Media Managing Stations: Sorting the Channel List Browser You can select broadcasts to be listed in the channel If the USB stick is not recognized after power off/on or list. To display specific types of broadcast, you should First Time Installation, unplug the USB device, turn the use the Active channel list setting. -
Page 21: Viewing Videos Via Usb
Viewing Videos via USB Viewing Photos via USB When you select Photos from the main options, available image files will be filtered and listed on this screen. When you select Videos from the main options, available video files will be filtered and listed on this screen. -
Page 22: Playing Music Via Usb
Playing Music via USB Recordings Library When you select Music from the main options, IMPORTANT: To view recordings library, you should available audio files will be filtered and listed on this first connect a USB disk to your TV while the TV is switched off. -
Page 23: Media Browser Settings
Media Browser Settings Standby button is ignored during the timeshifting. The TV will not switch to standby mode during the timeshifting. Instant Recording IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. -
Page 24: Watching Recorded Programmes
Watching Recorded Using the 3D Mode Programmes IMPORTANT! In the main menu, use “ ” or “ ” buttons to select Read and understand the 3D mode safety Media Browser. Highlight Recordings Library item by precautions carefully for your safety before using using “... -
Page 25: Changing Image Size: Picture Formats
Supported 3D Content Resolutions See Appendix F for supported 3D Content resolutions. Changing Image Size: Picture Formats • You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. • Select 3D Settings option by using “ ” / “ ” button “SCREEN”... -
Page 26: Configuring Picture Settings
Note: You can shift to screen up or down by pressing Configuring Picture Settings “ ” / “ ” buttons while picture zoom is selected as You can use different picture settings in detail. panaromic, 14:9 Zoom, Cinema or Subtitle. Press “MENU”... -
Page 27: Pc Picture Settings Operation
Advanced Settings • Dynamic Contrast : You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off • Colour Temp : Sets the desired colour tone. Setting Cool option gives white colours a slight blue stress. -
Page 28: Configuring Your Tv's Settings
Sound Settings Menu Items Volume: Adjusts volume level. Equalizer: Press OK button to view equalizer sub- menu. In the equalizer menu, the preset can be changed Operating Settings Menu Items to Music, Movie, Speech, Flat, Classic and User. • Press “ ”... -
Page 29: Configuring Language Preferences
Connect the TV to the mains supply, switch on Configuring Language and then wait for few moments until the card is Preferences activated. • When no module is inserted, “ No Common You can operate the TV’s language settings using Interface module detected”... -
Page 30: Parental Control
Language Settings Parental Settings Menu Operation • Select an item by using “ ” or “ ” button. • Use “ ” or “ ” button to set an item. • Press OK button to view more options. (*) If you set Country option as UK in the first time installation, Maturity Lock option will not be visible. -
Page 31: Timers
Timers Recording Configuration To view Timers menu, press “MENU” button and Select Recording Configuration item in the Settings select Settings icon by using “ ” or “ ” button. menu to configure recording settings. The following Press OK button to view Settings menu. Use “ ” menu is displayed for recording configuration. -
Page 32: Configuring Date/Time Settings
Hard Disk Info Configuring Source Settings To view the details about the USB disk, highlight Hard You can enables or disable selected source options. Disk Info by using “ ” or “ ” key and press OK. USB The TV will not switch to the disabled source options disk information will be displayed: when “SOURCE”... -
Page 33: Other Features
Scan Encrypted Channels: When this setting is set Other Features as YES, search process will locate the encrypted Displaying TV Information: Programme Number, channels as well. If it is set as NO, encrypted channels Programme Name, Sound Indicator, time, teletext, will not be located in automatic search or manual channel type and resolution information is displayed search. -
Page 34: Tips
Note: Most TV stations use code 100 for their index No Picture: Is the aerial connected properly? Are the pages. plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to Coloured Buttons (RED/GREEN/YELLOW/ connect the aerial? If you are in doubt, consult your BLUE) dealer. -
Page 35: Appendix A: Pc Input Typical Display Modes
Appendix A: PC Input Typical Appendix B: AV and HDMI Signal Display Modes Compatibility (Input Signal Types) The display has a maximum resolution of 1920 x 1200. Source Supported Signals Available The following table is an illustration of some of the typical video display modes. -
Page 36: Appendix C: Supported Dvi Resolutions
Appendix C: Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer to the following resolution information. Index Resolution Frequency 640x400 70Hz 60Hz 640x480 72Hz 640x480 640x480 75Hz 800x600 56Hz 800x600 60Hz 800x600... -
Page 37: Appendix D: Supported File Formats For Usb Mode
Appendix D: Supported File Formats for USB Mode Format Remarks Media File Extension Video Audio (Maximum resolution/Bit rate etc.) .mpg, .mpeg MPEG1, 2 MPEG Layer 1/2/3 .dat MPEG1, 2 MAX 1920x1080 @ 30P 20Mbit/sec MPEG2 .vob MPEG2 Movie MPEG2 PCM/MP3 .avi MAX 1920x1080 @ 30P 20Mbit/sec Xvid 1.00, Xvid 1.01, Xvid 1.02,... -
Page 38: Appendix E: Software Upgrade
Appendix E: Software Upgrade • Your TV is capable of finding and updating new software upgrades over broadcast channels. • For broadcast channels search, the TV looks at the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels. 1) Software upgrade search via user interface •... -
Page 39: Appendix F: Supported 3D Content Resolutions
Appendix F: Supported 3D Content Resolutions HDMI OTHER 1080p@24 FP Supported Supported Supported Supported Supported Supported 720p@50 FP Supported Supported Supported Supported Supported Supported 720p@60 FP Supported Supported Supported Supported Supported Supported 1080p FC SBS, TB SBS, TB SBS, TB SBS, TB SBS, TB Supported... -
Page 40: Specifications
Specifications 3D Glasses TV BROADCASTING Frame Material: PA66(Nylon) PAL/SECAM B/G D/K K’ I/I’ L/L’ Frame Type: Foldable RECEIVING CHANNELS Weights: 25g VHF (BAND I/III) Polarization Film Type: Circular UHF (BAND U) Light Penetration Rate: 45% Polarization Efficiency: 99.9% HYPERBAND Lens Thickness: 0.90mm NUMBER OF PRESET CHANNELS Lens Treatment: Hard-coated 1000... -
Page 41: Important Instruction
Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN & FUSE YELLOW (Earth)
