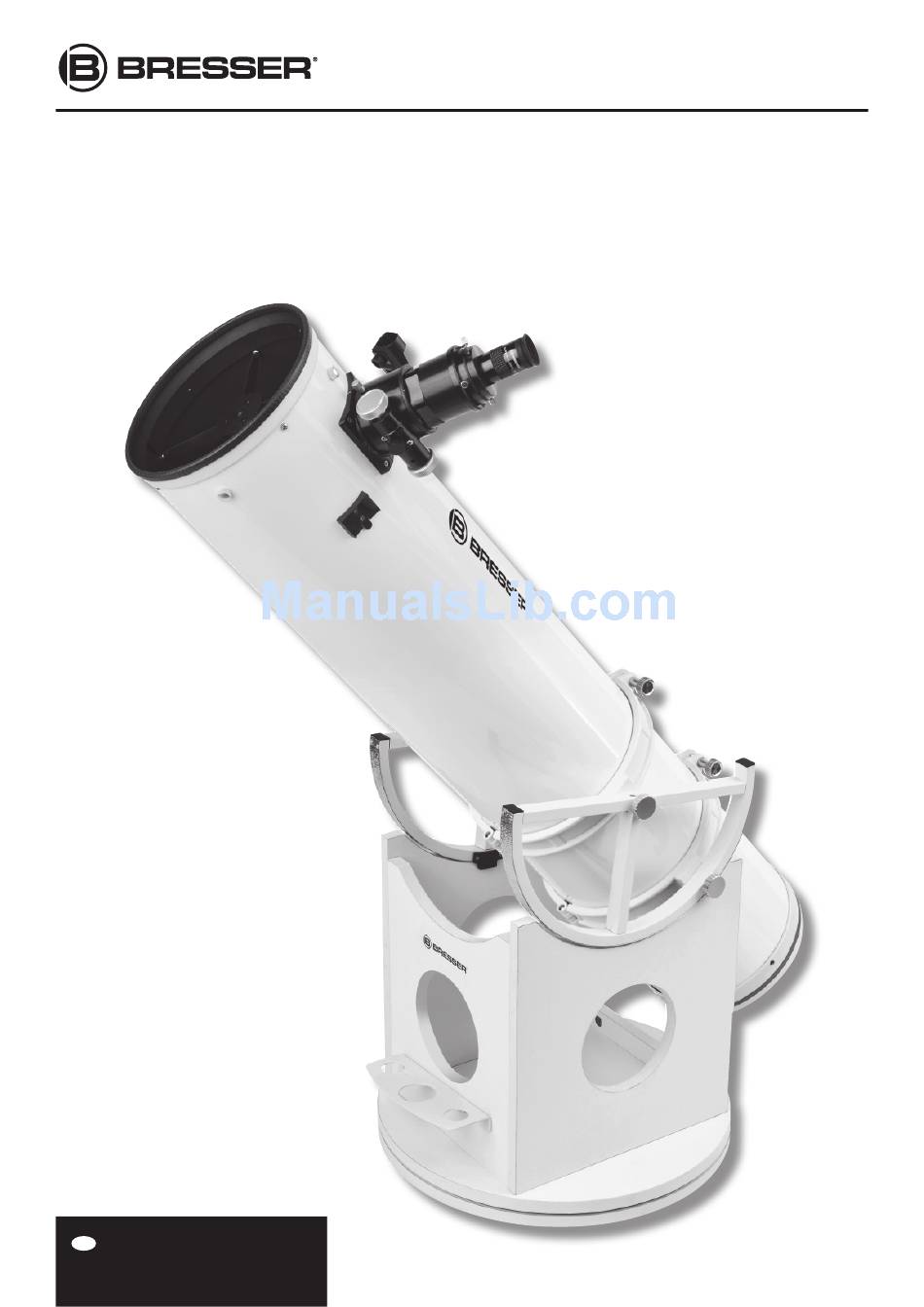

DOB 203
203/1218 (8˝) · f/6
Parabolischer Newton-Reflektor · Parabolic Newtonian Reflector · Réflecteur parabolique Newtonien
Parabolische Newton reflector · Riflettore parabolico Newton · Reflector parabólico Newton · Refletor parabólico Newton
Параболическая Ньютона Отражатель
Art. No. 47-16420
InstructIon MAnuAL
GB
