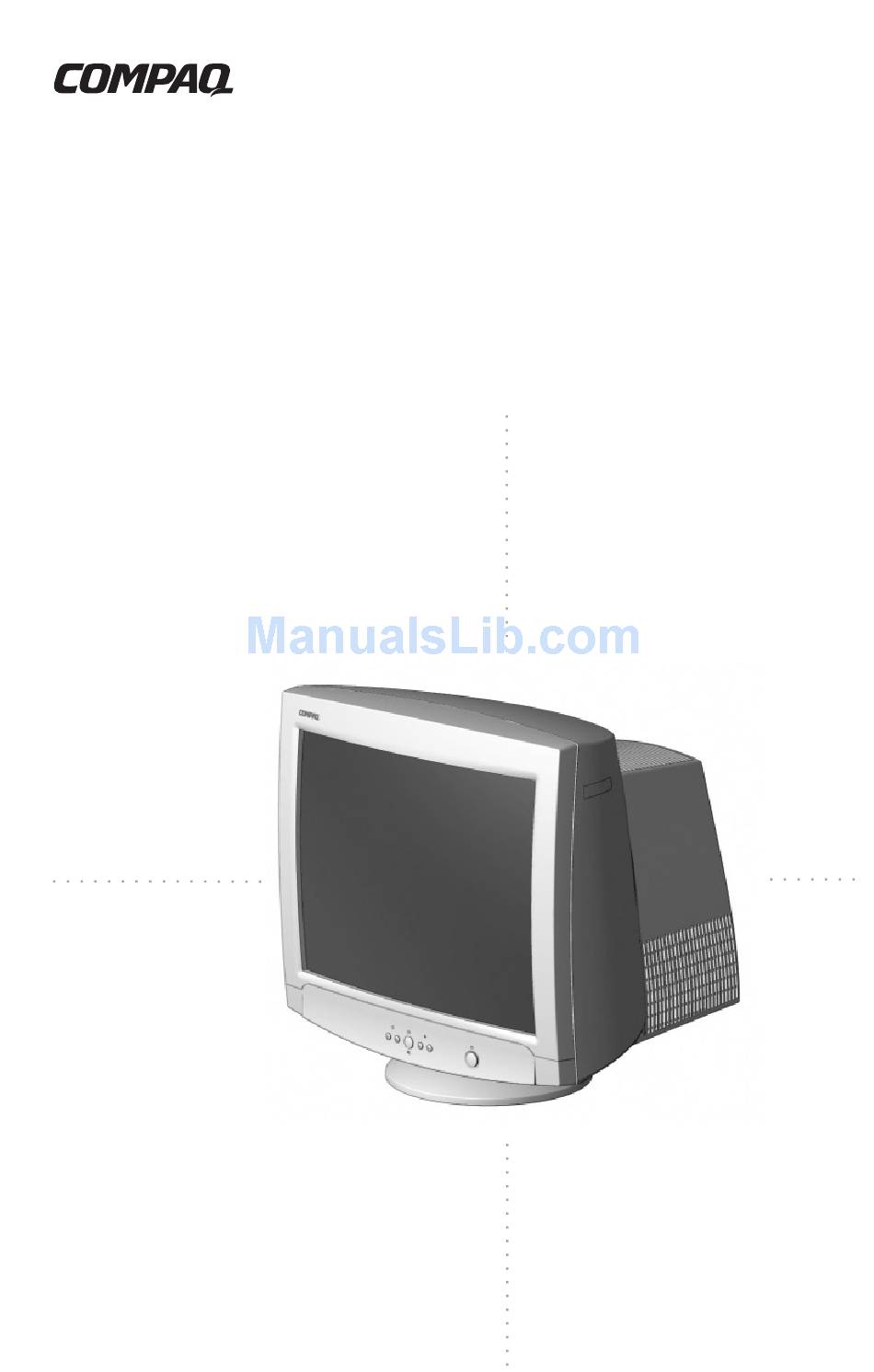

- Page 1 User’s Guide Compaq V1100 Color Monitor...
- Page 2 155818-001...
- Page 3 Corporation. © 1999 Compaq Computer Corporation. All rights reserved. Printed in Taiwan. Compaq and Deskpro are registered in the U. S. Patent and Trademark Office. Microsoft, MS-DOS, Windows, Windows NT, and other names of Microsoft products referenced herein are trademarks or registered trademarks of Microsoft Corporation.
-
Page 4: Product Features
English Product Features The Compaq V1100 Color Monitor includes the following features: 21-inch CRT that has superior brightness and uniformity with a 20.01-inch (50.8 cm) diagonal viewable image size Twenty-two preset display resolutions including 1792 × 1344 at 60 Hz... -
Page 5: Setting Up The Monitor
To install these files on your computer, insert the Compaq CD-ROM into the computer's CD tray and follow the instructions from the menu that appears on the monitor screen. - Page 6 However, the Compaq Deskpro and Compaq Workstation computers are capable of supporting a monitor that weighs up to 100 lbs. If you are not using a Compaq Deskpro or Workstation, place the monitor directly on a desktop or other sturdy work surface.
- Page 7 WARNING: To reduce the risk of electric shock or damage to your equipment: n Do not disable the power cord grounding plug. The grounding plug is an important safety feature. n Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.
- Page 8 CAUTION: When using a signal cable with BNC connectors, simultaneously press the Up and Select adjustment buttons, located on the front of the monitor, to select or change the video input. Connect the other end of the signal cable to the 15-pin graphics connector on the back of your computer.
- Page 9 Adding a Compaq Powered USB Hub The monitor base is designed to house an optional Compaq-powered USB hub. The Compaq-powered USB hub is not included with the monitor; it is sold separately. For information on purchasing the Compaq-powered USB hub (part. No. 138638), call your Compaq authorized dealer, seller, or reseller.
-
Page 10: Adjusting Screen Quality
Adjusting Screen Quality Allow the monitor to warm up for 30 minutes before performing the following procedures. The screen image stabilizes after a warm-up period. Optimizing Brightness and Contrast For best results, set your screen to a dark background (such as the DOS prompt) before adjusting the following settings: Set the brightness and contrast controls to their lowest settings. -
Page 11: Operating The Monitor
Operating the Monitor Front Panel Controls Icon Control Function Þ 1. Adjusts Contrast. Down Button 2. In on-screen display, selects or adjusts the functions. Ý 1. Adjusts Contrast. Up Button 2. In on-screen display, selects or adjusts the functions. 3. When pressed simultaneously with Select button, toggles between inputs A (BNC) and B (15-pin VGA). -
Page 12: On-Screen Display Settings
On-Screen Display Settings The adjustments for screen settings are located in the on-screen display (OSD) and can be viewed in one of six available languages. The OSD contains adjustments for the following functions: Main Menu Level Menu Level Menu Horizontal controls Adjust position Adjustments Adjust size... - Page 13 How to Adjust Settings To launch the on-screen display Main Menu: Press the Select button 3 on the monitor front panel. The Main Menu will display on the monitor screen. To select an item from the Main Menu, scroll down by pressing the Down button 1 located on the monitor front panel.
- Page 14 C. Press the Left button to move the visible screen area to the left. Press the Right button to move the visible screen area to the right. D. Press the Down button 1 to highlight the Adjust Size feature. Press the Left button to shrink the vertical size of the visible screen area.
-
Page 15: Preset Display Resolutions
Display Resolutions The display resolutions listed below are the most commonly used modes and are set as factory defaults. This monitor automatically recognizes these preset modes when they are requested by a software program and will provide the user with a properly sized and centered display. Preset Display Resolutions Modes Resolutions... -
Page 16: Energy Saver Feature
The video controller signal may occasionally call for a mode that is not preset if: You are not using a Compaq standard graphics adapter. You are not using a preset mode. If this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display. -
Page 17: Care And Maintenance
The energy saver features for monitors only work when connected to computers that have energy saver features. Care and Maintenance This section explains how to care for and maintain your Compaq monitor during normal everyday use. Protecting the Monitor To protect your monitor from overheating and other types of damage,... - Page 18 Adjust only those controls that are covered by the operating instructions. If the monitor is not operating properly or has been dropped or damaged, contact your Compaq authorized dealer, reseller, or service provider. Cleaning the Monitor To clean the monitor, follow these steps: Turn off the monitor and the computer.
-
Page 19: Agency Regulatory Notices
Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Compaq Computer Corporation may void the user's authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations. - Page 20 For questions regarding your product, contact: Compaq Computer Corporation P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800- 652-6672 (1-800-OK COMPAQ) For questions regarding this FCC declaration, contact: Compaq Computer Corporation P. O. Box 692000, Mail Stop 510101...
-
Page 21: Electromagnetic Immunity
EPA E program. As an E NERGY NERGY Partner, Compaq Computer Corporation has determined that this product meets the E guidelines for energy efficiency. Specific details NERGY on using the Energy Saving features can be found in the energy saver or power management section of the computer manual. -
Page 22: Specifications
Specifications Compaq V1100 Color Monitor Display 21-in Shadow Mask FS CRT 53.3 cm Viewable Image Size 20.01-in diagonal 50.8 cm Face Treatment Antireflective/antistatic coatings Weight (Unpacked) 52.8 lbs 24 kg Maximum Dimensions Height 18.7 in 47.5 cm Depth 16.9 in 42.9 cm... -
Page 23: Acceptable Signal Transmission Schemes
Acceptable Signal Transmission Schemes The following input sync information is for users who connect this monitor to a non-Compaq computer. You may need to provide your own cables or connectors to the computer. If you are a nontechnical user and need more information than is provided, contact a Compaq authorized dealer, reseller, or a service provider. -
Page 24: Power Cord Set Requirements
0.75 mm² or 18AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact your Compaq authorized service provider.
